$325.00

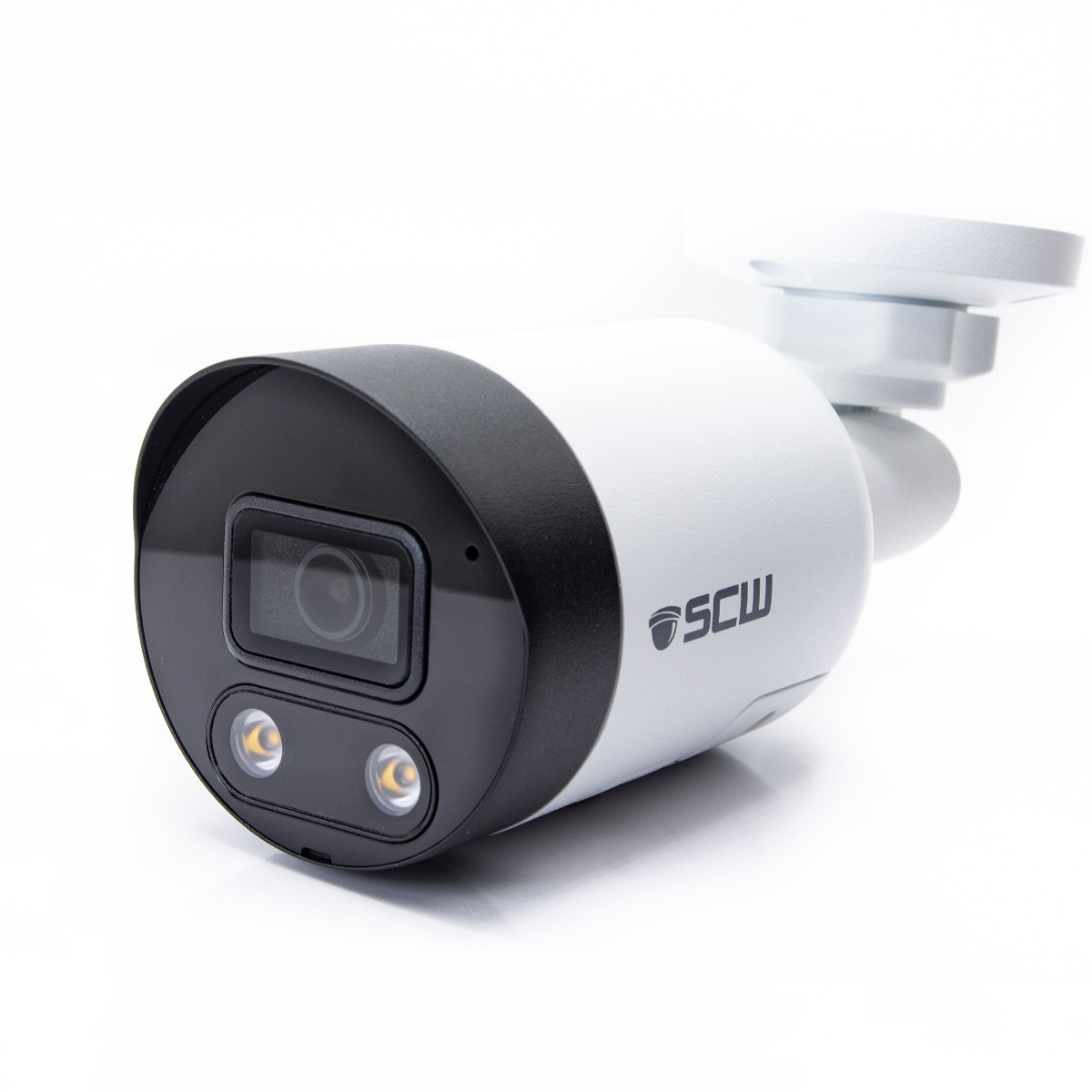

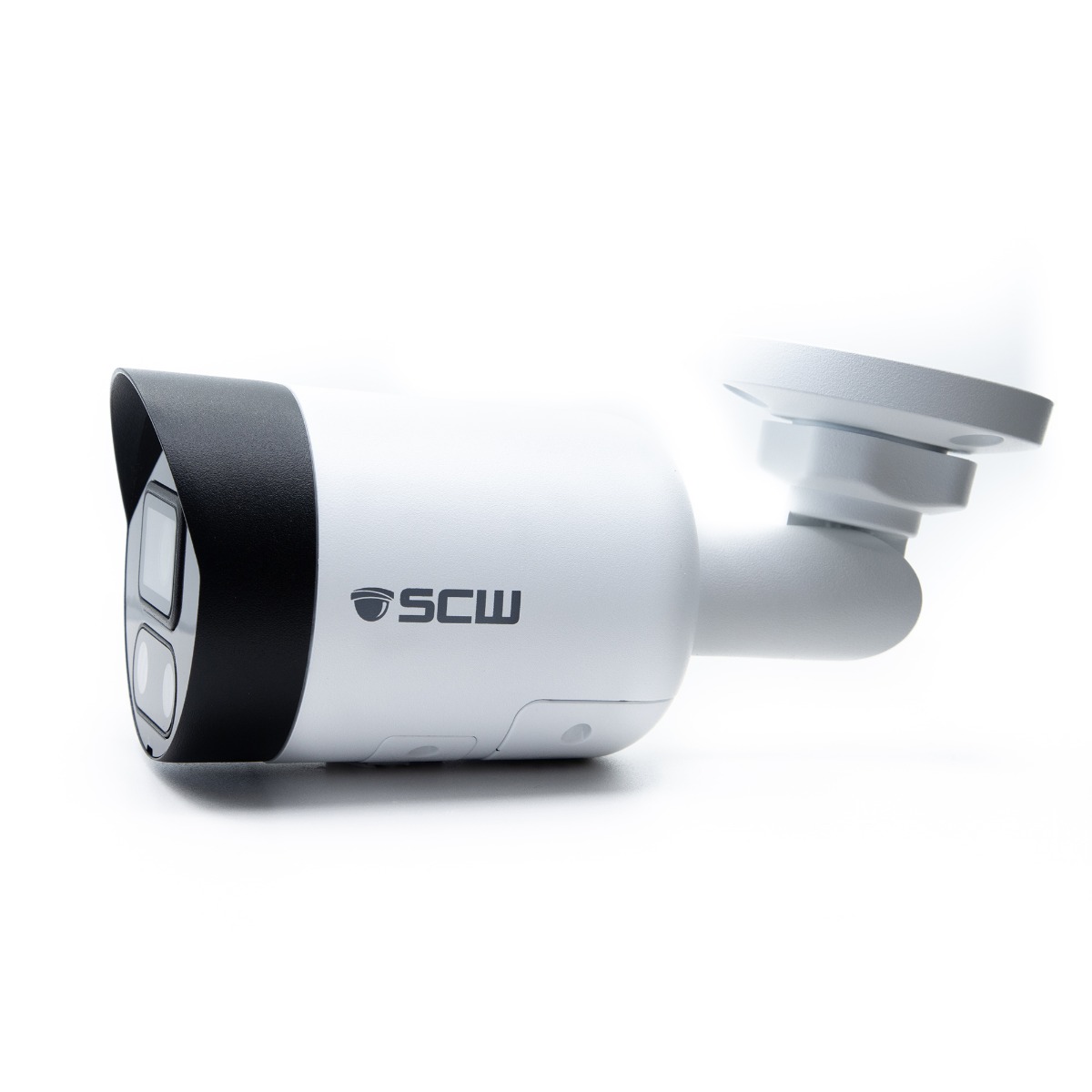

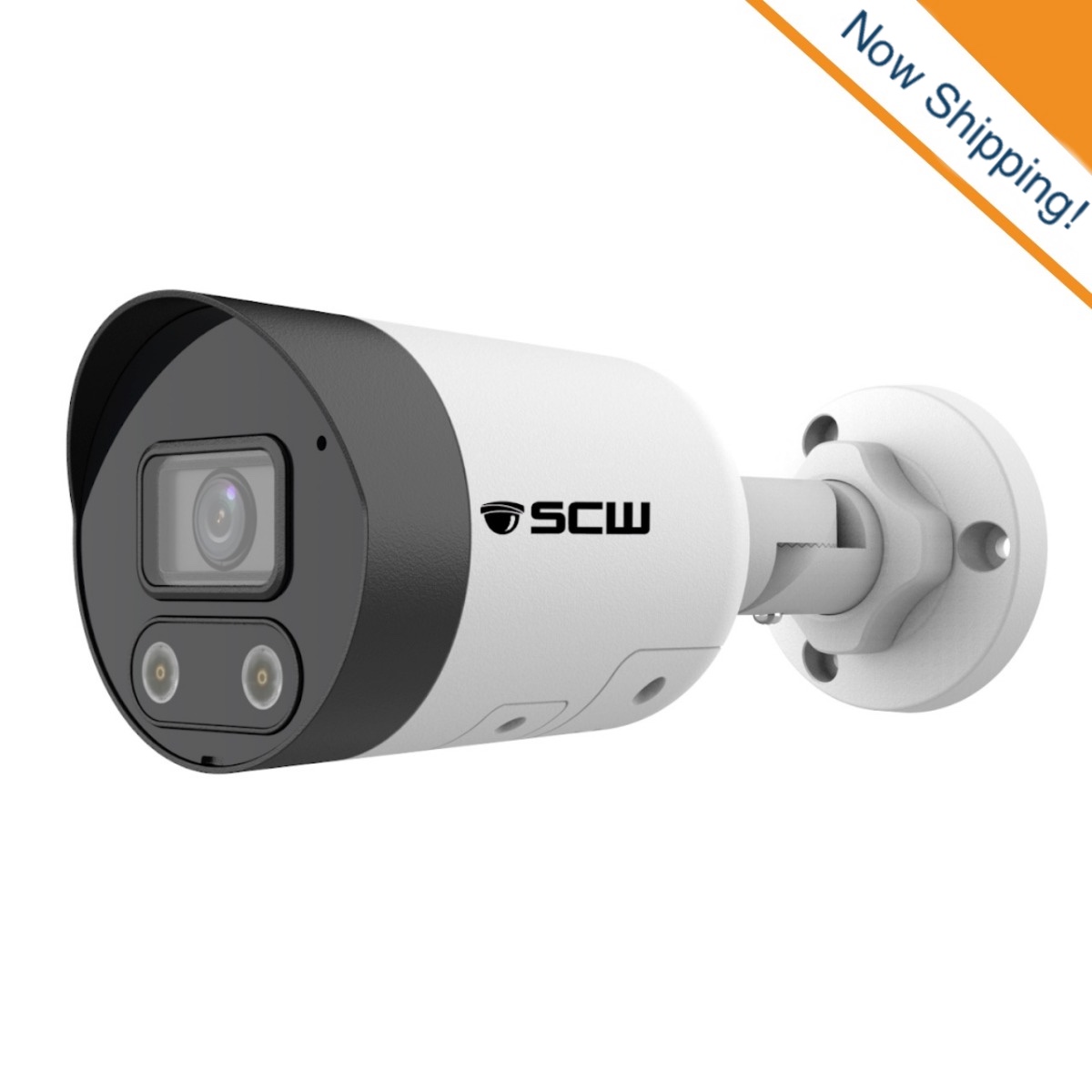

The Paladin 8.0 - 26BF8M-L-A - 8MP (4x1080P)

In stock

Usually ships the same business day if ordered before 2PM EST.

SKU
26BF8M-L-A

Resolution

4K

4K (8MP) UHD @ 20 FPS: 3840 x 2160

Detect: up to 150 ft
Recognize: up to 85 ft
Identify: up to 45 ft


4MP vs 4K


Weather

weatherproof

IP67
Full protection from dust, rain, snow, dew, frost, and sprinklers.

You can even submerge it for a few minutes.


Temp

temperature rating

Temperature rated from -22°F to 140 °F

Humidity rated between 10 and 95%.


Lens

112 degree lens

Wide Angle: 2.8mm
112° coverage

Digital Zoom Only

Fixed vs Varifocal Lenses


Day/Night

night footage

Infrared night vision up to 100FT

Active Deterrence White Light up to 30FT

Color video possible until 0.01 Lux

How to get the best footage at night


Special

special features

Micro-SD Card Slot

NDAA Approved M-Star CPU

Built in Microphone & Speaker

Active Deterrence white light and alerts

True WDR (up to 120 dB)

Seeing in shadows: Understanding WDR

The Paladin 8.0 - 26BF8M-L-A - 8MP (4x1080P)The Paladin 8.0 - 26BF8M-L-A - 8MP (4x1080P)The Paladin 8.0 - 26BF8M-L-A - 8MP (4x1080P)The Paladin 8.0 - 26BF8M-L-A - 8MP (4x1080P)

Resolution

4K

4K (8MP) UHD @ 20 FPS: 3840 x 2160

Detect: up to 150 ft
Recognize: up to 85 ft
Identify: up to 45 ft


4MP vs 4K


Weather

weatherproof

IP67
Full protection from dust, rain, snow, dew, frost, and sprinklers.

You can even submerge it for a few minutes.


Temp

temperature rating

Temperature rated from -22°F to 140 °F

Humidity rated between 10 and 95%.


Lens

112 degree lens

Wide Angle: 2.8mm
112° coverage

Digital Zoom Only

Fixed vs Varifocal Lenses


Day/Night

night footage

Infrared night vision up to 100FT

Active Deterrence White Light up to 30FT

Color video possible until 0.01 Lux

How to get the best footage at night


Special

special features

Micro-SD Card Slot

NDAA Approved M-Star CPU

Built in Microphone & Speaker

Active Deterrence white light and alerts

True WDR (up to 120 dB)

Seeing in shadows: Understanding WDR

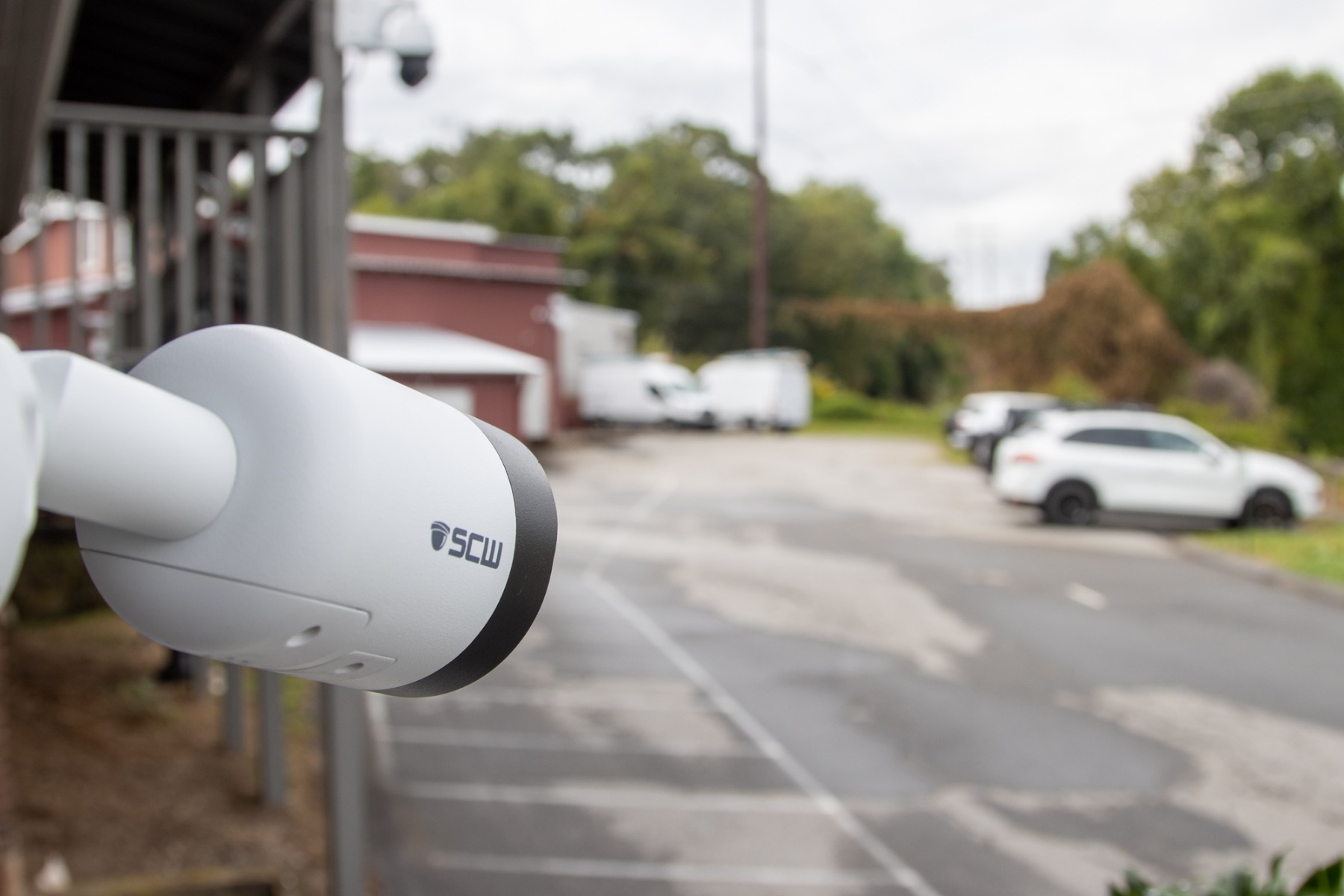

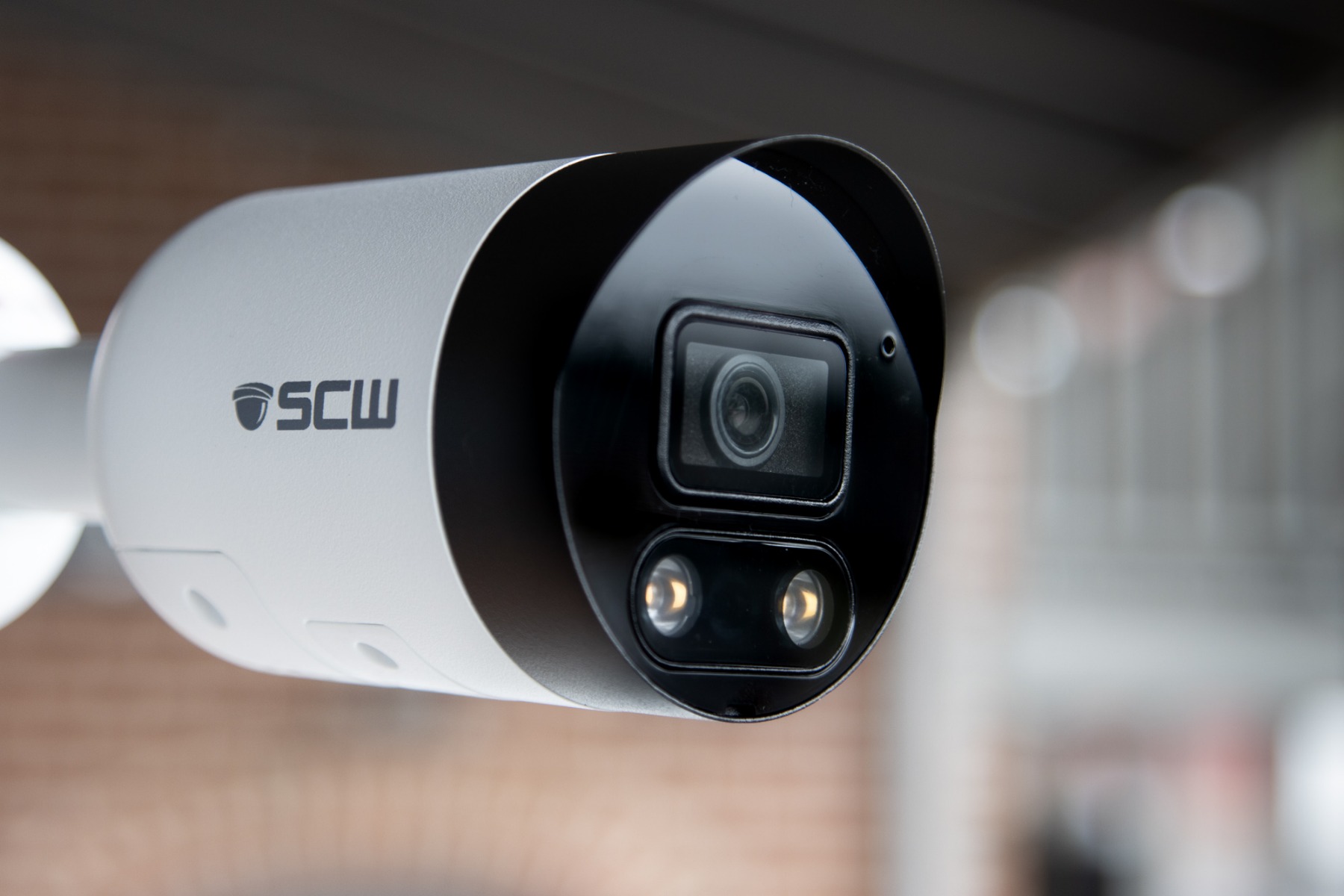

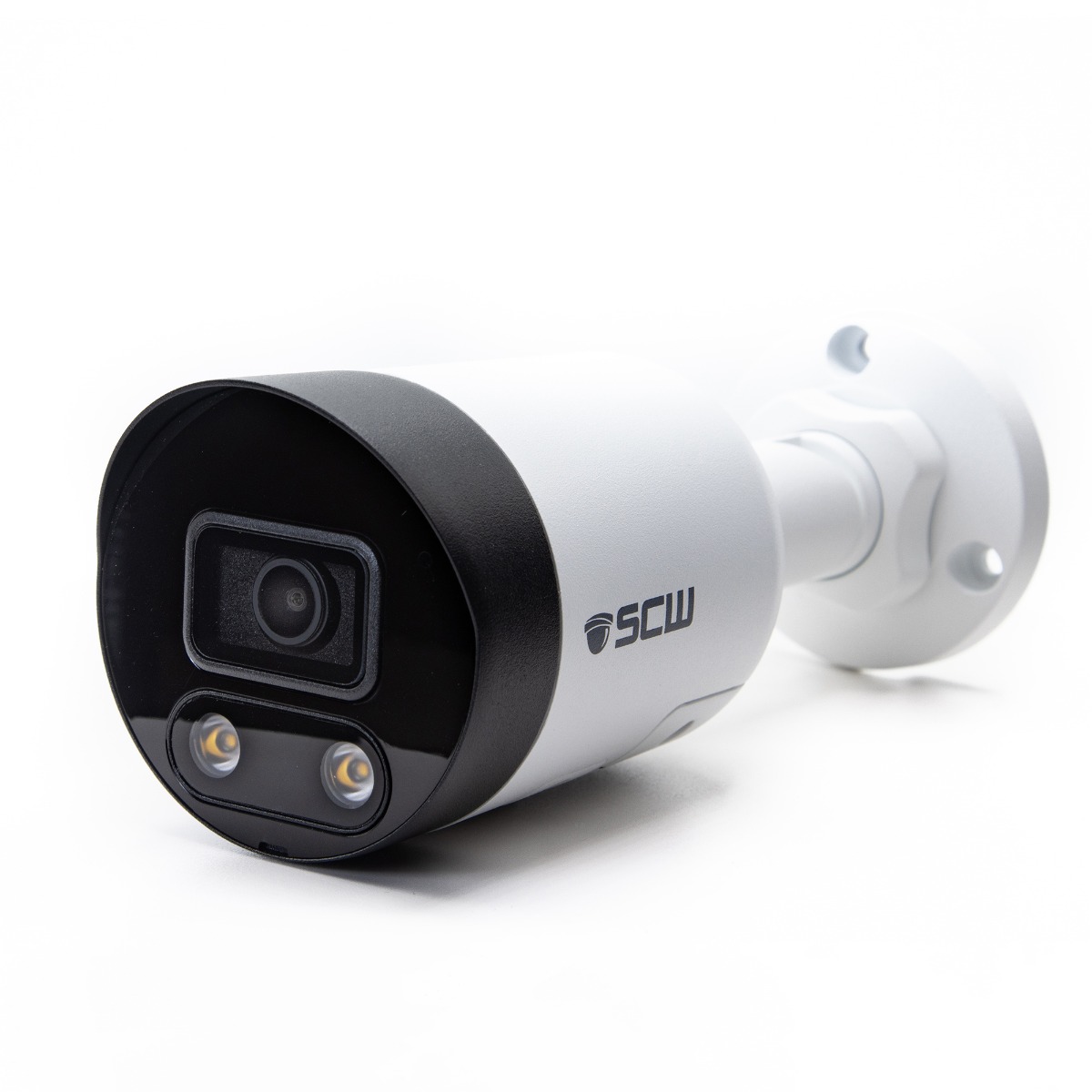

The Paladin 8.0 is a bullet camera with a unique feature set. The Paladin features a 2.8mm wide angle lens, a built in microphone and speaker, and active deterrence white light feature. The Paladin is a great choice for situations where you want a bullet, but want that giant wide angle view. Use the Paladin at gates to use two way audio through the SCW Go app with it's built in microphone and speaker. The Paladin also acts as a great restricted area camera thanks to the VCA activated white light feature with audio warnings.

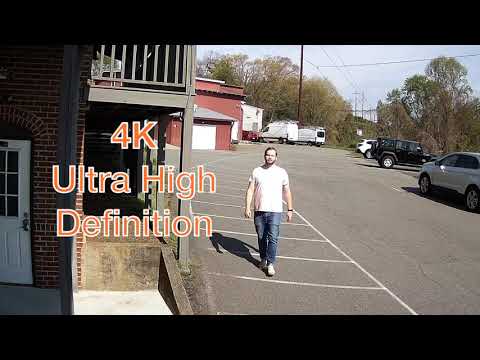

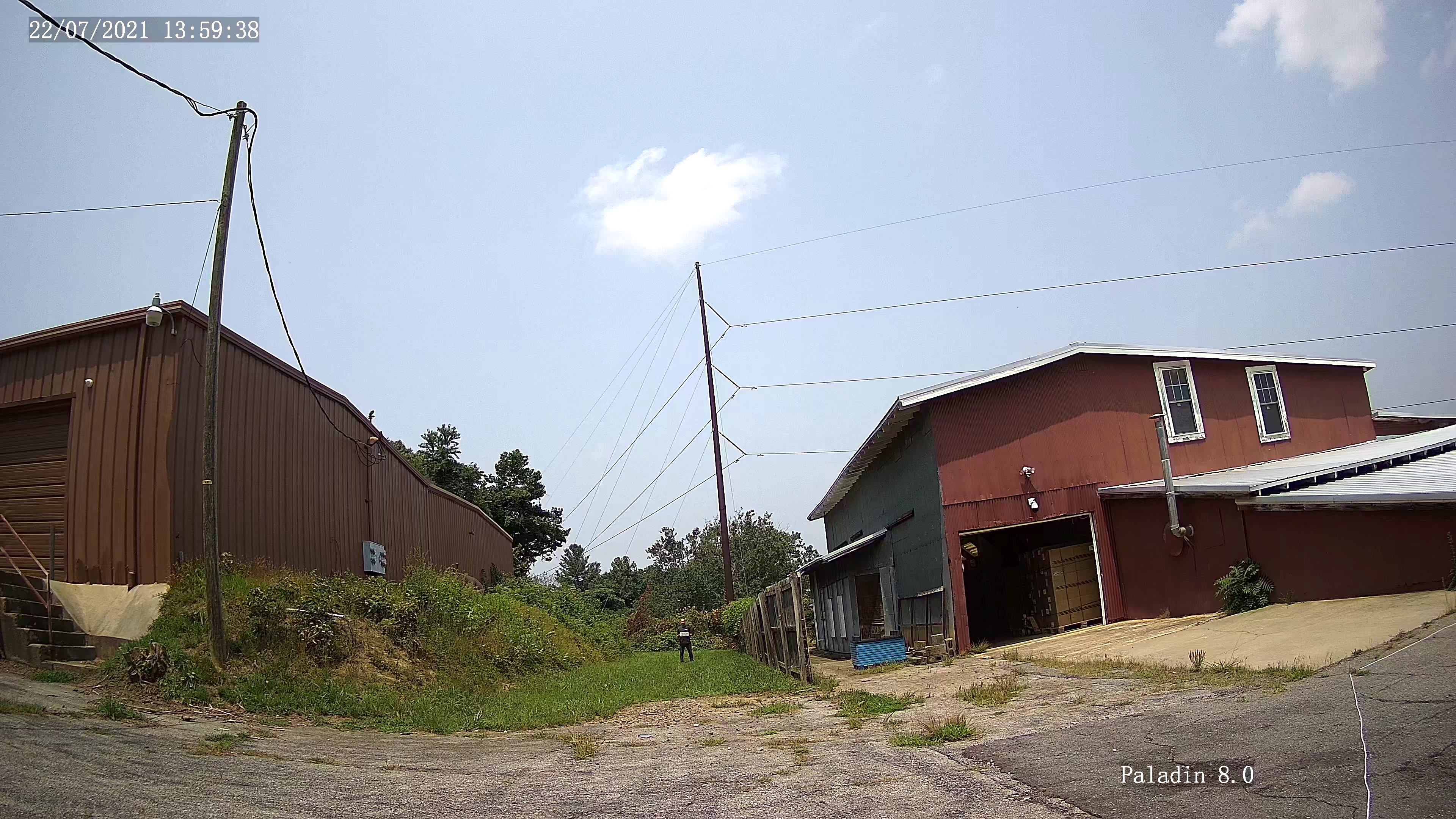

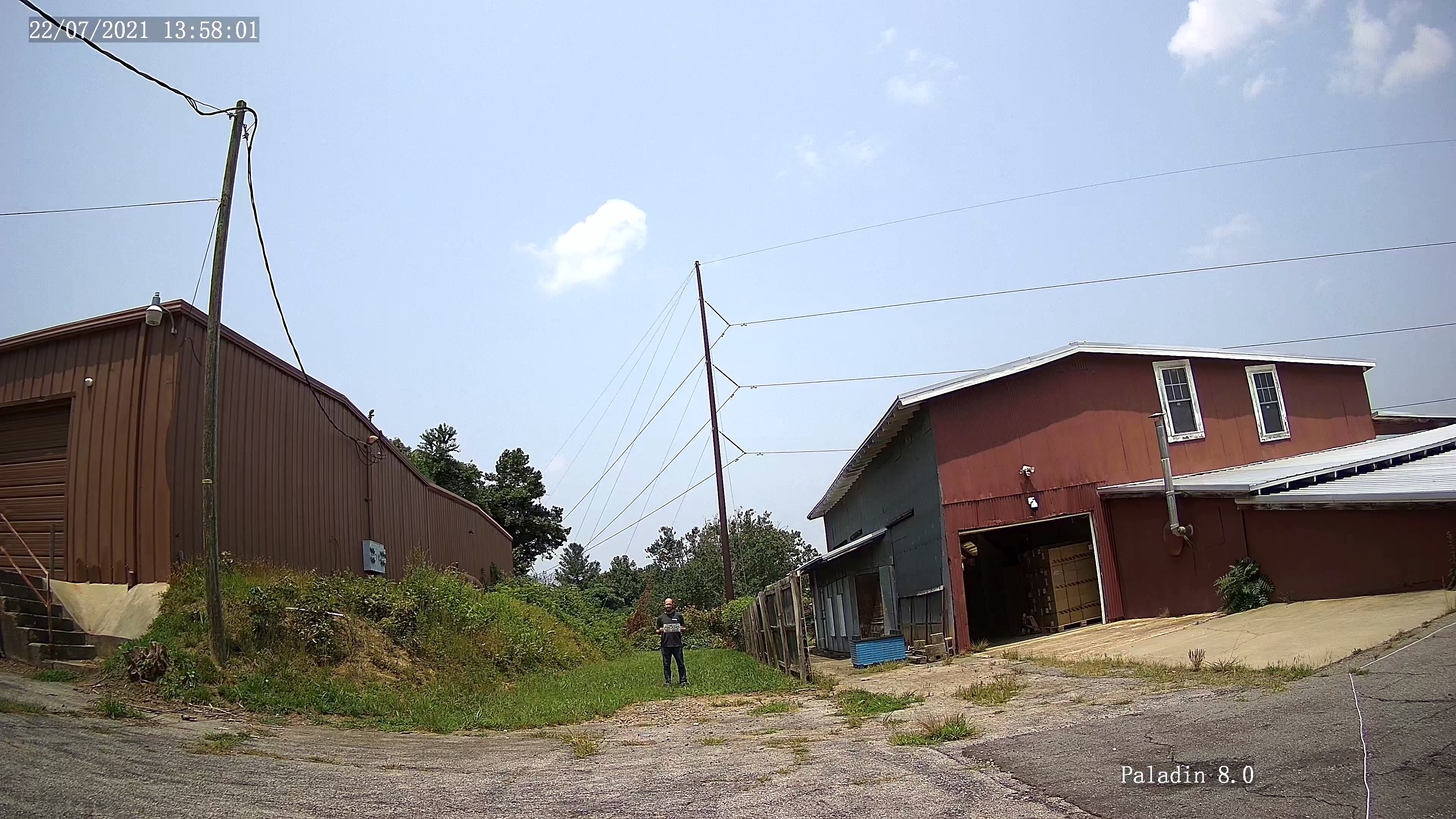

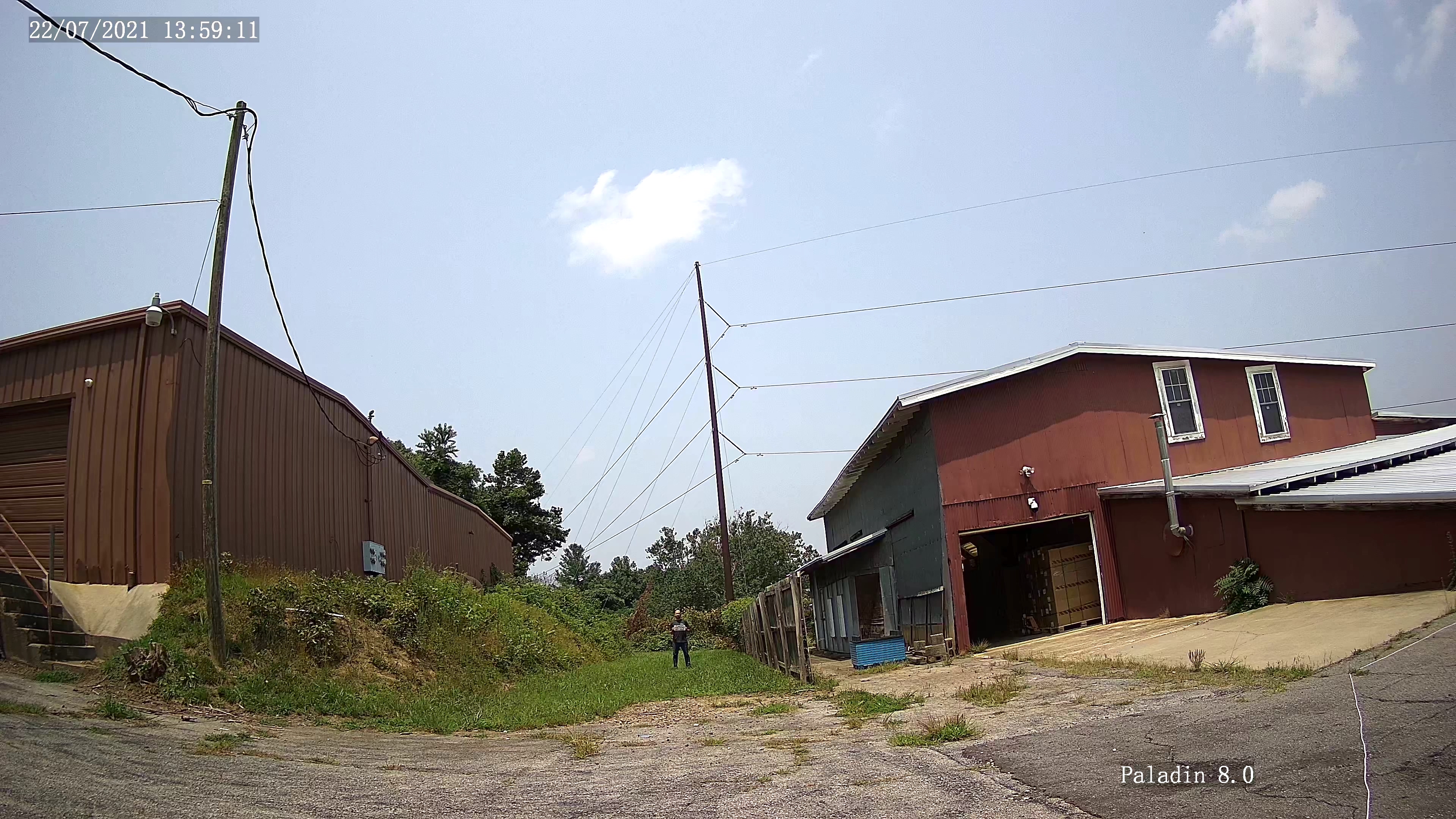

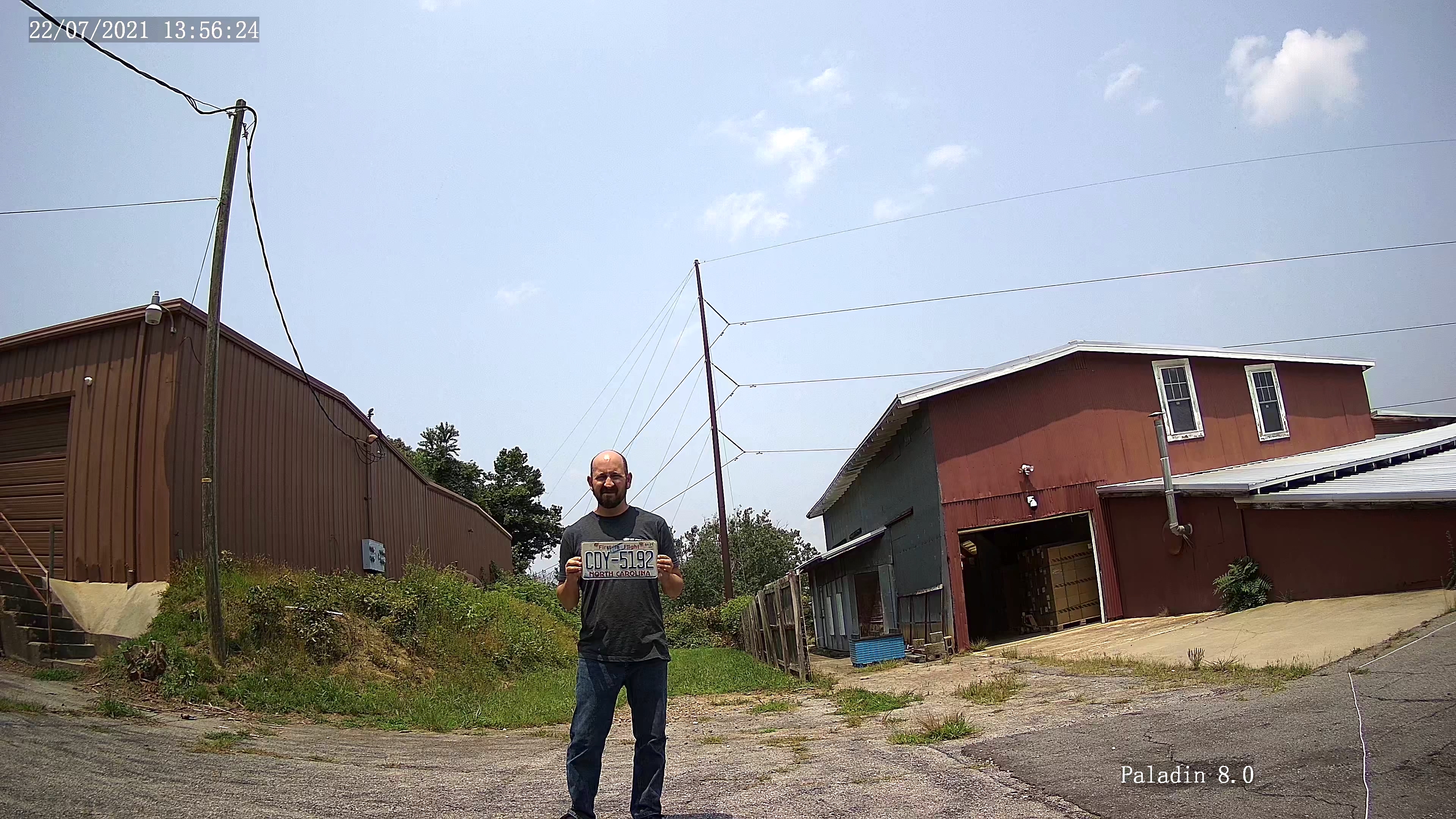

Sample Photos taken by the Deputy 8.0 model, which also features a 2.8mm lens at 4K. Click to enlarge the images. Press ESC key to close.

2.8mm
10 FT 25 FT 50 FT 75 FT 100 FT
view at 10 feet from a 2.8mm 112 degree FOV lens 4K security camera view at 25 feet from a 2.8mm 112 degree FOV lens 4K security camera view at 50 feet from a 2.8mm 112 degree FOV lens 4K security camera view at 75 feet from a 2.8mm 112 degree FOV lens 4K security camera view at 100 feet from a 112 80 degree FOV lens 4K security camera

detection

Detect someone up to 150 feet

"Detecting" a face means being able to tell that a human face is in the picture.

recognize

Recognize someone up to 85 feet

"Recognizing" a face refers to being able to say "I have seen that person before" - even if you don't know or can't place who it is.

identify

Identify someone up to 45 feet

"Identification" refers to being able to make out identifiable marks with enough certainty to make a sketch or claim.


What makes the Paladin 8.0 Unique:


Wide Dynamic Range (WDR)

This Paladin 8.0 has Wide Dynamic Range.

Wide Dynamic Range splits each frame/image into many boxes and it scans for in inaccuracies and adds the right amount exposure to create a balanced and high resolution video shot. Very useful when recording in situations where there can be a large difference in light levels.

Seeing in shadows: Understanding WDR



Admiral Line Camera Features:


Cat5 Plug and Play POE with Admiral NVRs

Plug & Play with Admiral & Imperial NVRs

This Paladin 8.0 will plug and play with our Admiral and Imperial line of NVRs.

Please note that our ip camera models with models numbers in the 26xxx format record in the new, more efficient H.265 compression codex and are intended to work with our Imperial and Admiral NVRs.



Built Tough: Commercial Grade Line

This Paladin 8.0 is part of our Admiral commercial surveillance system line. Feel free to read more about these features and what commercial grade means to us, but here's a quick synopsis:

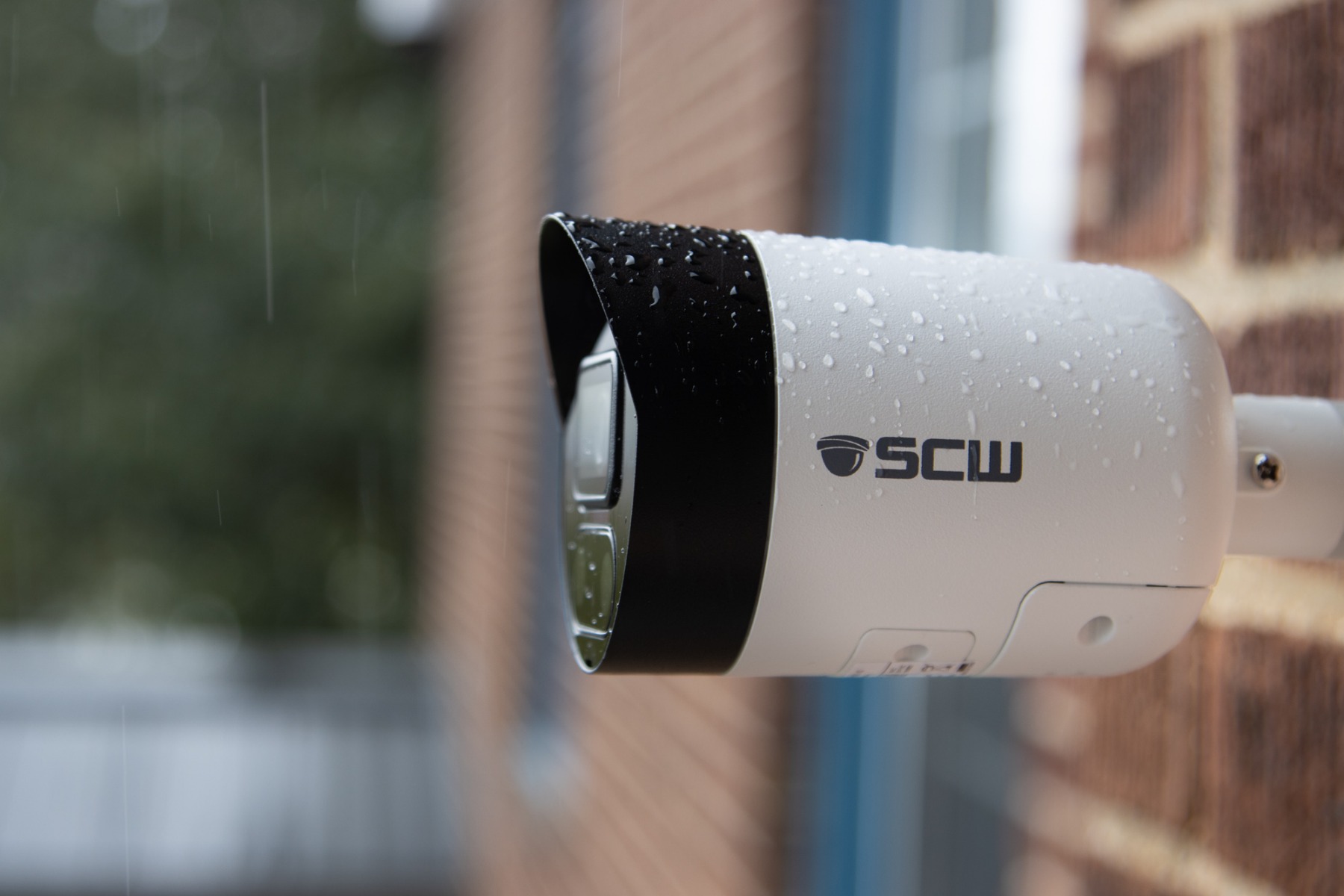

IP67 weatherproof rated - Full protection against dust, rain, sprinklers, water jets and even immersion up to 1 meter for 30 minutes.

Low Temperature - Withstands extreme temperatures from the summers of Arizona to the winters in Minnesota. -22°F ~ 140 °F

Aluminum and Ceramic Molding - Feel confident in your investment with commercial grade housing that won’t crumble and decay like the plastic competition.

Anti Reflective Glass with Automotive grade LEDs - Commercial quality components that allow better light transmission and will last without dimming or fading over time.

Passes vibration and surge testing up to 6,0000 volts - SCW cameras can withstand vibration and surges up to 6,000 volts.

Easy 1 Click Firmware Update Process - Maintenance made easy.

750 Foot POE Extended Transmission: the old 300 foot limitations are a thing of the past.

Store 40% more data with H.265 video compression or switch back to H.264, if you need H.264 third-party integration support.

No Recording Delay - Even when recording on motion.



3 to 5 year warranty

3 or 5 Year Warranty

The Paladin 8.0 comes with a 3 year warranty. This warranty can also be upgraded to a 5 years. We recommend doing so for commercial clients.



Motion Detection, Alerts, and VCA

This Paladin 8.0 is part of our Admiral motion detection ip security camera system line. Feel free to read more about these features by clicking on the link, but here's a quick synopsis:

Alerts and Notifications:

Get email alerts with snapshot images of motion detection alerts or VCA events

Set a schedule to get emails only on the hours of the day you want.

Get Push Notifications to the SCW Go Application for Android and iPhone.

Recording:

Create your own customizable record schedule, including recording based on the day of the week, hours of the day, or even choose not to record for periods of time. Set constant recording during business hours and only motion during closed hours.

Motion, VCA, or 24/7 Recording - Record based on motion detection, VCA (video content analysis), or set the system to record 24/7.

No Recording Delay / Pre & Post Event Recording - If your system is set to record based on motion or VCA events, you can have a 60 second pre-event buffer to grab footage prior to the detection. You can also set the system to record up to 10 minutes after an incident is detected.

Customizable Motion Detection Recording through VCA events:

VCA features do vary by camera model. This Paladin 8.0 supports these VCA features:

Intrusion Detection - Monitor areas with precision, define zones, set time thresholds, and sensitivity.

Vandal Detection - Get alerts based on tampering detection, defocusing, or any dramatic scene changes.


Corridor Mode

Corridor Mode

This camera has Corridor Mode.

Corridor mode allows you to flip the image on its side so that you can change the 16x9 ratio to 9x16. This is advantageous in the case of hallways, side yards, or corridors (hence the name) where the extra space vertical space is needed and the extra horizontal space would only show you more wall or fence area. To use corridor mode, install the camera with the lens pointed 90 degrees from center and then enable the corridor mode on via our software.



ONVIF compliant

ONVIF Conformant

This IP camera is ONVIF S Conformant.

ONVIF is an open industry standard encoding language for the interface of IP-based physical security products.



bitrate 1080p 30 fps

Bitrate - 8MP

At 8MP and 20 FPS, while recording at H.265, this camera should use 5Mbps of the NVR's bitrate budget. (With H.264, it should use ~10Mbps).

Related: IP Camera Bitrate Calculator


American-Based Technical Support after the sale. For FREE. Forever.

Real review from Fransisco, who had this to say:

The most important part of a purchase like this is the support for technical assistance when there is a question or when there is a problem, and they always exceed expectations!


All of our equipment comes with Free Technical Support that is US based (Our Warehouse and Staff are located in Asheville, NC). We're happy to help you via chat, email, screenshare / remote support sessions, and phones. Our number is 866-414-2553 and we're open from 9-7 M-F (EST).


scw support included



UL Listed, FCC certified

UL Listed and FCC Certified

UL is a safety consulting and certification company headquartered in Northbrook, Illinois and provides safety-related certification, validation, testing, inspection, and auditing of SCW products.

The Federal Communications Commission has certified that the electromagnetic interference from the device is under limits approved by the FCC.


The Paladin 8.0 v2 - 26BF8M-L-A Specs



Specifications

26BF8M-L-A
Image Sensor
1/2.7” 8 Million Pixel, Progressive Scan CMOS
SoC/Processor Manufacturer
M-Star NDAA Approved
VCA / Smart Features
Motion Detection, Smart Intrusion Detection, Cross Line, Audio Detection, Video Tampering
Corridor Mode
Supported
Min. Illumination
Color Video Until 0.01 Lux (2.0, AGC ON)
0 lux with IR on
Shutter
Auto/Manual, 1~1/100000 s
Lens
2.8mm@F2.0
112° of horizontal coverage; (60° vertical)
Day & Night
IR-cut filter with auto switch (ICR)
Digital Noise Reduction
2D/3D DNR
Wide Dynamic Range
True WDR @ 120dB
Digital Defog
Yes
Video Compression
H.265, H.264, MJPEG
Camera Streams
Main Stream: up to 8MP/4K (3840×2160): Max. 20 fps,5MP: 2944x1656 Max. 30FPS, 3MP (2560*1440): Max. 30 fps; 1080p (1920x1080) 30FPS

Sub Stream: up to 720 (1280×720): Max. 30 fps;
Mobile Data-Sensitive Stream: up to D1 (720×576): Max. 30 fps
Bit Rate
32 Kbps ~ 8Mbps
Max. Image Resolution
3840×2160; 8 Megapixel
Frame Rate
8MP (3840×2160): Max. 20 fps
Image Settings
Saturation, brightness, contrast, sharpness, headlight compensation, backlight compensation, region of interest, evaluative metering.
BLC
Yes, zone configurable
Alarm Trigger
Motion detection, tampering alarm, network disconnect, IP address conflict, storage exception
Protocols
IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP
Interoperability
ONVIF (Profile S+ Profile T)
Communication Interface
1 RJ45 10M/100M Base-TX Ethernet
Operating Conditions
(-22°F ~ 140 °F) Humidity 10 - 95% (non-condensing)
Power Supply
12 V DC±25%, PoE (IEEE802.3 af)
Power Consumption
Max. 10.5W
Weather Proof Rating
IP67

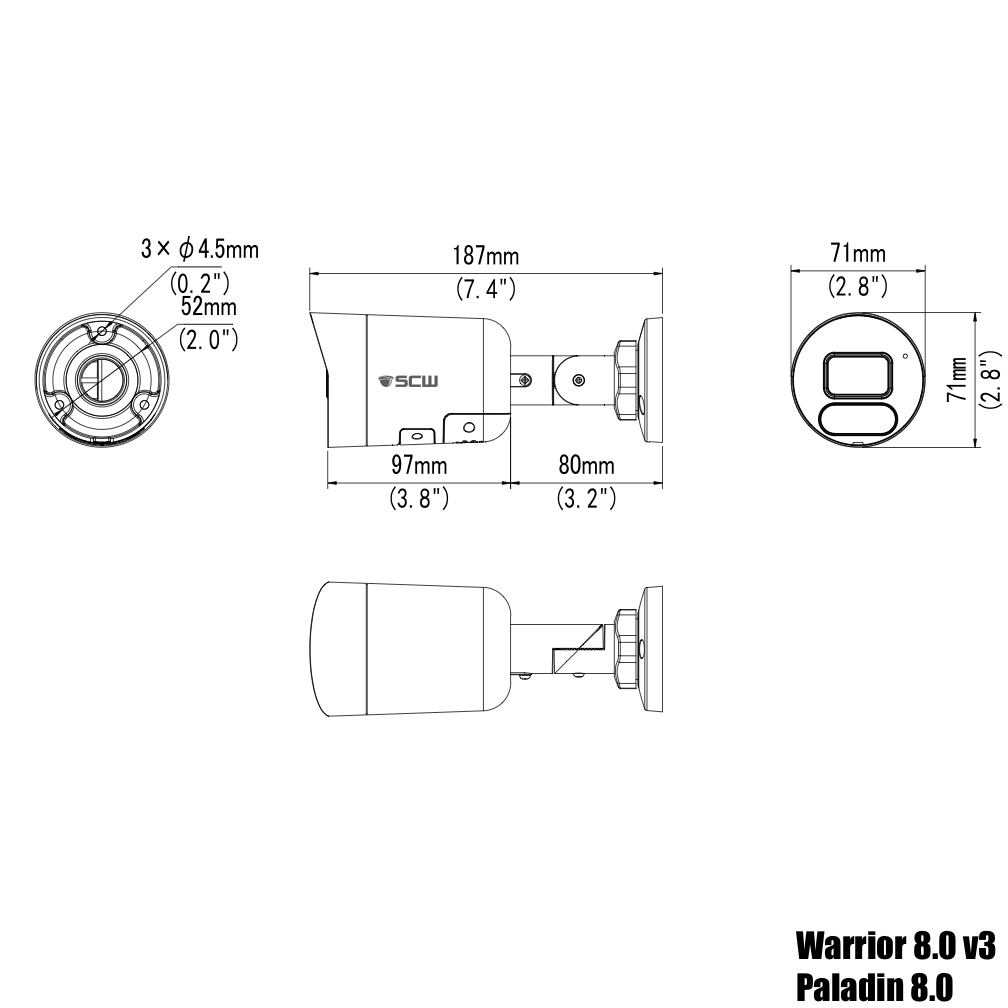

Dimensions
7.5” × 3.0” × 2.9”
IR Range
IR up to 100ft, White Light up to 30FT
Weight
