When to use electrical box mounts and how to mount them - Installation Guide

Our electrical box mounts are used to give easy access to your connections, hide them inside the junction box, and allow you to drill a smaller hole in your wall. If you want to run conduit they are necessary to run conduit straight to the camera.

install it like a pro series

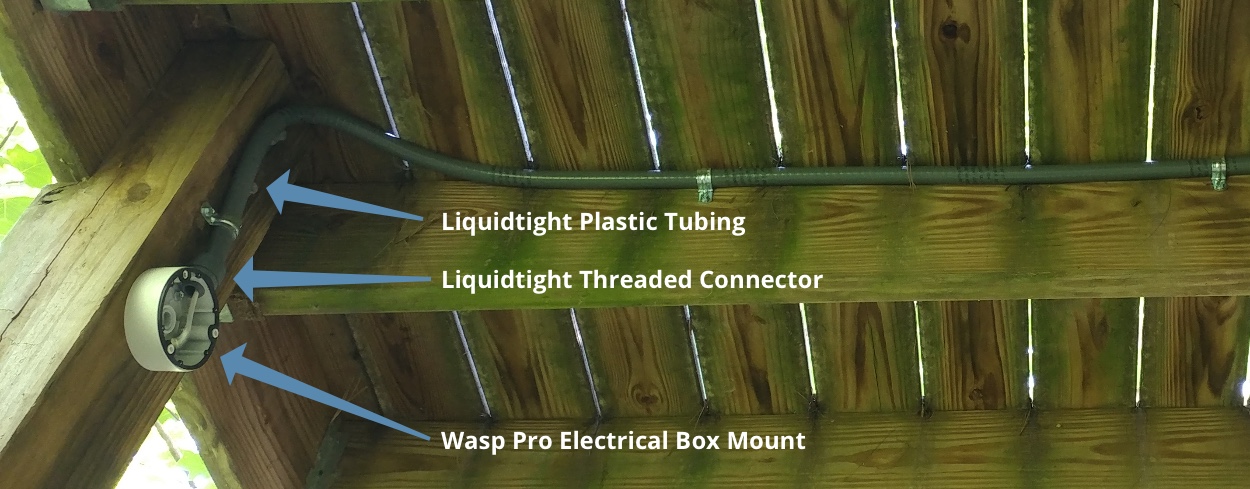

Electrical box mounts are recommended whenever you are installing a camera outdoors or when running cable through a wall isn't possible. Electrical mounting boxes protect the cable and connector as well as allow for the use of conduit (such as Liquidtight Plastic Tubing, Flexible Metal Conduit, or Electric Metal Tubing) to protect the cable run back to the NVR.

Step 1:

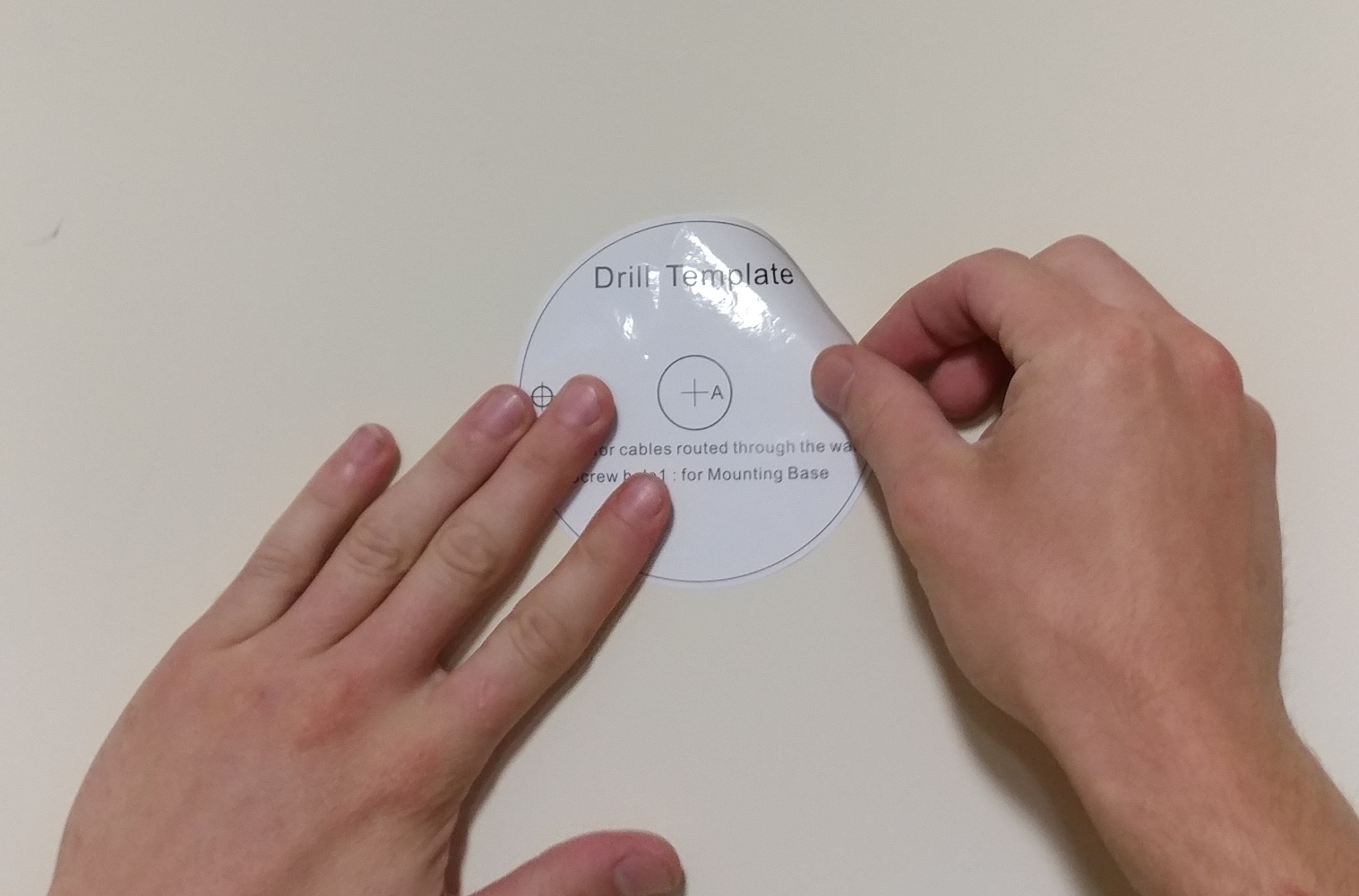

Place the supplied drill template on the surface

apply drill template

Step 2:

drill holes

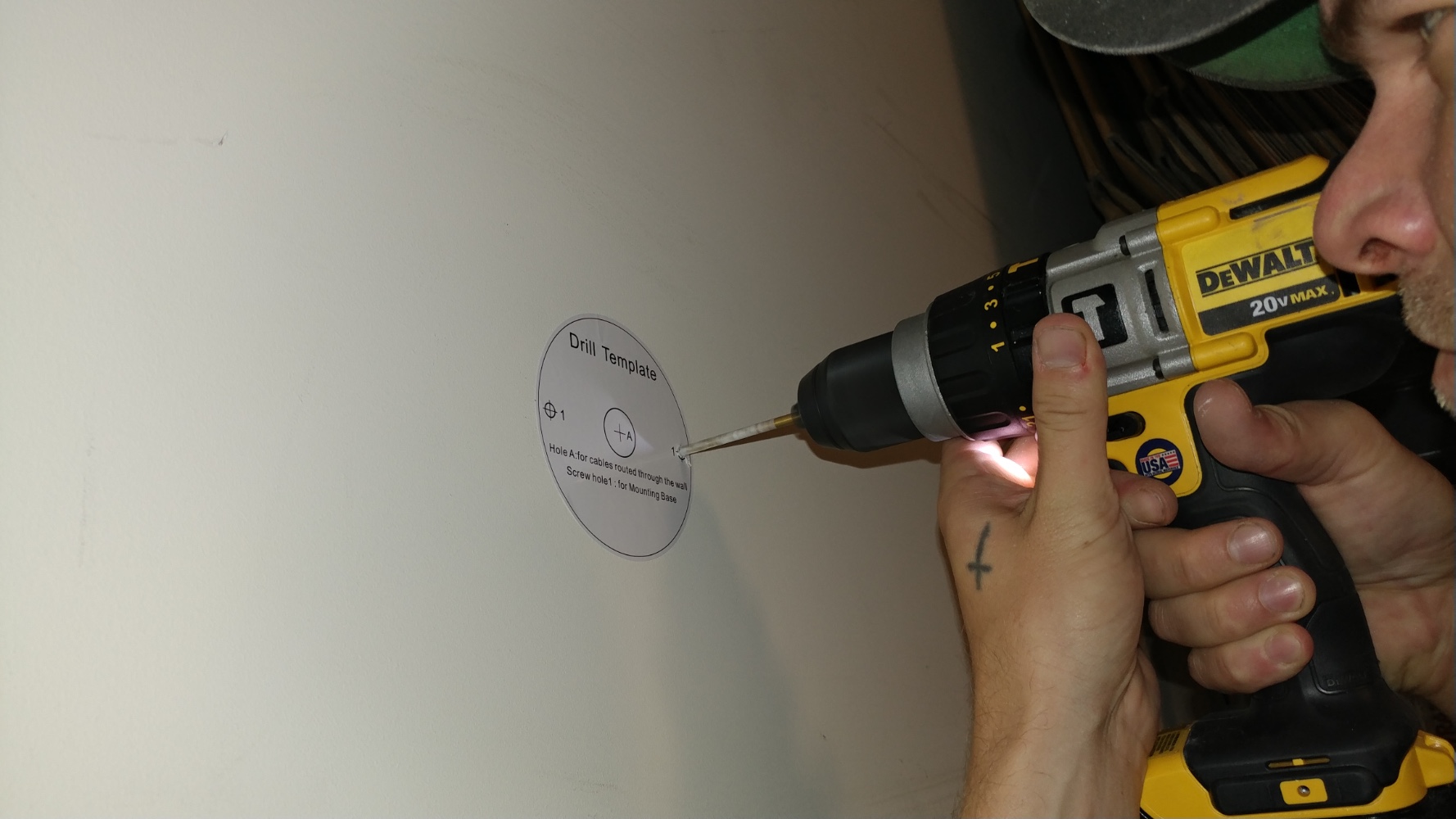

Drill the mounting points as well as a hole to run the cable through the wall if needed. Make sure to use the appropriate drill bit for the surface you are mounting to.

Step 3:

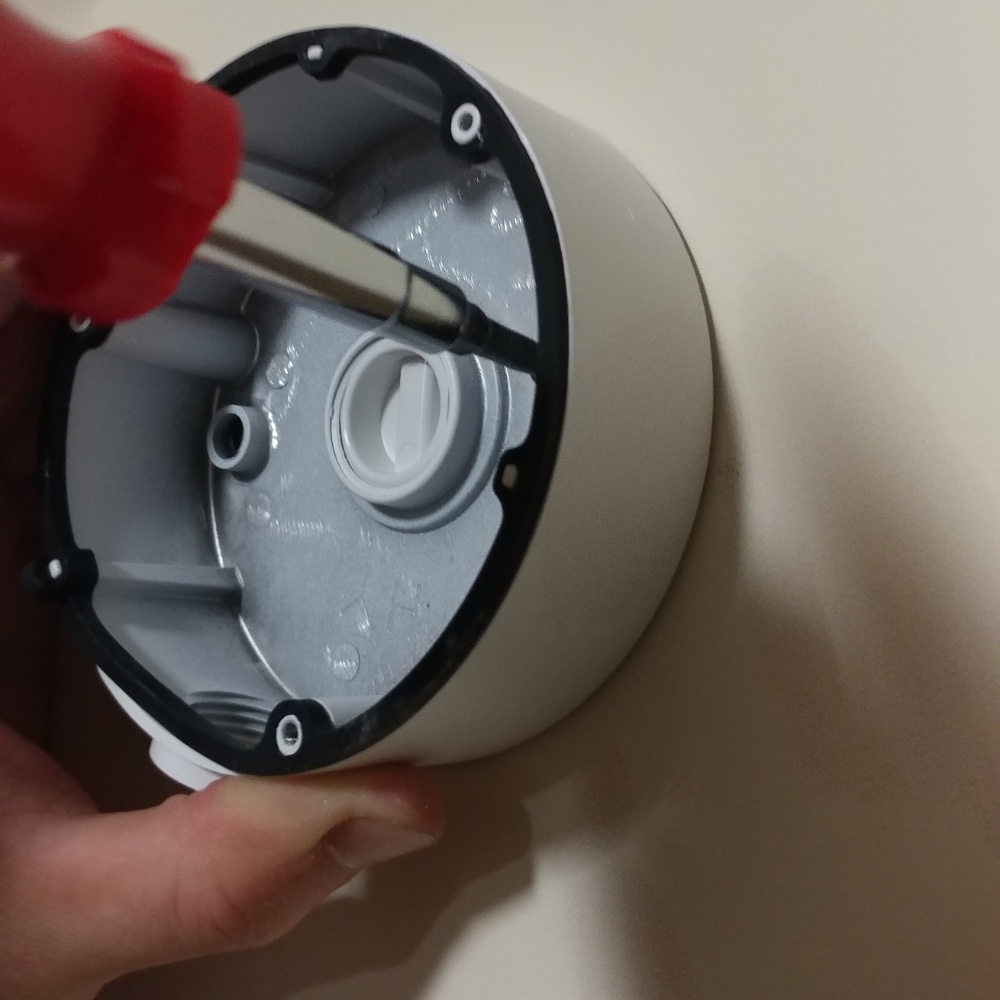

Next mount the electrical box, be sure to use the proper fastener for your application.

mount electrical box

Step 4:

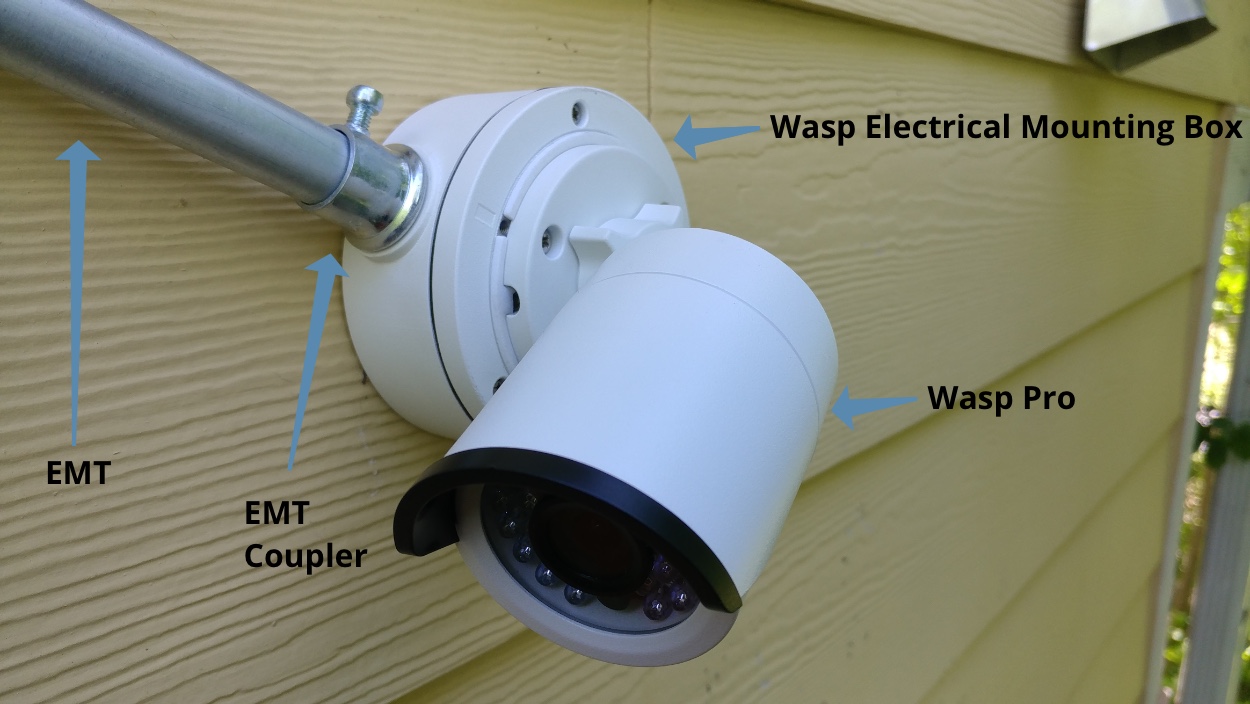

connect camera connect EMT connect liquidtight tubing connect FMC

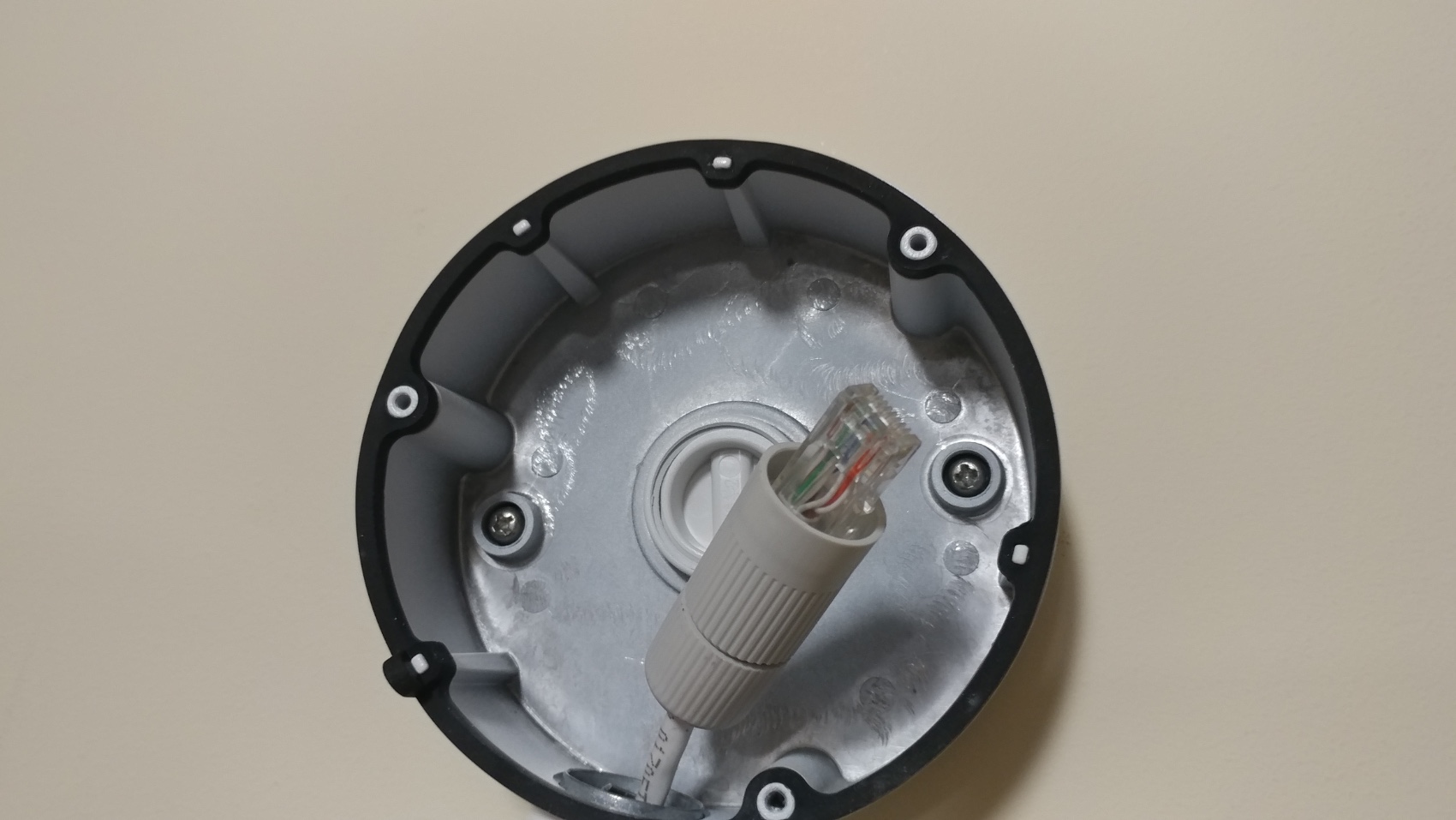

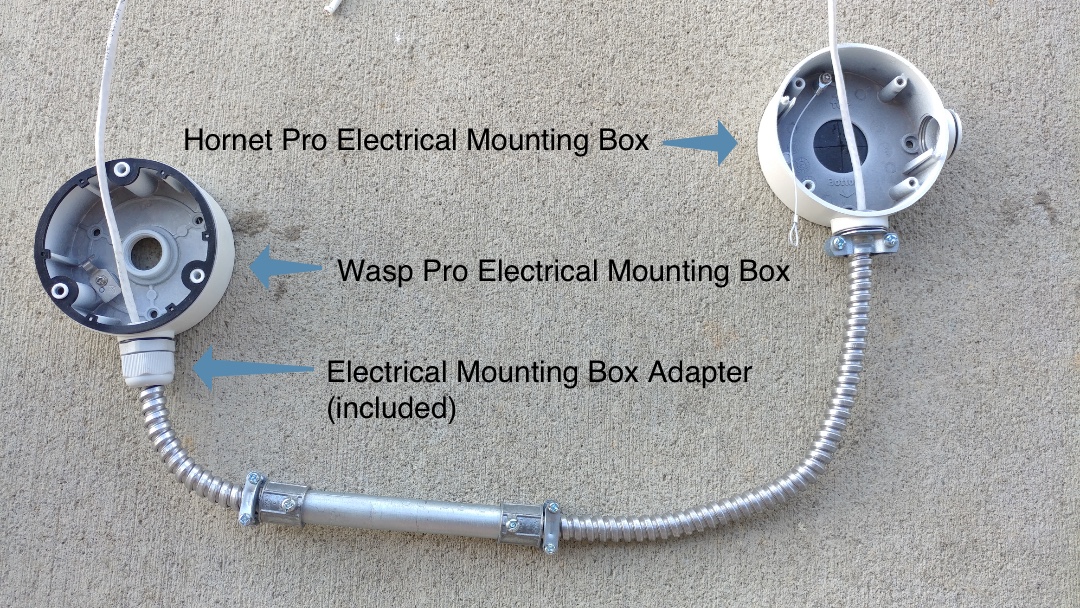

You can now run the cable to the electrical mount box install the weatherproof connector and terminate the end. Electrical mounting boxes are great for connecting Liquidtight Plastic Tubing, Flexible Metal Conduit (FMC), or Electric Metal Tubing (EMT). If you are connecting one of these to the box, run the cable through the conduit before terminating the end.

Step 5:

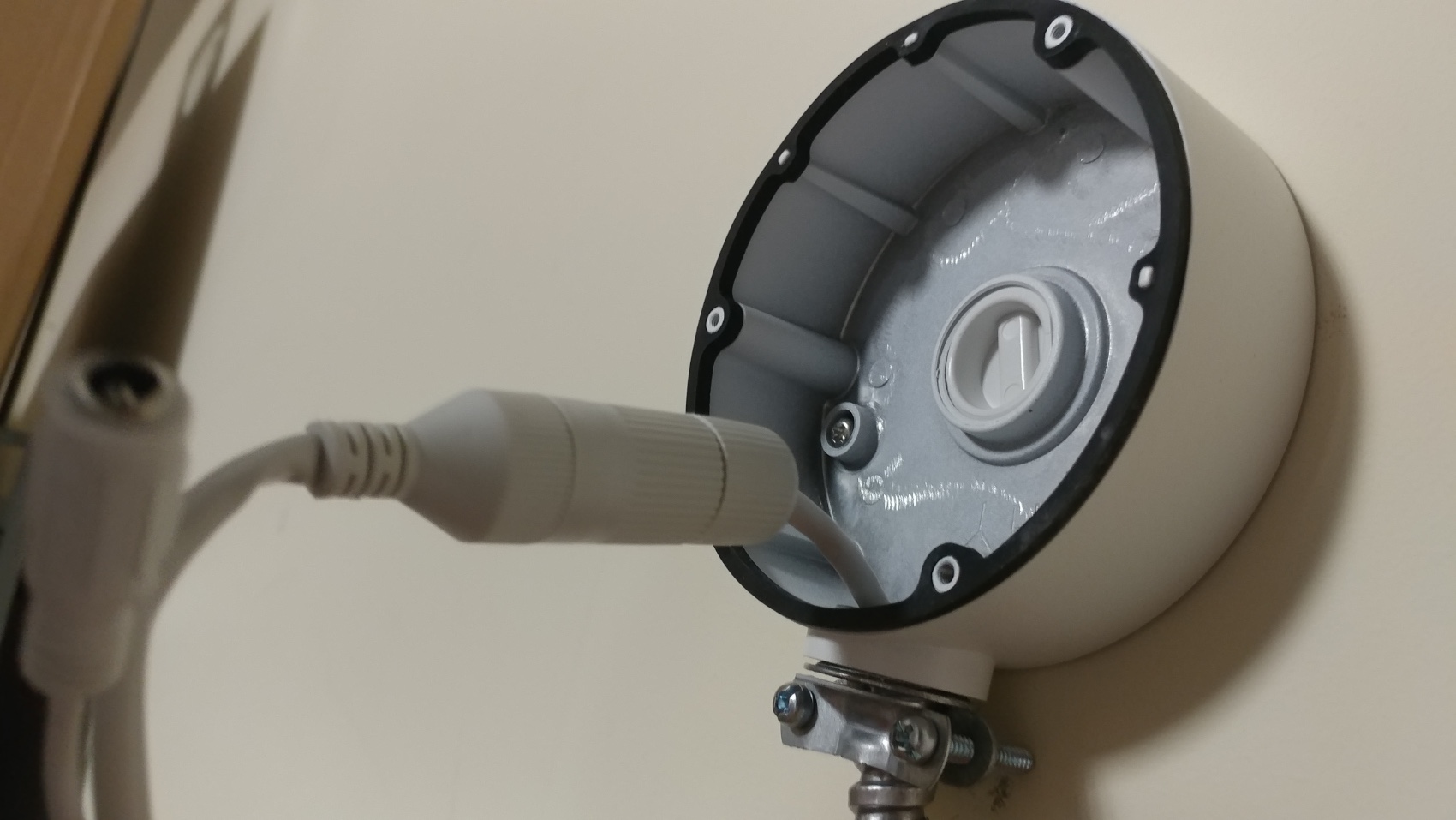

Connect the cameras lead to your cable drop.

connect camera

Step 6:

mount camera to electrical box

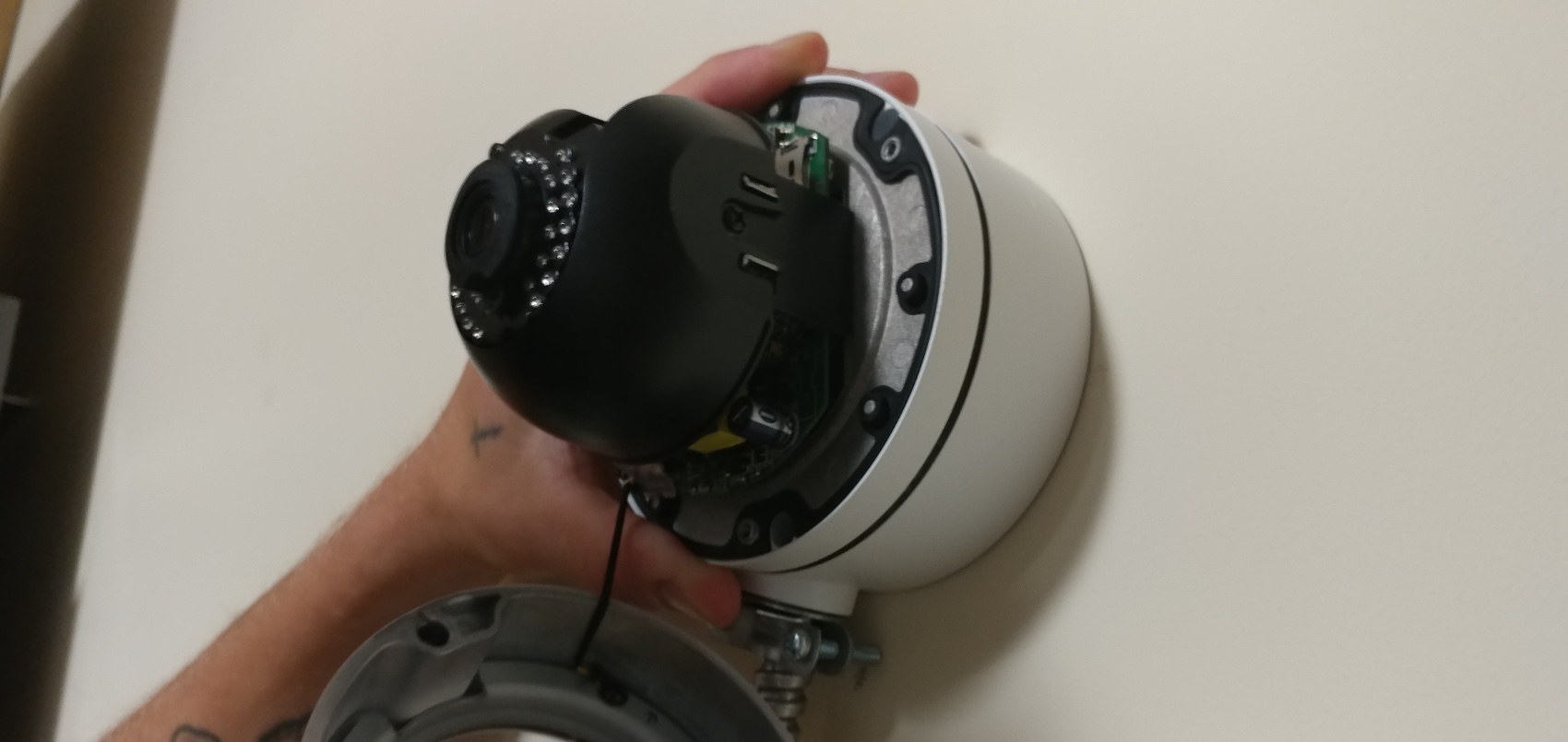

Mount the camera to the electrical mounting box and position the 4k ip camera.

Finished Installation:

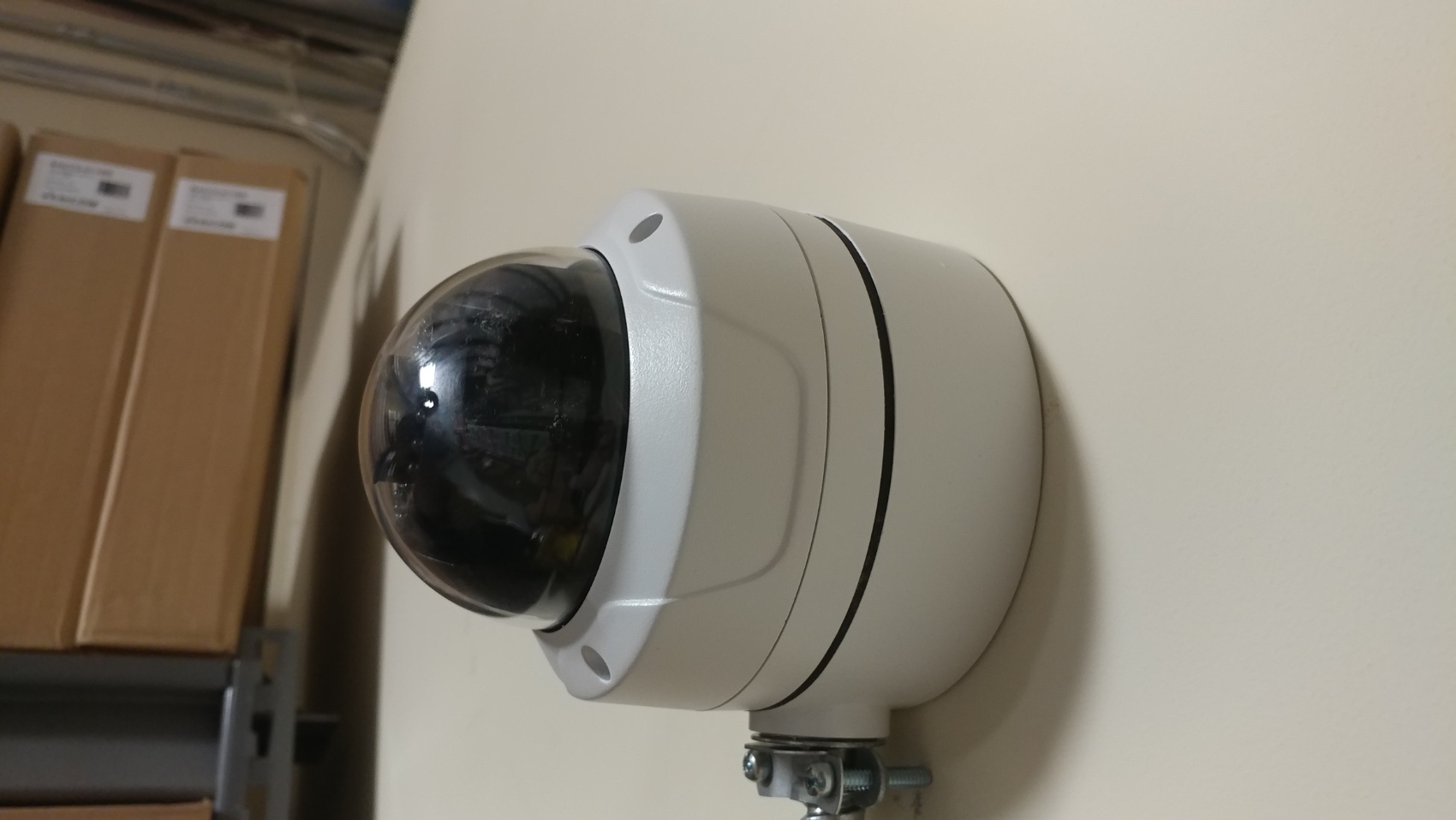

That's it. You've just installed a electrical box mount.

finished installation

This guide is applicable for these models: Warrior 2.0 - 26BF2, Warrior 4.0- 26BF4, Warrior 8.0 - 26BF8, Viking 4.0 - 26BV4, Knight 2.0 - 26BV2-W, Gladiator 8.0 - 26BV8, Archer 2.0 - 26BV2-L, Sharpshooter 2.0 - 26BV2-XL, Wasp Pro 2.0 - 43220, Wasp Pro 3.0 - 43230, Wasp Pro 4.0 - 43240, Hornet Pro 3.0 - 44230, Hornet Pro 4.0 - 44240, Ranger IntelliPro Camera 3.0 - 44430, Spotter IntelliPro Camera 3.0 - 44330, Sabre 4K IntelliPro - IB08V2812MI, Tomcat 12MP IntelliPro - IB12V2812MI, Hawk 532, Eagle 541, Sparrow 531, Deputy 2.0 - 26DF2, Deputy 4.0 - 26DF4, Deputy 8.0 - 26DF8, Sheriff 4.0 - 26DF4-IK10, Detective 4.0 - 26DV4, Informant 4.0 - 26DF4-A, Judge 8.0 - 26DV8, Radius 12.0 - 26P8, Guardian Pro 2.0 - 41220, Guardian Pro 3.0 - 41230, Guardian Pro 4.0 - 41240,Marshall Pro 2.0 - 41420, Marshall Pro 4.0 - 41440, Mosquito Pro 3.0 - 41330, Mosquito Pro 4.0 - 41340, Scout Pro 4MP - 41460, Captain IntelliPro 3.0 - 42430, Thunderbolt 4K IntelliPro - ID08V2812MI, Raptor 12MP IntelliPro - ID12V2812MI, The Observer Pro 6.0 - 48060, Patriot 511 and Recon 521.
