Avigilon Alta Access Control Hardware

Commercial Access Control Hardware

Secure entrances, restricted areas, and facilities with commercial access control hardware powered by Avigilon Alta (formerly Openpath).

SCW designs complete access control systems around your doors, users, buildings, and security requirements.

Plan Your Access Control System
Avigilon Alta reader at a commercial entrance

Avigilon Alta Hardware

Commercial System Design

Professional Installation

US-Based Support

The Hardware Behind a Modern Access Control System

A commercial access control system takes more than a card reader mounted beside a door.

Each secured opening uses multiple components working together to identify a user, determine whether access should be granted, unlock the door, and record the event.

Credential

A mobile credential, access card, key fob, PIN, or other credential identifies the person requesting access.

Reader

The reader installed at the entrance receives the credential and sends the request into the access control system.

Controller

The controller determines how the door should respond based on the permissions and rules configured in Avigilon Alta.

Electronic Lock

An electric strike, electrified lock, magnetic lock, or other locking mechanism physically controls the opening.

Door Hardware & Sensors

Request-to-exit devices, door position sensors, contacts, power supplies, and other hardware help the system securely monitor and operate the door.

Cloud Management

Avigilon Alta Access gives authorized administrators a central platform for managing doors, users, credentials, schedules, permissions, events, and locations.

Avigilon Alta Smart Readers

The reader is where users interact with the access control system.

Avigilon Alta Smart Readers support modern mobile credentials while continuing to accommodate familiar access methods such as cards and key fobs. Organizations can choose the credential experience that makes the most sense for their users and facility.

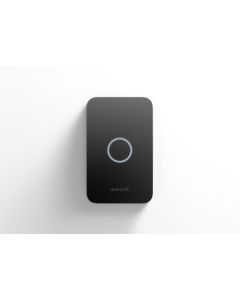

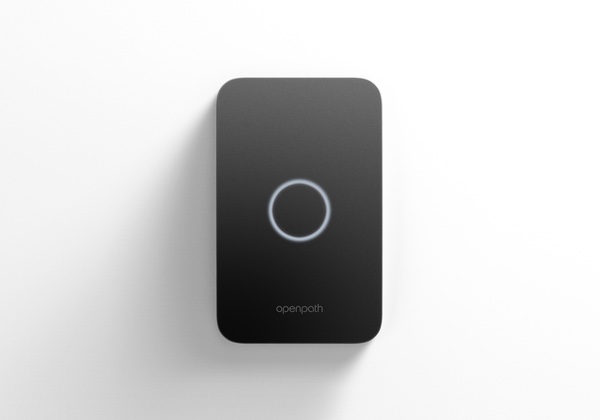

Standard Smart Reader product photo

Standard Smart Reader

A versatile reader designed for commercial entrances where a standard form factor works best.

The Standard Smart Reader can be flush mounted with a single-gang box or surface mounted, making it a flexible option for new construction and access control upgrades.

It supports multiple credential methods, including mobile access, Wave to Unlock, compatible smart watches, cards, and key fobs.

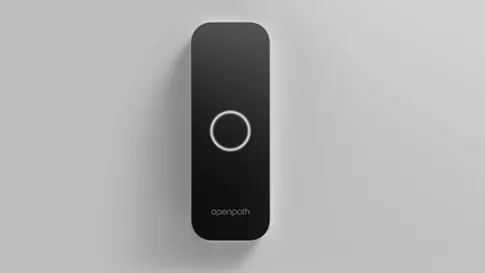

Mullion Smart Reader product photo

Mullion Smart Reader

A slim reader designed for entrances where mounting space is limited.

The Mullion Smart Reader is well suited for installation directly on narrow door frames and mullions while providing the same modern credential experience as the larger Standard Smart Reader.

It is a strong fit for glass storefronts, interior office doors, and other openings where a compact reader is preferred.

Flexible Ways to Unlock the Door

Modern access control doesn't require every employee, visitor, or facility to use the same credential.

Depending on your system design, Avigilon Alta can support access methods such as:

Mobile credentialsWave to UnlockApple WatchAccess cardsKey fobsPIN credentialsTemporary or guest credentials

SCW helps determine which credential types make the most sense for your users, security requirements, and day-to-day operations.

Avigilon Alta Controller Hardware

Readers are only the visible part of the system.

Behind the scenes, Avigilon Alta controllers and Smart Hubs connect readers, electronic locking hardware, door sensors, request-to-exit devices, power, and the Alta Access platform.

SCW selects the controller architecture based on the number of doors being secured, the type of locking hardware at those doors, available infrastructure, and how the system may need to expand in the future.

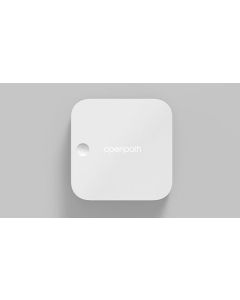

Single Door Controller product photo

Single Door Controller

A compact PoE/PoE+ controller for smaller deployments and individual secured openings.

The Single Door Controller supports up to two Avigilon Smart Readers and includes configurable relay functionality, making it useful for applications where a dedicated controller is needed at a specific entrance.

Ideal for:

Individual offices

Server rooms

Restricted storage areas

Remote entrances

Smaller access control deployments

12/24V 4-Door Smart Hub product photo

12/24V 4-Door Smart Hub

A multi-door access control hub designed to support up to four Avigilon Smart Readers and four secured doors.

The Smart Hub combines the access control electronics and power infrastructure needed for a typical commercial multi-door deployment in a centralized enclosure.

It supports configurable inputs, door supervision, and power for compatible 12V or 24V locking hardware.

Ideal for:

Small and mid-sized offices

Warehouses

Retail facilities

Commercial buildings

Expanding an existing Alta Access system

24V 4-Door Smart Hub product photo

24V 4-Door Smart Hub

A four-door Smart Hub designed for access control environments using 24V locking hardware.

It provides centralized connectivity for readers, doors, sensors, and locking hardware while allowing the system to be managed through Avigilon Alta Access.

Ideal for facilities standardized around 24V door hardware or projects where the locking infrastructure calls for a dedicated 24V configuration.

12/24V 8-Door Smart Hub product photo

12/24V 8-Door Smart Hub

Designed for larger multi-door installations, the 12/24V 8-Door Smart Hub supports up to eight Avigilon Readers and eight controlled doors.

Bringing multiple openings into one centralized hub can simplify installation, power distribution, troubleshooting, and future system management.

Ideal for:

Larger commercial facilities

Warehouses

Schools

Multi-tenant properties

Manufacturing facilities

Buildings with multiple controlled entrances

24V Door Smart Hub product photo

24V Door Smart Hub

A Smart Hub option designed for access control deployments using compatible 24V locking hardware.

It provides centralized control for connected readers, door inputs, and locking hardware while tying the physical installation into the Avigilon Alta cloud management platform.

SCW can determine where this configuration makes sense based on the electrical and locking requirements of the doors being secured.

12V Smart Hub product photo

12V Smart Hub

A controller configuration for access control systems using compatible 12V door hardware.

The Smart Hub centralizes the electronics required to connect readers, door hardware, and access control components while providing a clean foundation for cloud-based management through Avigilon Alta.

12/24V Smart Hub product photo

12/24V Smart Hub

A flexible controller option supporting up to four entries and eight readers, with locking hardware power included.

Its flexible power configuration makes it useful for commercial access control environments where different door hardware requirements need to be accommodated within the system design.

Not Sure Which Controller You Need?

You shouldn't have to determine that yourself.

The right controller architecture depends on much more than the number of doors in your building.

SCW evaluates:

Number of controlled openings

Reader requirements

Existing locks

12V vs. 24V locking hardware

Available power

Existing access control infrastructure

Door contacts and sensors

Request-to-exit requirements

Network connectivity

Controller locations

Backup power

Expansion plans

Then we build the appropriate hardware configuration around the facility.

Talk to an Access Control Expert →

Access Cards and Key Fobs

Mobile credentials are one of the advantages of Avigilon Alta, but they don't have to be the only way people enter your facility.

SCW also offers physical access credentials for organizations that prefer cards, key fobs, or a combination of physical and mobile access.

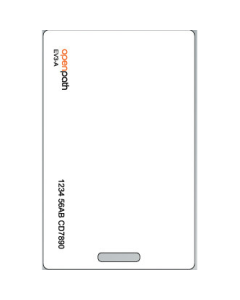

Avigilon Alta DESFire Access Card product photo

Avigilon Alta DESFire Access Card

A physical card credential for Avigilon Alta access control systems, providing employees and other authorized users with a familiar badge-based method of entry.

Physical access cards can be used alongside mobile credentials depending on how your organization wants to manage access.

View DESFire Access Card →

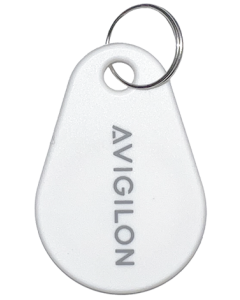

Avigilon DESFire EV3B Key Fob product photo

Avigilon DESFire EV3B Key Fob

A compact physical credential designed to work with compatible Avigilon readers and access control units.

Key fobs provide a convenient alternative for users who do not need or cannot use mobile access.

View DESFire Key Fob →

Your Reader Is Only One Part of the Door

Installing a reader doesn't automatically make an entrance access controlled.

Depending on the opening, a complete installation may also require:

Electric strikesElectrified locksMagnetic locksDoor position sensorsRequest-to-exit devicesDoor contactsPower suppliesBackup powerExit hardwareNetwork connectivityLow-voltage cabling

Different entrances can require dramatically different hardware.

A glass storefront, warehouse entrance, office suite, server room, exterior gate, and fire-rated door cannot always be approached the same way.

SCW evaluates the complete opening, not just the reader mounted beside it.

One Door or an Entire Facility

Avigilon Alta hardware gives SCW the flexibility to build access control around the size and layout of the organization.

01

Individual Doors

Secure a server room, office, equipment room, storage area, or other sensitive entrance.

02

Small and Mid-Sized Facilities

Control employee entrances and restricted areas throughout a commercial building using centralized multi-door hardware.

03

Large Commercial Facilities

Deploy controllers and Smart Hubs across larger buildings with many secured openings.

04

Multi-Site Organizations

Standardize access control hardware across multiple facilities while managing users, credentials, and permissions through the Alta Access platform.

The system can be designed around what you need today while leaving room for additional doors and locations.

Upgrading an Existing Access Control System?

Modernizing access control doesn't always mean tearing everything out and starting over.

SCW can evaluate your existing:

Readers

Controllers

Locking hardware

Door hardware

Cabling

Power

Credentials

Network infrastructure

Existing access control platform

From there, we determine what can remain, what needs to be replaced, and the best way to transition your organization to Avigilon Alta.

Replace What Needs Replacing. Keep What Still Makes Sense.

Existing infrastructure can represent a significant investment.

Our goal is to build the right system around your facility — not replace hardware simply for the sake of replacing it.

Discuss an Access Control Upgrade →

Planning Access Control for a New Building?

New construction gives organizations an opportunity to design access control into the facility from the beginning.

SCW can work with your organization and other project stakeholders to plan:

Controlled doors

Reader locations

Controller and panel locations

Credential requirements

Electronic locking hardware

Door sensors

Power requirements

Backup power

Network connectivity

Low-voltage cabling

Camera coverage

Intercom requirements

Planning the complete system before construction is finished can simplify installation and help ensure the building is ready for the security technology it needs.

Plan Access Control for a New Facility →

Designed to Keep Doors Operating

Cloud management should not mean every door has to contact the internet before deciding whether someone can enter.

Avigilon Alta controllers maintain the access control information required to process entry decisions locally.

If internet connectivity is interrupted, the local access control hardware can continue processing authorized entry and reconnect with the cloud platform when connectivity returns.

That gives organizations the advantages of centralized cloud management without making normal door operation dependent on a continuous cloud connection.

Combine Access Control With Video Security

Access control can tell you that a credential was presented at a door.

Video can help you determine what actually happened.

Camera coverage at a credentialed entrance

Combining access control with video security gives operators more context when reviewing:

After-hours entry

Denied access attempts

Tailgating

Unauthorized entry

Employee incidents

Restricted-area activity

Security investigations

For example, if a credential is used at an unusual time, an access log provides the user, door, and timestamp. Associated camera footage can help security personnel verify who entered and what happened immediately afterward.

SCW's experience with both commercial video surveillance and access control allows these technologies to be designed as parts of the same physical security strategy.

Commercial Access Control Installation

Access control hardware has to integrate with the building itself.

SCW provides professional access control deployment for commercial organizations across the United States.

Our team can support the project from initial system design through installation and ongoing operation.

1

System Design

We evaluate your facility, doors, existing infrastructure, users, and security requirements.

2

Hardware Selection

We specify the appropriate Avigilon Alta readers, controllers, credentials, locking hardware, power, and supporting components.

3

Low-Voltage Infrastructure

SCW can provide the cabling and connectivity required to support the access control system.

4

Professional Installation

Hardware is professionally installed and integrated with the doors and facility.

5

System Configuration

Alta Access is configured around your users, doors, schedules, permissions, and operational requirements.

6

Training

Administrators receive the knowledge they need to manage everyday access control operations.

7

Ongoing US-Based Support

SCW remains available after deployment to help maintain, troubleshoot, expand, and optimize the system.

You Don't Need to Build an Access Control Hardware List

Tell us about your facility.

We'll help determine what belongs at each door.

SCW designs access control systems around:

Your Doors

What entrances and restricted areas need to be secured?

Your People

Who needs access and how should they enter?

Your Infrastructure

What locks, cabling, power, and existing hardware are already in place?

Your Operations

How should access differ by employee, location, department, or time of day?

Your Growth

Will you be adding doors, buildings, or locations later?

Your Security Strategy

Should access control integrate with cameras, video verification, intercoms, or other security systems?

From there, we design the appropriate hardware architecture.

Build the Right Access Control System From the Start

Whether you're securing a few important entrances, replacing an aging card access system, planning a new facility, or standardizing access across multiple locations, SCW can design and deploy the right Avigilon Alta system for your organization.
