$4,000.00

The Logos - Contact Free Fever and Metal Detection System

Out of stock
SKU
FDMD

Detection Method

Wrist Check

Non contact wrist check

Detects temperature by placing wrist next to sensor. No contact required.


Accuracy

High accuracy thermometer

≤+0.5°F Accuracy
High Accuracy Temperature


Temp

Indoor Only

Indoor Only


Alerts

Alerts

Sound and visual alerts on screen


Special

special features

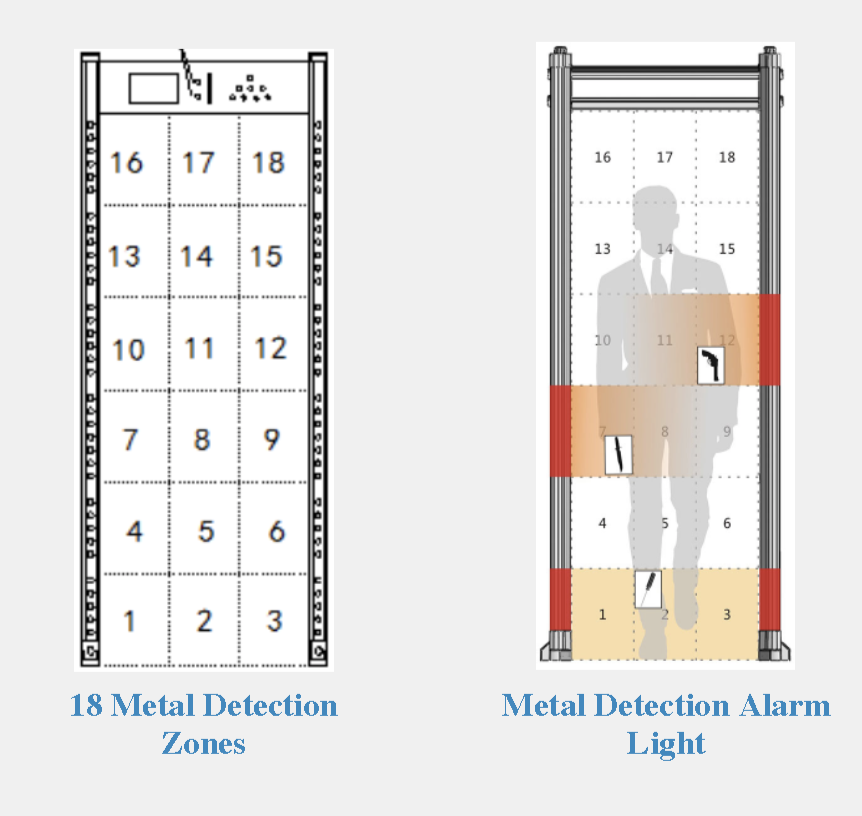

18 detection zone metal detector

Up to 255 levels of metal detector sensitivity

Touch free wrist measurement

Alerts on high temperatures

High and normal temperature counts

The Logos currently has a 3-5 week lead time


Detection Method

Wrist Check

Non contact wrist check

Detects temperature by placing wrist next to sensor. No contact required.


Accuracy

High accuracy thermometer

≤+0.5°F Accuracy
High Accuracy Temperature


Temp

Indoor Only

Indoor Only


Alerts

Alerts

Sound and visual alerts on screen


Special

special features

18 detection zone metal detector

Up to 255 levels of metal detector sensitivity

Touch free wrist measurement

Alerts on high temperatures

High and normal temperature counts


Notes about use

Important Use Notice

SCW’s fever detection devices are designed only to detect fevers. They are not designed to identify why that person has a fever. They are not intended to diagnose or identify the Coronavirus or any other disease/ailment.

If you have any questions please free contact the SCW team.

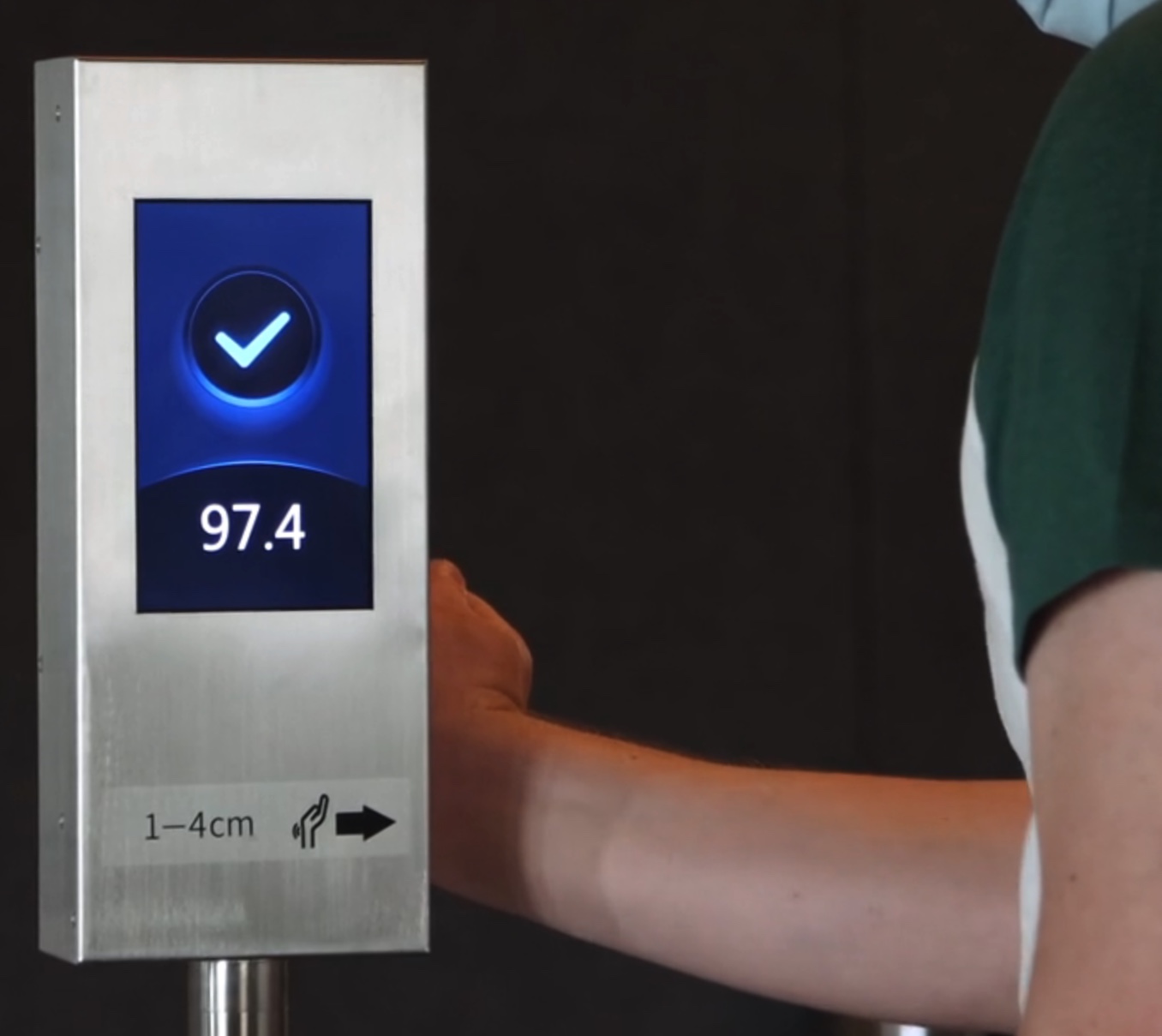

Touch free wrist measurement

Touch free sanitary wrist measurement

Checks temperature without contact.

Up to 1 inch distance



High Accuracy Temperature

High Accuracy

≤+0.5°F Accuracy

High accuracy for reliable detection.



Fast reading

Fast Reading

Fast temperature reading times and quick responses.

Up to 30 people per minute


American-Based Technical Support after the sale. For FREE. Forever.

Real review from Fransisco, who had this to say:

The most important part of a purchase like this is the support for technical assistance when there is a question or when there is a problem, and they always exceed expectations!


All of our equipment comes with Free Technical Support that is US based (Our Warehouse and Staff are located in Asheville, NC). We're happy to help you via chat, email, screen share / remote support sessions, and phones. Our number is 866-414-2553 and we're open from 9-7 M-F (EST).


scw support included


The Logos - FDMD Specs



Specifications

FDMD
Temperature Measurement Area
Wrist
Measurement Distance
Between 1-3cm
Precision
0.18F°
Measurement Deviation
±0.5°F/0.3°C
Measurement Range
86°F to 113°F
Display
7” Touch Screen
On Screen Counts
High temperature count, normal count (resettable)
Alarm Type
Local sound alarm
Temp Measurement Dimensions
Temperature measurement module: 5.41 in (L) × 2.67 in (W) × 14.2 inches(H)
Bracket Dimensions
Bracket: 2.36" (diameter) x 26.77" (height)
Pole Dimensions
Pole: 38mm (diameter) x (250mm/500mm) (height)
Power Supply
DC 12V±25% input
Operating Temperature
59°F to 86°F
Operating Humidity
<95%, non-condensing
Environment
Indoor windless environment only
Warranty
3 years


Important guidelines for the Logos fever detection device

With any temperature products it's important to follow installation and environmental guidelines. Please note the following information for the Logos.

  • The Logos alerts locally on the screen and with sound. Your metal detection attendant should be within range to see or hear metal and temperature alerts.

  • Non contact wrist measurement should be be between 1-3cm.

  • The Logos must be installed in inside in a windless environment for accurate readings.

  • Inside temperature must be between 59°F and 86°F.

  • Queues should be inside to prevent skin/surface temperatures from heating up. If people are coming from the inside a few minute adjustment time will help weed out false positives

  • For any questions about placement or installation questions please contact the SCW team.

  • Installation Instructions

  • The Logos weighs around 140lbs and takes at least two people to assemble
  • Assembly takes around 4 hours total from box to operational
  • Connecting the tablet requires connecting/splicing together bare wires - for full info check the Wiring Guide for the Logos
  • Due to the weight and assembly of the products any defective product may be replaced on a per part basis. SCW's warranty does not cover any installation or labor costs to replace parts.


  • For more information and guides, check out the "downloads" tab for more documentation!
