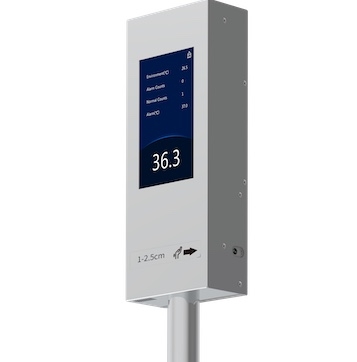

The Delphi - Pole Mounted Contact Free Fever Detection System
Contact your sales rep for a delivery timeline.
Detection Method
Non contact wrist check
Detects temperature by placing wrist next to sensor. No contact required.
Accuracy
≤+0.5°F Accuracy
High Accuracy Temperature
Temp
Indoor Only
Alerts
Sound and visual alerts on screen
Special
Touch free wrist measurement

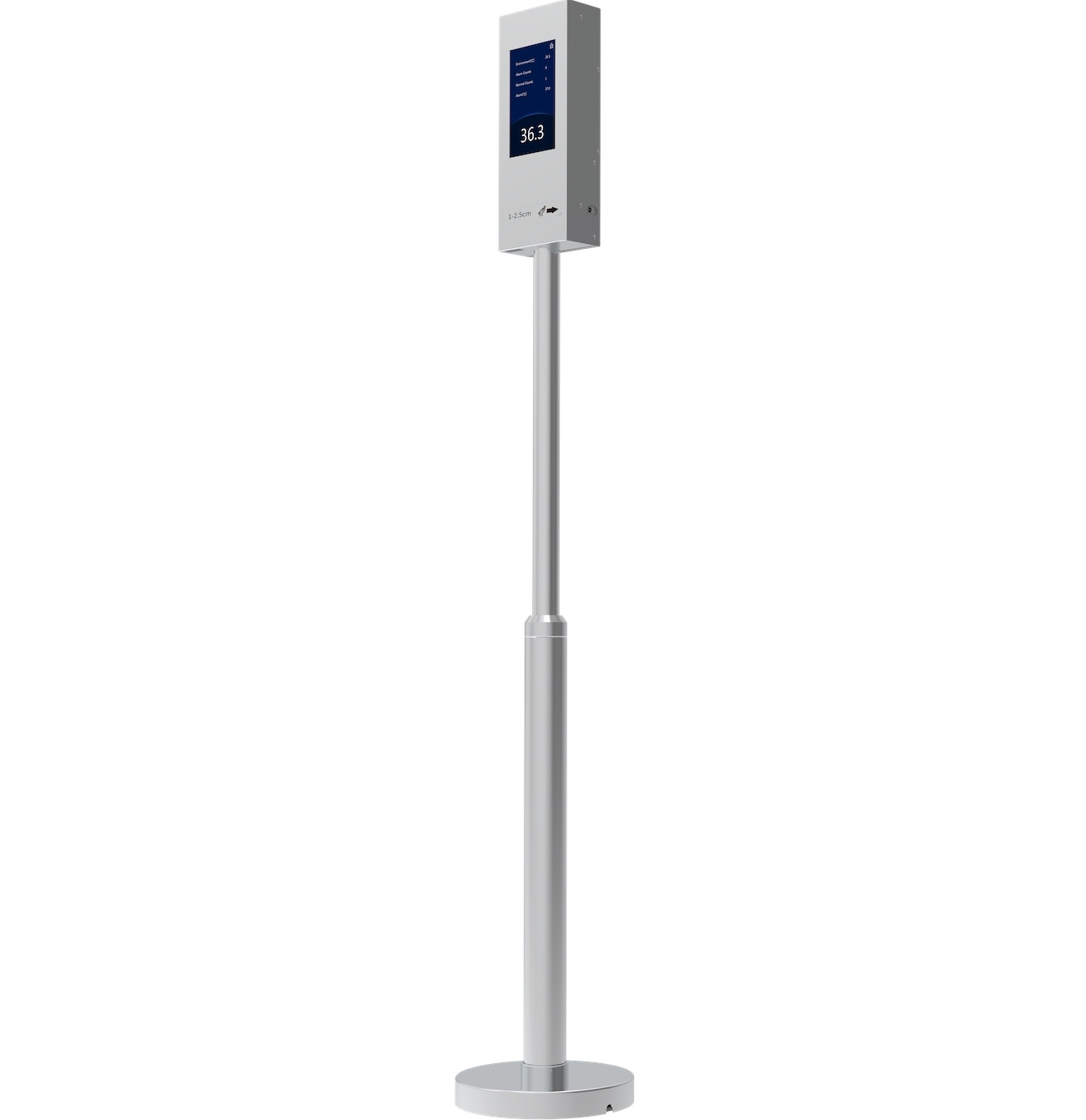

Standalone pole mounted
Alerts on high temperatures
High and normal temperature counts
No Problem
Whether you plan to DIY install or want us to do it for you, we're as flexible as you need.
Get a Custom Quote for Equipment or Installation
Detection Method
Non contact wrist check
Detects temperature by placing wrist next to sensor. No contact required.
Accuracy
≤+0.5°F Accuracy
High Accuracy Temperature
Temp
Indoor Only
Alerts
Sound and visual alerts on screen
Special
Touch free wrist measurement
Standalone pole mounted
Alerts on high temperatures
High and normal temperature counts
Important Use Notice
SCW’s fever detection devices are designed only to detect fevers. They are not designed to identify why that person has a fever. They are not intended to diagnose or identify the Coronavirus or any other disease/ailment.
If you have any questions please free contact the SCW team.
Touch free sanitary wrist measurement
Checks temperature without contact.
Up to 1 inch distance
High Accuracy
≤+0.5°F Accuracy
High accuracy for reliable detection.
Fast Reading
Fast temperature reading times and quick responses.
Up to 30 people per minute
American-Based Technical Support after the sale. For FREE. Forever.
Real review from Larry, who had this to say:
The most important part of a purchase like this is the support for technical assistance when there is a question or when there is a problem, and they always exceed expectations!
All of our equipment comes with Free Technical Support that is US based (Our Warehouse and Staff are located in Asheville, NC). We're happy to help you via chat, email, screen share / remote support sessions, and phones. Our number is 866-414-2553 and we're open from 9-7 M-F (EST).
The Delphi - FDPM Specs
Specifications |
FDPM
|
|
Measurement Area
|
Wrist
|
|
Measurement Distance
|
Between 1-4cm
|
|
Precision
|
0.18°F
|
|
Measurement Deviation
|
±0.5F/0.3C
|
|
Measurement Range
|
86°F to 113°F
|
|
Display
|
7” Touch Screen
|
|
On Screen Counts
|
High temperature count, normal count (resettable)
|
|
Alarm Type
|
Local sound alarm
|
|
Materials
|
Aluminum
|
|
Temp Measurement Dimensions
|
Temperature measurement module: 5.41 in (L) × 2.67 in (W) × 14.2 inches(H)
|
|
Bracket Dimensions
|
Bracket: 2.36 inches (diameter) x 26.77 inches (height)
|
|
Pole Dimensions
|
Pole: 1.49inches (diameter) x (9.85"/19.68") (height) |
|
Power Supply
|
DC 12V±25% input
|
|
Inputs
|
1x LAN, 2x Alarm Input, 1x Alarm Output
|
|
Operating Temperature
|
59°F to 86°F
|
|
Operating Humidity
|
<95%, non-condensing
|
|
Environment
|
Indoor windless environment only
|
|
Warranty
|
3 years
|
Spec Sheet for the Delphi
A PDF listing this product's most important specs.
Quickstart guide for the Delphi
Quickstart manual for the Delphi.
Celsius to Fahrenheit Guide
Guide on changing the temperature from Celsius to Fahrenheit on the Delph.
Temperature system operation and info
Need more info? Give one of our experts at call at 828-483-4237 or Email SCW
Important guidelines for the Delphi fever detection device
With any temperature products it's important to follow installation and environmental guidelines. Please note the following information for the Delphi.
