Concrete Surface Security Camera Installation Guide

Pictures are currently of Masonry, because the steps are identical.

install it like a pro series

Step 1:

Using the adhesive template supplied with your camera or mounting box apply template to the mounting surface.

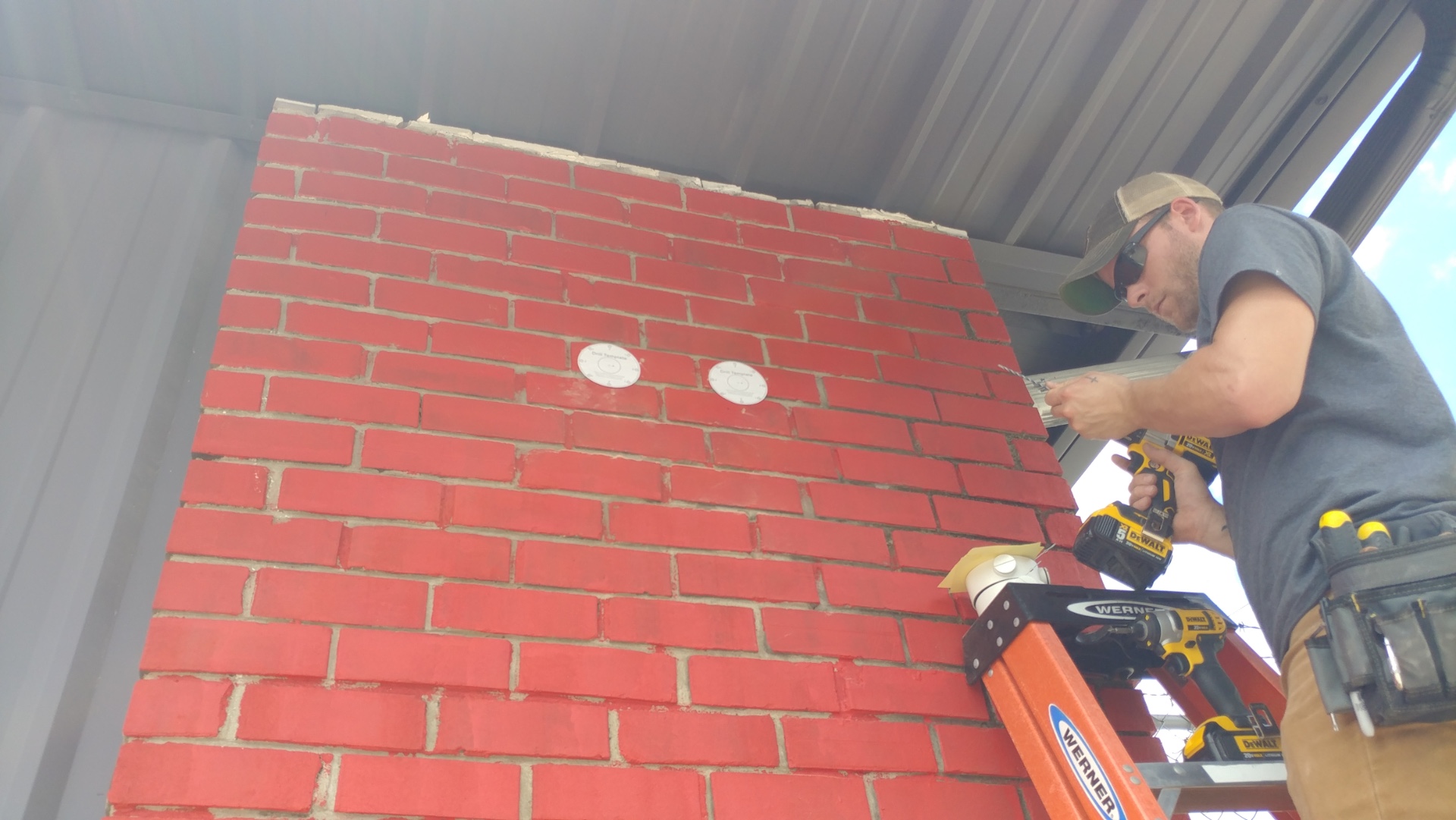

template sticker on masonry

Step 2:

drill pilot holes

Using a hammer drill and a 5/32 masonry drill bit; drill pilot holes in each location marked on the mounting template.

Step 3:

If you are running the cable through the wall drill a hole large enough for the ethernet cable, a 1/2in to 1in drill bit should be sufficient. The location of the hole is marked on the center of the mounting template.

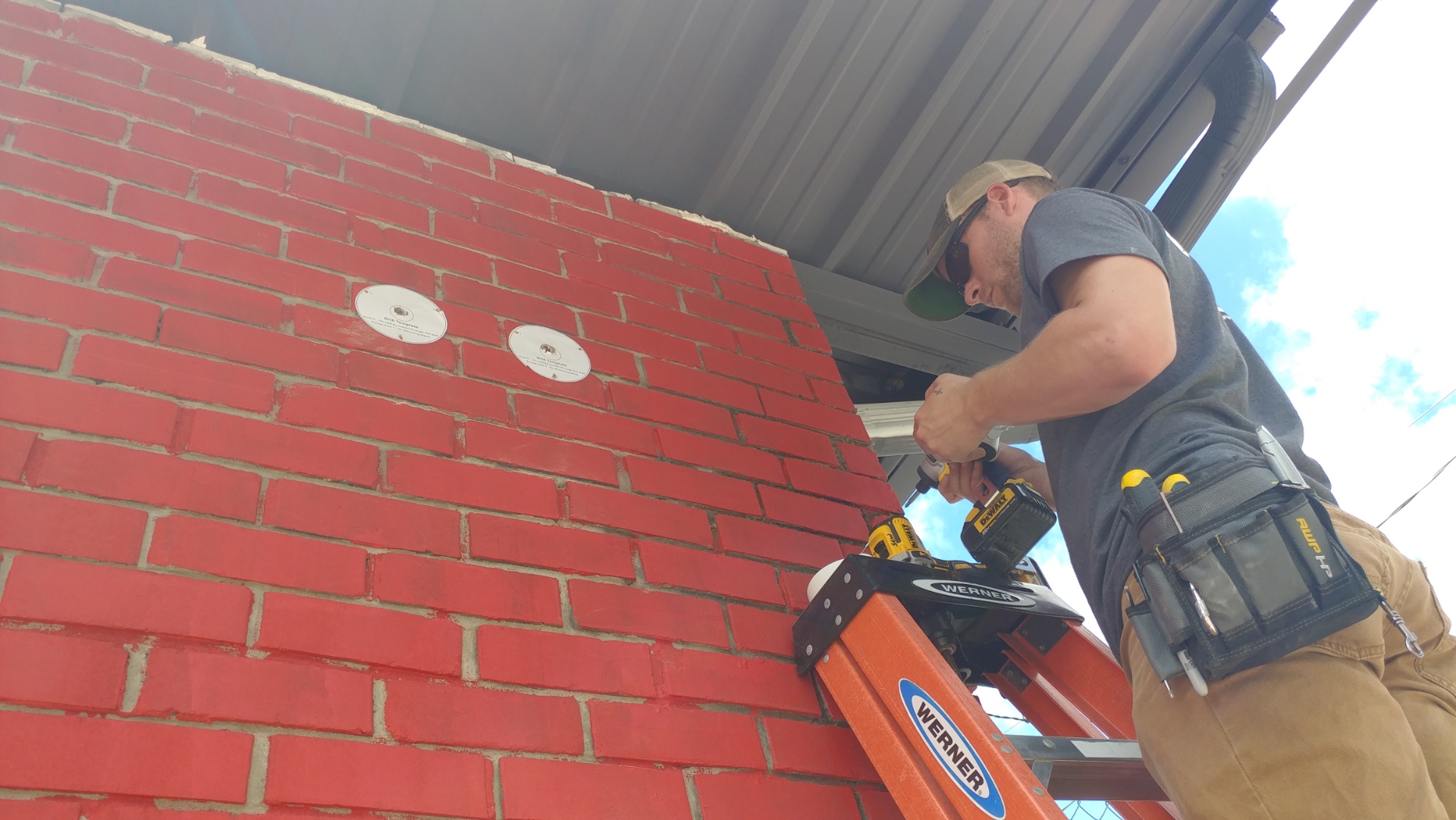

drill cable hole

Step 4:

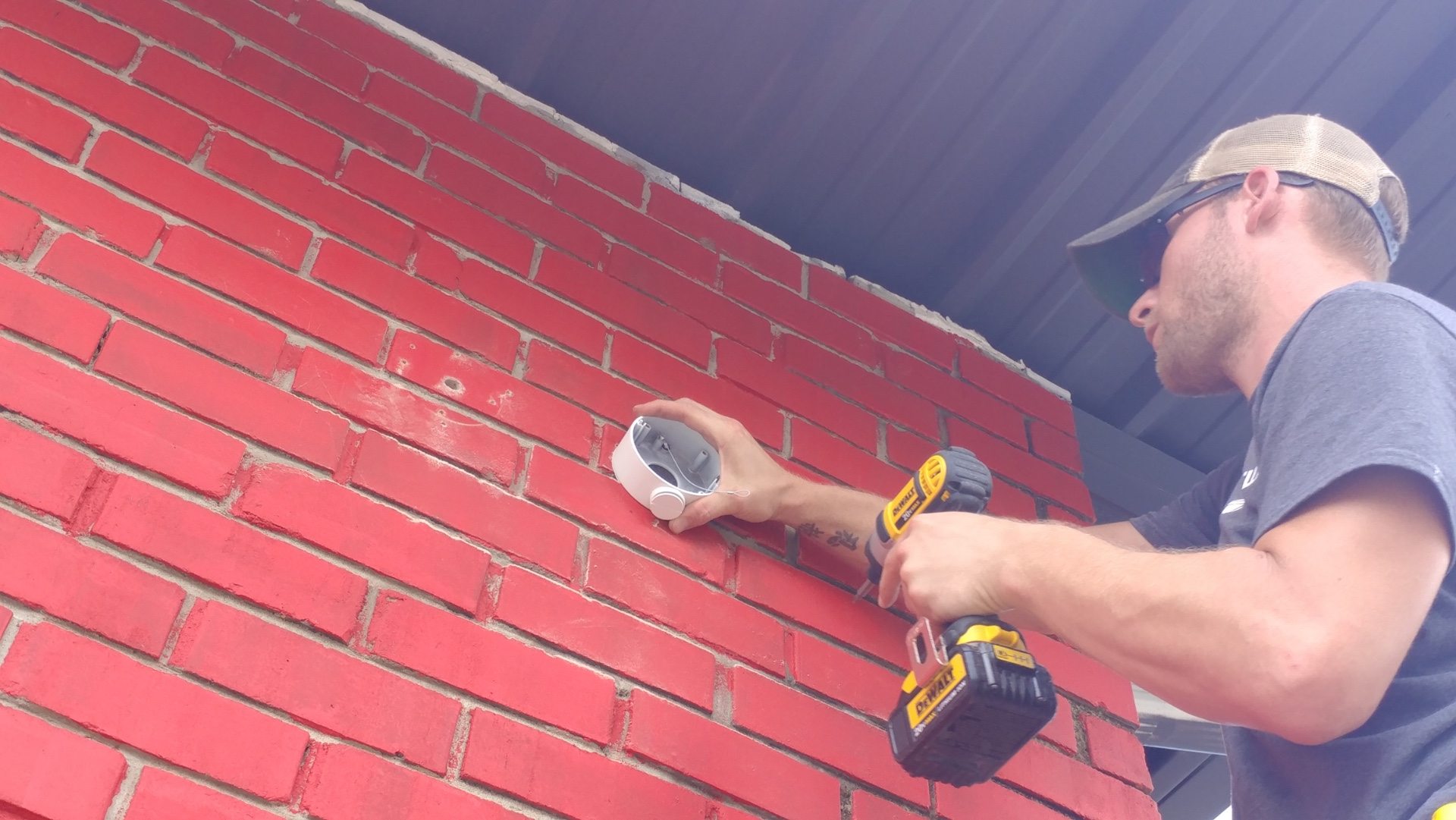

attaching mounting box

Using the supplied screws attach the 4k ip camera or camera bracket to the wall. Use hand tools to prevent from stripping the mounting points.

Step 5:

Run ethernet cable through the mounting box, install the weatherproof connector, and terminate the end.

attaching waterproof connector
