$195.00

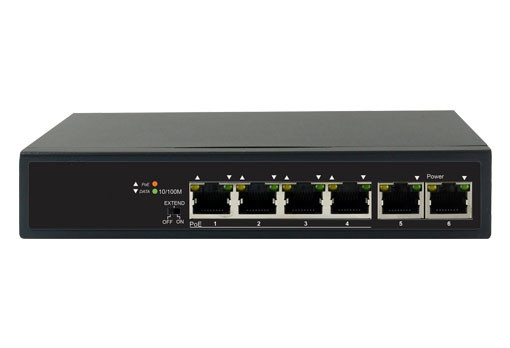

SCW 4 + 2 Port PoE Switch with Extended Transmission - SW06PEXT

In stock

Usually ships the same business day if ordered before 2PM EST.

SKU
SW06PEXT

Ports


No. of POE Camera Ports: 4

No. of Uplink Ports: 1 RJ45


Compliance


IEEE 802.3

IEEE 802.3u 100BASE-TX

IEEE 802.3x flow control

IEEE 802.3af PoE

IEEE 802.3at PoE


Power


Supports up to 30W for each PoE port

Total Output is 55W

AC Input Voltage: 100 ~ 240 VAC


Networking


10M/100M

max 750 ft cable distance for SCW Admiral or Imperial line cameras

max 300 ft cable distance for other cameras

Images

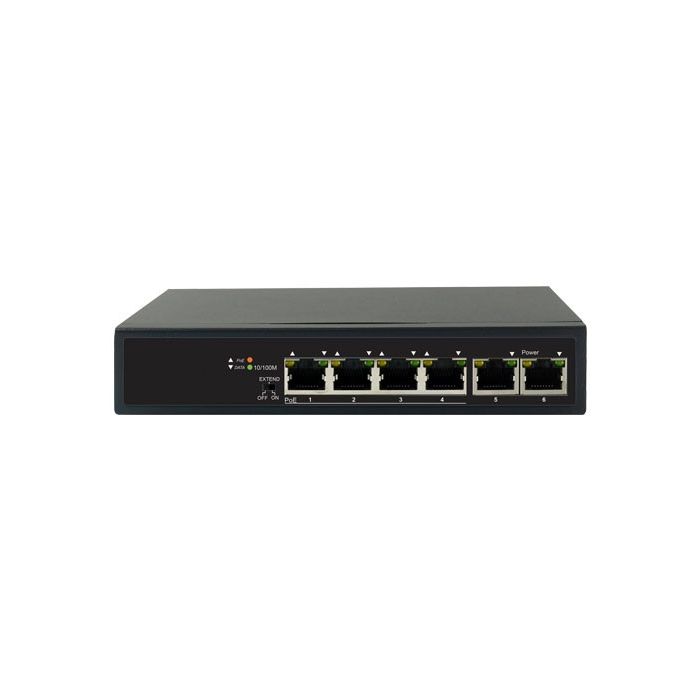

SCW 4 + 2 Port PoE Switch with Extended Transmission - SW06PEXT
Need Installation?

No Problem

Whether you plan to DIY install or want us to do it for you, we're as flexible as you need.

Get a Custom Quote for Equipment or Installation

SCW 4 Port PoE Switch + 2 Uplink Ports with Extended Transmission - SW06PEXT

4×10/100Mbps PoE Ethernet ports

2×10/100Mbps Ethernet port for uplink

PoE complies with IEEE802.3af/at, up to 30W for single port

Up to 750 feet transmission distance with SCW Admiral or Imperial line cameras.

Easy to use, no need to configure

Note: Extended transmission only works directly to Admiral or Imperial line cameras. It does not work to other network devices or other switches.

High quality all metal housing

Includes 1 RU Rack Ears

Ports 6×10/100Base-TX autosensing Ethernet ports(4 10/100Mbps ports support PoE) Port attribute 10/100 Mbit/s transfer rate Half-duplex, full-duplex and auto-negotiation Auto MDI/MDIX Standards IEEE 802.3 IEEE 802.3u IEEE 802.3x IEEE 802.3af IEEE 802.3at MAC 1K Packet forwarding rate 0.74Mpps Switching capacity 1Gbps EXTEND mode Standard: the switch functions as a common unmanaged switch and all the ports of the switch can communicate with each other. Extend Mode: If the extend mode is enabled, the transmission distance of both power and data will extend up to 250m(10Mbps), this funcation can replace the extender and parts of the Fiber. It will extend the distance of the whole system and save the cost of the project. Status LEDs Link/Act (steady yellow): link is normal Link/Act (flashing yellow): data is being forwarded Link/Act (off): no link PoE (steady green): the port is powering a powered device properly PoE (off): the port is not connected to any powered device or is not supplying power Power (steady green): AC input is normal Power (off): AC input is abnormal PoE Port 1 to Port 4 support standard IEEE802.3at/af power( maximum power for each port is 30W), PoE power type is end-span(12+, 36- and 45+, 78- line pair) Max PoE capacity: 57.8W Consumption ≤ 63.7 W DC voltage 51 V , 1.25A Operating temperature 0°C-40°C (32°F-104°F) Operating humidity 10%-90% non-condensing Storage temperature -40°C-70°C (-40°F-158°F) Storage humidity 5%-90% non-condensing Dimensions (W×D×H) 100mm*100mm*26mm Certification FCC,CE,RoHS
