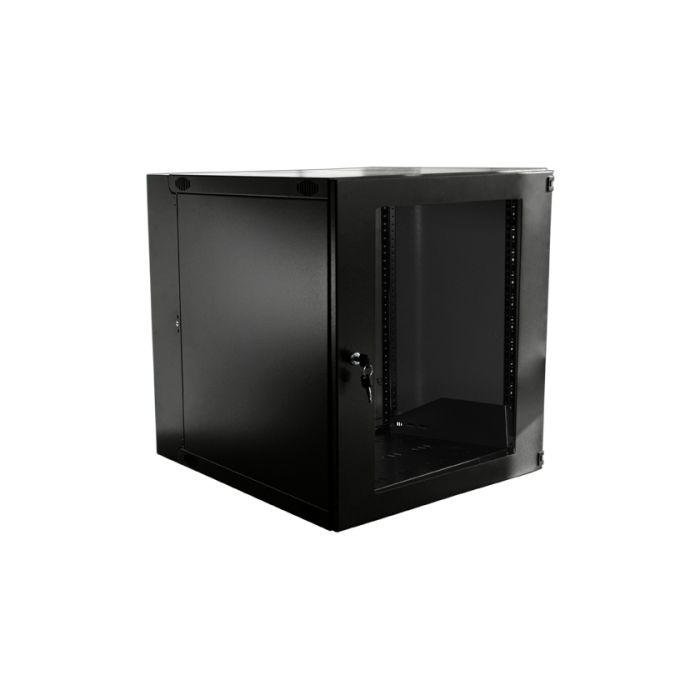

Rack Mount Cabinet (12U)
Usually ships the same business day if ordered before 2PM EST.
Height: 23.43 inches (595 mm)
Depth: 23.62 inches (600 mm)
Width: 21.25 inches (540 mm)
Rated for a maximum loading capacity of 132 pounds
No Problem
Whether you plan to DIY install or want us to do it for you, we're as flexible as you need.
Get a Custom Quote for Equipment or Installation
This product is heavy/difficult to ship - all non warranty returns will incur a minimum 30% restocking fee.
This product weighs 50 lbs and takes additional time to ship. Ships unassembled and flat packed for easy on-site handling.
Capacity and Dimensions
Height: 23.43 inches (595 mm)
Depth: 23.62 inches (600 mm)
Width: 21.25 inches (540 mm)
Rated for a maximum loading capacity of 132 pounds
Features
3/4 inch, 1 inch and 2 inch pipe knockouts for pipe fittings
Cable entry on top and bottom
Lace Points reduce cable clutter
Lockable Plexiglass Front Door
Removable 12 x 12 back panel
Removable side panels
Reversible right or left handed front door
Height: 23.43 inches (595 mm)
Depth: 23.62 inches (600 mm)
Width: 21.25 inches (540 mm)
Rated for a maximum loading capacity of 132 pounds
Double Hinge Swing Out Wall Mount Cabinets are a great solution for networking, security, and AV installations where access to the back of the equipment is important. Compatible with all standard 19-inch EIA equipment, these cabinets feature a swing-out design that also allows the rear section to completely disconnect from the cabinet, making installation a breeze. Constructed of cold rolled, powder-coated 19-gauge steel, this swing out wall mount cabinet has a maximum load capacity of 132 pounds. Ships unassembled and flat packed for easy on-site handling.
Features
Locking front and rear doors prevent unauthorized access to equipment
Two sets of rails provide a stable mounting structure
Multiple cable entry options provide greater flexibility during installation
Mounting rails are adjustable to match a variety of equipment sizes
Doors are removable for convenient access to equipment
Top and bottom panel vents to optimize cooling of equipment
Adaptable for use in network, security and audio/video installations
Cable entry on top, bottom and back
Lace points to reduce cable clutter
Lockable acrylic front door is removable and reversible
Lockable rear door swings out 90° from wall for accessibility
14 AWG ground wire connects door and side panels to cabinet frame
Adjustable Rail Depth (3.25")
1.75” RU spacing, marked and numbered on rails
19” W, EIA-310-D universal hole spacing
Included Accessories
(48) 10-32 Mounting Screws & Washers
(1) Grounding Kit
(1) Paper Mounting Template
(2) Keys
Compliance
ANSI/EIA RS-310D
IEC60297-2
DIN41494; Part 1
DIN41494; Part 7
