How to Mount a PTZ Camera with the Wall Mount Bracket

install it like a pro series

If you just received one of our PTZ cameras, here is a helpful guide on how to mount it with the PTZ wall mount bracket.

Step 1:

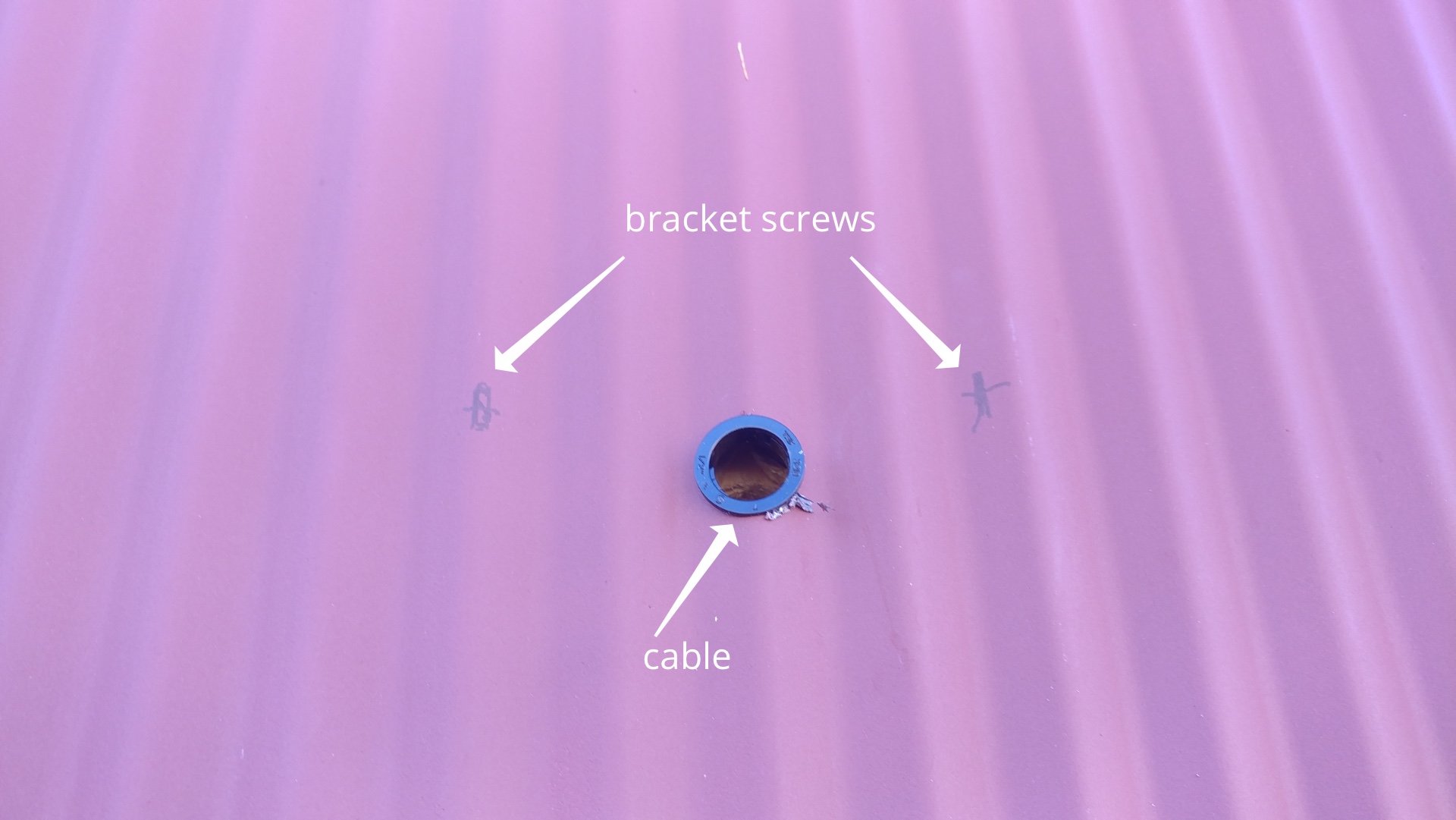

Mark the areas where the bracket screws will be placed.

inside the power cord of the IP camera

Step 2:

inside the power cord of the IP camera

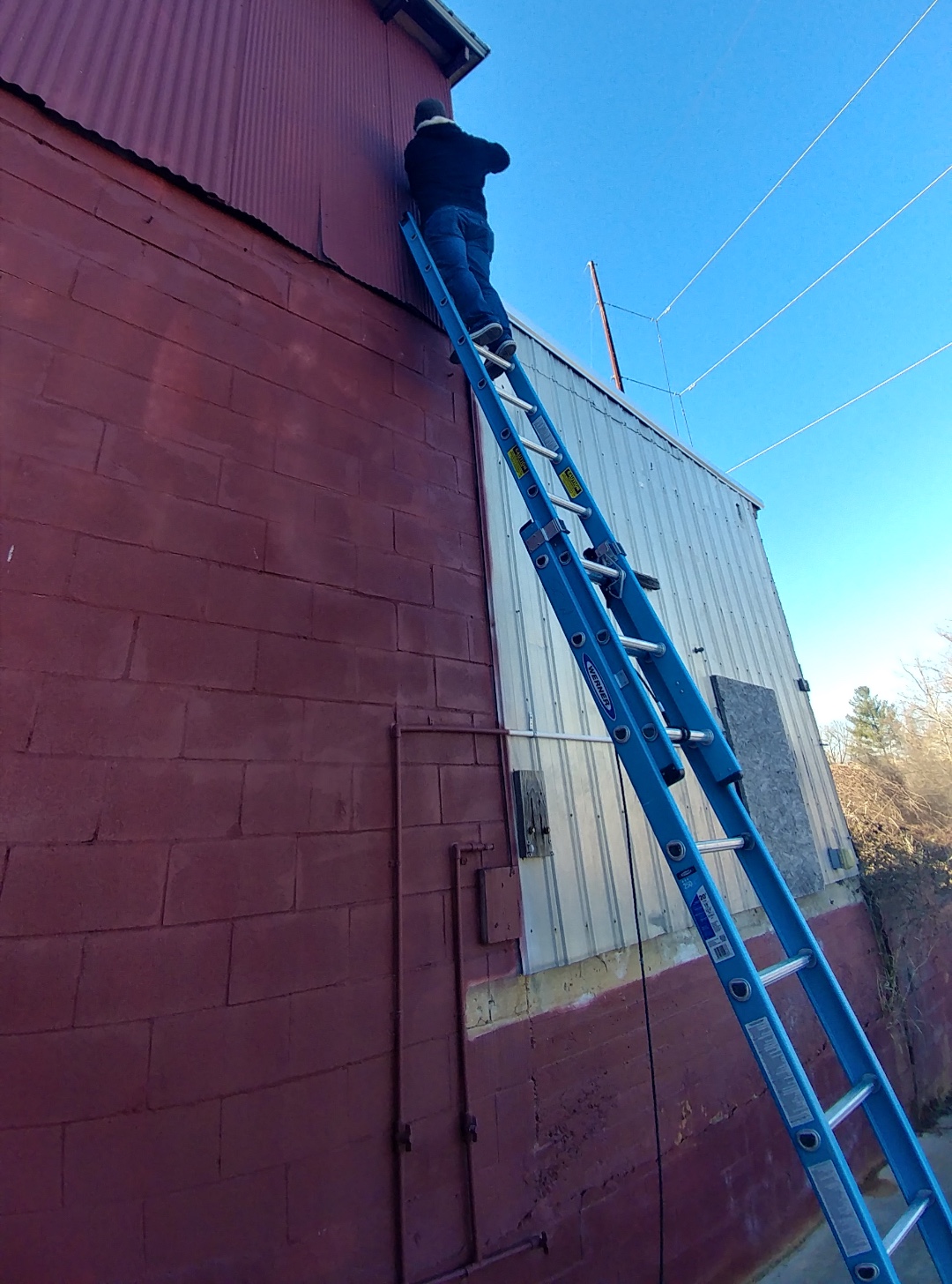

Drill the holes you have marked.

Step 3:

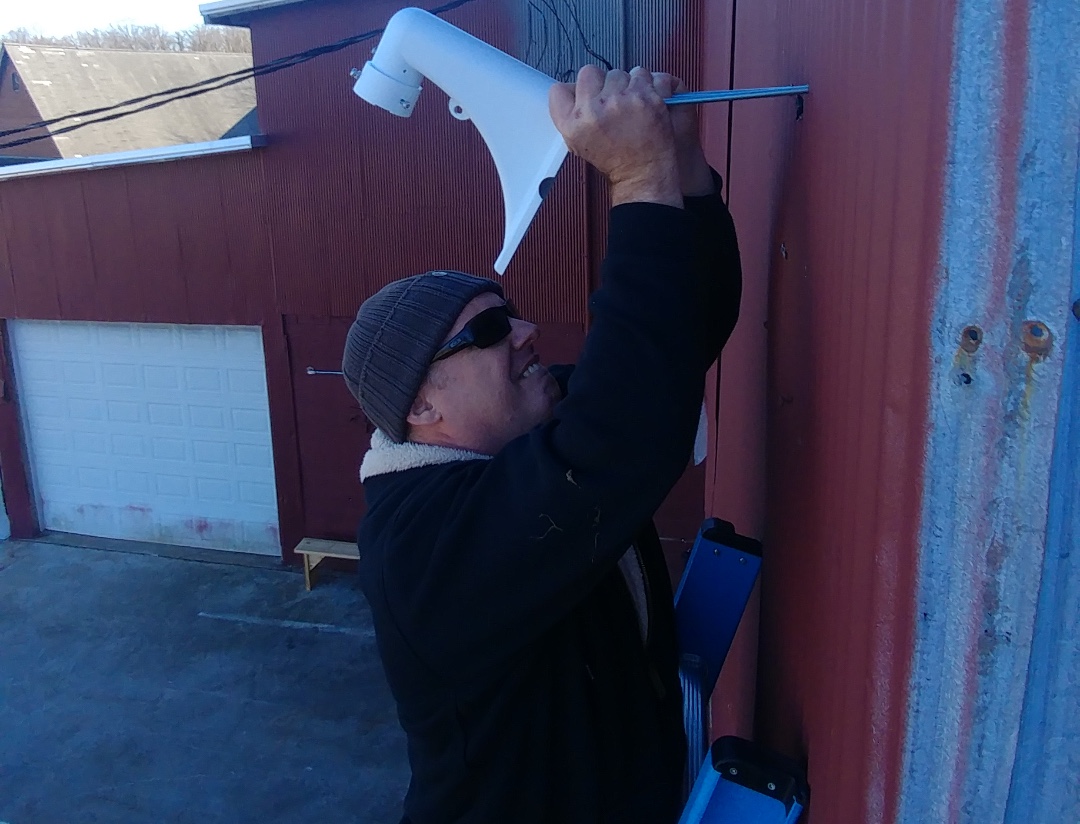

First, mount the top of the PTZ wall mount bracket.

24 volt power supply

Step 4:

white is power, black is ground

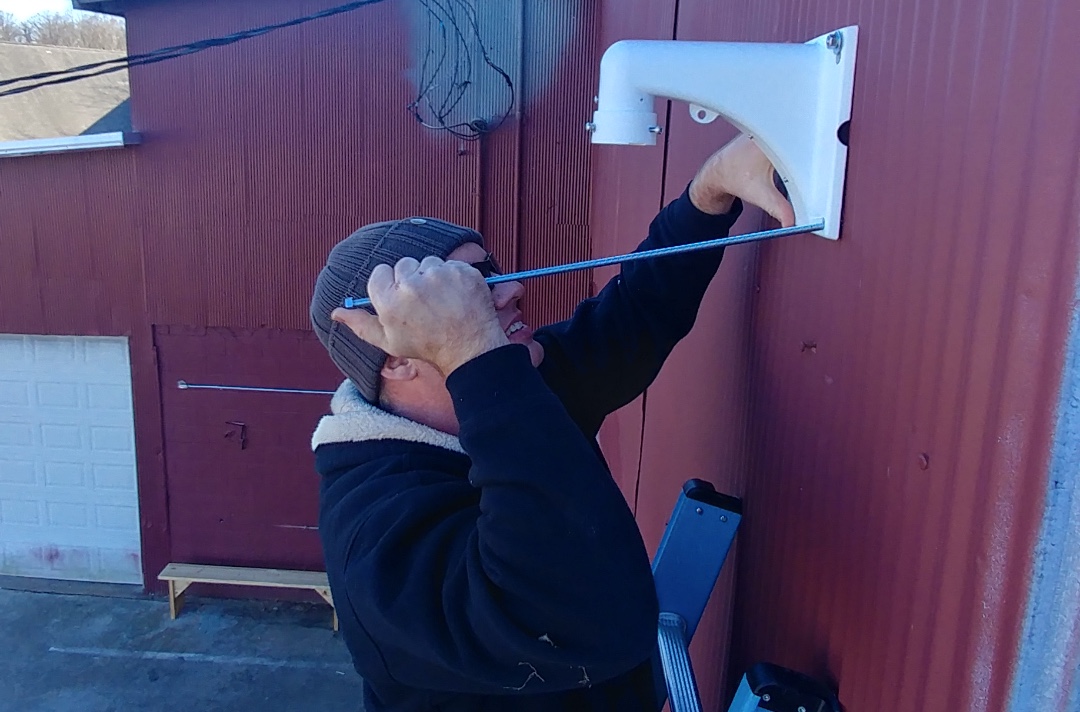

Then, mount the bottom of the PTZ wall mount bracket.

Step 5:

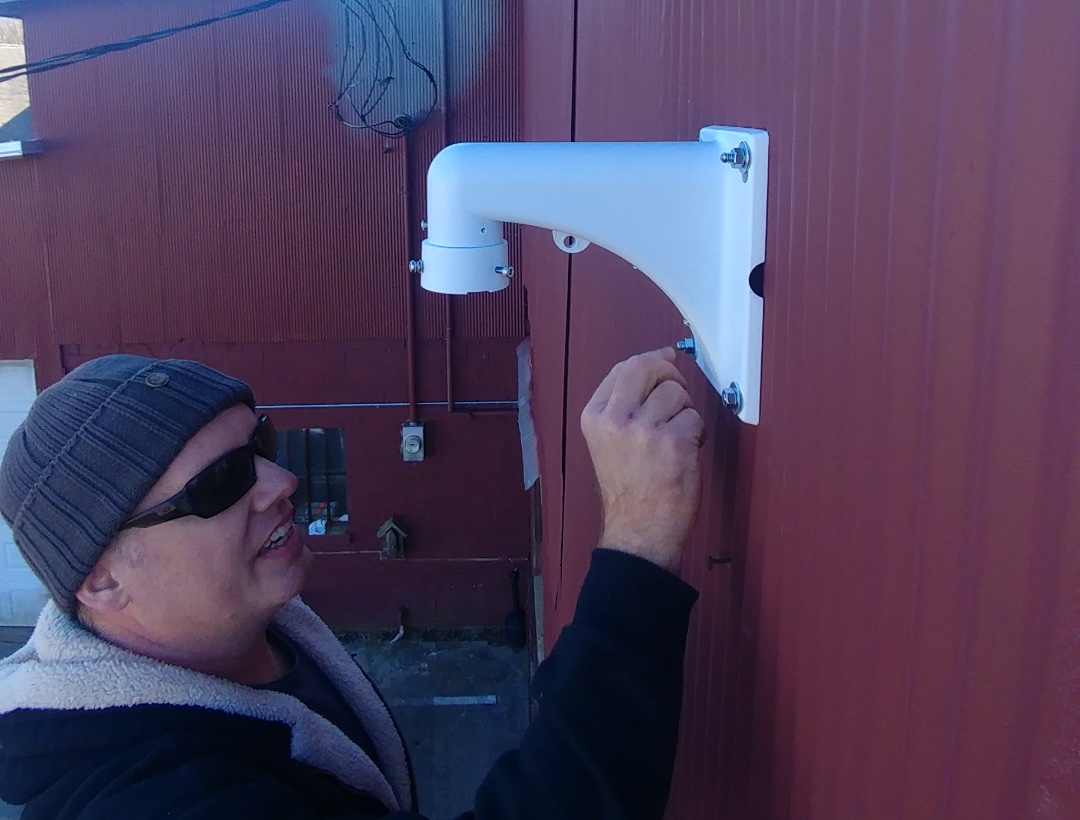

Tighten all four of the bolts.

combine red to white and black to black

Step 6:

complete

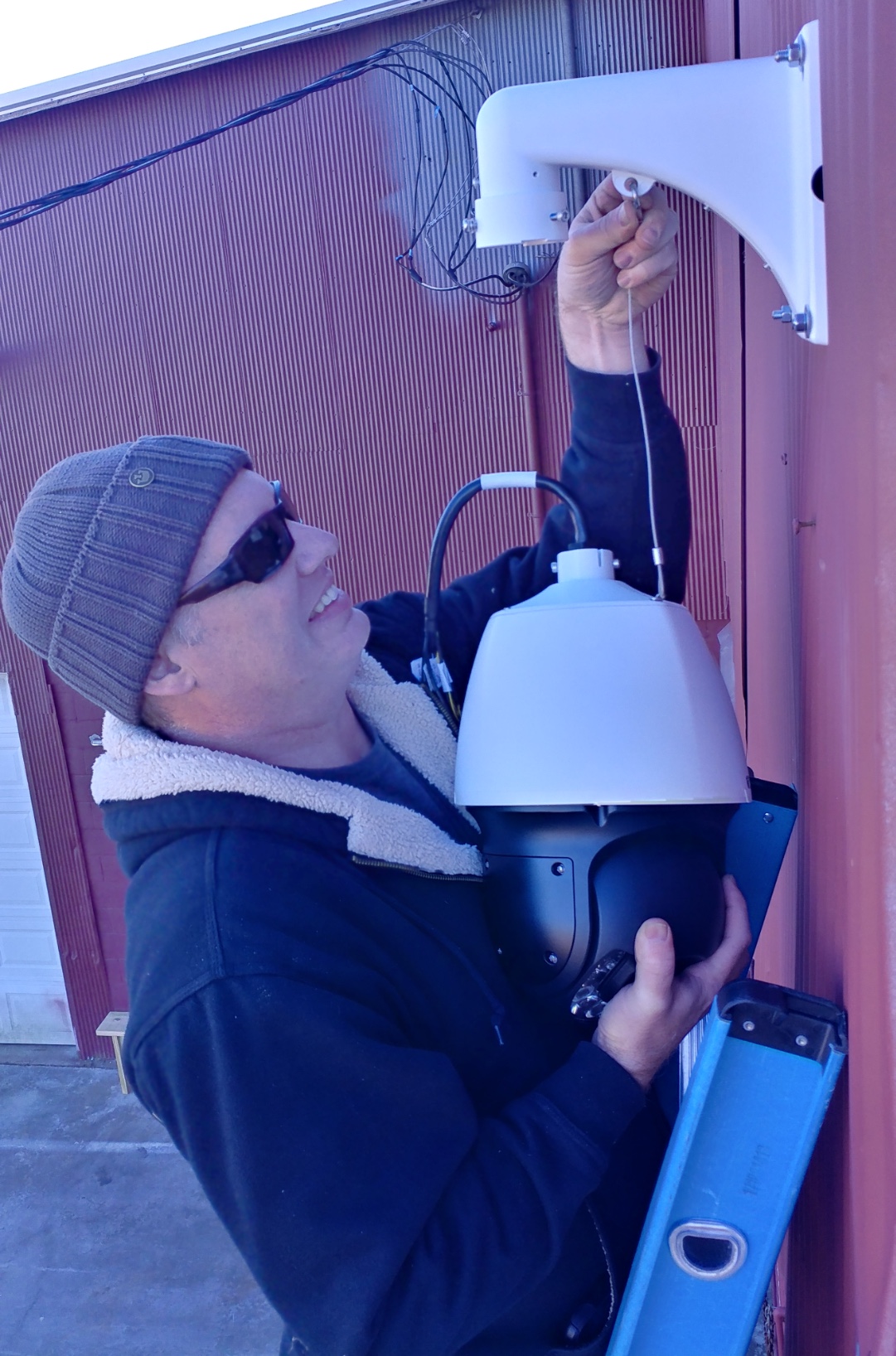

Attached the PTZ to the safety clip of the wall mount bracket.

Step 7:

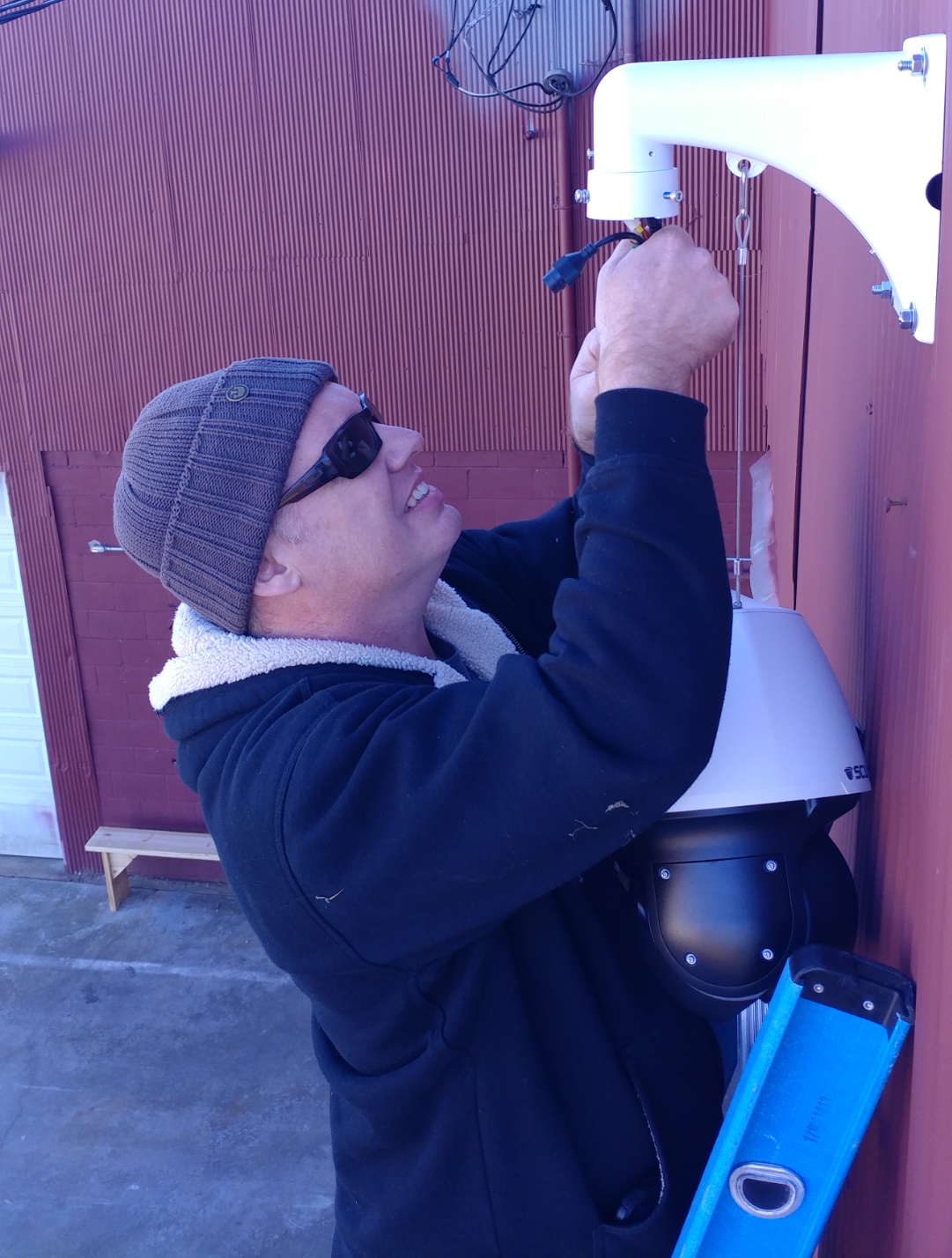

Feed the PTZ cables up into the wall mount bracket.

inside the power cord of the IP camera

Step 8:

complete

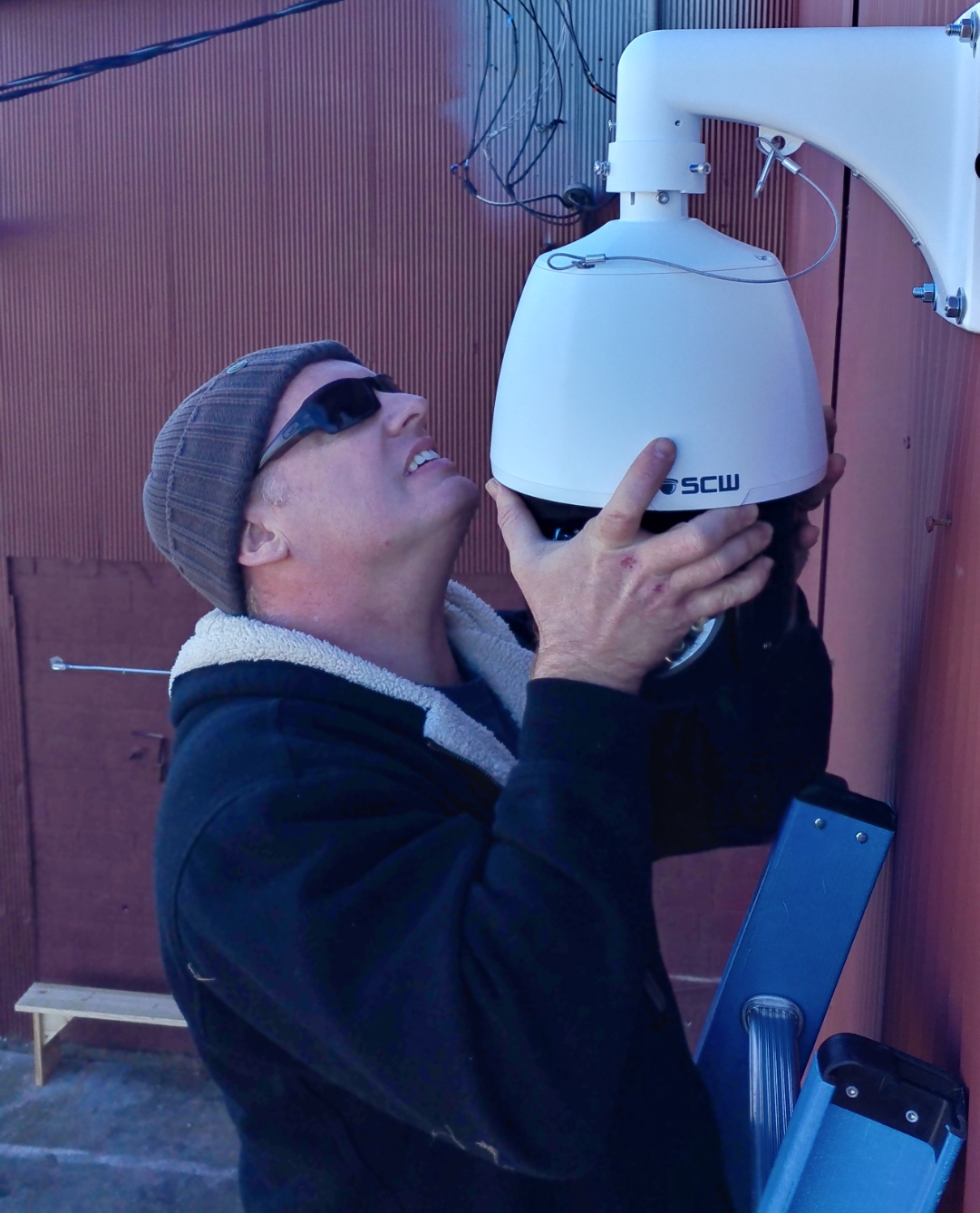

Slide the PTZ up into place. You will feel the PTZ lock into the mount.

Step 9:

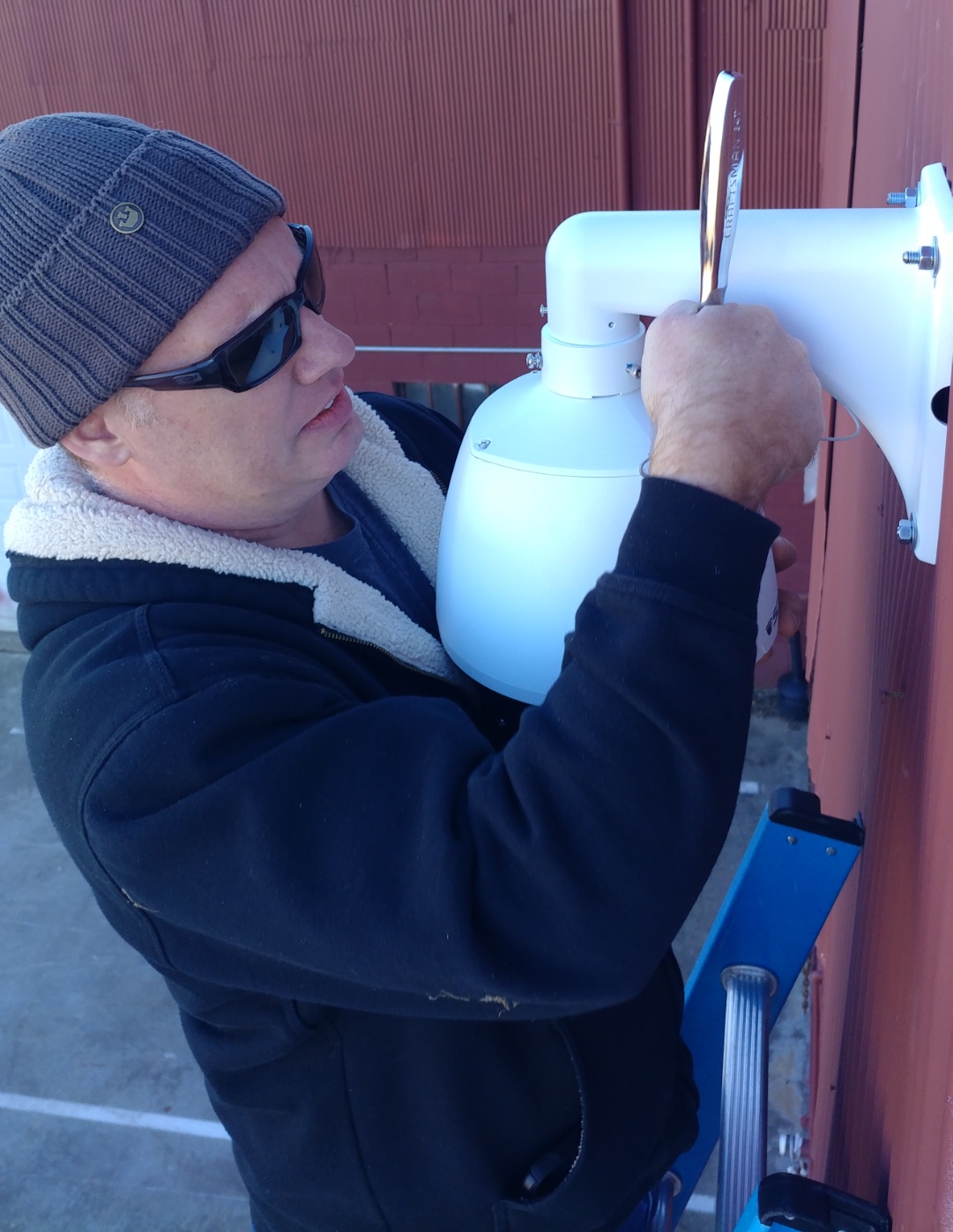

Tighten the bolts on the bracket arm, this will secure the PTZ in place.

inside the power cord of the IP camera

Step 10:

complete

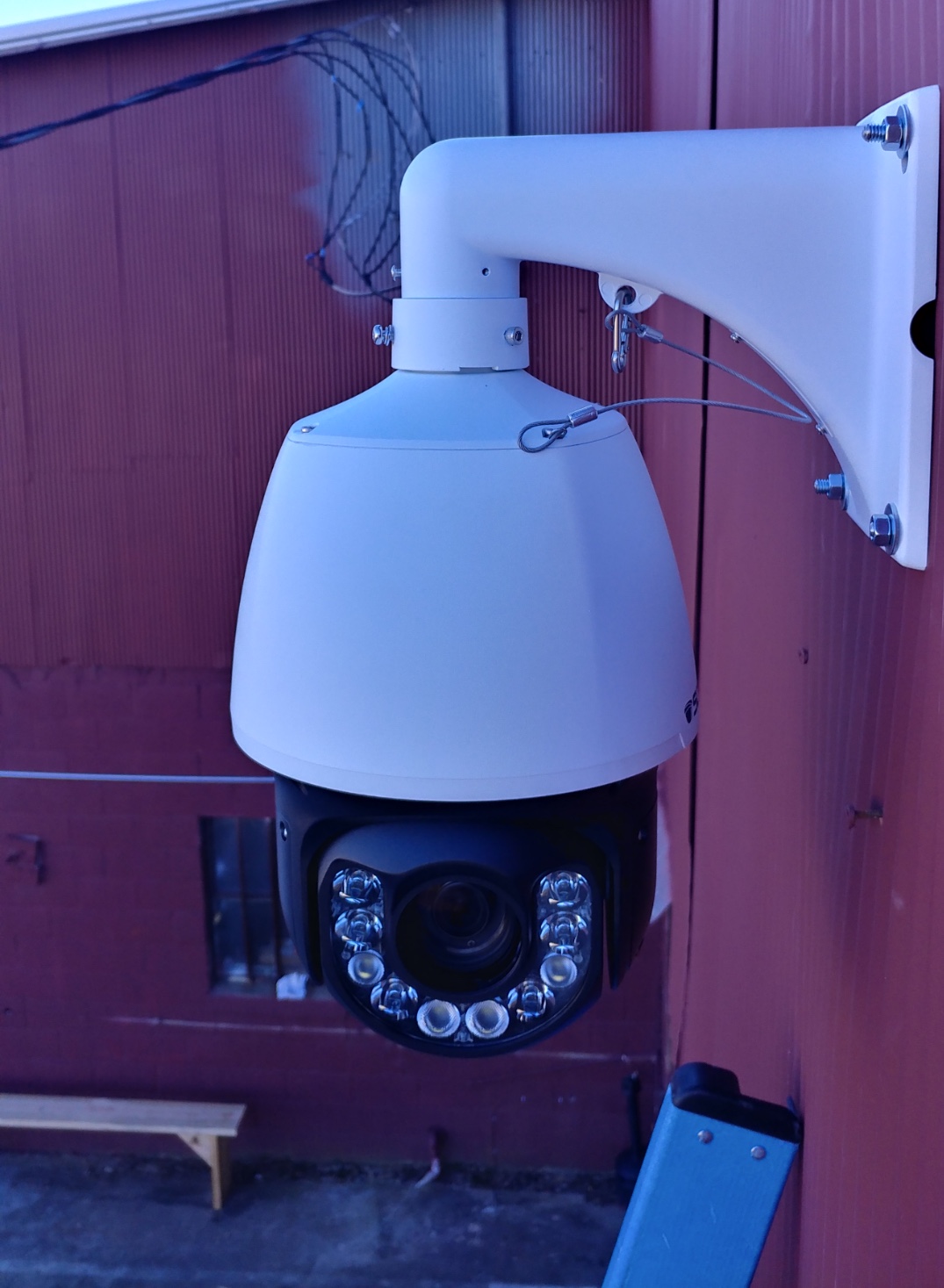

You just completed mounting your PTZ camera.

This guide is applicable for: Lookout 2.0 - 26ZV, Laser 2.0 - 26ZV-LIR, and Spotlight 2.0 - 26ZV-W.
