16 Camera 4K Admiral Series

1 x Admiral 16 Channel 4K POE NVR

16 x Warrior 8.0 v2 or Deputy 8.0 v2

Backordered

Contact your sales rep for a delivery timeline.

SKU
ADM16CH4K

Cameras


4K (8MP) UHD @ 20 FPS: 3840 x 2160

86° or 112° options
IP67 Weatherproof
Infrared night vision up to 100 FT
-22°F to 140 °F temp rated

4MP vs 4K.


Software


VCA: Motion Detection & Intrusion Detection
Video Content Analytics (VCA) Search
VCA Event based Email Alerts
Remote Footage Download
1 Click Firmware Update

Learn when you would use VCA


Remote Viewing


Smartphone Apps
Tablet Apps
Windows Apps
Mac Viewing Apps
Internet Explorer Viewing

How Patent Wars have changed Browser Support


Hardware


Cat5e (RJ45) Ethernet to Network
Standard 3-Prong Wall Plug
SCWEasyConnect 2.0 ports on back for Plug and Play Admiral Line SCW camera auto-configuration up to 750 ft away
VGA Monitor Out
4K HDMI Out for TVs/Monitors
Footage Download via USB

Learn about automatic backup footage options

System Configuration(s):

  • All Bullet Cameras


    16xThe Warrior 8.0 v2 - 26BF8M - 4K (8MP = 4x1080P) Fixed Lens Mini Bullet Camera
    1xThe Admiral Standard 16 Channel 4K NVR v2 - ADM16P16-V2M

    As configured: $4,633.00

  • All Turret Cameras


    16xThe Deputy 8.0 v2 - 26DF8M - 4K (8MP = 4x1080P) Fixed Wide Angle Lens Turret Dome Camera
    1xThe Admiral Standard 16 Channel 4K NVR v2 - ADM16P16-V2M

    As configured: $4,649.00

  • Half Bullet & Half Turret


    8xThe Deputy 8.0 v2 - 26DF8M - 4K (8MP = 4x1080P) Fixed Wide Angle Lens Turret Dome Camera
    8xThe Warrior 8.0 v2 - 26BF8M - 4K (8MP = 4x1080P) Fixed Lens Mini Bullet Camera
    1xThe Admiral Standard 16 Channel 4K NVR v2 - ADM16P16-V2M

    As configured: $4,641.00

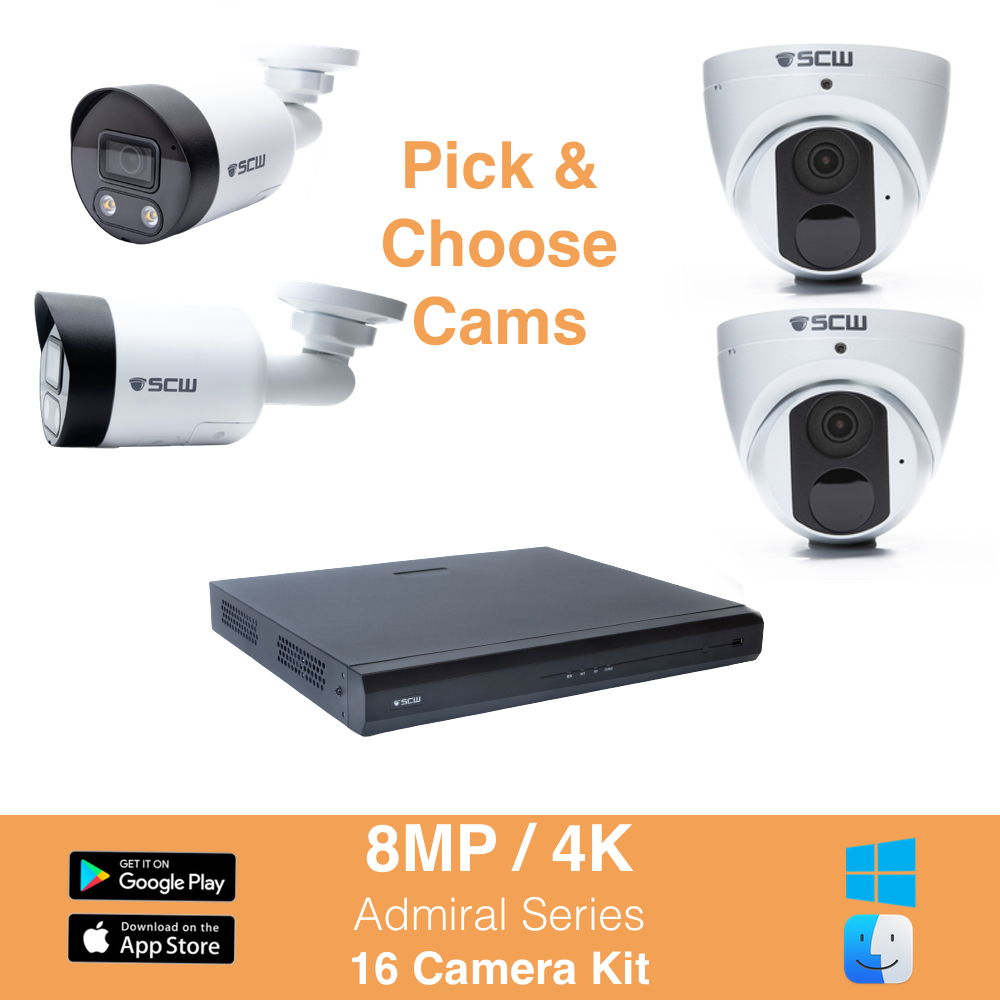

This 16 Camera 4K Admiral Series Camera System is Customizable:

You can choose if you want bullet or dome cameras or half and half. If you don't know what to pick, please see our Bullet vs Dome cameras guide.

When you add this system to the cart, it will break up into individual cameras and recorder, so that you can further customize it, if you so choose. Please see our guide on How to Customize our Security Camera Systems if you want to sub one of the cameras in this package out for a specialty camera, like a PTZ or long range camera.

You can also choose your hard drive size when you add it to the cart. For this six channel 4K Admiral Series system, a 10TB hard drive will usually last around 7 days on continuous H.265 recording and 4-8x longer (4 to 6 weeks) when recording on motion. If you want a custom recording length, you can use our NVR storage calculator to determine how large of a hard drive you would need.

Camera Options

Although you can substitute any Admiral line SCW camera and have them work with this system, we have included two 4K fixed lens cameras in this customizable system bundle: The Warrior 8.0 v2 and The Deputy 8.0 v2. Both of the cameras in this system record at 4K (8 Million Pixels per frame - about four the quality of your 1080P HD TV) and both can be mounting indoors or outdoors, on the wall or on the ceiling/overhang. The main difference between the two cameras that come in this system bundle are the viewing angle and how far you can ID a face.

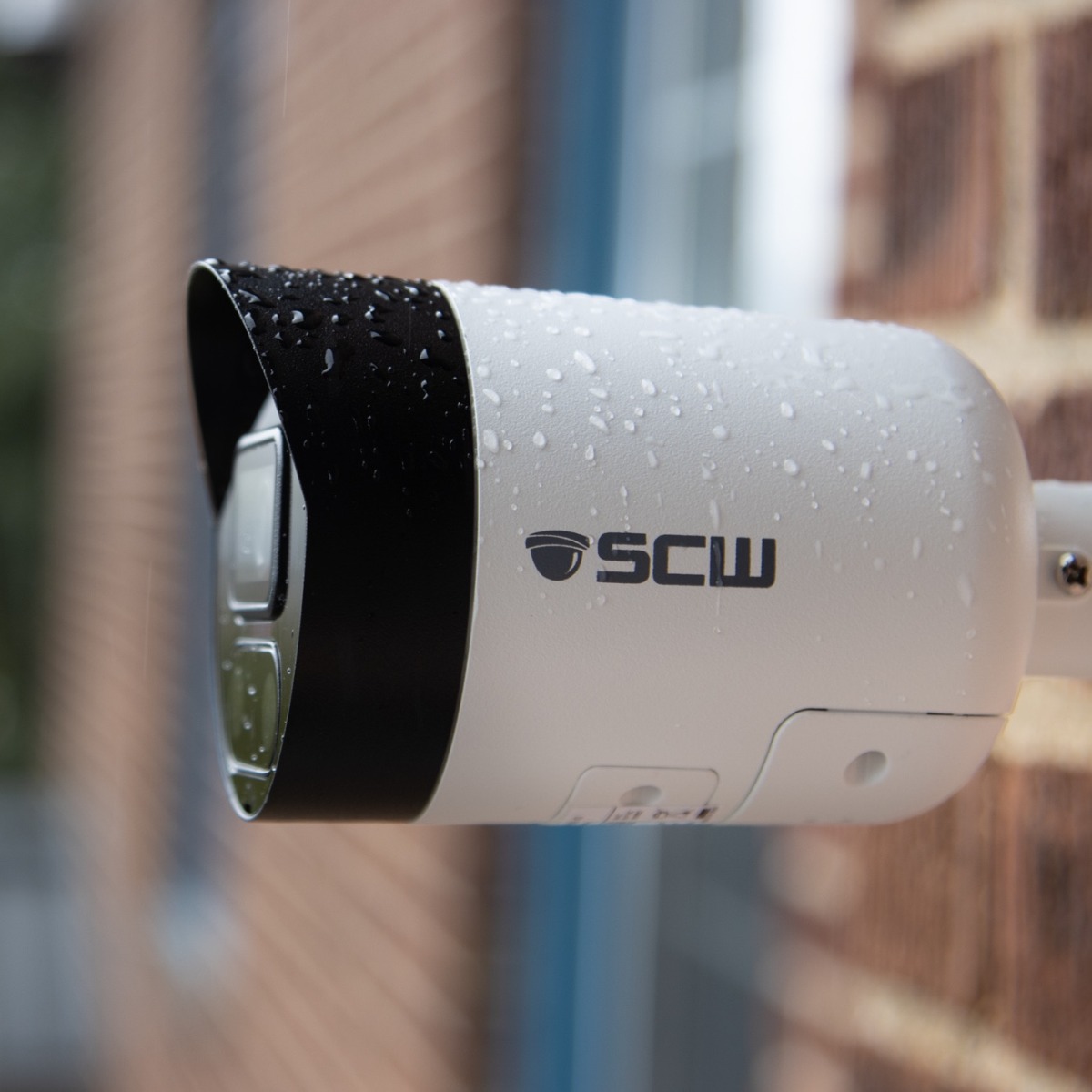

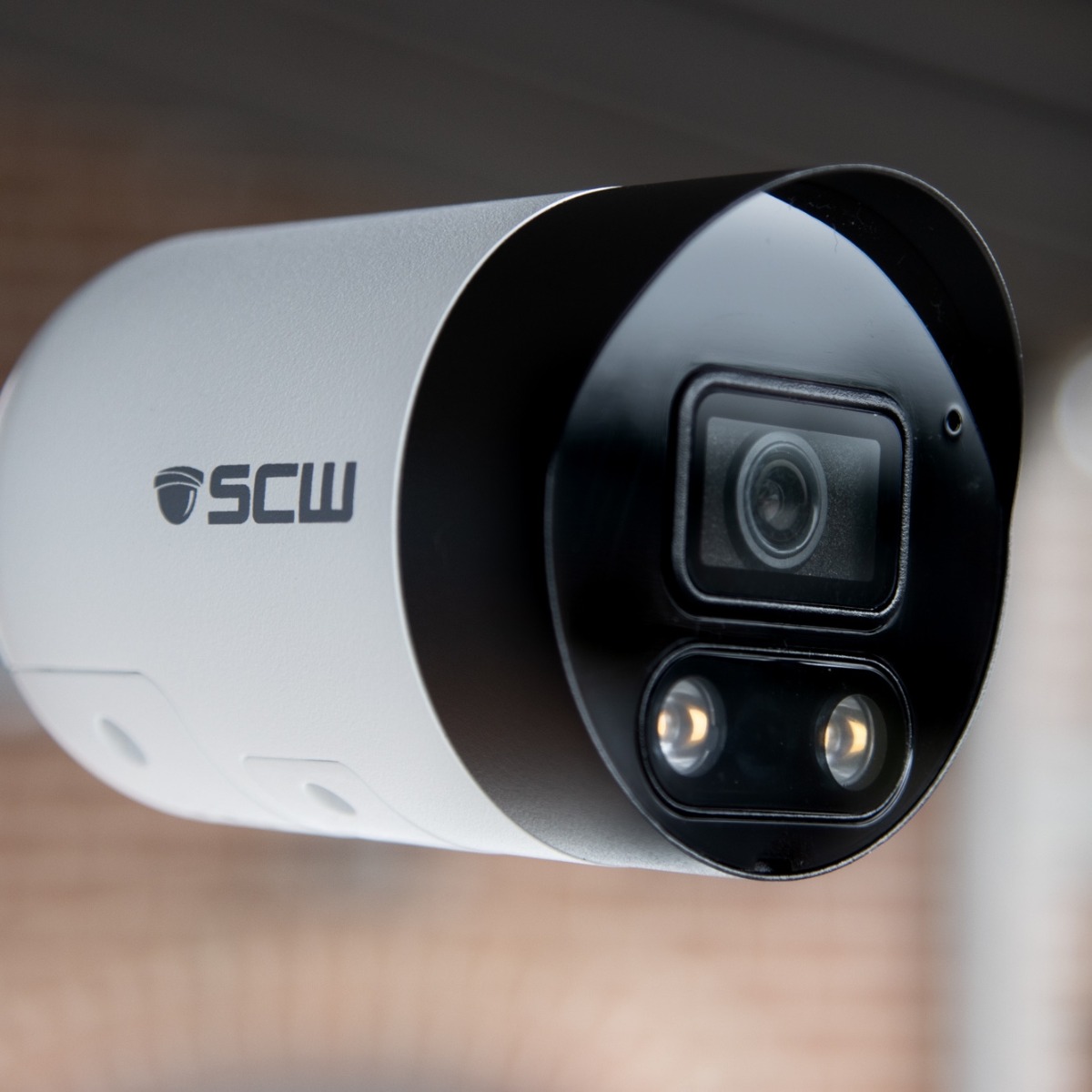

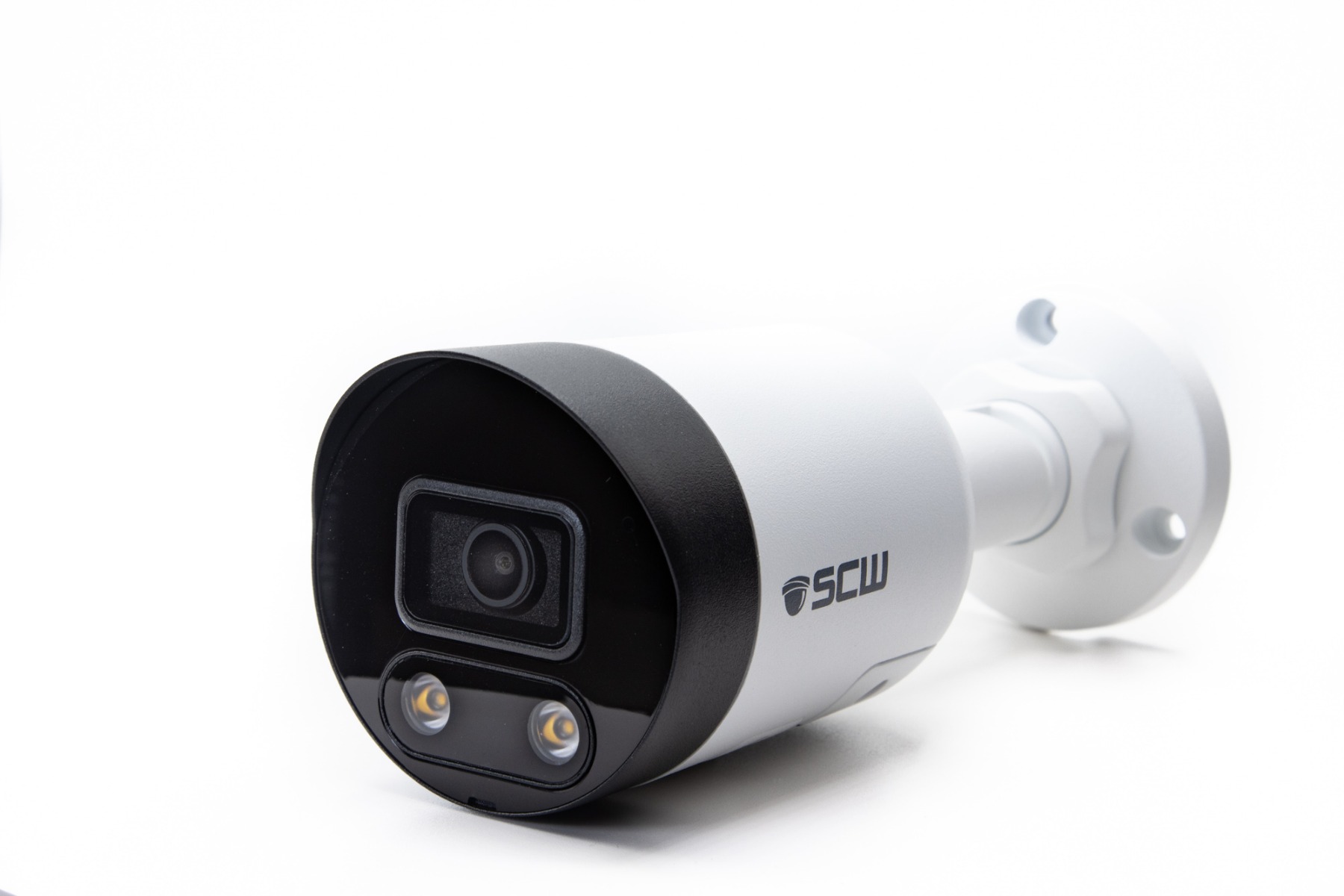

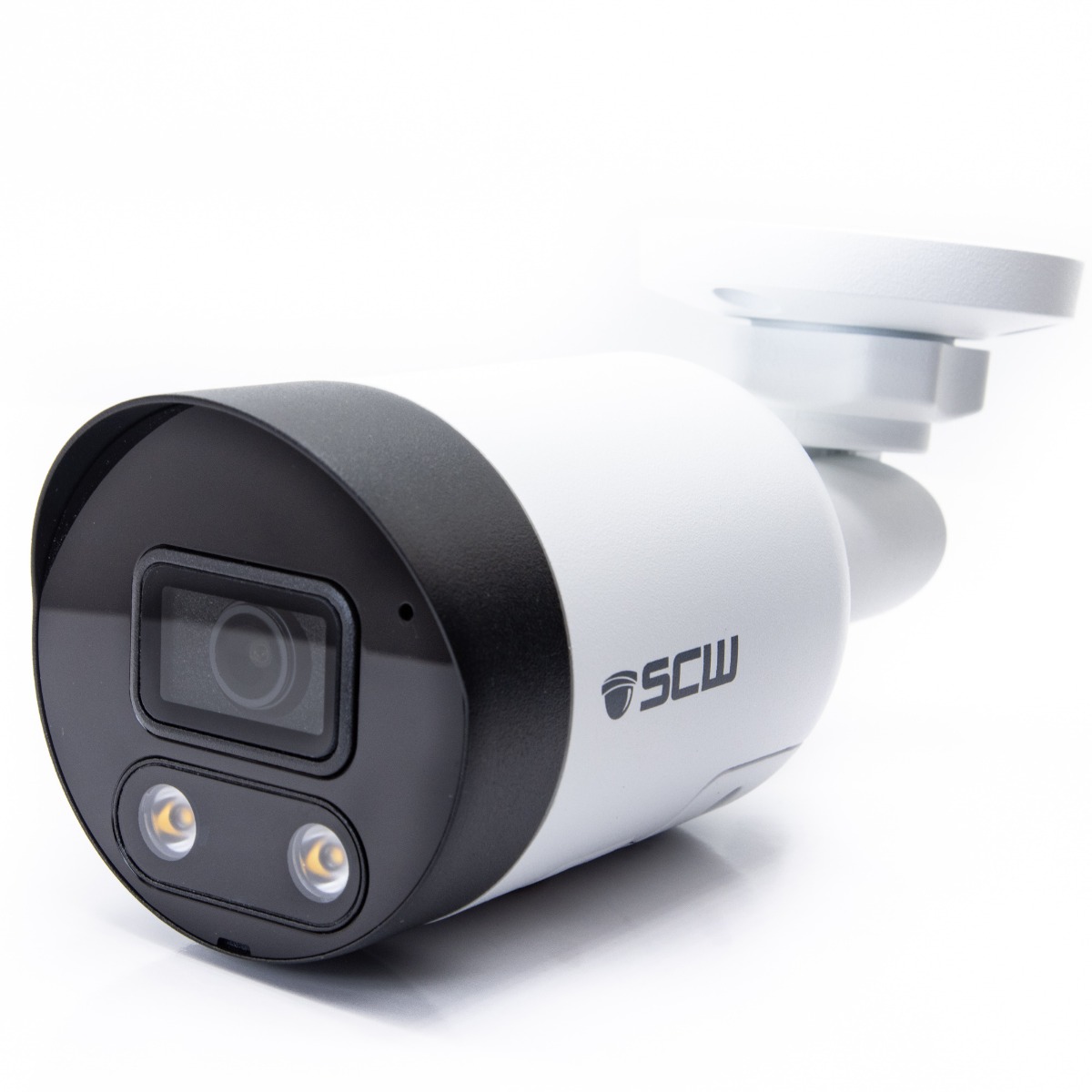

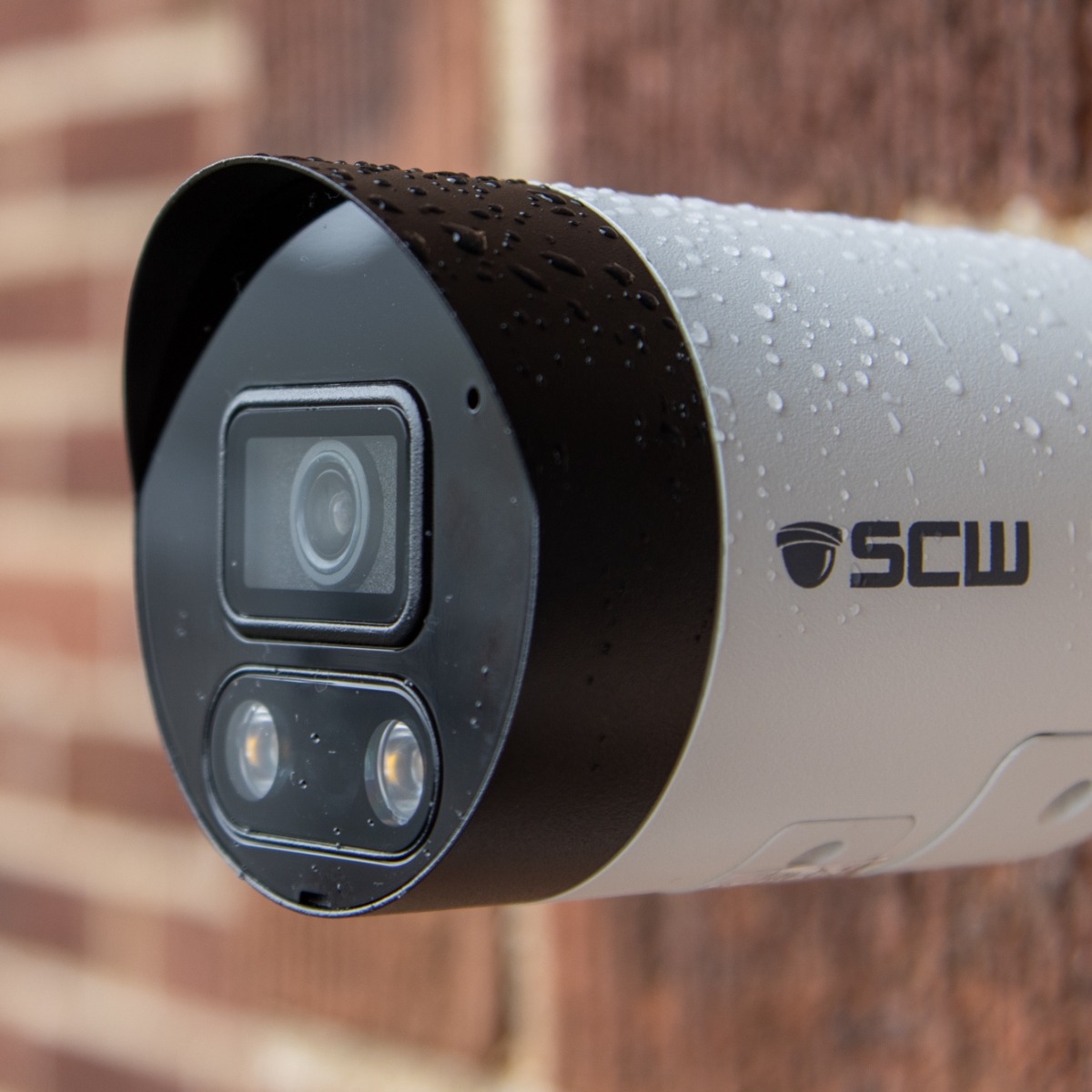

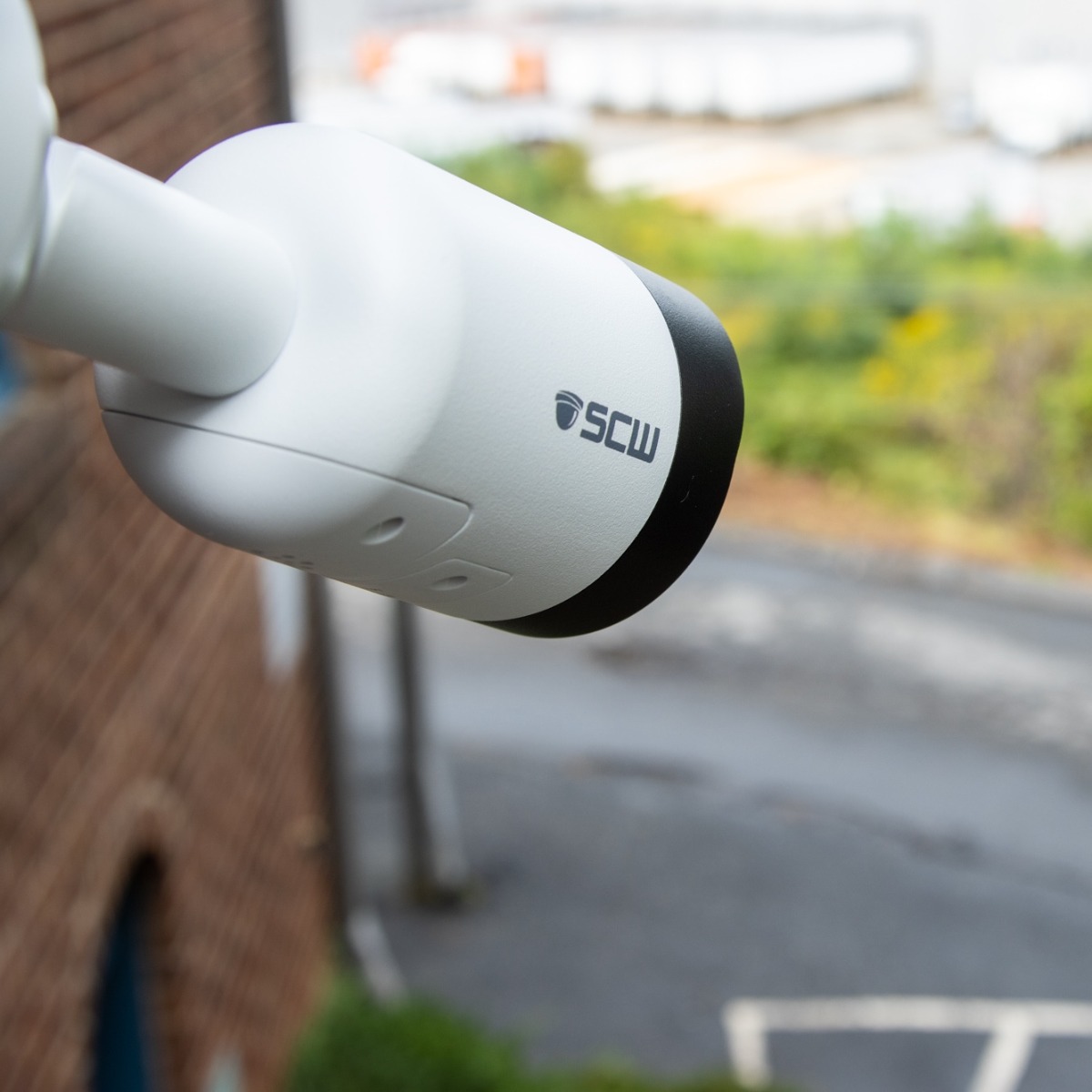

The Warrior 8.0 - 26BF8M

The Warrior 8.0 v2 - 26BF8M - 4K 8MP Fixed Lens Mini Bullet Camera


Resolution

4K UHD

4K @ 20 FPS; 3840 × 2160

Detect: 175 ft
Recognize: 125 ft
Identify: 75 ft


4MP vs 4K


Weather

weatherproof

IP67
Full protection from dust, rain, snow, dew, frost, and sprinklers.

You can even submerge it for a few minutes.


Temp

temperature rating

Temperature rated from -22°F to 140 °F

Humidity rated between 10 and 95%.


Lens

fixed lens

Fixed: 4mm
86° of coverage

Digital Zoom Only

Learn about Digital vs Optical Zoom


Day/Night

night footage

Infrared night vision up to 100 FT

Larger image sensor for low light

Color video possible until 0.05 lux

How to get the best footage at night


Special

special features

NDAA Approved M-Star CPU

True 120dB Wide Dynamic Range

Seeing in shadows: Understanding WDR

The Warrior is our most popular camera model. It is tied with the Deputy in terms of how easy it is to install and position, since neither camera requires you to remove any part of the camera to screw it into the wall/ceiling/soffit. This makes it ideal for outdoor use as you don't have a tendency to trap moisture in the lens, as is common with dome cameras, where you have to remove the outer glass dome to mount them. The 92 degree lens with 4K resolution is great balance between covering a large area and identifying faces and license plates. Although you can use this camera inside or out, the most common use of the Warrior models (the camera comes in 2MP, 4MP, or 8MP) is to cover the side of buildings or large sections of yards.

Sample Photos taken by the Warrior 8.0. Click to enlarge the images. Press ESC key to close.

10 FT 25 FT 50 FT 75 FT 100 FT 125 FT
view of a person at 10 feet from a 4mm 91 degree FOV lens 4K security camera view of a person at 25 feet from a 4mm 91 degree FOV lens 4K security camera view of a person at 50 feet from a 4mm 91 degree FOV lens 4K security camera view of a person at 75 feet from a 4mm 91 degree FOV lens 4K security camera view of a person at 100 feet from a 4mm 91 degree FOV lens 4K security camera view of a person at 125 feet from a 4mm 91 degree FOV lens 4K security camera

detection

Detect someone up to 175 feet

"Detecting" a face means being able to tell that a human face is in the picture.

recognize

Recognize someone up to 125 feet

"Recognizing" a face refers to being able to say "I have seen that person before" - even if you don't know or can't place who it is.

identify

Identify someone up to 75 feet

"Identification" refers to being able to make out identifiable marks with enough certainty to make a sketch or claim.

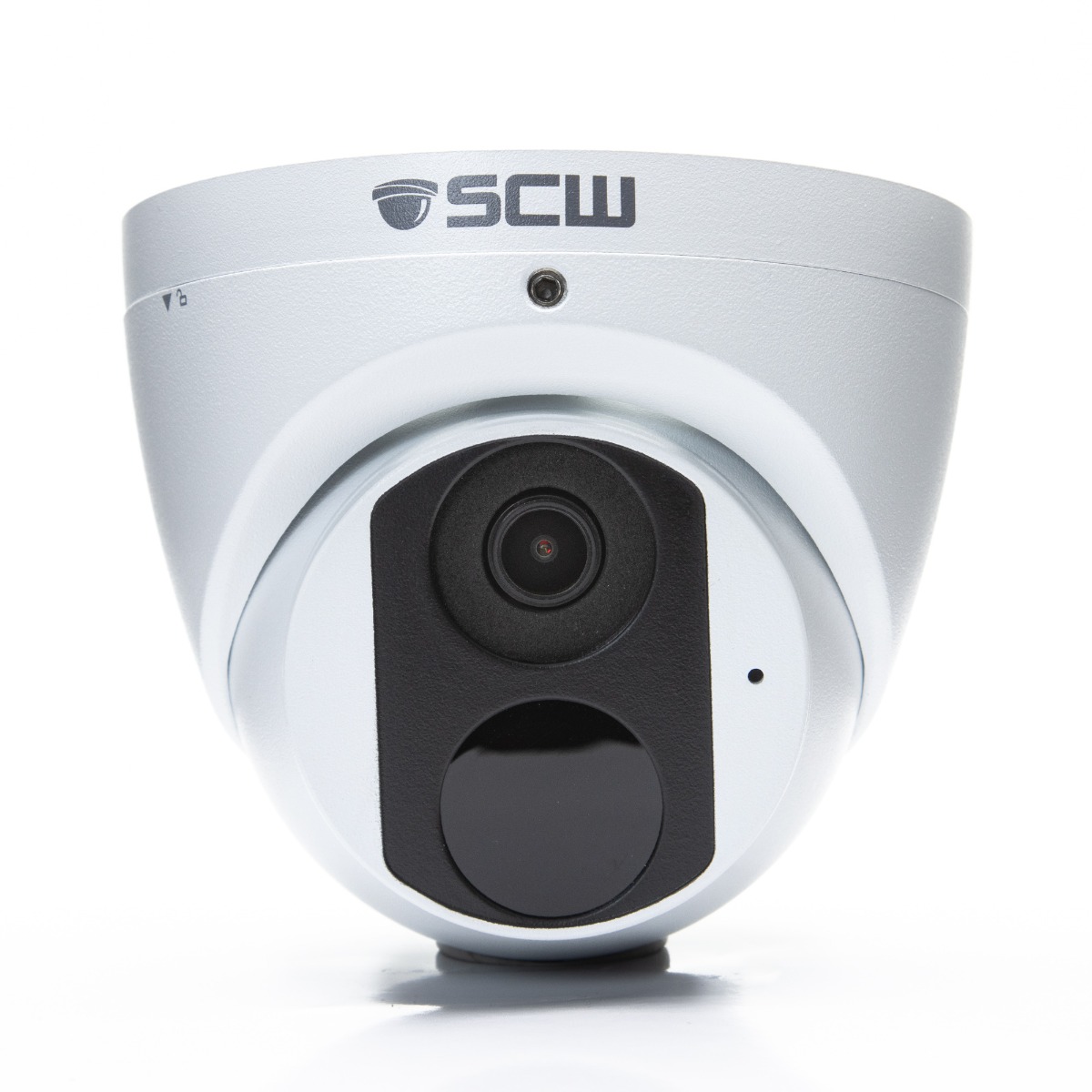

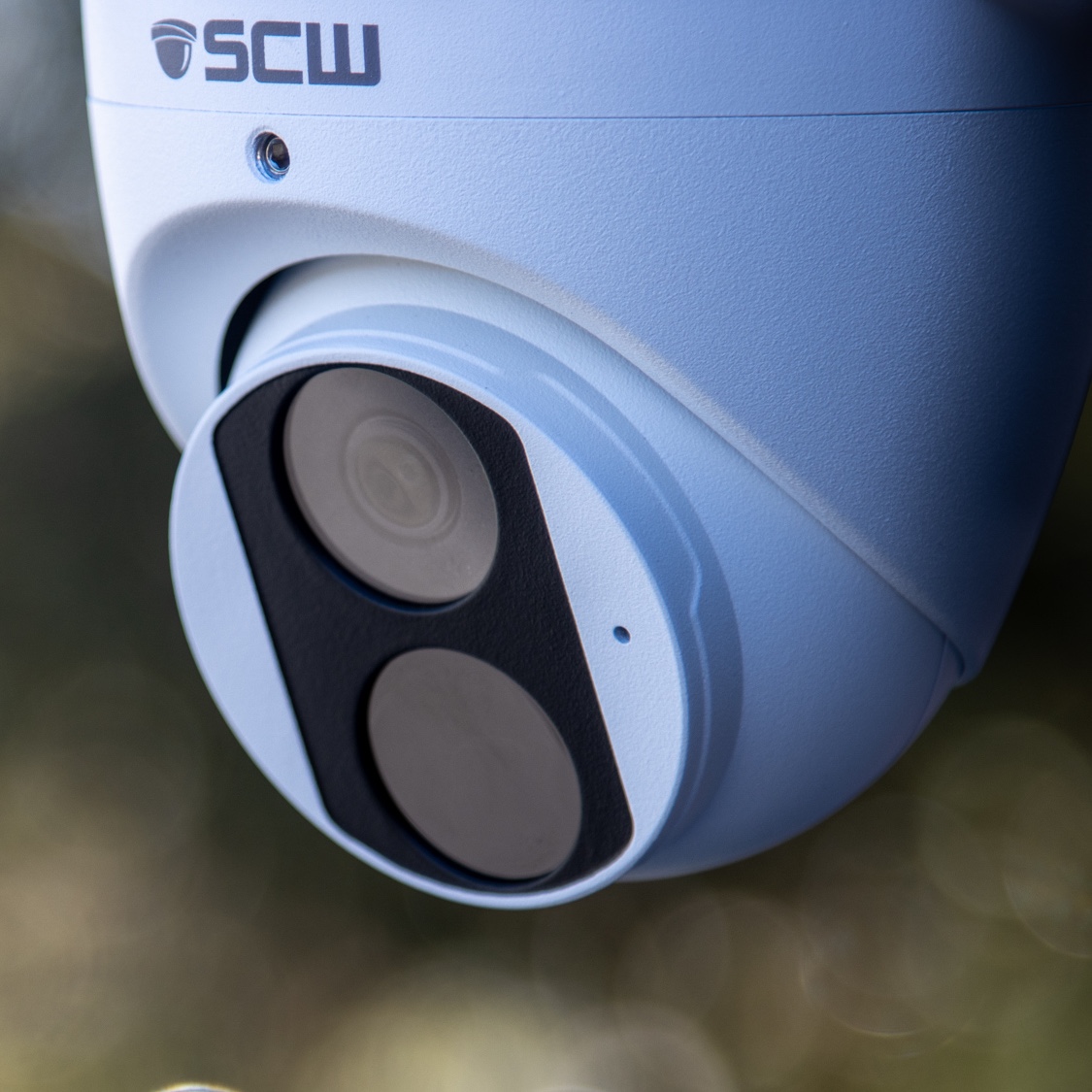

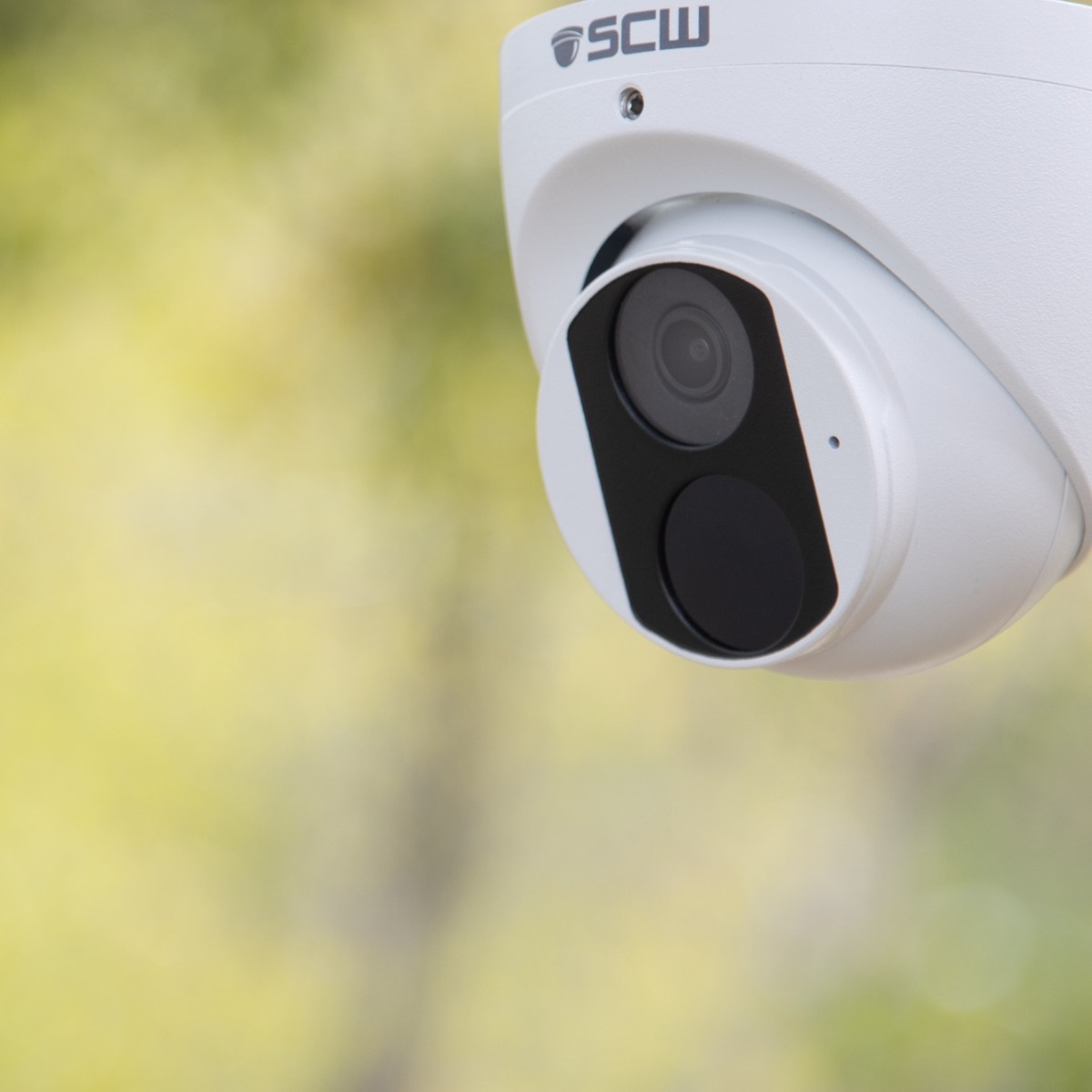

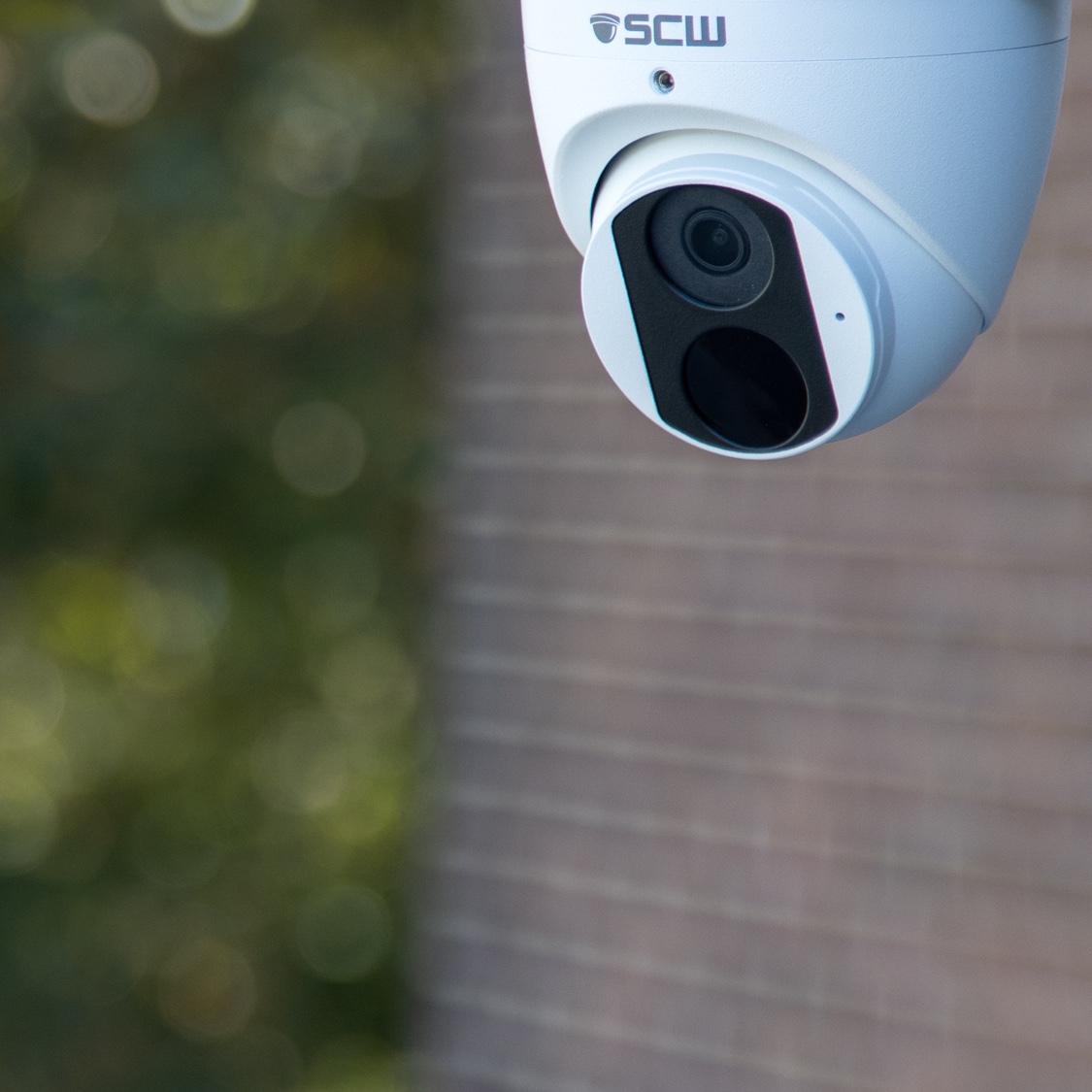

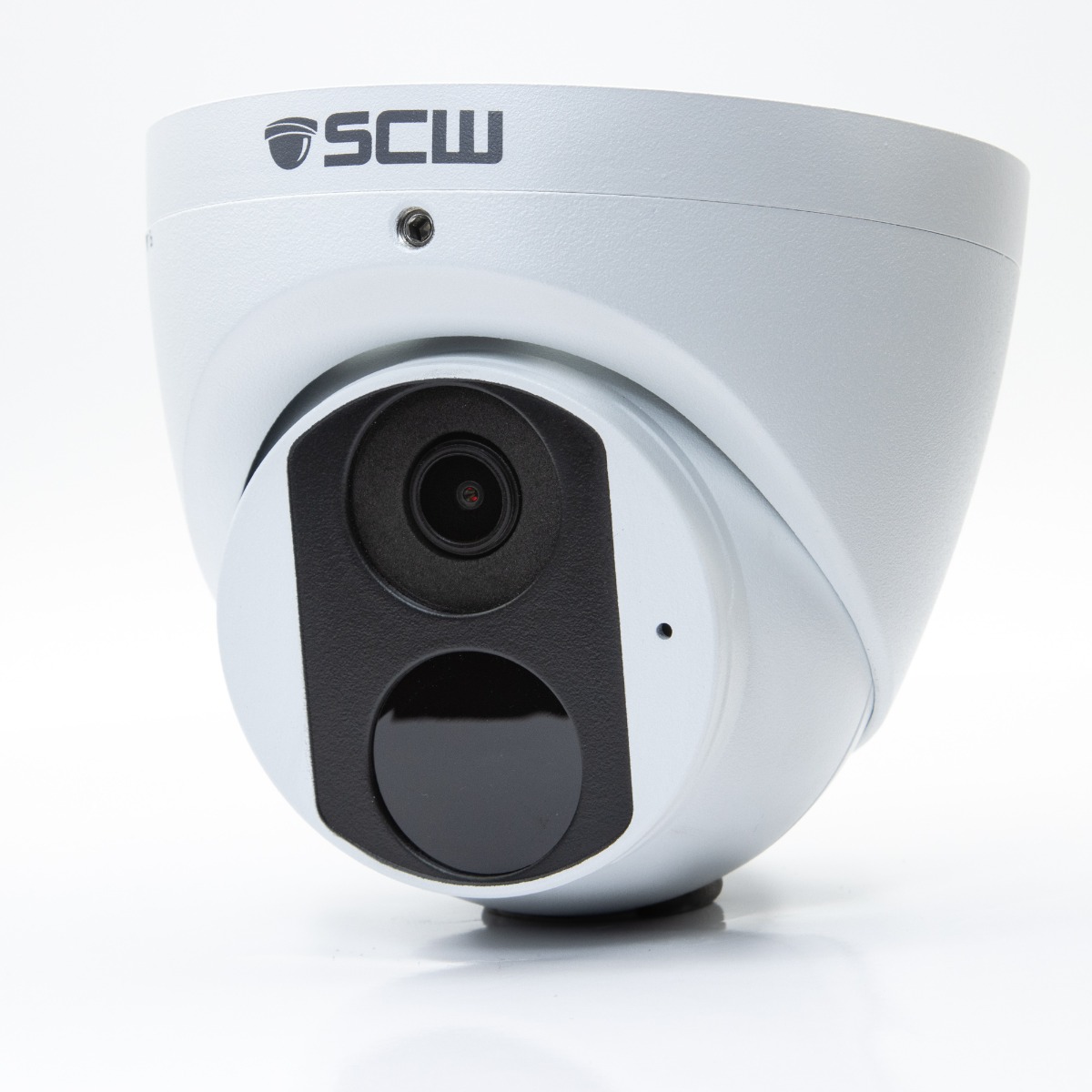

The Deputy 8.0 v2 - 26DF8M

The Deputy 8.0 v2 - 4K Fixed Lens Turret Camera

The Deputy is our second most popular camera model. It is tied with the Warrior in terms of how easy it is to install and position, since neither camera requires you to remove any part of the camera to screw it into the wall/ceiling/soffit. This makes it ideal for outdoor use as you don't have a tendency to trap moisture in the lens, as is common with dome cameras, where you have to remove the outer glass dome to mount them. The 110 or 118 degree lens is best used to cover an entire room at once (by installing it in a corner) or to cover a wide area of a smaller yard, as wider lenses always decrease how far away you can identify a person of license plate. Although you can use this camera inside or out, the most common uses of the Deputy models (the camera comes in 2MP, 4MP, or 4K variants) are to install the camera in the corner of a room or to cover front doors and porches outdoors. Two Deputies are often installed back to back to make a 220-236 degree view, such as in the middle of a wall. (This two camera solution has less of that dizzying "fisheye" look that is common with 180 degree cameras and is also usually cheaper.)

Sample Photos taken by the Deputy 8.0. Click to enlarge the images. Press ESC key to close.

10 FT 25 FT 50 FT 75 FT 100 FT 125 FT
view of a person at 10 feet from a 4mm 118 degree FOV lens 4K security camera view of a person at 25 feet from a 4mm 118 degree FOV lens 4K security camera view of a person at 50 feet from a 4mm 118 degree FOV lens 4K security camera view of a person at 75 feet from a 4mm 118 degree FOV lens 4K security camera view of a person at 100 feet from a 4mm 118 degree FOV lens 4K security camera view of a person at 125 feet from a 4mm 118 degree FOV lens 4K security camera

detection

Detect someone up to 150 feet

"Detecting" a face means being able to tell that a human face is in the picture.

recognize

Recognize someone up to 85 feet

"Recognizing" a face refers to being able to say "I have seen that person before" - even if you don't know or can't place who it is.

identify

Identify someone up to 45 feet

"Identification" refers to being able to make out identifiable marks with enough certainty to make a sketch or claim.

Both Camera Options in this System Bundle have these Features:

Built Tough: Commercial Grade Line

This Warrior 8.0 v2 is part of our Admiral commercial grade security camera line. Feel free to read more about these features and what commercial grade means to us, but here's a quick synopsis:

IP67 weatherproof rated - Full protection against dust, rain, sprinklers, water jets and even immersion up to 1 meter for 30 minutes.

Extreme Temperature - Withstands extreme temperatures from the summers of Arizona to the winters in Minnesota. -31°F ~ 140 °F

Aluminum and Ceramic Molding - Feel confident in your invest with commercial grade housing that won’t crumble and decay like the plastic competition.

Anti Reflective Glass with Automotive grade LEDs - Commercial quality components that allow better light transmission and will last without dimming or fading over time.

Passes vibration and surge testing up to 6,0000 volts - SCW cameras can withstand vibration and surges up to 6,000 volts.

Easy 1 Click Firmware Update Process - Maintenance made easy.

750 Foot POE Extended Transmission: the old 300 foot limitations are a thing of the past.

Store 40% more data with H.265 video compression or switch back to H.264, if you need H.264 third-party integration support.

No Recording Delay - Even when recording on motion.


Included in this System is an Admiral NVR:

The Admiral Standard 16 Channel NVR - ADM16P16

The Admiral Standard 16 Channel NVR - ADMP16P16


Recording


16 1080P cameras at 30 FPS
16 4MP cameras at 25 FPS
16 4K cameras at 30 FPS

160 Mbps incoming bitrate; 10 Mbps per channel

H.265 encoding


Software


VCA: Motion Detection, Line Crossing, Face Detection, Intrusion Detection, People Counting, Vandalism Detection
Video Content Analytics (VCA) Search
VCA Event based Email Alerts
Remote Footage Download
1 Click Firmware Update

Learn when you would use VCA


Viewing


4 x 4K, 8 x 4MP, 16 x 1080P

Smartphone Apps
Tablet Apps
Windows Apps
Mac Viewing Apps
Internet Explorer Viewing

How Patent Wars have changed Browser Support


Hardware


2 hard drive bays
Rack Mount Ears Optional
Cat5e (RJ45) Ethernet to Network
Standard 3-Prong Wall Plug
16 SCWEasyConnect ports on back for Plug and play 2018 SCW camera auto-configuration
VGA Monitor Out
4K HDMI Out for TVs/Monitors
Footage Download via USB

Learn about automatic backup footage options


Motion Detection

Continuous, Motion, and Event Recording Modes

With this NVR, you can record your SCW cameras continuously, via motion, or even via VCA (video content analysis) events (like line crossing or intrusion detection).

You can create individual schedules for each camera, including hours for motion recording mode, hours for continuous recording mode, hours for event recording mode, or even hours when that camera is off completely.



Email Alerts for Motion

Snapshot: Email Alerts

This NVR has Snapshot Email Alerts.

You can set up your recorder to email a series of pictures you when motion is detected by one of your SCW cameras (or if one of our other VCA event is observed). You can choose specific dates and times for these alerts to be active and other times for these alerts to be ignored. Some Snapshot email options are based upon your current recording mode.

Q. Why use email and not push notification? Email is a permanent record which has audit logs, confirmed delivery, and long term storage of the photos (in case your recorder is stolen).


See how how Snapshot Emails work



Snapshot FTP upload

Snapshot - Automatic Upload to FTP Server on Motion, Alarm, VCA Event, or Interval

Some snapshot FTP options are based upon your current recording mode. When a VCA event happens, the NVR can capture a series of snapshots and upload those images to a FTP server of your choosing. When motion is detected, the NVR can capture a series of snapshots and upload those. When in Continuous mode, the NVR can upload an image at a certain interval, such as every hour. If you have a NVR or cameras with alarm inputs and you have connected an alarm device to those inputs, the NVR can capture a series of snapshots and upload those images to a FTP server of your choosing when an alarm goes off. There's no monthly fee for this, as it uses your FTP server.


See how how Snapshot FTP Upload works



Motion Detection Settings

Video Analytics based Motion Detection

This NVR has video analytics based motion detection.

Motion detection can also be used to send you email alerts when motion is detected or to record when recording on motion events. You can modify the sensitivity level, so that more or less movement is required for the motion detection to trigger. You can create inclusion areas (places where you care if there is motion) and define the rest as exclusion areas (places where you don't care if there is motion). So, for example, you could create a motion based alert to notify you if someone was in your yard, but ignore them if they were on the sidewalk or in the street.



Pre-Motion Event Recording Buffer

No Recording Delay; See What Happened before Motion was Detected

With this NVR, you won't miss out on important motion events - and you can even go back in time before the event happened to understand why it happened.

Many consumer grade cameras uses PIR sensors to trigger a camera to turn on when something gets close enough to the sensor. This is bad design as there's a slight delay (0.5-3 seconds) that can cause the camera to not record what happened. Our cameras not only don't have a delay when triggered, but allow you to go back in time to see what happened before the motion event.

How is this possible? With our professional grade systems, motion based recording work differently than lower end consumer cameras. The cameras/NVRs are actually always on recording video feeds but watching the footage for you to look for changes in the frames of the video. When motion detection recording is turned on, and the camera/NVR does not detect any changes, it deletes the video rather than stores it. If it does detect a change, it will save the event and a customizable amount of time before the event happened.



Event Recording Mode

Event Recording Mode through Video Content Analysis (VCA)

With this NVR and a Admiral Line Camera, you can be alerted when your camera detect people, objects, or vehicles that do specific things, such as:


VCA: Line Crossing Detection (aka Tripwire)


Event Recording Mode

This NVR can be set to alert you or record based on people, objects, or vehicles crossing a configurable virtual line.

Want to know what happened to the packages on your porch? It's easy to find out what happened to it, just set up line crossing on your porch stairs, and then search by who crossed that line.


Discover the Use Cases, Best Practices, and Limitations of VCA: Cross Line Detection


VCA: Intrusion Detection


Intrusion Detection

This NVR can be set to alert you or record based on people, objects, or vehicles entering and staying in a set region on the view.

Have a valuable asset like a cash register or air conditioner unit that disappeared? It's easy to find out what happened to it, just set up an intrusion area around it, and then search by who entered into that area.


Discover the Use Cases, Best Practices, and Limitations of VCA: Intrusion Detection



People Counting

VCA: People Counting

This NVR can be set to track and record the number of people enter and leaving through an entrance (or cars or objects). You can view these stats on your NVR or download a CSV file to view it on your computer. (People Counting is a new feature in the industry and should be considered to be in beta. It works reasonably well when mounted directly above a doorway, looking down. It is less accurate when mounted across a room and aimed at a doorway. People counting does not understand identity; it will not learn who you are. It will count someone entering, leaving and then coming back again as two visits.


Discover the Use Cases, Best Practices, and Limitations of VCA: People Counting



Vandalism Detection

VCA: Vandalism Alerts

There are three different VCA alerts aimed at camera vandalism. Video Loss, which happens when a the NVR loses communication with the camera, such as if a cable is cut. Scene change, which happens when the camera is pointed in a new direction. Video Tampering, which happens when the lens is covered.


Discover the Use Cases, Best Practices, and Limitations of VCA: Vandalism Detection



Face Detection

VCA: Face Detection

This NVR can be set to alert you or record based on the detection of a human face. You can then search for video footage based on a person's face. (Face Detection is a new feature in the industry and should be considered to be in beta. They require the person to be rather close to the camera. Face detection does not understand identity; it will not learn who you are or group similar faces.)

Looking for someone specific? Turn on face detection mode and search by the faces that the camera detected.


Discover the Use Cases, Best Practices, and Limitations of VCA: Face Detection



Audio Detection

VCA: Audio Detection

Recording audio is more heavily regulated in the United States than recording video. Whenever you record audio, you must always be certain that you are not breaking the Federal Wiretap rules. On our IP cameras with audio page, we go over a very basic description of the Federal Wiretap Act and the differences between 1-party and 2-party state rules for audio recording. Please be aware many cities and counties have passed their own regional rules regarding audio recording. Consult a lawyer before recording audio.

Audio detection can tell you when there is a sudden rises in volume, a sudden fall in volume: a sudden changes in volume, or if volume exceeds a threshold.


Discover the Use Cases, Best Practices, and Limitations of VCA: Audio Detection



Smart Search

Video Content Analytics (VCA) Smart Search

Save time reviewing footage by filtering and searching for events based upon video analytic criteria. Quickly review footage by filtering by motion detected in specific areas of the screen, by the face captured, by intrusion into certain areas, or by line crossing. (Requires setting up these video analytic features in advance).


See how how VCA Smart Search works



SCW View Station

SCW view station PC/Mac Software

Our Windows/Mac application is a full featured, easy to use, desktop video management software. You can combine multiple Admiral or Imperial systems, even at multiple locations and seamlessly view, control, and manage them as if they were one system. Just about anything you can do on your NVR you can do on our free SCW ViewStation.

SCW View Station is both Mac and PC compatible and is 100% free.





Smartphone viewing with SCWGo

SCWGo Smartphone and Tablet Apps

SCWGo is availible for both Android and iPhone/iPad.

You download these apps from your phone's app store. Just look for the SCWGo app.



1 click firmware update

1 Click Firmware Update

Tired of chasing down firmware from the manufacturer, downloading the firmware, uploading the firmware to the device, and then restarting the device? Don't bother!

This device checks for firmware and then downloads and installs it, itself, with one click.



security camera hacking in the news

SCW Secure Subnet: An Isolated Network within a Network

In 2017, there were a bunch of very high profile hacks where outside actors like foreign governments or professional criminal enterprises used the processors inside millions of both low cost cameras and some big name cameras to conduct cyberattacks on critical USA infrastructure like power plants and internet service providers.

The cameras plugged into the Admiral line NVR's POE ports directly or plugged into the Imperial Line NVRs Lan2 Network directly are not visible or accessible on your computer network. They run on an isolated network. The only way to access these cameras is to plug a computer into those POE ports or Lan2 ports. There's a physical barrier from the cameras to the main network. In addition, there's also a subnetwork running on the NVRs, which means that even if you do plug a computer into the NVR's physically separate, isolated network, you would also need to know their subnet mask.

This has several advantages:

1. Faster Networks. Unlike traditional NVRs the camera's video feeds do not slow down your main computer network when plugged into NVR' isolated network

2. Isolated Cameras. Since they are on both a physically separated network and a subnet, your cameras are not visible on your computer network or to outsiders. You can connect to the NVR remotely and log in and the use the NVR as a bridge to watch the cameras, but neither you nor a hacker cannot log into the cameras themselves, without either logging into the NVR or being physically present to plug into the NVR and possessing knowledge about your NVR's specific camera subnet mask. (You can customize this camera's subnet, if you want). 99% of all security camera IOT hacks are through the cameras - not the NVR.

3. Less maintenance. Our new 2018 line has 1 click firmware updates straight from the NVR/Camera: meaning: you don't even have to search for, find, or download the footage on a computer. You just click a button when using the device and update the firmware automatically. So, the update process is not difficult to begin with. In addition, you don't have to worry about updating the cameras for cyber security reasons, since the NVR is the only device that can be accessed remotely. It is much easier to keep one device up to date than dozens or hundreds.

Our devices didn't seem to be affected by any hacks in 2017, that being said, it is always best to follow our best practices for preventing IOT hacks.



NVR with POE Ports

ONVIF Profile Q Compliant POE Ports

This ADM16P16 NVR has 16 POE ports on the back for connecting and powering cameras.

SCW 2018 cameras will plug and play automatically with this device without having to do anything. Just plug in the camera and the NVR powers it, gives it an IP address, and set up the generic settings for you. It just works!

These ports are also ONVIF Profile Q compliant. That means that the POE ports on this device will allow the plug-and-play feature that you're used to when connecting SCW brand cameras with SCW brand NVRs (i.e. you plug it an it works), with any ONVIF profile Q compliant camera. (please note that ONVIF compliant does not mean ONVIF Q compliant! ONVIF Q is new and we know of only one other camera brand who has embraced it.)

Q: Can I use another brand's cameras with this NVR?

Yes, you can any ONVIF compatible camera (the open language that any surveillance camera can speak - check your camera for ONVIF compatibility), but only SCW IP cameras or ONVIF Profile Q compliant cameras work with the POE ports on the back of the NVR. ONVIF Profile Q ports are self-configuring and Plug and Play (automatically configuring the camera's video settings, network settings, and power). ONVIF Profile S, Profile G, Profile C, Profile A, or Profile T are not necessarily Profile Q compliant. Profile Q is new in 2018 and we only know a few manufacturers who have embraced it yet. ONVIF compliant (but not ONVIF Q compliant) cameras will need to be connected via an external POE source appropriate for the power needs for that camera.

Q: Can I connect cameras somewhere else on my network (I.e. not plugged into the NVR's on-board POE Switch), like a traditional NVR?

Yes, you can. You can edit the camera option so that it's manually added rather than Plug and Play. You won't need to directly plug the cameras into the NVR if you don't want to, but you will need to provide them Power with a POE switch or POE injector, if you aren't going to plug them into the NVR.



Extended Distance Power Over Ethernet

SCWEasyConnect 2.0 - Extended Distance

This NVR has SCW EasyConnect2.0 which allows it to plug and play with SCW Cameras up to 750 feet away!

Normally, ethernet cable has a limit of ~300 feet. After that you start getting data packet collision (your video data gets all mixed up and hard to figure out the order of the data). With this SCW Admiral NVR and any of the SCW Admiral Line Cameras, you can extend that distance up to 750 feet. This feature requires both SCW Admiral Line cameras and either a SCW Admiral NVR or a SCW Extended Transmision Enabled POE Switch to work together.



VGA Out

VGA Out

This recording device has VGA Out.

You can plug this recording device into any VGA enabled monitor.

Q: Do I have to use a monitor?

A. No, you can use either a monitor or a TV, as explained below. But, you don't actually have to use either. You can manage nearly all your settings remotely via our PC or Mac apps or via the web-interface. Quite a few of our customers hide their recorders or put them in a safe with a cable pass-through, to prevent them from potential theft. This is a perfectly fine solution. You will probably want to plug a monitor in to make your initial setup easier.



HDMI Out

HDMI Out

This recording device has HDMI Out.

You can plug this recording device into any HDMI enabled television. This means that you don't need to purchase a monitor unless you want to; you can connect a monitor with either HDMI or VGA cable.

Q: What if I plug in both the HDMI and VGA? Can I watch on two screens?

A. On all of our units, you can view the system on both VGA and HDMI at the same time. On the Admiral 4-16ch v2 models the HDMI/VGA will feature a mirror display. On Admiral Pro 32 and beyond the display will be independent.

Please note that although our NVRs can all do 1080P and 4K output, all of them ship with 720P as the default. This is to prevent display issues for people who have older TVs or monitors that don't support 1080P or 4K. To change the output right click and then go to configuration.



NAS backup

NAS Backup

A NAS or Network Attached Storage is an easy way to either increase the storage space available to your recorder or have a redundant, off recorder storage device - allowing you to have two copies of recorded footage.

You set both the internal and NAS hard drives into groups and assign the cameras to groups. This way you can set some cameras to record longer than others.

We don't sell NAS equipment, but you can purchase just about any NFS compatible NAS and have it work. NFS Is the most common communication protocol for NAS equipment. The most popular NAS equipment are made by computer manufacturers such as Western Digital, QNAP, or Synology.



Surveillance Hard Drives

Surveillance Rated Hard Drive

This recording device has a Surveillance Rated Hard Drive.

We use high grade hard drives specifically designed for video surveillance. Surveillance hard drives, unlike PC drives, are built to write significant amounts of data, 24/7, for years on end, without failure.

Our surveillance hard drives come have their own 3 year warranties from major manufacturers like Western Digital or Seagate.

We don't use "knock-off" hard drives.


A note about the Admiral/Imperial NVRs and our pre-2018 camera equipment

This NVR will plug and play with our Admiral line of cameras.

Please note that SCW camera purchased before 2018 will not plug and play with this NVR. Only our Admiral line camera models, (all Admiral models numbers use the 26xxx format), that record in the new, more efficient H.265 compression codex will plug & play with this NVR's POE ports.

Admiral Line camera models plug and play, but older models may need a firmware upgrade or use the ONVIF method to connect to these new NVRs. Older cameras may not have the hardware encoding to support this new codex, but you can tell the NVR to use the older H.264 codex. If you have older cameras, please contact our support team for assistance before purchasing.



3 year warranty

H.265 Recording

This device can record in h.265

H.265, also known as High Efficiency Video Coding (HEVC) or MPEG-H Part 2, is the video compression standard which replaces H.264. HEVC was a collaboration by many parties including Apple, Microsoft, CIsco, Dolby, and the Moving Picture Experts Group. In comparison to H.264, H.265 offers about double the data compression ratio at the same level of video quality, which means both substantially improved video quality at the same bitrate and lower storage requirements.

H.265 saves hard drive space and increases the quality of an image by splitting the screen into a grid and only updating the sections that changed from the previous frame. This focuses nearly all of the processing power of the camera on the areas of the screen with activity. The image quality differences of H.265 is most noticeable in situations such as attempting to watch your camera remotely if your internet upload speed is slow.

You can also record in H.264 if you need backwards compatibility.



ONVIF compliant

ONVIF Conformant

This device is ONVIF Conformant.

ONVIF is an open industry standard encoding language for the interface of IP-based physical security products.



UL Listed, FCC certified

UL Listed and FCC Certified

This product is UL Listed and FCC certified

UL is a safety consulting and certification company headquartered in Northbrook, Illinois and provides safety-related certification, validation, testing, inspection, and auditing of SCW products.

The Federal Communications Commission has certified that the electromagnetic interference from the device is under limits approved by the FCC.


3 year warranty

3 Year Warranty

This NVR has a Industry Leading 3 year warranty. This NVR can also be upgraded to a 5 year warranty.


American-Based Technical Support after the sale. For FREE. Forever.

Real review from Fransisco, who had this to say:

The most important part of a purchase like this is the support for technical assistance when there is a question or when there is a problem, and they always exceed expectations!


All of our equipment comes with Free Technical Support that is US based (Our Warehouse and Staff are located in Asheville, NC). We're happy to help you via chat, email, screenshare / remote support sessions, and phones. Our number is 866-414-2553 and we're open from 9-7 M-F (EST).


scw support included


Most popular downloads related to The 4K Admiral Series

26BV8 spec sheet

Spec Sheet for the Warrior 8.0 v2

26DV8M spec sheet

Spec Sheet for the Deputy 8.0 v2

ADMP16P16 spec sheet

Spec Sheet for The Admiral Pro 16 Channel NVR - ADMP16P16

A one page PDF listing this product's most important specs.

Bench Testing Guide


BenchTesting Guide

It is very, very important that you always bench test IP cameras before installing them. This will help you determine if you accidentally cut an ethernet cable during installation.

Quick Start guide


The Quickstart Guide

You should get one of these in your shipment when you order, but sometimes it is nice to have a digital version.

Camera Manual


User Manual for SCW's 2018 line of IP Cameras

Camera Manual

User Manual for The Admiral Line of NVRs

installation guides


Replacement Warrior Drill Template

Each and every camera you order should have one of these in the box, but if you lost yours or just want to change where the camera is located, here's a digital version that you can print and use.

installation guides


Replacement Deputy Drill Template

Each and every camera you order should have one of these in the box, but if you lost yours or just want to change where the camera is located, here's a digital version that you can print and use.

Please see our support portal for a full list of all technical bulletins, user manuals, and software.

installation safety guides

Safety First

Our products are really safe, but if you are going to drill into a wall - for any purpose - you need to stay away from your electrical lines and turn your power off.

drilling for security cameras guide

Drilling

Learn what bits your need for Brick, Stucco, Vinyl Siding, Sheetrock, Wood, etc.

cabling for security cameras guide

Cabling

Learn how to run cable better than the pros. From Raceways to Conduit to Terminating RJ45 to Extending Cable Distance.

Mounting Bullet Cameras on Walls

Mounting Bullet Cameras on Walls

In this guide, we will be installing a bullet camera on a wall.

Mounting Bullet Cameras on Ceilings

Mounting Bullet Cameras on Ceilings

In this guide, we will be installing a bullet camera on a ceiling.

Mounting Bullet Cameras on Soffits

Mounting Bullet Cameras on Soffits

In this guide, we will be installing a bullet camera on a soffit.

Mounting Bullet Cameras with Electrical Box Mounts

Using Electrical Mounting Boxes

Our electrical box mounts are used to give easy access to your connections, hide them inside the junction box, and allow you to drill a smaller hole in your wall. If you want to run EMT or FMC conduit they are necessary to run conduit straight to the camera.

Mounting Bullet Cameras with Pole Mounts

Mounting Bullet Cameras to Pole Mounts

In this guide, we will be installing a Hornet Pro bullet camera on a pole.

Mounting Dome Cameras on Walls

Mounting Dome Cameras on Walls

In this guide, we will be installing a dome camera on a wall.

Mounting Dome Cameras on Ceilings

Mounting Dome Cameras on Ceilings

In this guide, we will be installing a dome camera on a ceiling.

Mounting Cameras with Electrical Box Mounts

Positioning the Lens in our Dome Cameras

In this video guide, we demonstrate how to adjust the lens positioning on our Dome Cameras.
