$1,400.00

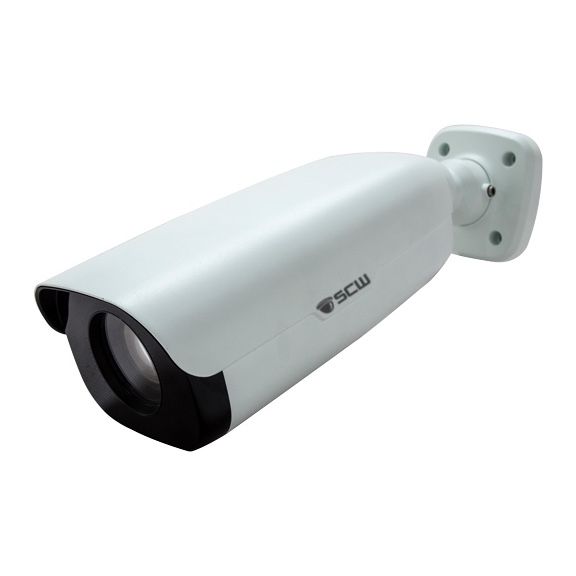

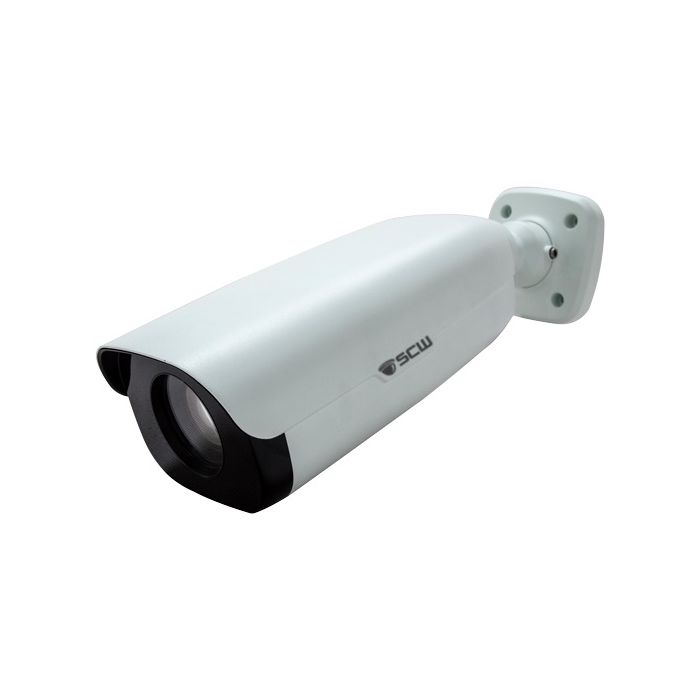

(Arriving late September - early October) The Sharpshooter 4.0

4MP Ultra Long Range, Low Light Bullet Camera with Motorized Zoom and Focus

In stock

Usually ships the same business day if ordered before 2PM EST.

SKU
26BV4M-XLP

View product options details

The Sharpshooter is a 4MP super long range, low light bullet camera with motorized zoom and focus. It's used in situations where there is extreme distance (250-600 feet) between the mounting location and a stationary point of interest. This is the ultimate camera for collecting video evidence and seeing what's happening at a distance in complete darkness. It's ideal for securing large areas and is perfect for low light environments like warehouses, parking lots, construction sites and more!

This camera features Extreme Cold Temperature rated from -40°F to 140 °F, 650 foot IR illuminator, Infrared night vision up to 500 FT and full protection from dust, rain, snow, dew, frost and sprinklers. With an oversized image sensor to allow in more light and a super-long range lens, this unit can even take photos down to 0.001 Lux – which is like looking through smoke!

It features ultra low ambient light capability and the latest PoE compatibility allowing easy installation without needing separate power cables.

(October 2022) - The Sharpshooter 4.0 - 26BV4M-XLP- 4MP Ultra Long Range, Low Light Bullet Camera with Motorized Zoom and Focus(October 2022) - The Sharpshooter 4.0 - 26BV4M-XLP- 4MP Ultra Long Range, Low Light Bullet Camera with Motorized Zoom and Focus(October 2022) - The Sharpshooter 4.0 - 26BV4M-XLP- 4MP Ultra Long Range, Low Light Bullet Camera with Motorized Zoom and Focus
Need Installation?

No Problem

Whether you plan to DIY install or want us to do it for you, we're as flexibile as you need.

Get a Custom Quote for Equipment or Installation

The Sharpshooter is a 4MP super long range, low light bullet camera with motorized zoom and focus. It's used in situations where there is extreme distance (250-1000 feet) between the mounting location and a stationary point of interest. This is the ultimate camera for collecting video evidence and seeing what's happening at a distance in complete darkness. It's ideal for securing large areas and is perfect for low light environments like warehouses, parking lots, construction sites and more!

This camera features Extreme Cold Temperature rated from -40°F to 140 °F, 500 foot IR illuminator, Infrared night vision up to 500FT and full protection from dust, rain, snow, dew, frost and sprinklers. With an oversized image sensor to allow in more light and a super-long range lens, this unit can even take photos down to 0.001 lux – which is like looking through smoke!

It features ultra low ambient light capability and the latest PoE compatibility allowing easy installation without needing separate power cables.


Resolution

1080p HD

4MP @ 30 FPS; 2688 × 1080

Detect: 1800 ft
Recognize: 1400 ft
Identify: 1100 ft


Processing Power and Compression: Not All 1080P Cameras are Created Equal


Weather

weatherproof

IP67
Full protection from dust, rain, snow, dew, frost, and sprinklers.

You can even submerge it for a few minutes.


Temp

temperature rating

Extreme Cold Temperature rated from -40°F to 140 °F

Humidity rated between 10 and 95%.


Lens

varifocal lens

Super Long Range Motorized Varifocal: 6.5 - 143mm
60.47° - 3.49° of coverage

Digital Zoom and Optical Zoom

Fixed vs Varifocal Lenses


Day/Night

night footage

Infrared night vision up to 500 FT

Extremely Large image sensor for low light

Color video possible until 0.001 Lux

How to get the best footage at night


Special

special features

NDAA Compliant

Alarm Input and Output

Audio Input and Output
Audio Input/Output FAQ

Micro-SD Card Slot

True WDR (up to 120 dB)

Seeing in shadows: Understanding WDR

Sample Photos taken by a 2MP camera - 4MP incoming soon. 4MP will outperform these example images. Click to enlarge the images. Press ESC key to close.

2MP at 4.5mm - Zoomed Out Fully:

135mm at 2MP - fully zoomed in, smallest angle of view
100 FT 200 FT 400 FT 600 FT 800 FT 900 FT


Resolution is the most important thing about your surveillance cameras. With this Sharpshooter 4.0, at max zoom, you should be able to:

detection

Detect someone up to 1800 feet

"Detecting" a face means being able to tell that a human face is in the picture.

recognize

Recognize someone up to 1400 feet

"Recognizing" a face refers to being able to say "I have seen that person before" - even if you don't know or can't place who it is.

identify

Identify someone up to 1100 feet

"Identification" refers to being able to make out identifiable marks with enough certainty to make a sketch or claim.


What makes the Sharpshooter 4.0 Unique:

Wide Dynamic Range

Wide Dynamic Range (WDR)

This IP camera has Wide Dynamic Range.

Wide Dynamic Range splits each frame/image into many boxes and it scans for in inaccuracies and adds the right amount exposure to create a balanced and high resolution video shot. Very useful when recording in situations where there can be a large difference in light levels.

Seeing in shadows: Understanding WDR



Corridor Mode

Corridor Mode

This camera has Corridor Mode.

Corridor mode allows you to flip the image on its side so that you can change the 16x9 ratio to 9x16. This is advantageous in the case of hallways, side yards, or corridors (hence the name) where the extra space vertical space is needed and the extra horizontal space would only show you more wall or fence area. To use corridor mode, install the camera with the lens pointed 90 degrees from center and then enable the corridor mode on via our software.



low light image sensor

Larger Image Sensor for Superior Low Light Performance

This camera has a 0.37 inch image sensor, which is larger than most competing products. (The industry typically uses 0.33 inch image sensors.)

A larger image sensor allows more light to be absorbed, allowing the camera to take color photos as it gets darker, (a lower lux rating). Lux is the measurement of light in an atmosphere. Twilight is about 3.4 lux. A full moon is somewhere between 0.05 and 0.36 lux, depending on cloud cover. A moonless night is somewhere around 0.001 to 0.002 depending on cloud cover. Adding lighting like flood lights, night lights, or streetlights will increase lux in your area.

This camera can take a color photo all the way down to 0.02 lux (much of the industry can only take a color photo at 1 lux), but that may require some adjustments to your shutter settings...

Lux is a complicated topic, please read our knowledge base article on why you shouldn't choose a camera based on the lux rating, but rather image sensor size.



bitrate

Bitrate - 4MP

At 4MP and 30 FPS, while recording at H.265, this camera should use 4Mbps of the NVR's bitrate budget. (With H.264, it should use 8Mbps).

Did you know: The processor in an NVR has both an incoming and outgoing bitrate. Incoming is for recording video and outgoing is for watching it remotely. All of our NVRs have at least 5Mbps per channel in incoming bitrate, and many models can have extra bitrate. Your NVR's spare incoming bitrate is what determines if it can record channels at higher-than-1080P resolution, use specialty panoramic cameras, or many other things (see individual NVR models).



audio in and out

Audio In / Outs

This camera has both an input and output for a microphone and speaker.

To connect an external speaker and microphone, just twist the speaker wire / microphone wire together in the same way that you connect speaker wire for a stereo. There are four wires in total; two for each connection, a sound channel and a grounding wire. The wires are labeled.

Audio and Alarm Inputs FAQ and Sample Wiring Guide



micro-sd card

MicroSD Card Slot

This camera supports MicroSD for onboard storage.

MicroSD cards allow for storage on a standalone camera or for backup. Backup footage is a good idea for cameras that are on the network, not plugged in directly to an NVR, especially any cameras operated over wireless links.

SCW recommends high endurance MicroSD cards. MicroSD card is not included. For maximum supported size card, check the specs tab.

MicroSD cards are a less reliable form of storage than NVRs and we do not recommend they be used as a substitute for an NVR.



weatherproof rating

Weatherproof Housing

This camera has a Weatherproof Housing.

It has been rated at IP67 which means that International Electrotechnical Commission’s (IEC) international standard 60529 has rated this camera housing as having full protection from dust and safe from water damage up to powerful jets of water and immersion up to 1 meter up to 30 minutes.

This camera can be safely used outdoors.

Attention: The IP67 rating covers the camera's housing not the cable. Don't ever submerge cables. Please follow our RJ45 Waterproofing Guide for weatherizing your cable connections.



Motion Detection, Continuous, and Event Recording Modes

Motion Detection, Continuous, and Event Recording Modes

You can record your SCW cameras continuously, via motion, or even via VCA (video content analysis) events like intrusion detection.

You can create individual schedules for each camera, including hours for motion recording mode, hours for continuous recording mode, hours for event recording mode, or even hours when that camera is off completely.



Commercial-Grade Aluminum Molding

Commercial-Grade Aluminum Molding

This camera is commercial-grade and is made of cast aluminum and ceramic molding, instead of the typical plastic molding common in the industry.

This product has passed vibration tests, can withstand an electrical surge up to 6,000 volts, and the casing will prevent intrusion of both dust and water into the internal component space. The screws and mounting hardware are made of stainless steel that has passed SUS410 salt spray anti-corrosion testing. We use automotive-grade LEDs and anti-reflection glass (which means better infrared results). In short, this camera is going to hold up over time.



Admiral Line Camera Features:

plug and play

Plug & Play with Admiral & Imperial NVRs

This camera will plug and play with our Admiral and Imperial line of NVRs.

Please note that our camera models with model numbers in the 26xxx format record in the new, more efficient H.265 compression codex and are intended to work with our Imperial and Admiral NVRs.



email alerts on motion

Get Alerted when there's Motion

With this camera and an SCW Admiral or Imperial NVR, you can send Snapshot Email Alerts.

You can set up your recorder to email a series of pictures to you when motion is detected by one of your SCW cameras (or if one of our other VCA events is observed). You can choose specific dates and times for these alerts to be active and other times for these alerts to be ignored. Some Snapshot email options are based upon your current recording mode.



Motion Detection, Continuous, and Event Recording Modes

Customizable Motion Detection Recording

With this camera and an SCW Admiral or Imperial NVR, you have video analytics-based motion detection.

Motion detection can also be used to send you email alerts when motion is detected or to record when recording on motion events. You can modify the sensitivity level so that more or less movement is required for the motion detection to trigger. You can create inclusion areas (places where you care if there is motion) and define the rest as exclusion areas (places where you don't care if there is motion). So, for example, you could create a motion based alert to notify you if someone was in your yard, but ignore them if they were on the sidewalk or in the street.



No Recording Delay; See What Happened before Motion was Detected

Many consumer-grade cameras use PIR sensors to trigger a camera to turn on when something gets close enough to the sensor. This is a bad design as there's a slight delay (0.5-3 seconds) that can cause the camera to not record what happened. Our cameras not only don't have a recording delay but allow you to record up to 30 seconds before the motion.

Don't miss out on important motion events: go back in time, before the event, to understand why it happened.



Cloud Firmware Update

1 Click Firmware Update

Tired of chasing down firmware from the manufacturer, downloading the firmware, uploading the firmware to the device, and then restarting the device? Don't bother!

This device checks for firmware and then downloads and installs it, itself, with one click.



3 year warranty

3-Year Warranty

This camera has an industry leading 3-year warranty. This camera can also be upgraded to a 5-year warranty.



Anti Reflective Glass

Anti-Reflective Glass

This camera has Anti-Reflective Glass.

Anti-Reflective Glass allows better light transmission vs standard glass. Standard glass cameras often come with a foam ring around the lens to prevent infrared light from bouncing back off the glass and entering the lens. This bounce-back can cause extreme differences in infrared lighting, which makes some items too bright and others too washed out if the ring is loose, ripped, or removed. Anti-Reflective Glass prevents this issue. Also, people have a tendency to accidentally destroy, damage, throw away or lose these foam rings. Anti-Reflective Glass reduces maintenance and user error.



Auto Grade LEDs

Auto Grade LEDs

This camera has Auto Grade LEDs.

Many IP cameras include low-quality infrared bulbs that fail over time. This camera has Automotive Grade LEDs, and you should expect the same sort of longevity from them as the headlights in your car.



Headlight Compensation

Headlight Compensation

This camera has Headlight Compensation.

Vehicle headlights directly into the camera lens can render many cameras useless. Headlight compensation reduces glare and overexposure due to car headlights.

At SCW, we try not to use the misleading term "License Plate Camera." The term "License plate cameras" is used rather flippantly by the security camera industry, has no real definition as a term, and can sometimes mean simply the presence of HLC; be careful with companies offering a simple solution to a very complex task of capturing license plates.

For more info, please read our knowledge base article on What they don't tell you about License Plate Cameras.



Automatic Defog

See through Fog with Automatic Defog

This camera has Automatic Defog.

Our automatic defog feature allows you to cut through fog, air pollution, and other atmospheric haze.



Adjustable Shutter Speed

Adjustable Shutter Speed for Customizable Performance in Low Light

This camera has an Adjustable Shutter Speed in a range between 1/30s to 1/100,000 of a second.

The shutter in a camera controls how long the camera takes to take a picture, but faster doesn't mean better. The faster that a camera shutter opens and closes, the more likely that you will get a clear, blur-free image. The longer that the shutter is open, the more light you let in and the better your image will be in low light. Shutters that are open for an extremely long time allow you to take color pictures at night/twilight without having to switch to infrared mode, but can result in motion blur.

There's no one-size fits all approach to shutter speed, so we give you full control (and free tech support) to set it up the best way possible.



Extended Transmission: 750 Foot POE

Extended Transmission: 750 Foot POE

This Camera has SCW EasyConnect2.0 which allows it to plug and play with SCW Cameras up to 750 feet away!

Normally, ethernet cable has a limit of ~300 feet. After that you start getting data packet collision (your video data gets all mixed up and hard to figure out the order of the data). With this SCW Admiral NVR and any of the SCW Admiral Line Cameras, you can extend that distance up to 750 feet. This feature requires both our cameras and NVR to work together.

When plugging a camera into a normal POE switch or POE injector, the normal ~300 foot limits will still apply. SCWEasyConnect 2.0 only available on SCW NVRs and some SCW POE Switches.



H.265 Recording

H.265 Recording

This device can record in H.265

H.265, also known as High Efficiency Video Coding (HEVC) or MPEG-H Part 2, is the video compression standard which replaces H.264. HEVC was a collaboration by many parties including Apple, Microsoft, Cisco, Dolby, and the Moving Picture Experts Group. In comparison to H.264, H.265 offers about double the data compression ratio at the same level of video quality, which means both substantially improved video quality at the same bitrate and lower storage requirements.

H.265 saves hard drive space and increases the quality of an image by splitting the screen into a grid and only updating the sections that changed from the previous frame. This focuses nearly all of the processing power of the camera on the areas of the screen with activity. The image quality differences of H.265 is most noticeable in situations such as attempting to watch your camera remotely if your internet upload speed is slow.

You can also record in H.264 if you need backwards compatibility.



ONVIF Conformant

ONVIF Conformant

This device is ONVIF Conformant.

ONVIF is an open industry standard encoding language for the interface of IP-based physical security products.



Power over Ethernet

POE (Power over Ethernet)

This camera can be powered via an ethernet cable.

POE allows a Cat5 cable to both carry data and power, making it so that you only have to run one cable. You will need either a POE injector, a POE switch or one of our NVRs with built-in SCWEasyConnect POE to power a camera via ethernet.

**There is an optional wall plug adapter on most of our camera models. This wall plug adapter is only used by clients who cannot run POE cables.



UL Listed

UL Listed and FCC Certified

This product is UL Listed and FCC certified

UL is a safety consulting and certification company headquartered in Northbrook, Illinois, and provides safety-related certification, validation, testing, inspection, and auditing of SCW products.

The Federal Communications Commission has certified that the electromagnetic interference from the device is under limits approved by the FCC.



American-Based Technical Support after the sale. For FREE. Forever.

Real review from Larry, who had this to say:

The most important part of a purchase like this is the support for technical assistance when there is a question or when there is a problem, and they always exceed expectations!


All of our equipment comes with Free Technical Support that is US based (Our Warehouse and Staff are located in Asheville, NC). We're happy to help you via chat, email, screen share / remote support sessions, and phones. Our number is 866-414-2553 and we're open from 9-7 M-F (EST).


scw support included


The Sharpshooter 4.0 v2 26BV4M-XLP Specs



Specifications

26BV4M-XLP
Image Sensor
1/1.8” 2 Million Pixel, Progressive Scan CMOS
Processor Manufacturer
NDAA Compliant M-Star
VCA / Smart Features
Motion Detection, Intrusion Detection, Face Detection, Cross Line, People Counting, Video Tampering (One VCA feature on at a time). AI enhanced Intrusion and Line Crossing with vehicle/people filtering.
Corridor Mode
Supported
Min. Illumination
Color: 0.001lux (F1.5, AGC ON)
0 lux with IR on
Shutter
Auto/Manual, 1 to 1/100,000 second
Lens
6.5 ~ 143 mm, F1.5~F3.4, DC-Iris, AF automatic focusing and motorized zoom lens
60.47° - 3.49° of horizontal coverage (36.30°-1.97° vertical)
Day & Night
IR-cut filter with auto switch (ICR)
Digital Noise Reduction
2D/3D DNR
Signal to Noise Ratio
>52dB
Wide Dynamic Range
True WDR @ 120dB
Digital Defog
Yes
Video Compression
H.265, H.264, MJPEG
Camera Streams
Main Stream: up to 4MP (2688x1520): Max. 30 fps

Sub Stream: up to 2MP (1920×1080): Max. 30 fps;
Mobile Data-Sensitive Stream: up to D1 (720×480):Max. 30 fps;
Bit Rate
32 Kbps ~ 16Mbps
Max. Image Resolution
2688x1520 4 Megapixel
Frame Rate
4MP (2688x1520)): Max. 30 fps
Image Settings
Saturation, brightness, contrast, sharpness, headlight compensation, backlight compensation, region of interest, 9:16 corridor mode, evaluative metering.
BLC
Yes, zone configurable
Alarm Trigger
Motion detection, tampering alarm, network disconnect, IP address conflict, storage exception
Protocols
IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, RTMP, SSL/TLS
SD Card Slot
MicroSD up to 256GB (card not included)
Interoperability
ONVIF (Profile S, Profile G, Profile T)
Communication Interface
1 RJ45 10M/100M/1000M Base-TX Ethernet and 2x single mode 100M/1000M SFP
Operating Conditions
(-40°F ~ 140 °F) Humidity 10 - 95% (non-condensing)
Audio I/O
Bare Wire Audio Cable
Audio Input
impedance 35 kΩ; amplitude 2 V [p-p]
Audio Output
1 Output: impedance 600Ω; amplitude 2V [p-p]
Alarm I/O
2 input; 1output
Power Supply
AC 24V±25%, -P: PoE (IEEE 802.3at)
Power Consumption
Max. 15W
Weather Proof Rating
IP67

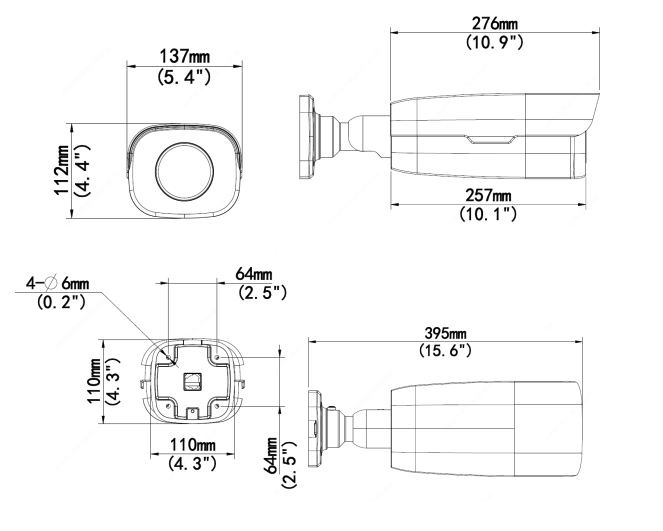

Dimensions
15.6” ×5.4” ×4.4”
IR Range
Up to 650ft.
Weight
8.2 Lbs


Installation Guides related to The Sharpshooter 4.0 26BV4-XLP

installation safety guides

Safety First

Our products are really safe, but if you are going to drill into a wall - for any purpose - you need to stay away from your electrical lines and turn your power off.

drilling for security cameras guide

Drilling

Learn what bits your need for Brick, Stucco, Vinyl Siding, Sheetrock, Wood, etc.

cabling for security cameras guide

Cabling

Learn how to run cable better than the pros. From Raceways to Conduit to Terminating RJ45 to Extending Cable Distance.

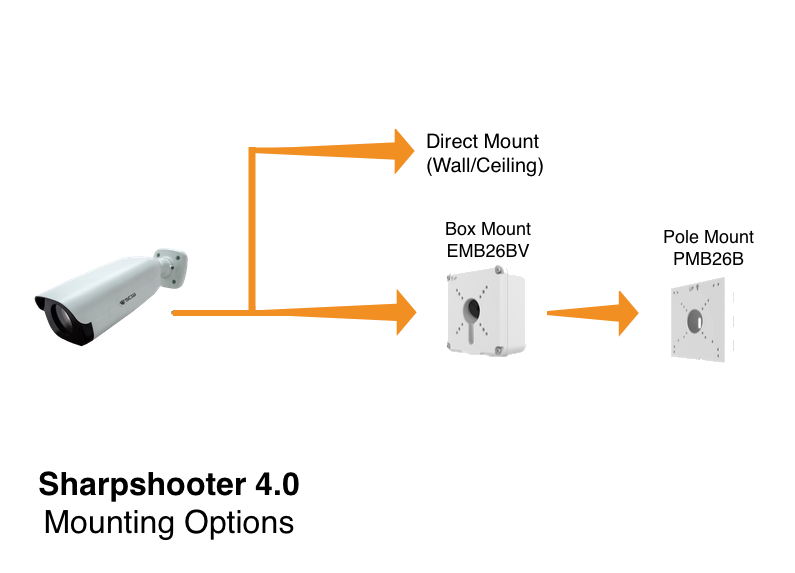

Mounting Bullet Cameras on Walls

Mounting Bullet Cameras on Walls

In this guide, we will be installing a bullet camera on a wall.

Mounting Bullet Cameras on Ceilings

Mounting Bullet Cameras on Ceilings

In this guide, we will be installing a bullet camera on a ceiling.

Mounting Bullet Cameras on Soffits

Mounting Bullet Cameras on Soffits

In this guide, we will be installing a bullet camera on a soffit.

Mounting Bullet Cameras with Electrical Box Mounts

Using Electrical Mounting Boxes

Our electrical box mounts are used to give easy access to your connections, hide them inside the junction box, and allow you to drill a smaller hole in your wall. If you want to run EMT or FMC conduit they are necessary to run conduit straight to the camera.

Mounting Bullet Cameras with Pole Mounts

Mounting Bullet Cameras to Pole Mounts

In this guide, we will be installing a Hornet Pro bullet camera on a pole.

24 volt wiring for Sharpshooter

24 Volt Wiring: Sharpshooter
