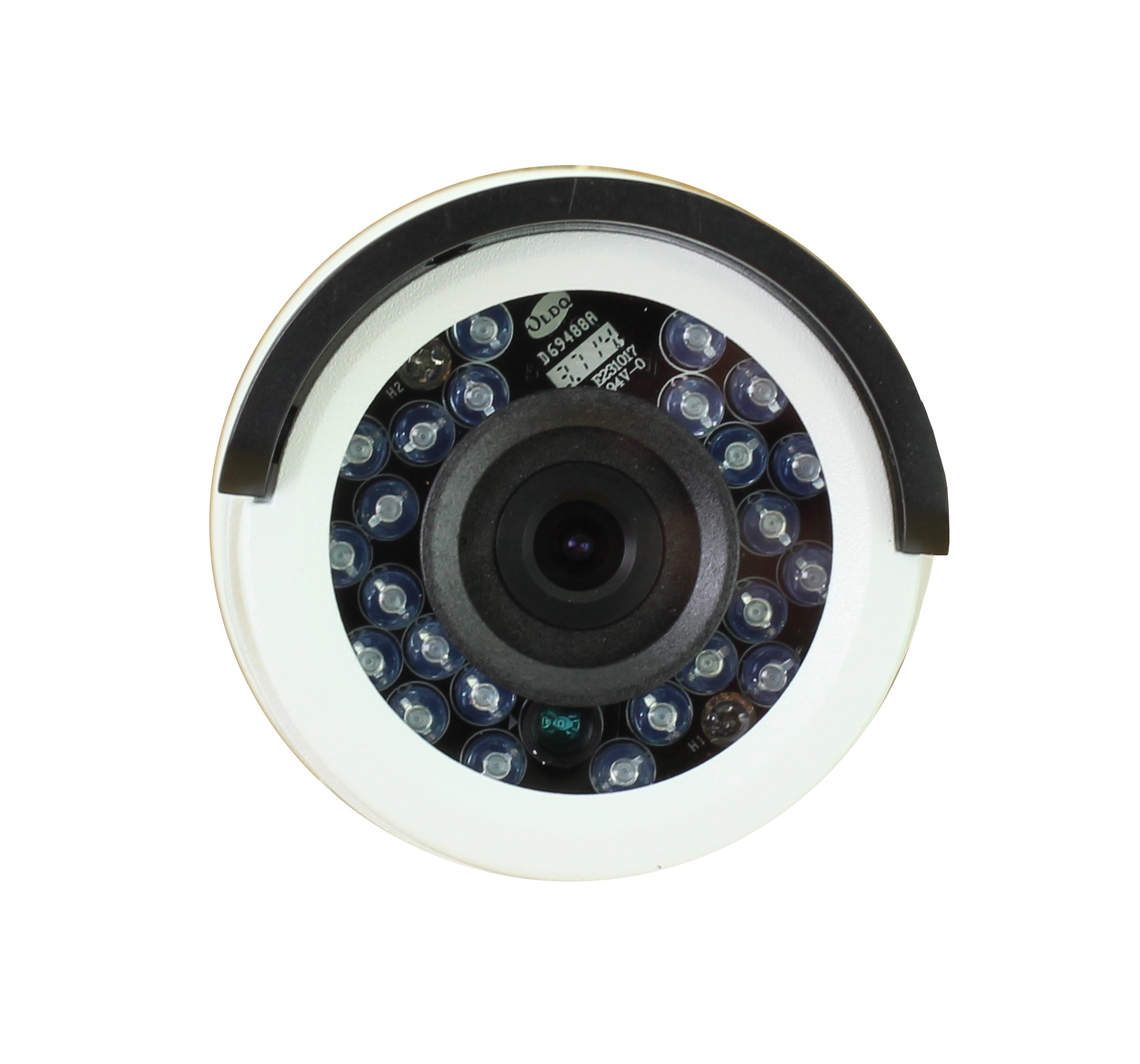

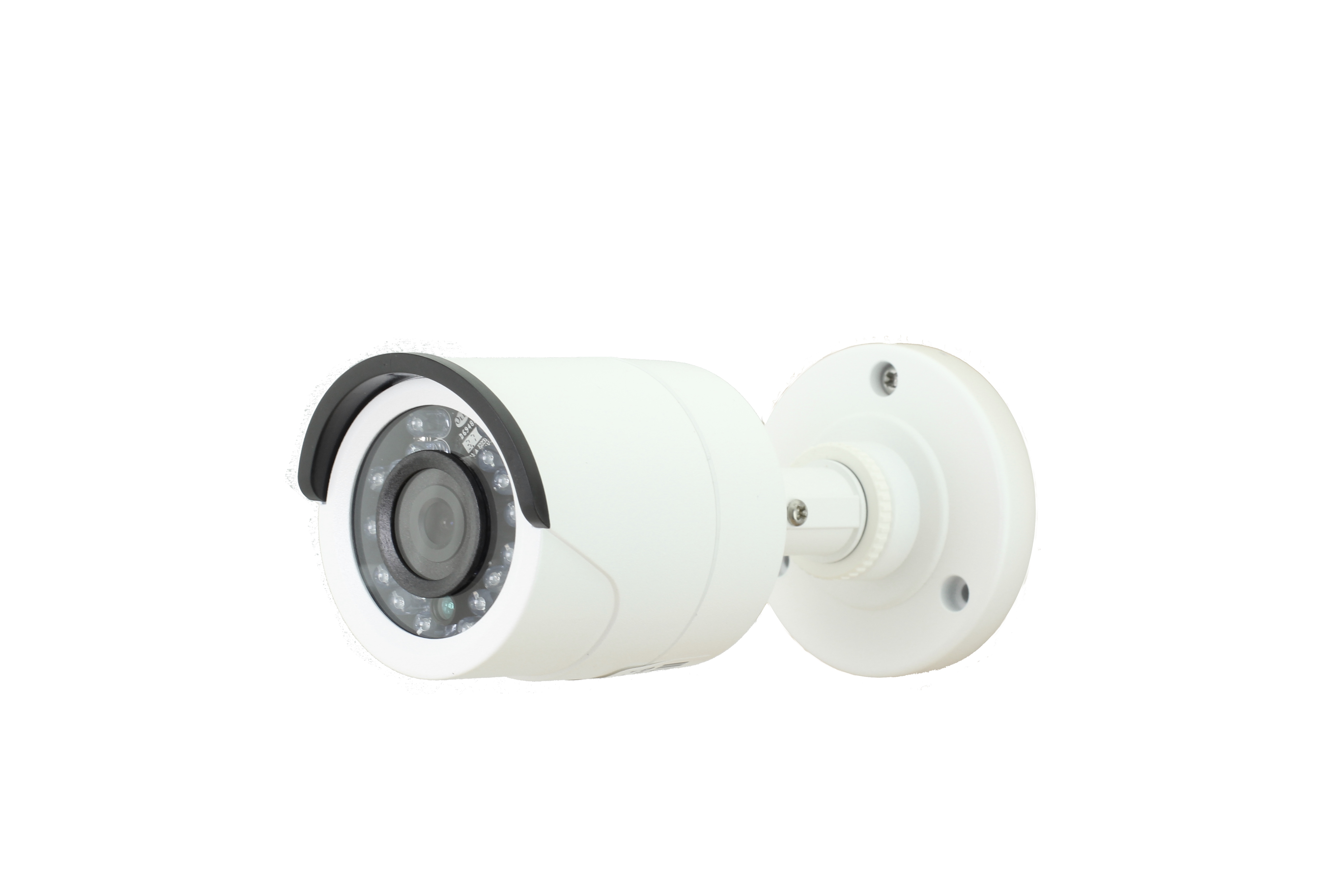

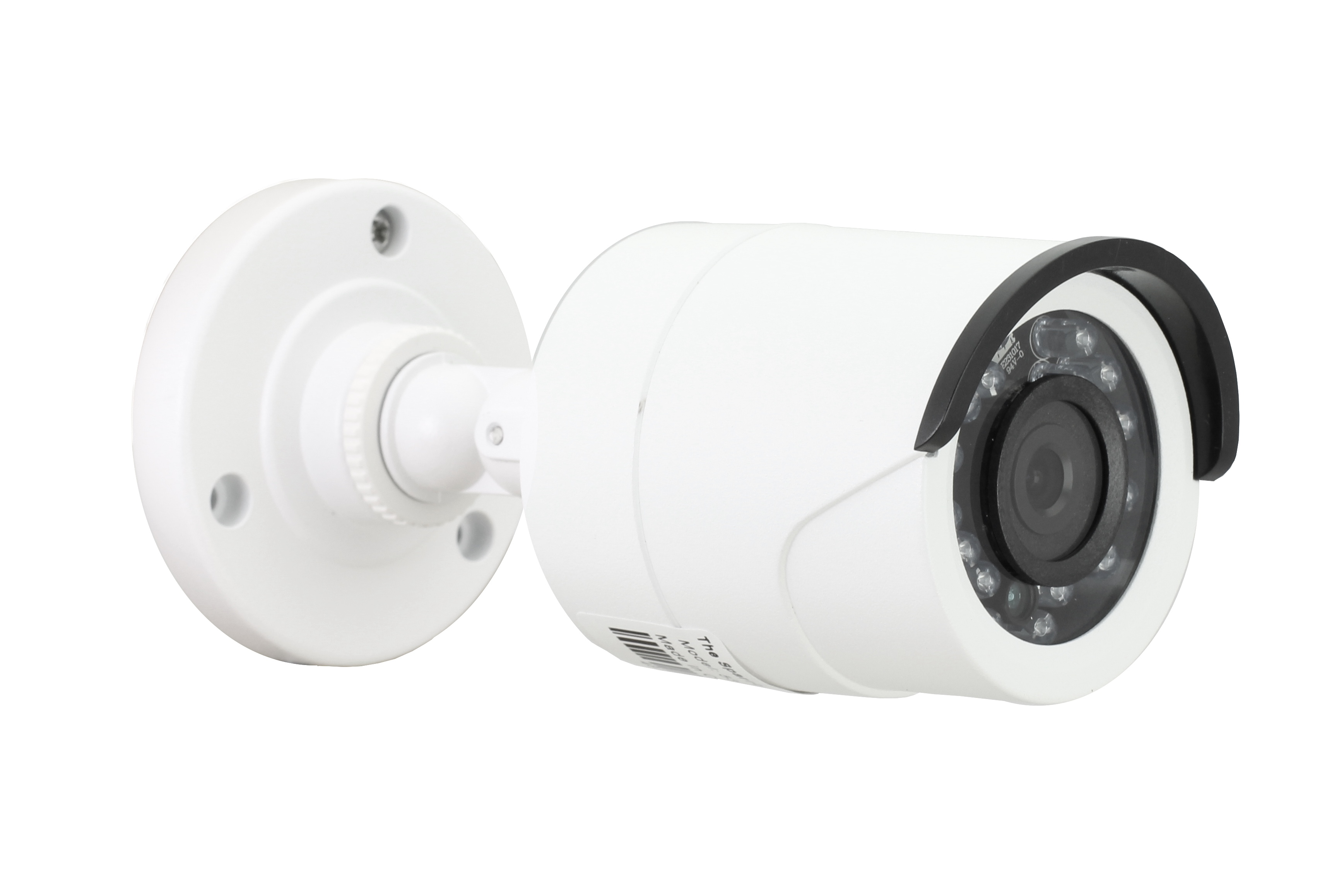

DISCONTINUED - The Sparrow 531 - 720P TVI Fixed Lens Mini Bullet Camera

Backordered

Contact your sales rep for a delivery timeline.

SKU

531

Resolution	Weatherproof	Lens	IR Distance	Special Features
High Definition 30fps@720p	Yes rated IP66	Fixed at 3.6 mm ~75° of coverage	Night Vision at 60FT	Digital Zoom Only Learn about Digital vs Optical Zoom

$55.00

Images

Need Installation?

No Problem

Whether you plan to DIY install or want us to do it for you, we're as flexible as you need.

Get a Custom Quote for Equipment or Installation

Resolution	Weatherproof	Lens	IR Distance	Special Features
High Definition 30fps@720p	Yes rated IP66	Fixed at 3.6 mm ~75° of coverage	Night Vision at 60FT	Digital Zoom Only Learn about Digital vs Optical Zoom

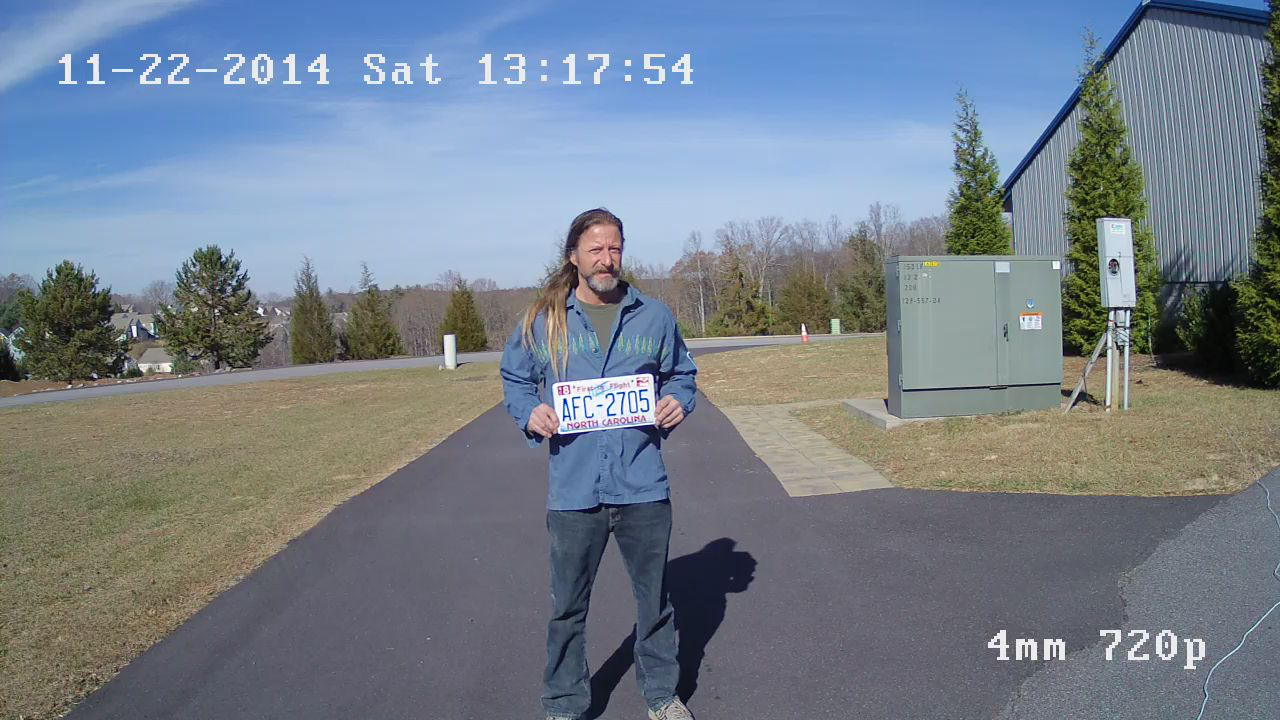

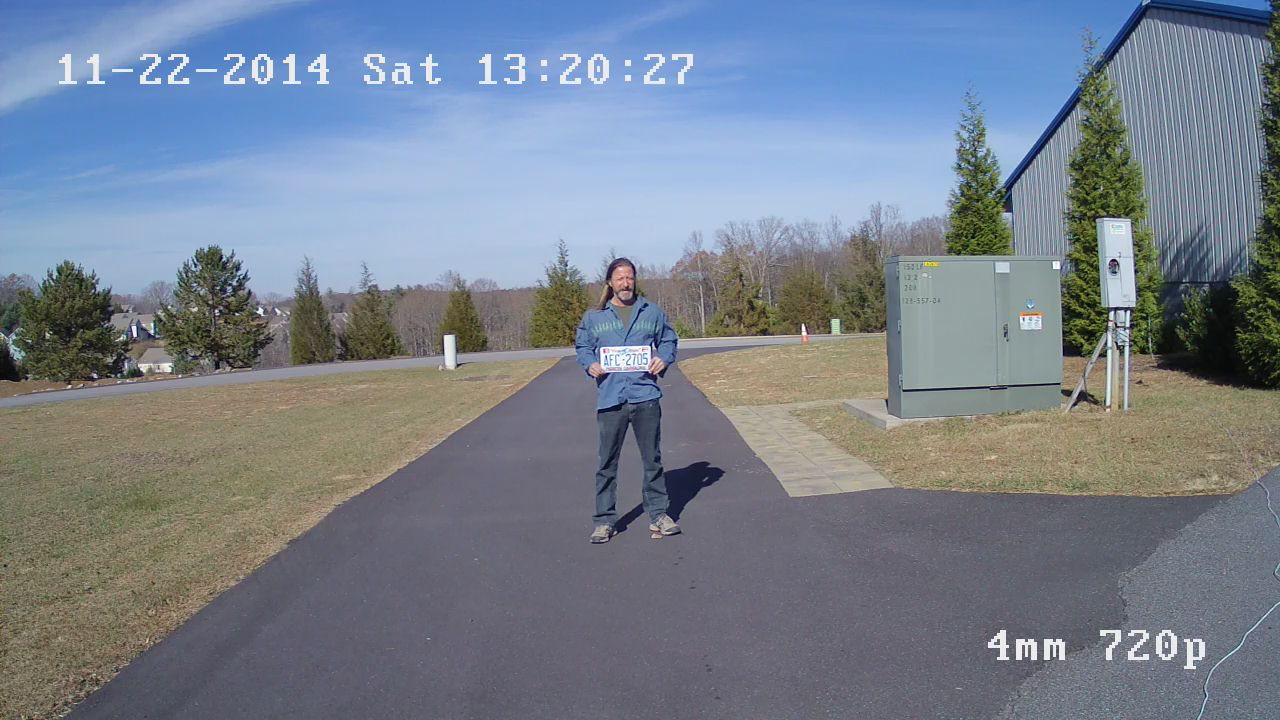

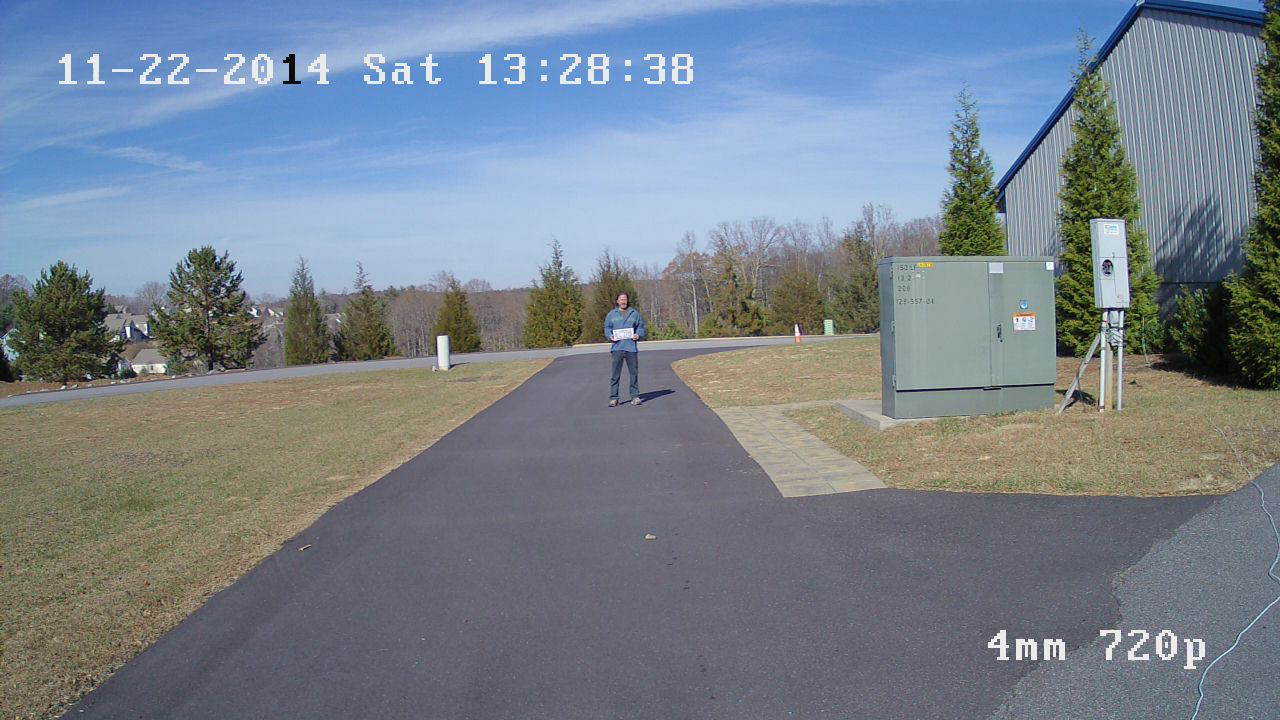

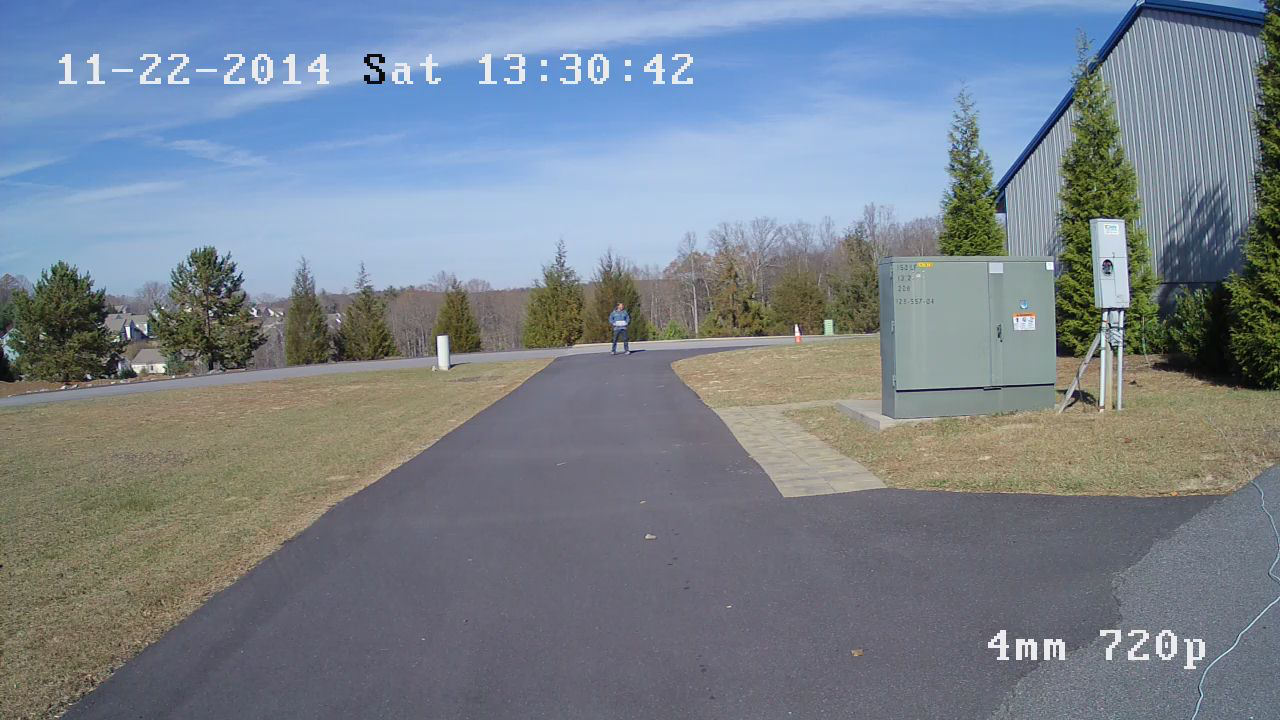

Views from this camera at different distances with no lens adjustments.

Views from this camera at different distances with no settings changes between shots. Click to enlarge. Press "Esc" key to close the picture.

10 FT	20 FT	50 FT	100 FT

Click to enlarge the images. Press ESC key to close.

Specifications	531
IP Rating	IP66
Image Sensor	1/3″ Progressive Scan CMOS
Effective Pixels	1280(H)*720(V) - 720p
Frames Per Second	30FPS
Minimum Illumination	0.01 Lux @(F1.2,AGC ON), 0 Lux with IR
Lens	3.6mm Fixed Lens
S/N Ratio	More Than 52dB
IR Distance	60ft Depending on Scene Reflectance
Video Standard	NTSC
Shutter	1/25(1/30) s to 1/50,000 s
Video Output	1.0Vp-p, 75Ω, BNC TVI Output
Power Supply	DC 12V, 4W
Operating Temperature	-40 °C – 60 °C (-40 °F – 140 °F) Humidity 90% or less (non-condensing)
Dimensions, Weight	2.76” ×5.89” 0.80 lb

Cut Sheet for the Sparrow
