$220.00

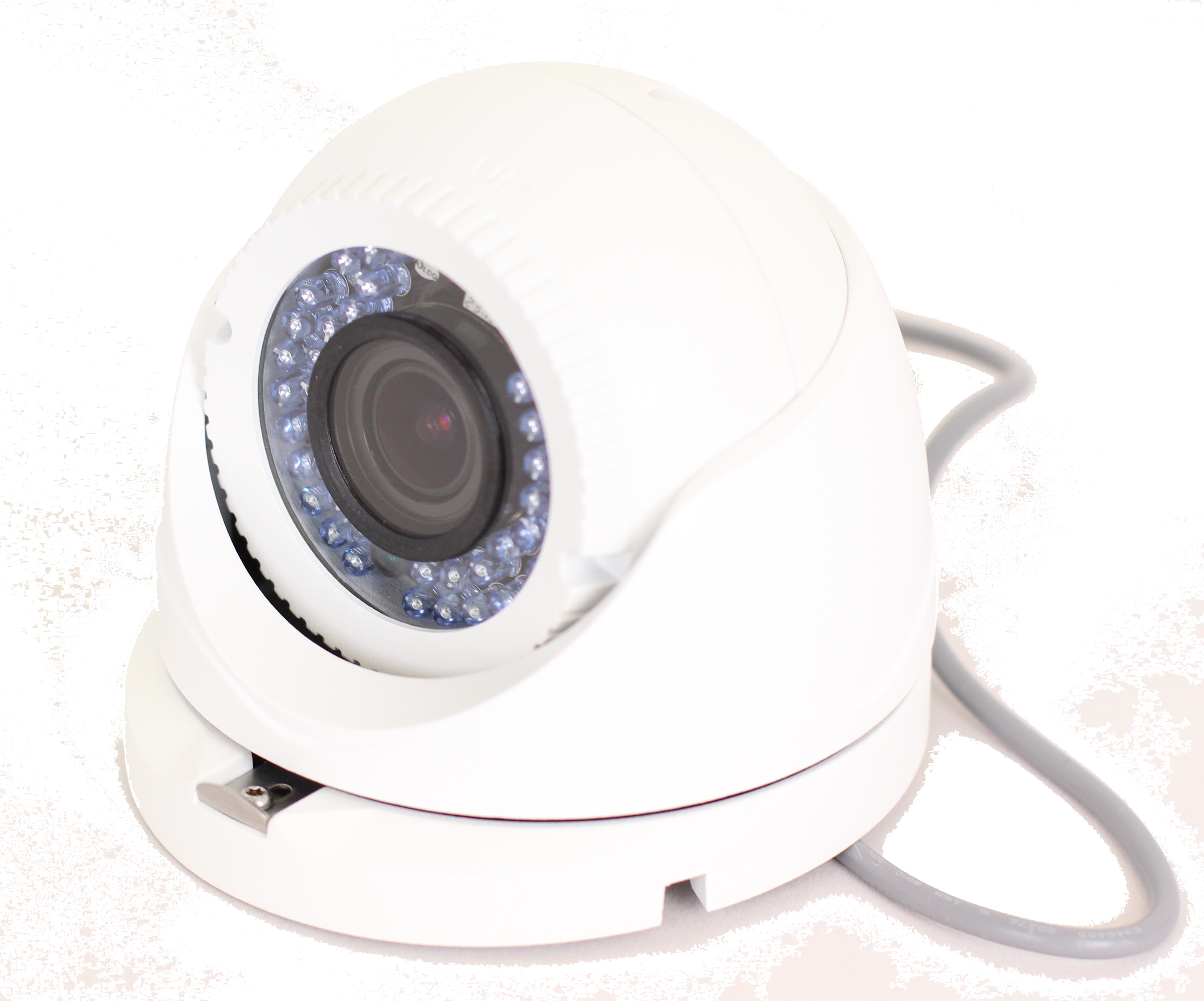

DISCONTINUED - The Recon 521 - 1080P TVI Varifocal Lens Dome Camera
Backordered
Contact your sales rep for a delivery timeline.
SKU
521
Resolution | Weatherproof | Lens | IR Distance | Special Features |
High Definition ![]() 12fps@1080p or 30fps@720p |
Yes![]() rated IP66 |
Adjustable 2.8-12mm![]() 102°- 35° |
Night Vision![]() at 100FT |
Adjustable Lens Learn about Digital vs Optical Zoom |

Need Installation?
No Problem
Whether you plan to DIY install or want us to do it for you, we're as flexible as you need.
Get a Custom Quote for Equipment or Installation
Resolution | Weatherproof | Lens | IR Distance | Special Features |
High Definition ![]() 12fps@1080p or 30fps@720p |
Yes![]() rated IP66 |
Adjustable 2.8-12mm![]() 102°- 35° |
Night Vision![]() at 100FT |
Adjustable Lens Learn about Digital vs Optical Zoom |

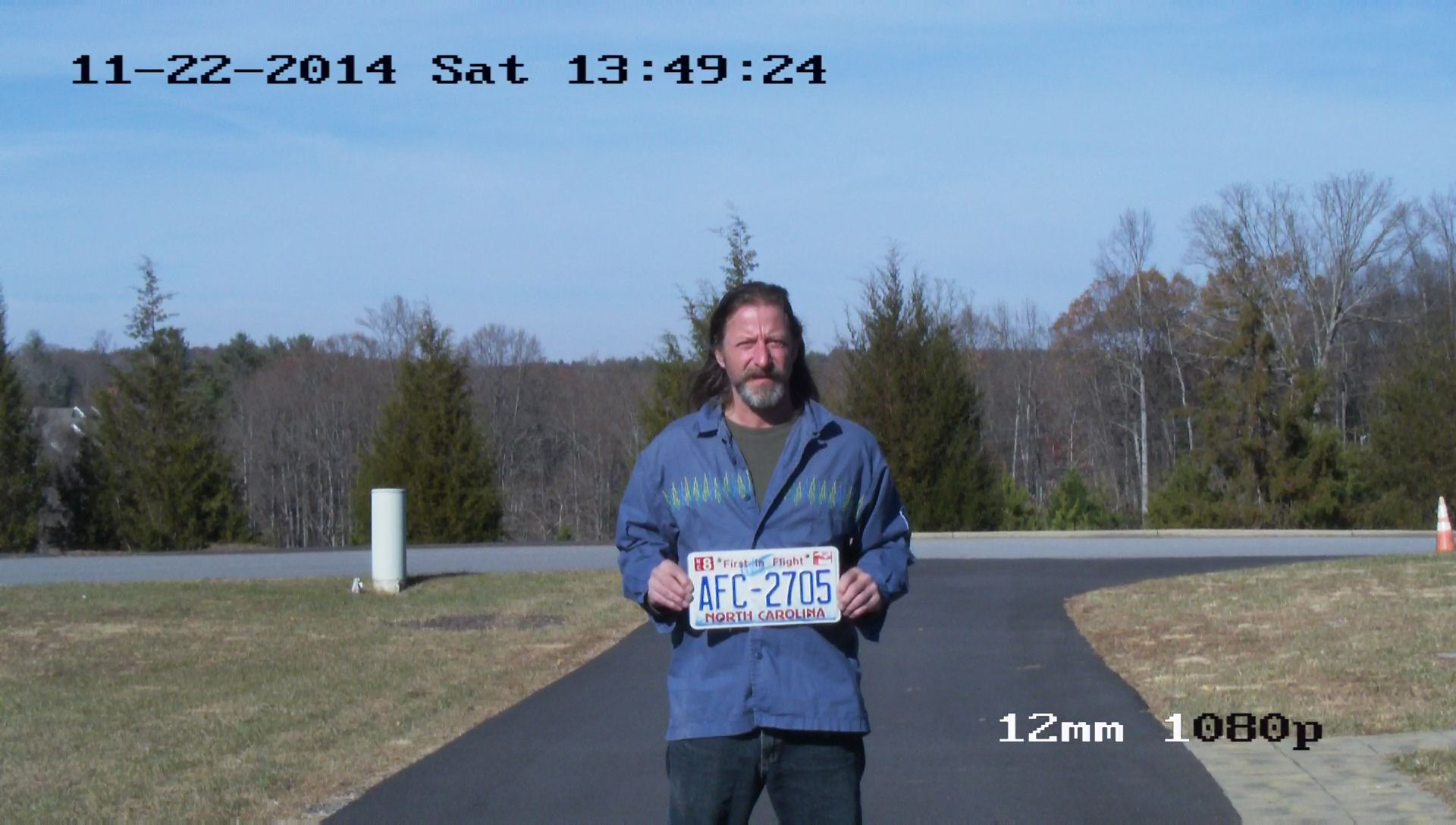

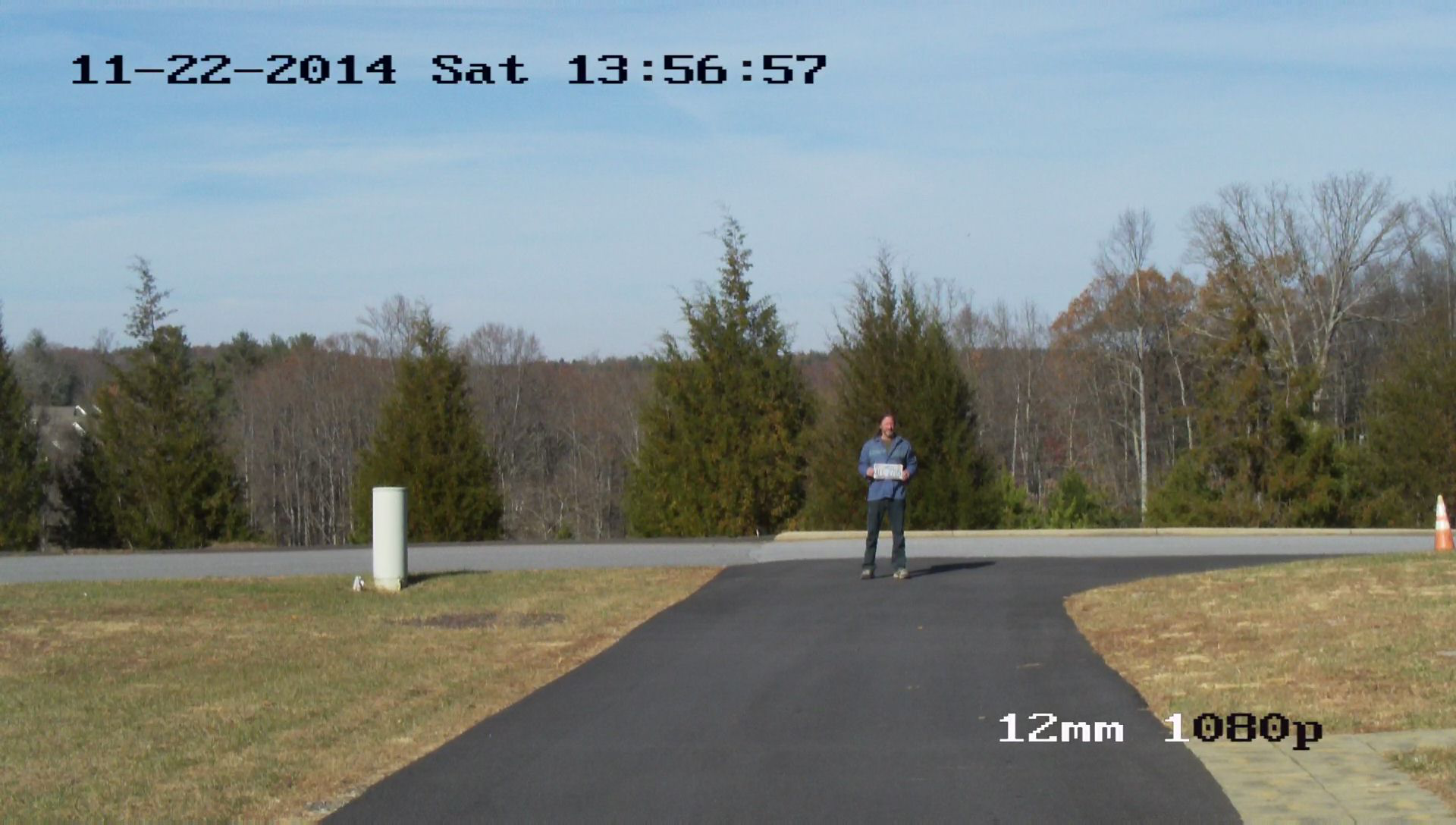

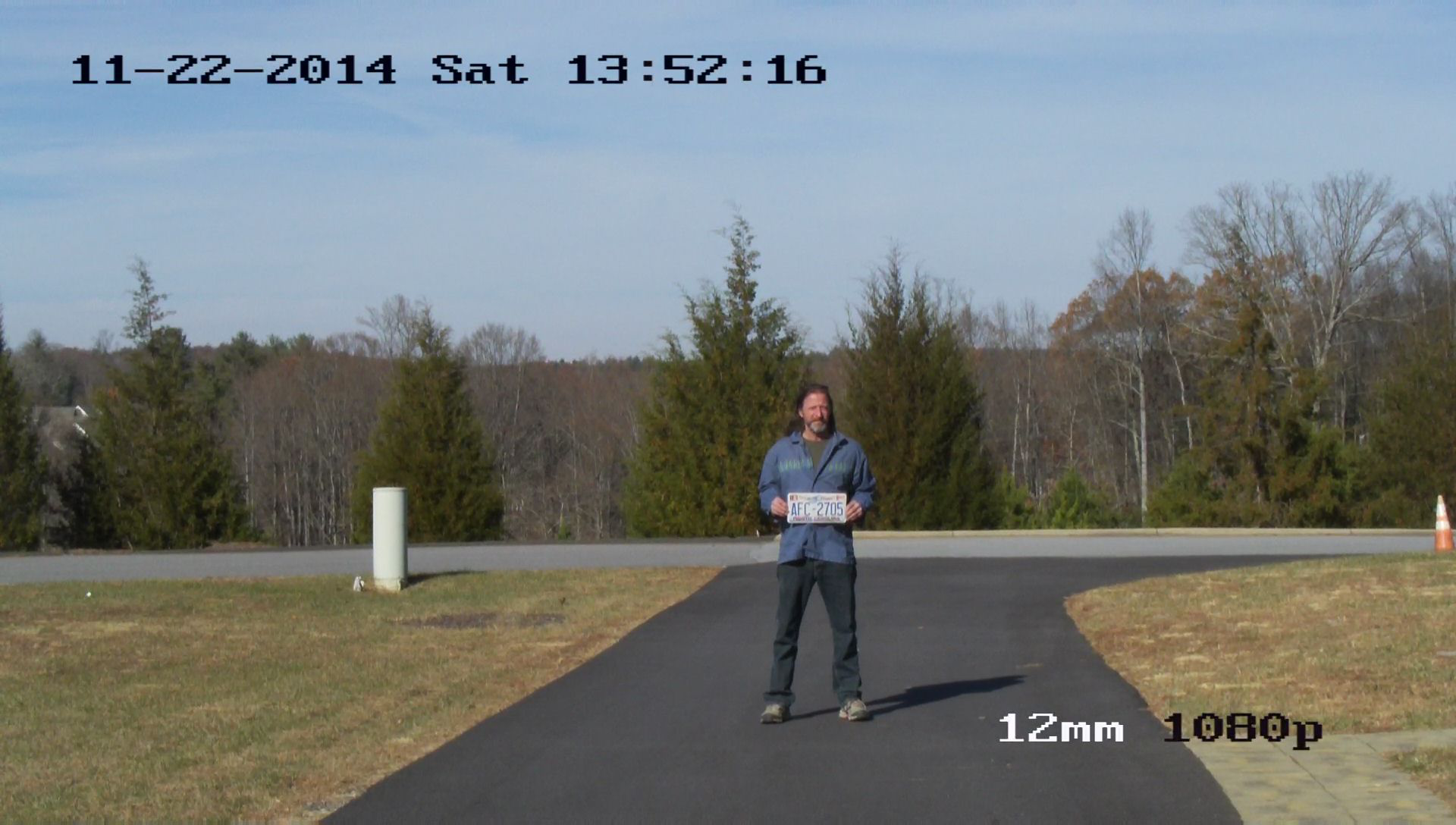

Views from this camera at different distances and different lens adjustments.
2.8mm at 1080P - the widest angle (98 degrees) |
10 FT | 20 FT | 50 FT | 100 FT |
![]() |
![]() |
![]() |
![]() |
Click to enlarge the images. Press ESC key to close.
The Recon 521 Specs
Specifications | 521 |
OSD | Yes - Through RS485 |
IP Rating | IP66 |
Image Sensor | 1/3″ Progressive Scan CMOS |
Effective Pixels | 1920(H)*1080(V) - 1080p |
Frames Per Second | 30FPS |
Minimum Illumination | 0.01 Lux @(F1.2,AGC ON), 0 Lux with IR |
Lens | 2.8 – 12 mm @ F1.4 Angle of View: 102° – 35° |
IR Distance | 100ft Depending on Scene Reflectance |
Video Standard | NTSC |
Shutter | 1/25(1/30)s to 1/50,000s |
Video Output | 1.0Vp-p, 75Ω, BNC TVI Output |
Power Supply | DC 12V, 5W |
Operating Temperature | -40 °F – 140 °F Humidity 90% or less (non-condensing) |
Dimensions, Weight | 5.1″x4″ 0.90 lb |
