How to Design a Security Camera System for a Large Retail Space

Here's how a surveillance system was set up for a large retail space. From theft to unruly customers, there are many reasons to have security cameras in a store nowadays. It's always a good idea to have footage especially when inventory and cash exchanging are involved. The location in this floor plan has a great layout to cover all their retail security needs.

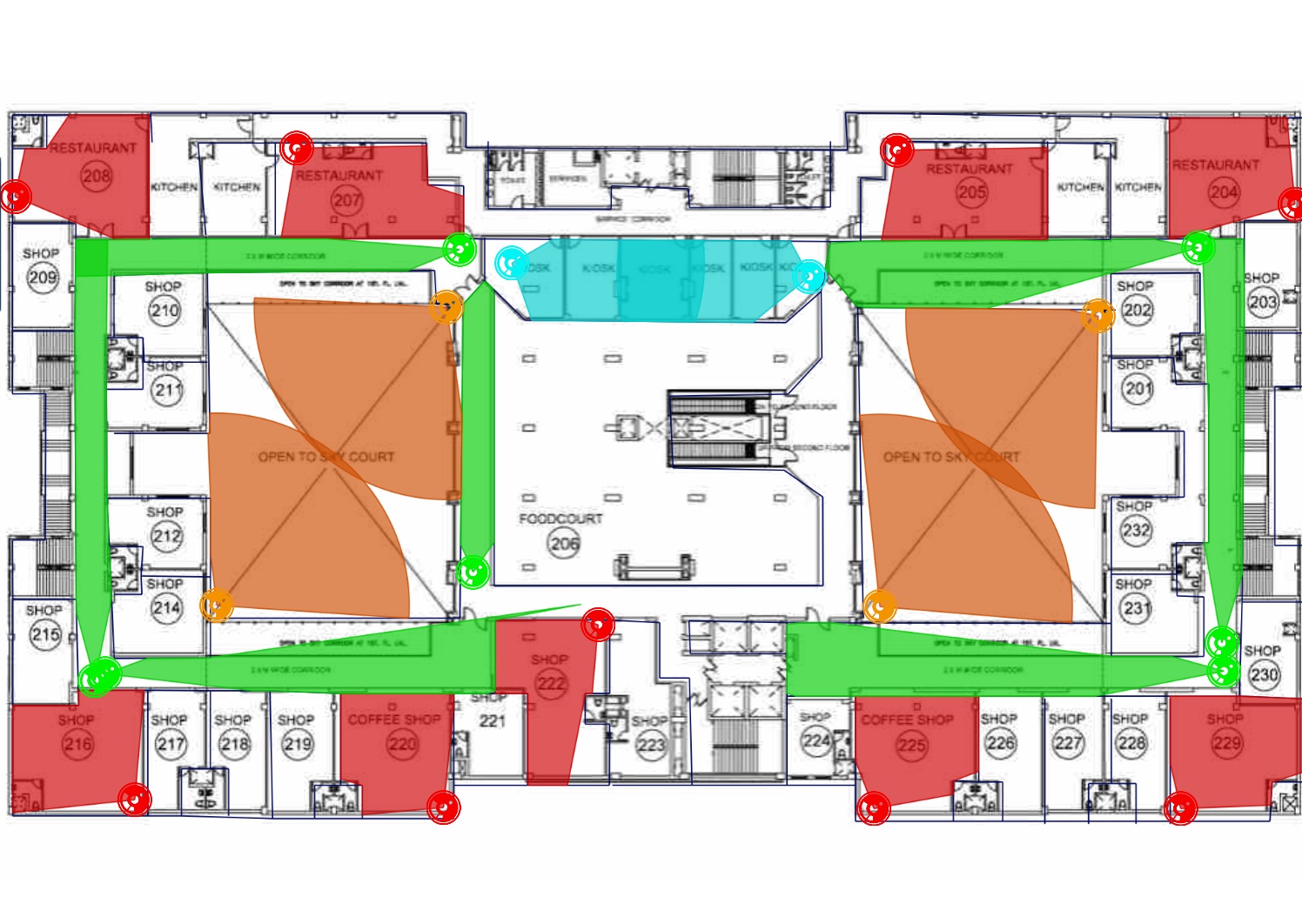

large retail store security camera floorplan

Explanation

Goals: The goal of this surveillance system is to protect the employees and owners of the retail stores from loosing merchandise, but also ensure they are providing the best customer service.

The Red cones are the line of sight for the Sheriff 4.0. You will have a clear enough picture with these cameras to be able to recognize someone at 50 feet, because they shoot in 4MP at 25 frames per second. They also do 101 degrees of coverage which you can see in the floor plan.

The Green cone is for the line of sight for our next most popular line of cameras which adjustable lenses that can have up to 4x optical zoom. Just like with a point-and-shoot camera, when you zoom in on an area, your field-of-view narrows. With 4x optical zoom and either the The Detective 4.0 or the The Viking 4.0 you will have a 30 degree view and will be able to recognize someone over 100 feet away.*

The Turquoise cones represent an audio capable camera called the Informant 4.0. In the floor plan the customer wanted to monitor what was going on in the kiosk area. With the Informant's built in mic, and 4MP resolution with 101 degrees of coverage, the owner could see and hear clearly.

The Orange cones are showing the Deputy 4.0. This camera has line of sight for recognizing someone up to 50ft away. With a resolution of 4MP @ 25 frames per second, it is a great camera for wide open areas.


Want us to create a custom floorplan for your retail location?


The Sheriff 4.0 - 26DF4-IK10



Resolution

4MP UHD Quality

4MP @ 25 FPS: 2560 x 1440

Detect: 115 ft
Recognize: 50 ft
Identify: 35 ft


Processing Power and Compression: Not All 4MP Cameras are Created Equal


Weather

weatherproof

IP67
Full protection from dust, rain, snow, dew, frost, and sprinklers.

You can even submerge it for a few minutes.


Temp

temperature rating

Temperature rated from -31°F to 140 °F

Humidity rated between 10 and 95%.


Lens

fixed lens

Fixed: 2.8mm
101° of coverage

Digital Zoom Only

Learn about the 4 types of Zoom


Day/Night

night footage

Infrared night vision up to 100 FT

Color video possible until 0.02 lux

How to get the best footage at night


Special

special features

IK10 (highest possible rating) Physical Damage Protection

True Wide Dynamic Range (120dB)

Seeing in shadows: Understanding WDR

The Sheriff is very similar to our Deputy model - except that it has a 1K10 vandal proof glass dome surrounding the lens. Glass domes are iconic and what people usually think of with a security camera, but the glass has benefits and drawbacks. Despite our logo being a glass dome camera shape, most of our models don't have them anymore because they aren't that DIY friendly. To install most glass dome cameras, you have to remove the outer dome to reveal the mounting screws and then screw the dome back on after mounting the camera. In more humid areas, this can trap moisture inside the camera; for this reason, most glass dome cameras are installed indoors. The Deputy comes with some silicon moisture absorbing beads to help combat this issue (please don't remove them). Glass domes are sometimes used outdoors especially in situations like college campuses or apartment complexes where "non-destructive vandalism," such as turning the camera away from its intended target, is common. Glass domes do not hide which way the camera is pointed. IK10 is the highest measurement rating for protection from physical damage for security camera products, so it should protect against some destructive vandalism as well.

Sample Photos taken by the Sheriff 4.0. Click to enlarge the images. Press ESC key to close.

10 FT 20 FT 50 FT 75 FT 100 FT

detection

Detect someone up to 115 feet

"Detecting" a face means being able to tell that a human face is in the picture.

recognize

Recognize someone up to 50 feet

"Recognizing" a face refers to being able to say "I have seen that person before" - even if you don't know or can't place who it is.

identify

Identify someone up to 35 feet

"Identification" refers to being able to make out identifiable marks with enough certainty to make a sketch or claim.


The Viking 4.0 - 26BV4



Resolution

4MP UHD Quality

4MP @ 25 FPS: 2560 x 1440

Detect: up to 175 ft
Recognize: up to 125 ft
Identify: up to 75 ft


4MP vs 4K


Weather

weatherproof

IP67
Full protection from dust, rain, snow, dew, frost, and sprinklers.

You can even submerge it for a few minutes.


Temp

temperature rating

Temperature rated from -31°F to 140 °F

Humidity rated between 10 and 95%.


Lens

varifocal lens

Motorized Varifocal: 2.8 - 12mm
91° - 27° of coverage

Digital Zoom and Optical Zoom

Learn about the 4 types of Zoom


Day/Night

night footage

Infrared night vision up to 100 FT

Color video possible until 0.02 lux

How to get the best footage at night


Special

special features

Alarm Input and Output

Audio Input and Output
Audio Input/Output FAQ

Micro-SD Card Slot

True WDR (up to 120 dB)

Seeing in shadows: Understanding WDR

The Viking has a motorized telephoto lens that allows you to optically zoom in to see a distant area more clearly. You can adjust the angle of view with our apps, over the web, or via your SCW NVR. Just like with a point-and-shoot camera or a pair of binoculars, when narrow the field-of-view, you zoom in on an area and you can see more detail in that area. Although the Viking is a very popular camera for homes that have a mid-range (35-100 foot) points of concern like gates, roads or driveways, this camera is also frequently used is corporate environment such as long and narrow warehouse aisles.

Sample Photos taken by the Viking 4.0. Click to enlarge the images. Press ESC key to close.

2.8mm at 4MP - the widest angle (91 degrees)
10 FT 20 FT 50 FT 75 FT 100 FT
12mm at 4MP - fully zoomed in, smallest angle of view (27 degrees)
10 FT 20 FT 50 FT 75 FT 100 FT 125 FT

detection

Detect someone up to 175 feet

"Detecting" a face means being able to tell that a human face is in the picture.

recognize

Recognize someone up to 125 feet

"Recognizing" a face refers to being able to say "I have seen that person before" - even if you don't know or can't place who it is.

identify

Identify someone up to 75 feet

"Identification" refers to being able to make out identifiable marks with enough certainty to make a sketch or claim.


The Detective 4.0 - 26DV4



Resolution

4MP UHD Quality

4MP @ 25 FPS: 2560 x 1440

Detect: up to 175 ft
Recognize: up to 125 ft
Identify: up to 75 ft


4MP vs 4K


Weather

weatherproof

IP67
Full protection from dust, rain, snow, dew, frost, and sprinklers.

You can even submerge it for a few minutes.


Temp

temperature rating

Temperature rated from -31°F to 140 °F

Humidity rated between 10 and 95%.


Lens

varifocal lens

Motorized Varifocal: 2.7 - 12mm
91° - 27° of coverage

Digital Zoom and Optical Zoom

Learn about the 4 types of Zoom


Day/Night

night footage

Infrared night vision up to 100 FT

Color video possible until 0.02 lux

How to get the best footage at night


Special

special features

Micro-SD Card Slot

True WDR (up to 120 dB)

Built in Microphone

Seeing in shadows: Understanding WDR

The Detective has a motorized telephoto lens that allows you to optically zoom in to see a distant area more clearly. You can adjust the angle of view with our apps, over the web, or via your SCW NVR. Just like with a point-and-shoot camera or a pair of binoculars, when narrow the field-of-view, you zoom in on an area and you can see more detail in that area. Although the Detective is a popular camera for homes that have a mid-range (35-100 foot) points of concern like gates, roads or driveways, this camera is even more frequently used is corporate environment such as long and narrow warehouse aisles.

Sample Photos taken by the Detective 4.0. Click to enlarge the images. Press ESC key to close.

2.8mm at 4MP - the widest angle (91 degrees)
10 FT 20 FT 50 FT 75 FT 100 FT
12mm at 4MP - fully zoomed in, smallest angle of view (27 degrees)
10 FT 20 FT 50 FT 75 FT 100 FT 125 FT

detection

Detect someone up to 175 feet

"Detecting" a face means being able to tell that a human face is in the picture.

recognize

Recognize someone up to 125 feet

"Recognizing" a face refers to being able to say "I have seen that person before" - even if you don't know or can't place who it is.

identify

Identify someone up to 75 feet

"Identification" refers to being able to make out identifiable marks with enough certainty to make a sketch or claim.


The Informant 4.0 - 26DF4-A



Resolution

4MP UHD Quality

4MP @ 25 FPS: 2560 x 1440

Detect: 115 ft
Recognize: 50 ft
Identify: 35 ft


4MP vs 4K


Weather

weatherproof

IP66
Full protection from dust, rain, snow, dew, frost, and sprinklers.

You can even wash them off with a hose.


Temp

temperature rating

Temperature rated from -31°F to 140 °F

Humidity rated between 10 and 95%.


Lens

fixed lens

Fixed: 2.8mm
101° of coverage

Digital Zoom Only

Learn about the 4 types of Zoom


Day/Night

night footage

Infrared night vision up to 50 FT

Color video possible until 0.02 lux

How to get the best footage at night


Special

special features

Integrated Microphone

True Wide Dynamic Range (120dB)

Seeing in shadows: Understanding WDR


The Deputy 4.0 - 26DF4



Resolution

4MP UHD Quality

4MP @ 25 FPS: 2560 x 1440

Detect: 115 ft
Recognize: 50 ft
Identify: 35 ft


4MP vs 4K


Indoor/Outdoor

weatherproof

IP67
Full protection from dust, rain, snow, dew, frost, and sprinklers.

You can even submerge it for a few minutes.


Temp

temperature rating

Temperature rated from -31°F to 140 °F

Humidity rated between 10 and 95%.


Lens

fixed lens

Fixed: 2.8mm
101° of coverage

Digital Zoom Only

Learn about the 4 types of Zoom


Day/Night

night footage

Infrared night vision up to 100 FT

Color video possible until 0.02 lux

How to get the best footage at night


Special

special features

True Wide Dynamic Range (120dB)

Seeing in shadows: Understanding WDR
