Motorized Vari-focal Lens

This camera has a Motorized Varifocal Lens.

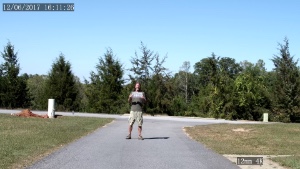

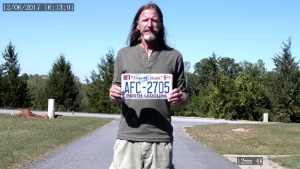

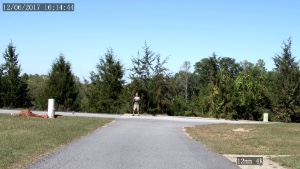

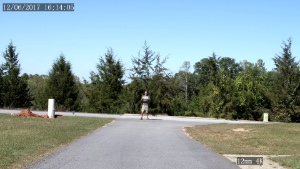

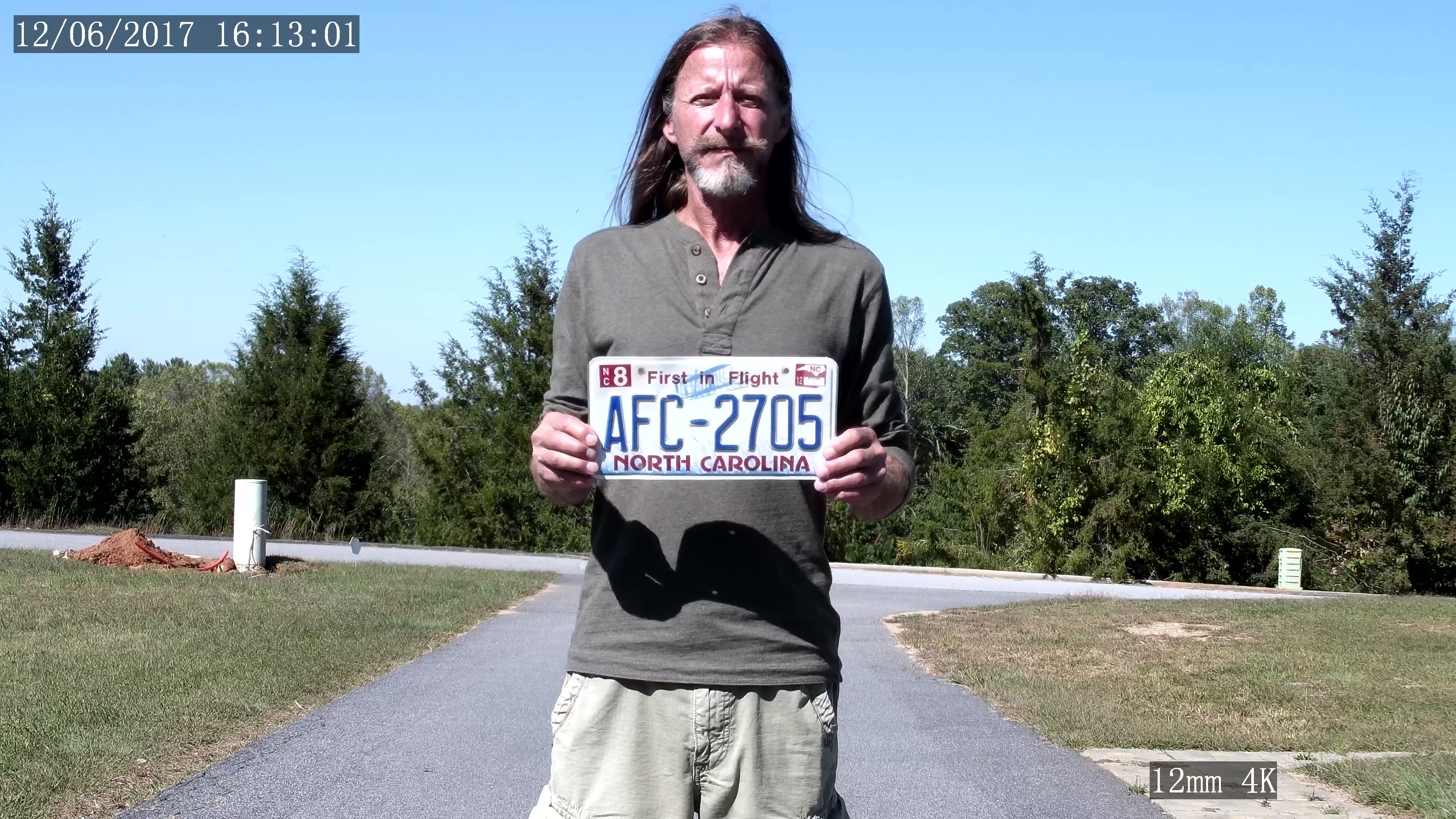

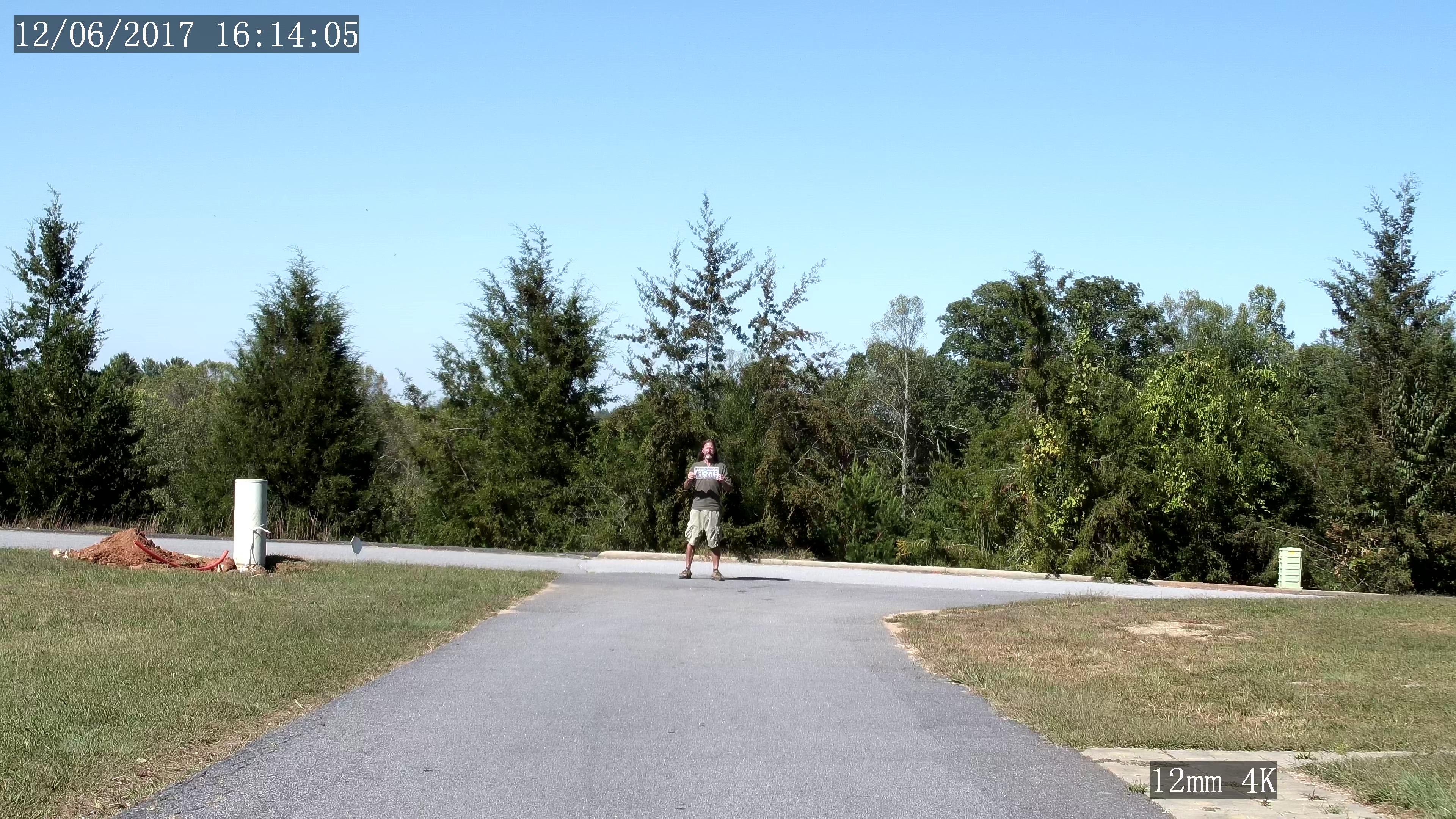

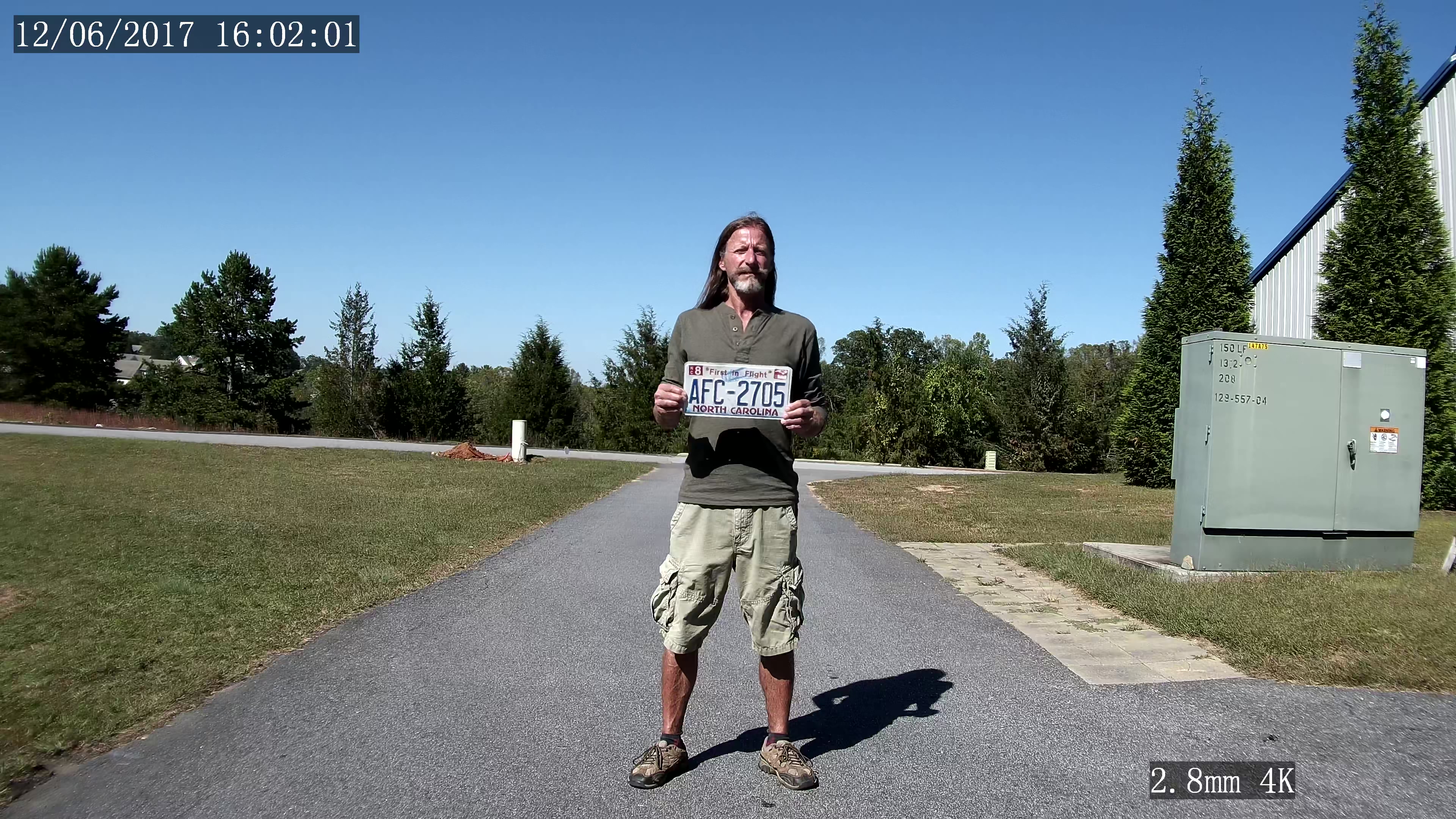

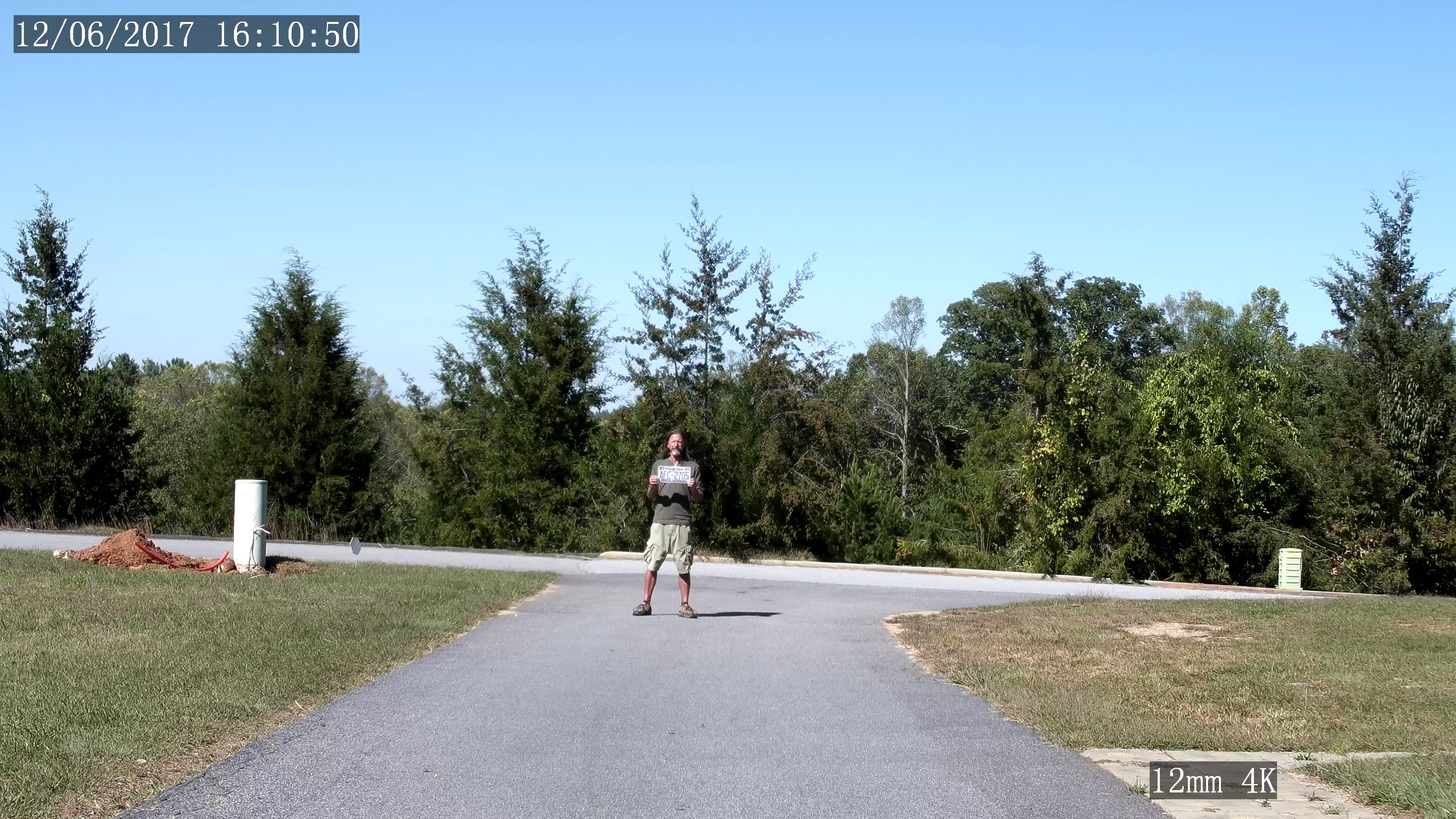

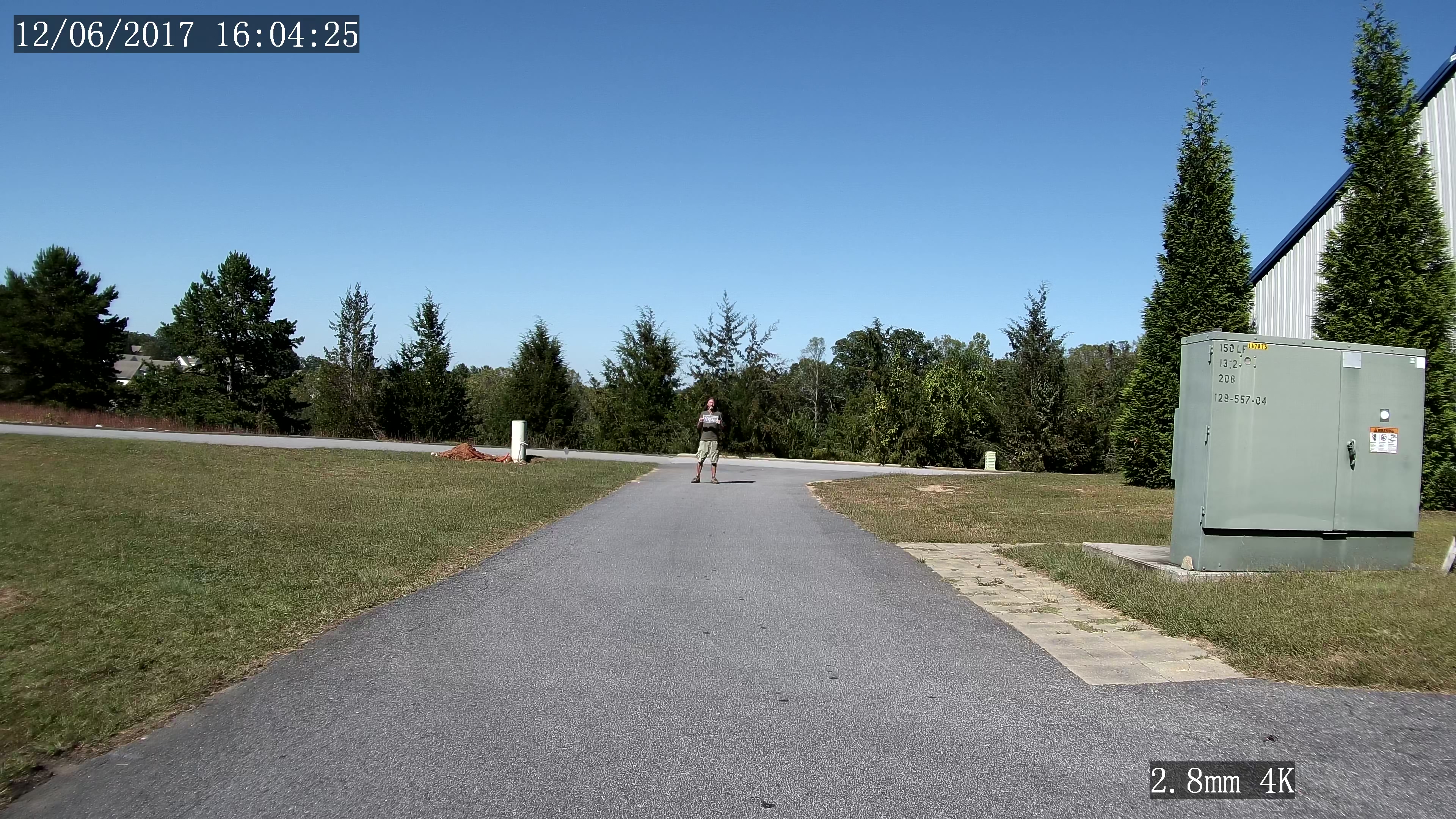

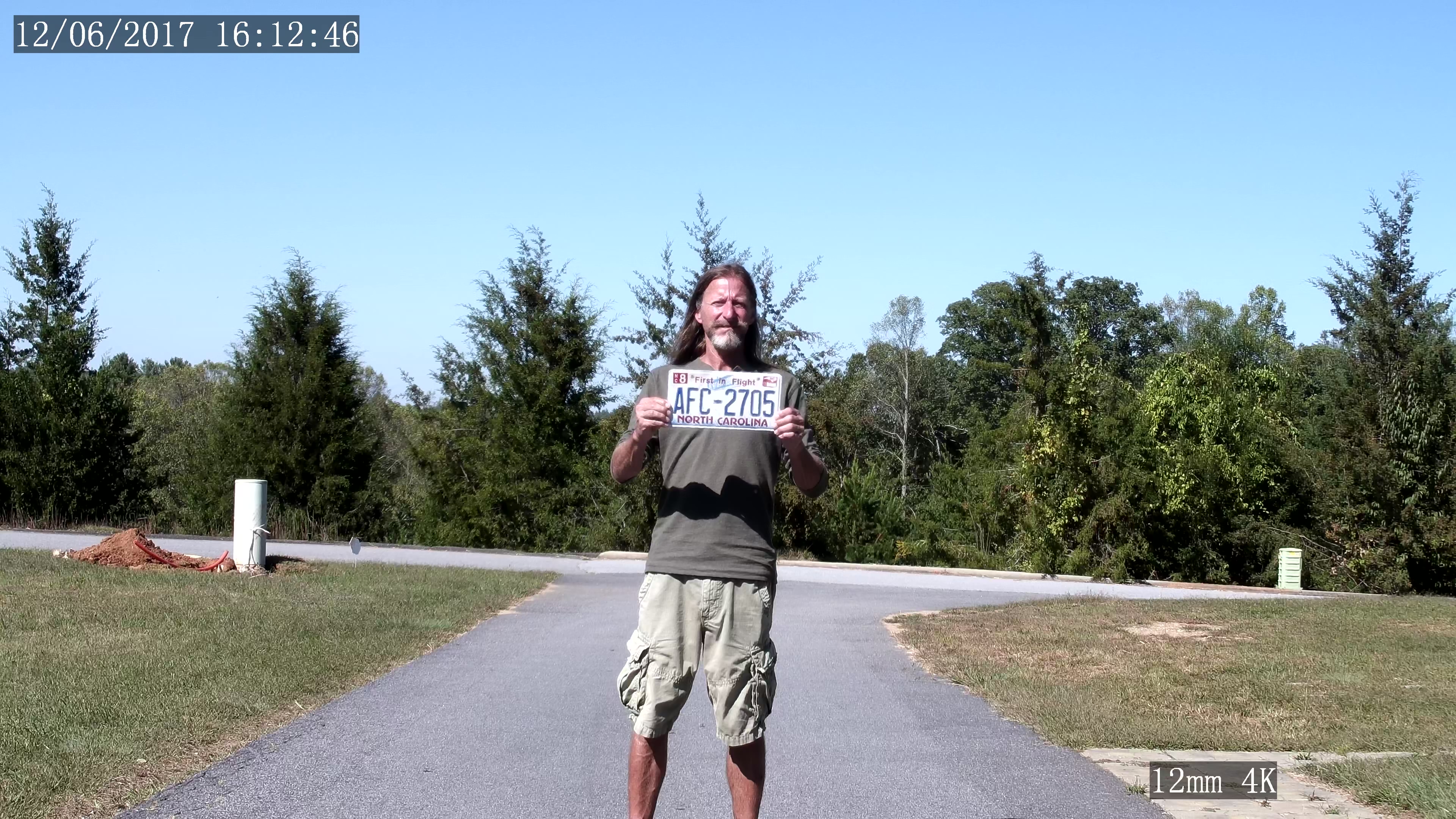

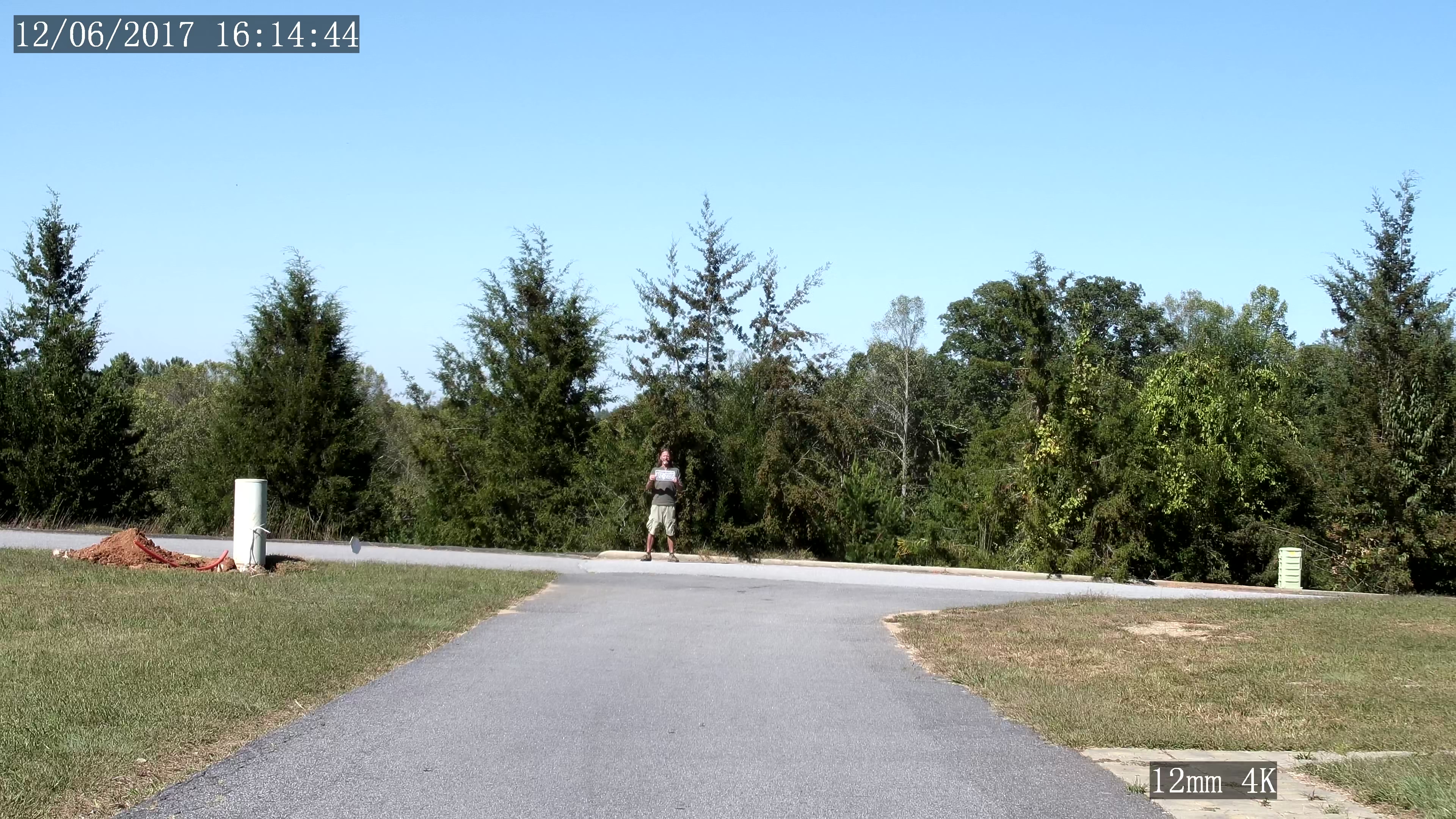

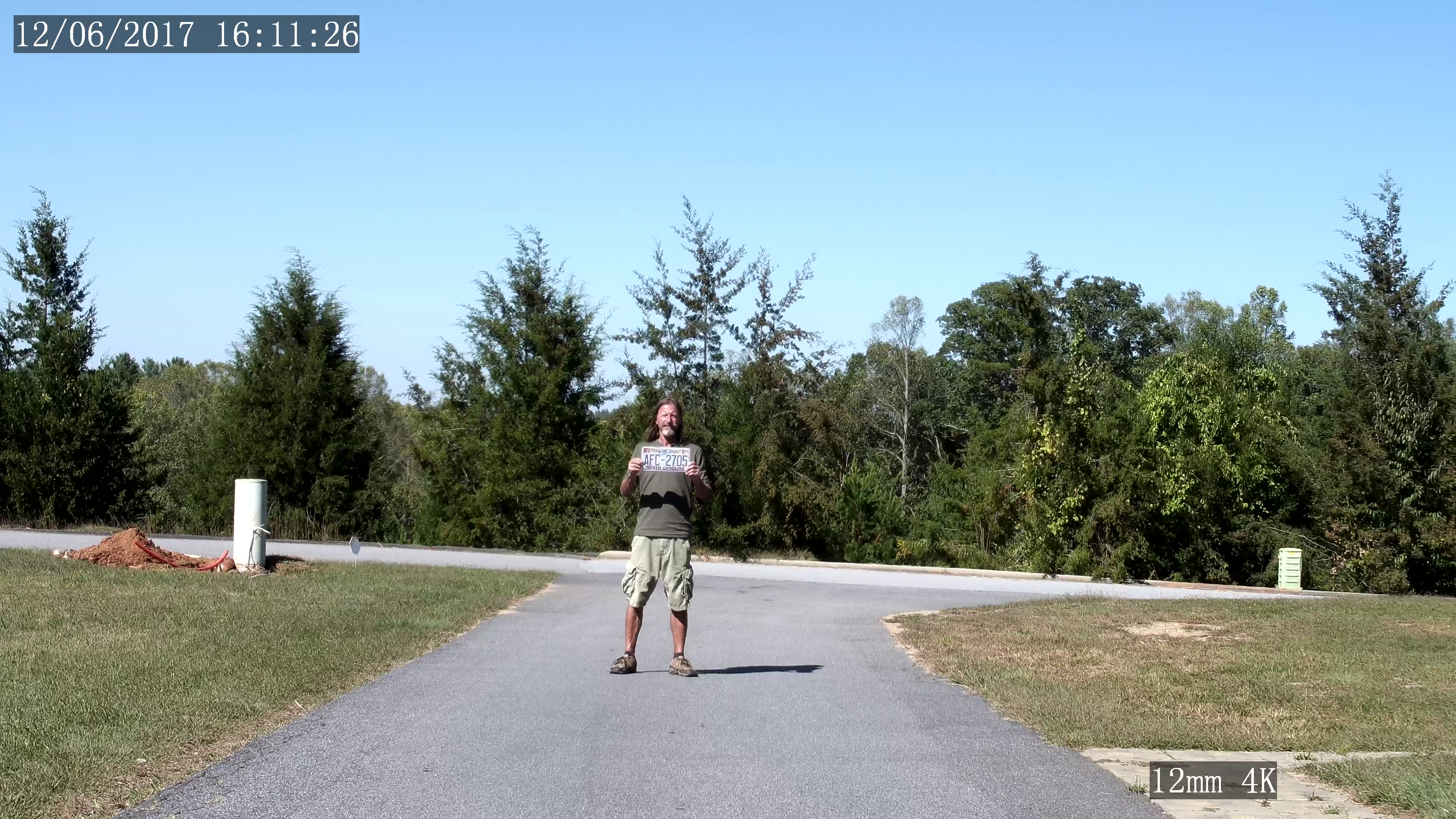

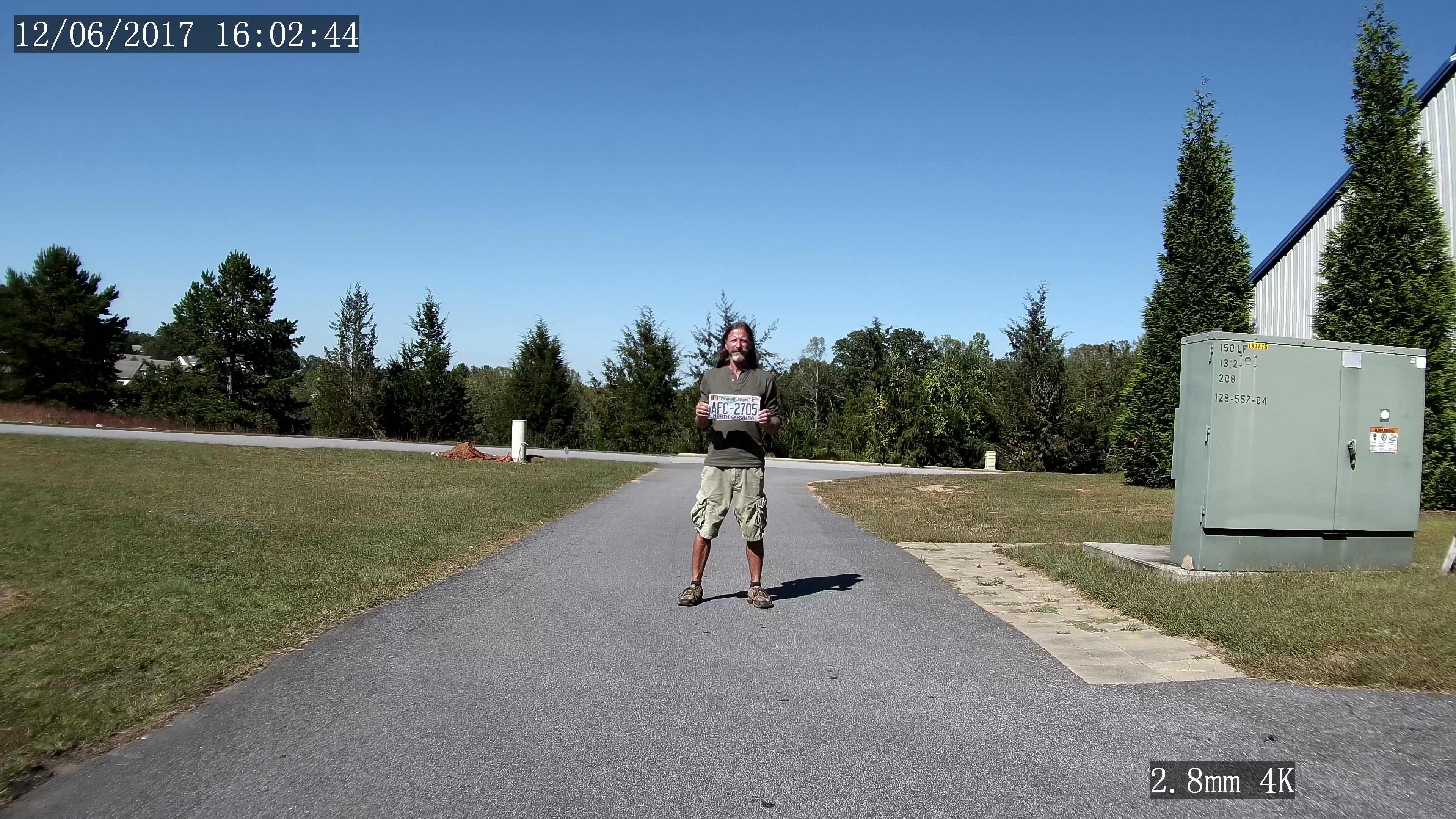

Surveillance cameras have two types of lenses, fixed and varifocal. A fixed lens is just that - fixed at a specific viewing angle / level of zoom. A motorized vari-focal lens gives you the ability to zoom in or out and adjust the viewing angle to exactly what you want. Just like a pair of binoculars, the wider your angle of view the more of the scene that you can see, and the more narrow the angle of view, the more magnified and clear everything appears.

For a visual on what a Varifocal Lenses can do, please consult our Knowledge Base Article on Varifocal Security Cameras For additional reading, you may also consult our Knowledge Base Article on Digital and Optical Zoom

You can adjusted the level of optical zoom from the NVR or camera interface and any our apps.

*Motorized Vari-focal do not pan or tilt, they can only zoom and focus. Specialty security cameras that allow you to adjust the angle of view and level of zoom remotely are known as PTZ cameras.

IK10 - The Highest Rating for Physical Damage Protection

This camera has achieved a rating of IK10.

IK10 is the highest measurement rating for protection from physical damage for security camera products using the international standard IEC 62262 scale. IK10 is the highest rating possible, and this camera should be protect against many human-based forms of destructive vandalism.

Most security camera manufacturer and retailers use an image of a hammer hitting a camera as a way to explain vandal proof ratings. This can be misleading.

Please don't misunderstand the scale and think that IK10 cameras are indestructible. We're happy to have gotten the highest rating possible, but want to make sure that we're not creating unrealistic expectations.

There's no ability to make a product that can never be damaged, and hitting any security camera with a hammer will almost always damage it. Technically, IK10 means that it is has survived a 20 joules impact repeated 5 times with no damage to function, in a lab and under normal environmental settings. As a point of reference, a baseball bat swing from a professional MLB player, in a normal horizontal stance, with a wooden bat, causes about a 200 joules impact on the ball. A metal bat or metal hammer has the ability to transfer even more energy if the contact area is smaller.

Although our camera has the highest rating possible, the IK10 standard isn't really as high as these "IK10 hammer" images make them appear. IK10 camera are not bomb proof, or bullet-proof, or hammer proof. No matter what other companies put on their images, if you hit their products or ours (or really anything made of glass) with a hammer or baseball bat, you probably are going to break the glass and get hurt.

Wide Dynamic Range (WDR)

This IP camera has Wide Dynamic Range.

Wide Dynamic Range splits each frame/image into many boxes and it scans for in inaccuracies and adds the right amount exposure to create a balanced and high resolution video shot. Very useful when recording in situations where there can be a large difference in light levels.

Seeing in shadows: Understanding WDR

MicroSD Card Slot

This camera supports MicroSD for onboard storage.

MicroSD cards allow for storage on a standalone camera or for backup. Backup footage is a good idea for cameras that are on the network, not plugged in directly to an NVR, especially any cameras operated over wireless links.

SCW recommends high endurance MicroSD cards. MicroSD card is not included. For maximum supported size card, check the specs tab.

MicroSD cards are a less reliable form of storage than NVRs and we do not recommend they be used as a substitute for an NVR.

Bitrate 4K, 20 FPS

At 4K (8MP) and 20 FPS, while recording at H.265, this camera should use 4Mbps of the NVR's bitrate budget. (With H.264, it should use 8Mbps).

Did you know: The processor in an NVR has both an incoming and outgoing bitrate. Incoming is for recording video and outgoing is for watching it remotely. All of our NVRs have at least 5Mbps per channel in incoming bitrate, and many models can have extra bitrate. Your NVR's spare incoming bitrate is what determines if it can record channels at higher-than-1080P resolution, use specialty panoramic cameras, or many other things (see individual NVR models).

Larger Image Sensor for Superior Low Light Performance

This camera has a 0.37 inch image sensor, which is larger than most competing products. (The industry typically uses 0.33 inch image sensors.)

A larger image sensor allows more light to be absorbed, allowing the camera to take color photos as it gets darker, (a lower lux rating). Lux is the measurement of light in an atmosphere. Twilight is about 3.4 lux. A full moon is somewhere between 0.05 and 0.36 lux, depending on cloud cover. A moonless night is somewhere around 0.001 to 0.002 depending on cloud cover. Adding lighting like flood lights, night lights, or streetlights will increase lux in your area.

This camera can take a color photo all the way down to 0.02 lux (much of the industry can only take a color photo at 1 lux), but that may require some adjustments to your shutter settings...

Lux is a complicated topic, please read our knowledge base article on why you shouldn't choose a camera based on the lux rating, but rather image sensor size.

Audio In / Outs

This camera has both an input and output for a microphone and speaker.

To connect an external speaker and microphone, just twist the speaker wire / microphone wire together in the same way that you connect speaker wire for a stereo. There are four wires in total; two for each connection, a sound channel and a grounding wire. The wires are labeled.

Audio and Alarm Inputs FAQ and Sample Wiring Guide

Weatherproof Housing

This camera has a Weatherproof Housing.

It has been rated at IP67 which means that International Electrotechnical Commission’s (IEC) international standard 60529 has rated this camera housing as having full protection from dust and safe from water damage up to powerful jets of water and immersion up to 1 meter up to 30 minutes.

This camera can be safely used outdoors.

Attention: The IP67 rating covers the camera's housing not the cable. Don't ever submerge cables. Please follow our RJ45 Waterproofing Guide for weatherizing your cable connections.

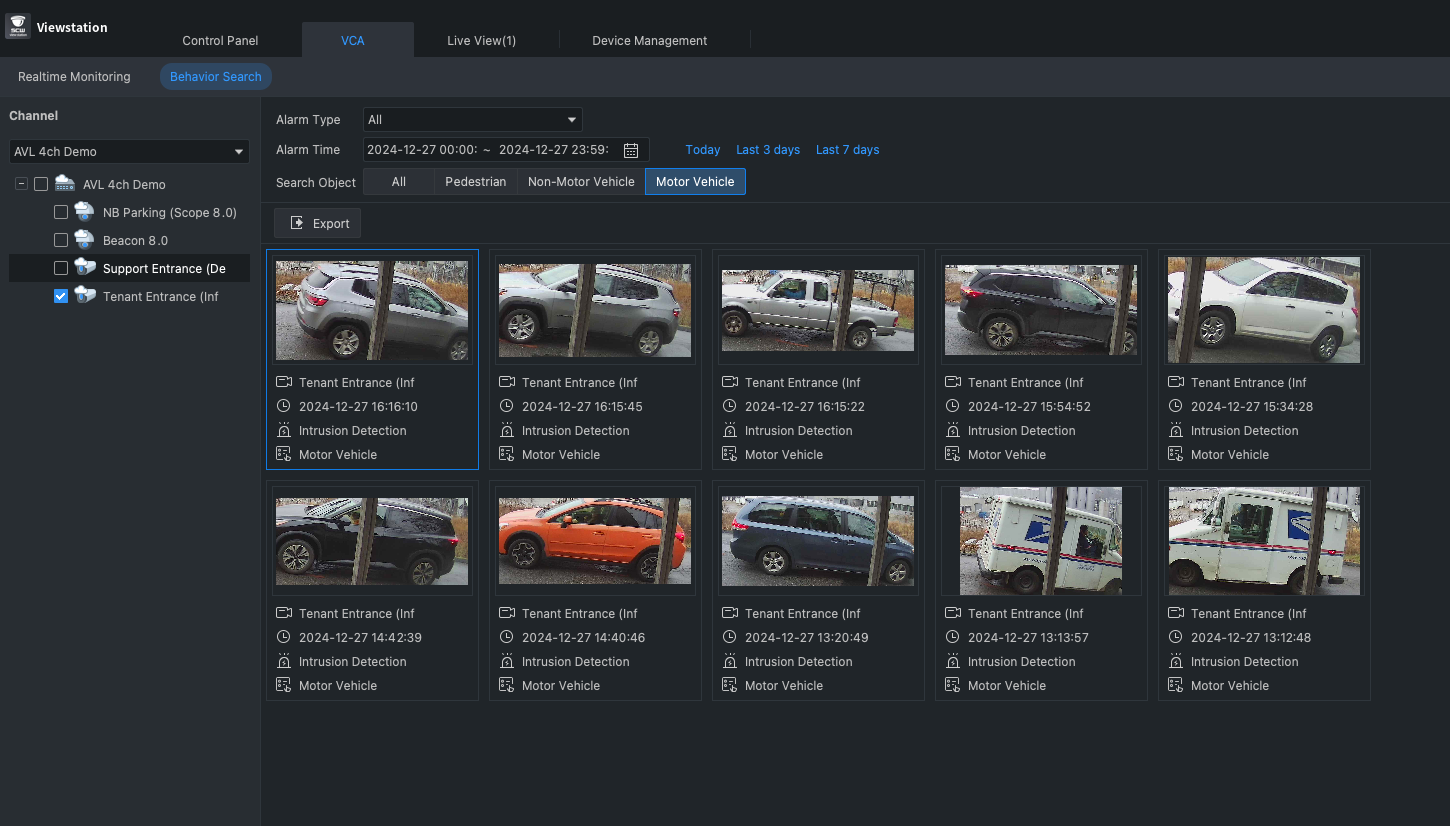

Event Recording Mode through Video Content Analysis (VCA)

This camera features AI enhanced Intrusion Detection and Line Crossing. These VCA options can be set to filter by people or vehicles using the onboard AI enhanced chipset.

Commercial-Grade Aluminum Molding

This camera is commercial-grade and is made of cast aluminum and ceramic molding, instead of the typical plastic molding common in the industry.

This product has passed vibration tests, can withstand an electrical surge up to 6,000 volts, and the casing will prevent intrusion of both dust and water into the internal component space. The screws and mounting hardware are made of stainless steel that has passed SUS410 salt spray anti-corrosion testing. We use automotive-grade LEDs and anti-reflection glass (which means better infrared results). In short, this camera is going to hold up over time.

Plug & Play with Admiral & Imperial NVRs

This camera will plug and play with our Admiral and Imperial line of NVRs.

Please note that our camera models with model numbers in the 26xxx format record in the new, more efficient H.265 compression codex and are intended to work with our Imperial and Admiral NVRs.

Get Alerted when there's Motion

With this camera and an SCW Admiral or Imperial NVR, you can send Snapshot Email Alerts.

You can set up your recorder to email a series of pictures to you when motion is detected by one of your SCW cameras (or if one of our other VCA events is observed). You can choose specific dates and times for these alerts to be active and other times for these alerts to be ignored. Some Snapshot email options are based upon your current recording mode.

Customizable Motion Detection Recording

With this camera and an SCW Admiral or Imperial NVR, you have video analytics-based motion detection.

Motion detection can also be used to send you email alerts when motion is detected or to record when recording on motion events. You can modify the sensitivity level so that more or less movement is required for the motion detection to trigger. You can create inclusion areas (places where you care if there is motion) and define the rest as exclusion areas (places where you don't care if there is motion). So, for example, you could create a motion based alert to notify you if someone was in your yard, but ignore them if they were on the sidewalk or in the street.

No Recording Delay; See What Happened before Motion was Detected

Many consumer-grade cameras use PIR sensors to trigger a camera to turn on when something gets close enough to the sensor. This is a bad design as there's a slight delay (0.5-3 seconds) that can cause the camera to not record what happened. Our cameras not only don't have a recording delay but allow you to record up to 30 seconds before the motion.

Don't miss out on important motion events: go back in time, before the event, to understand why it happened.

1 Click Firmware Update

Tired of chasing down firmware from the manufacturer, downloading the firmware, uploading the firmware to the device, and then restarting the device? Don't bother!

This device checks for firmware and then downloads and installs it, itself, with one click.

3-Year Warranty

This camera has an industry leading 3-year warranty. This camera can also be upgraded to a 5-year warranty.

Anti-Reflective Glass

This camera has Anti-Reflective Glass.

Anti-Reflective Glass allows better light transmission vs standard glass. Standard glass cameras often come with a foam ring around the lens to prevent infrared light from bouncing back off the glass and entering the lens. This bounce-back can cause extreme differences in infrared lighting, which makes some items too bright and others too washed out if the ring is loose, ripped, or removed. Anti-Reflective Glass prevents this issue. Also, people have a tendency to accidentally destroy, damage, throw away or lose these foam rings. Anti-Reflective Glass reduces maintenance and user error.

Auto Grade LEDs

This camera has Auto Grade LEDs.

Many IP cameras include low-quality infrared bulbs that fail over time. This camera has Automotive Grade LEDs, and you should expect the same sort of longevity from them as the headlights in your car.

Headlight Compensation

This camera has Headlight Compensation.

Vehicle headlights directly into the camera lens can render many cameras useless. Headlight compensation reduces glare and overexposure due to car headlights.

At SCW, we try not to use the misleading term "License Plate Camera." The term "License plate cameras" is used rather flippantly by the security camera industry, has no real definition as a term, and can sometimes mean simply the presence of HLC; be careful with companies offering a simple solution to a very complex task of capturing license plates.

For more info, please read our knowledge base article on What they don't tell you about License Plate Cameras.

See through Fog with Automatic Defog

This camera has Automatic Defog.

Our automatic defog feature allows you to cut through fog, air pollution, and other atmospheric haze.

Adjustable Shutter Speed for Customizable Performance in Low Light

This camera has an Adjustable Shutter Speed in a range between 1/30s to 1/100,000 of a second.

The shutter in a camera controls how long the camera takes to take a picture, but faster doesn't mean better. The faster that a camera shutter opens and closes, the more likely that you will get a clear, blur-free image. The longer that the shutter is open, the more light you let in and the better your image will be in low light. Shutters that are open for an extremely long time allow you to take color pictures at night/twilight without having to switch to infrared mode, but can result in motion blur.

There's no one-size fits all approach to shutter speed, so we give you full control (and free tech support) to set it up the best way possible.

Extended Transmission: 750 Foot POE

This Camera has SCW EasyConnect2.0 which allows it to plug and play with SCW Cameras up to 750 feet away!

Normally, ethernet cable has a limit of ~300 feet. After that you start getting data packet collision (your video data gets all mixed up and hard to figure out the order of the data). With this SCW Admiral NVR and any of the SCW Admiral Line Cameras, you can extend that distance up to 750 feet. This feature requires both our cameras and NVR to work together.

When plugging a camera into a normal POE switch or POE injector, the normal ~300 foot limits will still apply. SCWEasyConnect 2.0 only available on SCW NVRs and some SCW POE Switches.

H.265 Recording

This device can record in H.265

H.265, also known as High Efficiency Video Coding (HEVC) or MPEG-H Part 2, is the video compression standard which replaces H.264. HEVC was a collaboration by many parties including Apple, Microsoft, Cisco, Dolby, and the Moving Picture Experts Group. In comparison to H.264, H.265 offers about double the data compression ratio at the same level of video quality, which means both substantially improved video quality at the same bitrate and lower storage requirements.

H.265 saves hard drive space and increases the quality of an image by splitting the screen into a grid and only updating the sections that changed from the previous frame. This focuses nearly all of the processing power of the camera on the areas of the screen with activity. The image quality differences of H.265 is most noticeable in situations such as attempting to watch your camera remotely if your internet upload speed is slow.

You can also record in H.264 if you need backwards compatibility.

ONVIF Conformant

This device is ONVIF Conformant.

ONVIF is an open industry standard encoding language for the interface of IP-based physical security products.

POE (Power over Ethernet)

This camera can be powered via an ethernet cable.

POE allows a Cat5 cable to both carry data and power, making it so that you only have to run one cable. You will need either a POE injector, a POE switch or one of our NVRs with built-in SCWEasyConnect POE to power a camera via ethernet.

**There is an optional wall plug adapter on most of our camera models. This wall plug adapter is only used by clients who cannot run POE cables.

UL Listed and FCC Certified

This product is UL Listed and FCC certified

UL is a safety consulting and certification company headquartered in Northbrook, Illinois, and provides safety-related certification, validation, testing, inspection, and auditing of SCW products.

The Federal Communications Commission has certified that the electromagnetic interference from the device is under limits approved by the FCC.
