How to Design a Security Camera System for a Church

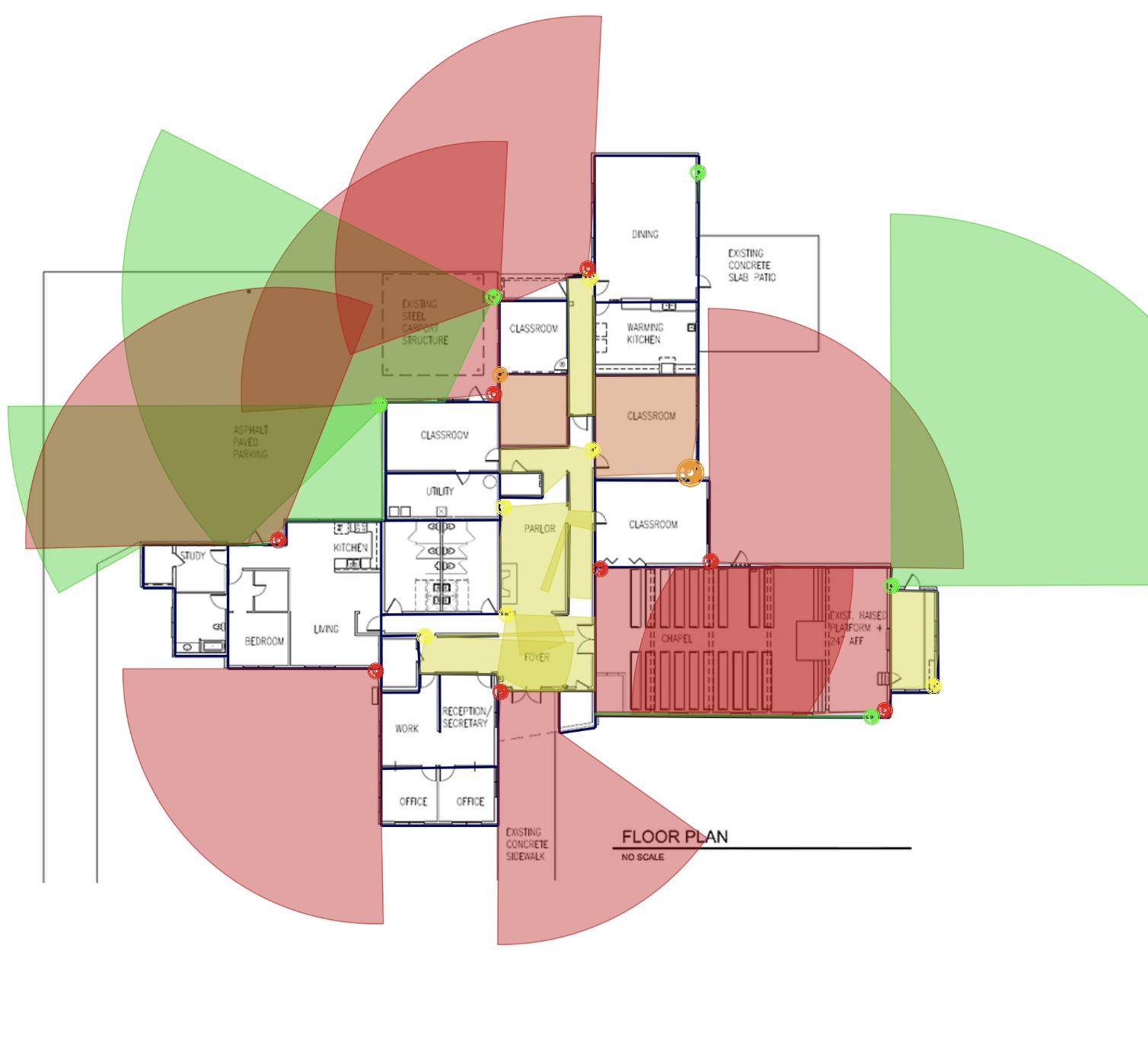

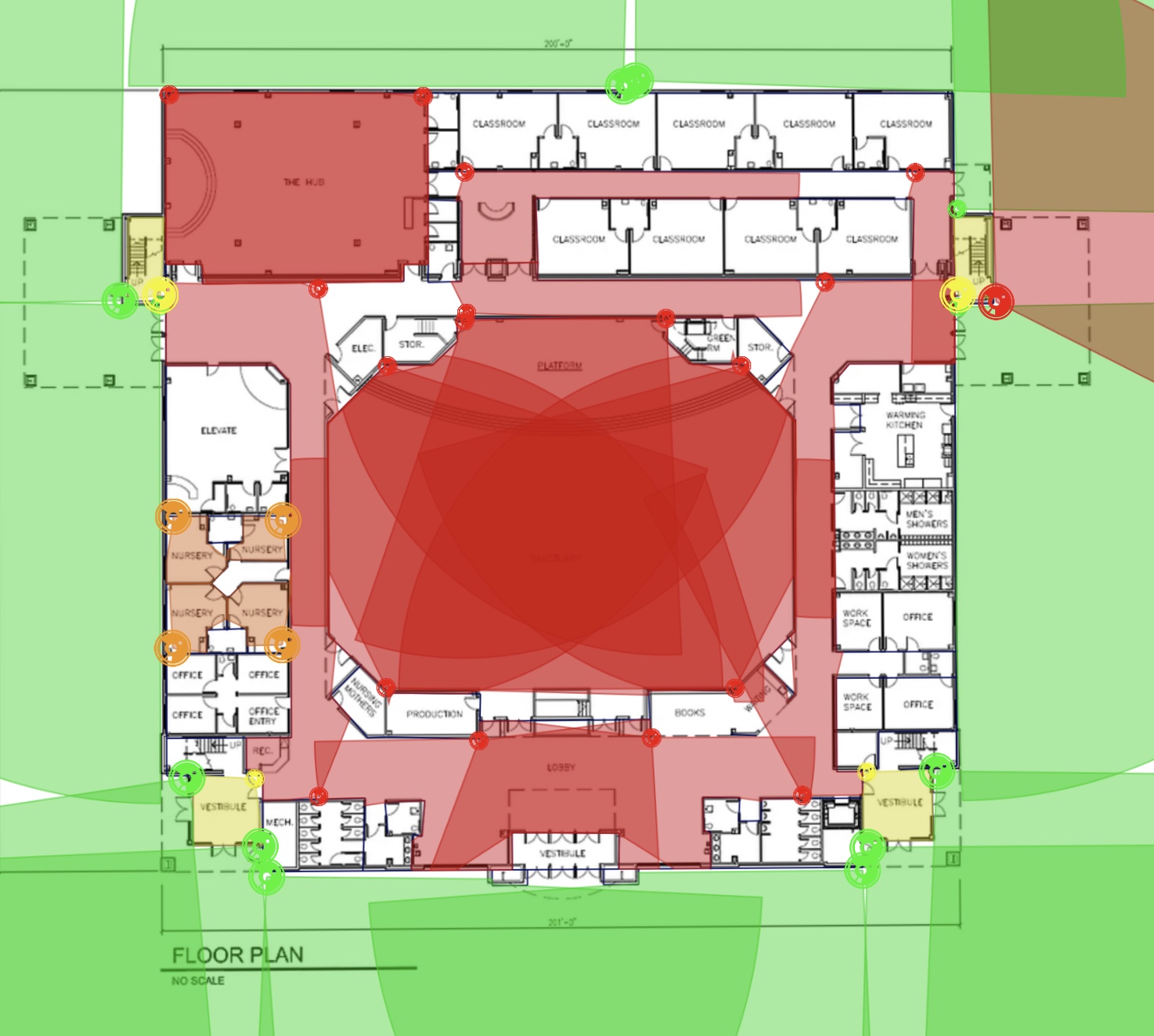

A lot of churches or temples unfortunately are thought of as easy targets for vandalism. Here is a floorplan showing how security camera can keep out unwelcome trespassers.

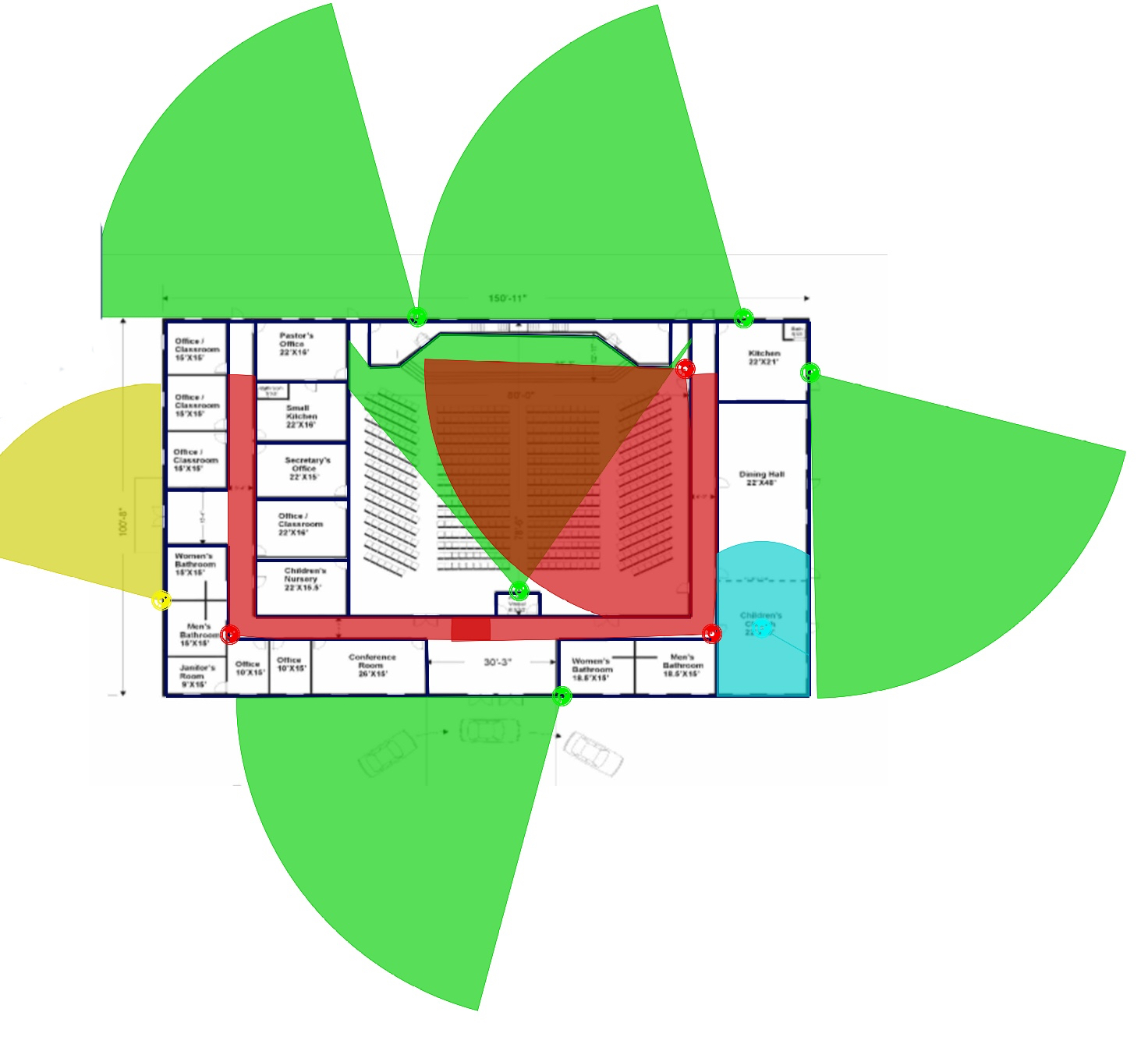

church security camera floorplan

Explanation

Goals: The main goal of placing security cameras in and around a place of worship, is preventing an unwelcome guest from coming in, the safety of the members, and vandalism around the property. They often can be dormant on certain days allowing for a lot of vacant time. The time lapse gives vandals the opportunity to destruct, and then never be caught. Also, a church parking lot can often be secluded or dark. Members could be concerned about walking to their cars alone, or in late hours of the night.


The Red cones represent how far away you can recognize someone with our widest angle 4MP security camera, called the Deputy 4.0. With this camera you will recognize someone up to 50ft away with it's 101 degree field of view. This camera is great for the corners of the hallway in this floor plan.


The Green cones show you how far away you can recognize someone with the Warrior 4.0. With this camera, doing 4MP resolution, you will recognize someone up to 75ft away with 80 degrees field of view. The parking lot and external part of the building will benefit from this camera models ability to see distance.


The Yellow cone shown in the floor plan is the Warrior 2.0, recognizing someone up to 50ft away. A 2MP resolution with 85 degrees of coverage was a good choice for this smaller, single entrance to the church.


The Turquoise cone, or circular image in this case, is a 360 degree fisheye camera, the Radius 8.0. This panoramic camera is perfect for mounting in the center of a room on the ceiling, to catch the children's area of the church.


Want us to create a custom floorplan for your church?


The Deputy 4.0 - 26DF4



Resolution

4MP UHD Quality

4MP @ 25 FPS: 2560 x 1440

Detect: 115 ft
Recognize: 50 ft
Identify: 35 ft


4MP vs 4K


Indoor/Outdoor

weatherproof

IP67
Full protection from dust, rain, snow, dew, frost, and sprinklers.

You can even submerge it for a few minutes.


Temp

temperature rating

Temperature rated from -31°F to 140 °F

Humidity rated between 10 and 95%.


Lens

fixed lens

Fixed: 2.8mm
101° of coverage

Digital Zoom Only

Learn about the 4 types of Zoom


Day/Night

night footage

Infrared night vision up to 100 FT

Color video possible until 0.02 lux

How to get the best footage at night


Special

special features

True Wide Dynamic Range (120dB)

Seeing in shadows: Understanding WDR

The Deputy is our second most popular camera model. It is tied with the Warrior in terms of how easy it is to install and position, since neither camera requires you to remove any part of the camera to screw it into the wall/ceiling/soffit. This makes it ideal for outdoor use as you don't have a tendency to trap moisture in the lens, as is common with dome cameras, where you have to remove the outer glass dome to mount them. The 110 or 118 degree lens is best used to cover an entire room at once (by installing it in a corner) or to cover a wide area of a smaller yard, as wider lenses always decrease how far away you can identify a person of license plate. Although you can use this camera inside or out, the most common uses of the Deputy models (the camera comes in 2MP, 4MP, or 4K variants) are to install the camera in the corner of a room or to cover front doors and porches outdoors. Two Deputies are often installed back to back to make a 220-236 degree view, such as in the middle of a wall. (This two camera solution has less of that dizzying "fisheye" look that is common with 180 degree cameras and is also usually cheaper.)

Sample Photos taken by the Deputy 4.0. Click to enlarge the images. Press ESC key to close.

10 FT 20 FT 50 FT 75 FT 100 FT

detection

Detect someone up to 115 feet

"Detecting" a face means being able to tell that a human face is in the picture.

recognize

Recognize someone up to 50 feet

"Recognizing" a face refers to being able to say "I have seen that person before" - even if you don't know or can't place who it is.

identify

Identify someone up to 35 feet

"Identification" refers to being able to make out identifiable marks with enough certainty to make a sketch or claim.

The Warrior 4.0 -26BF4



Resolution

4MP UHD Quality

4MP @ 25 FPS: 2560 x 1440

Detect: 150 ft
Recognize: 75 ft
Identify: 50 ft


4MP vs 4K


Indoor/Outdoor

weatherproof

IP67
Full protection from dust, rain, snow, dew, frost, and sprinklers.

You can even submerge it for a few minutes.


Temp

temperature rating

Temperature rated from -31°F to 140 °F

Humidity rated between 10 and 95%.


Lens

fixed lens

Fixed: 3.6mm
80.8° of coverage (horizontal)

Digital Zoom Only

Learn about the 4 types of Zoom


Day/Night

night footage

Infrared night vision up to 100 FT

Color video possible until 0.02 lux

How to get the best footage at night


Special

special features

True Wide Dynamic Range (120dB)

Seeing in shadows: Understanding WDR

The Warrior is our most popular camera model. It is tied with the Deputy in terms of how easy it is to install and position, since neither camera requires you to remove any part of the camera to screw it into the wall/ceiling/soffit. This makes it ideal for outdoor use as you don't have a tendency to trap moisture in the lens, as is common with dome cameras, where you have to remove the outer glass dome to mount them. The 81 degree lens is great balance between covering a large area and identifying faces and license plates. Although you can use this camera inside or out, the most common use of the Warrior models (the camera comes in 2MP, 4MP, or 8MP) is to cover the side of buildings or large sections of yards.

Sample Photos taken by the Warrior 4.0. Click to enlarge the images. Press ESC key to close.

10 FT 20 FT 50 FT 75 FT 100 FT

detection

Detect someone up to 150 feet

"Detecting" a face means being able to tell that a human face is in the picture.

recognize

Recognize someone up to 75 feet

"Recognizing" a face refers to being able to say "I have seen that person before" - even if you don't know or can't place who it is.

identify

Identify someone up to 50 feet

"Identification" refers to being able to make out identifiable marks with enough certainty to make a sketch or claim.


The Warrior 2.0 - 26BF2


The Warrior 2.0 - 26BF2 - 1080P Fixed Lens Mini Bullet Camera


Resolution

1080p HD

1080P @ 30 FPS; 1920 × 1080

Detect: 100 ft
Recognize: 50 ft
Identify: 25 ft


Processing Power and Compression: Not All 1080P Cameras are Created Equal


Weather

weatherproof

IP67
Full protection from dust, rain, snow, dew, frost, and sprinklers.

You can even submerge it for a few minutes.


Temp

temperature rating

Temperature rated from -31°F to 140 °F

Humidity rated between 10 and 95%.


Lens

fixed lens

Fixed: 4mm
85° of coverage

Digital Zoom Only

Learn about the 4 types of Zoom


Day/Night

night footage

Infrared night vision up to 100 FT

Larger image sensor for low light

Color video possible until 0.02 lux

How to get the best footage at night


Special

special features

Digital Wide Dynamic Range

Seeing in shadows: Understanding WDR

The Warrior is our most popular camera model. It is tied with the Deputy in terms of how easy it is to install and position, since neither camera requires you to remove any part of the camera to screw it into the wall/ceiling/soffit. This makes it ideal for outdoor use as you don't have a tendency to trap moisture in the lens, as is common with dome cameras, where you have to remove the outer glass dome to mount them. The 81 degree lens is great balance between covering a large area and identifying faces and license plates. Although you can use this camera inside or out, the most common use of the Warrior models (the camera comes in 2MP, 4MP, or 8MP) is to cover the side of buildings or large sections of yards.

Sample Photos taken by the Warrior 2.0. Click to enlarge the images. Press ESC key to close.

10 FT 20 FT 50 FT 75 FT 100 FT

detection

Detect someone up to 100 feet

"Detecting" a face means being able to tell that a human face is in the picture.

recognize

Recognize someone up to 50 feet

"Recognizing" a face refers to being able to say "I have seen that person before" - even if you don't know or can't place who it is.

identify

Identify someone up to 25 feet

"Identification" refers to being able to make out identifiable marks with enough certainty to make a sketch or claim.



The Radius 8.0 - 26P8



Resolution

4MP UHD Quality

4MP @ 25 FPS: 2560 x 1440

Detect: up to 175 ft
Recognize: up to 125 ft
Identify: up to 75 ft


4MP vs 4K


Weather

weatherproof

IP67
Full protection from dust, rain, snow, dew, frost, and sprinklers.

You can even submerge it for a few minutes.


Temp

temperature rating

Temperature rated from -31°F to 140 °F

Humidity rated between 10 and 95%.


Lens

varifocal lens

Motorized Varifocal: 2.7 - 12mm
91° - 27° of coverage

Digital Zoom and Optical Zoom

Learn about the 4 types of Zoom


Day/Night

night footage

Infrared night vision up to 100 FT

Color video possible until 0.02 lux

How to get the best footage at night


Special

special features

Micro-SD Card Slot

True WDR (up to 120 dB)

Built in Microphone

Seeing in shadows: Understanding WDR

The Detective has a motorized telephoto lens that allows you to optically zoom in to see a distant area more clearly. You can adjust the angle of view with our apps, over the web, or via your SCW NVR. Just like with a point-and-shoot camera or a pair of binoculars, when narrow the field-of-view, you zoom in on an area and you can see more detail in that area. Although the Detective is a popular camera for homes that have a mid-range (35-100 foot) points of concern like gates, roads or driveways, this camera is even more frequently used is corporate environment such as long and narrow warehouse aisles.

Sample Photos taken by the Detective 4.0. Click to enlarge the images. Press ESC key to close.

2.8mm at 4MP - the widest angle (91 degrees)
10 FT 20 FT 50 FT 75 FT 100 FT
12mm at 4MP - fully zoomed in, smallest angle of view (27 degrees)
10 FT 20 FT 50 FT 75 FT 100 FT 125 FT

detection

Detect someone up to 175 feet

"Detecting" a face means being able to tell that a human face is in the picture.

recognize

Recognize someone up to 125 feet

"Recognizing" a face refers to being able to say "I have seen that person before" - even if you don't know or can't place who it is.

identify

Identify someone up to 75 feet

"Identification" refers to being able to make out identifiable marks with enough certainty to make a sketch or claim.


If this is not your exact scenario, you would need to modify our pre-made systems slightly. This is very easy to do.

We've listed a 12 channel pre-made system below. You could add that to the cart, which will break it up into its individual parts, and then modify the numbers of each camera. You would also want to add a Radius camera, as needed. If all of this seems like to much trouble, we can also send you a custom quote as well.

*If you would like a 2MP camera for smaller indoor areas, you may want to consider the Deputy 2.0 model.


  1. The Deputy 2.0 - 26DF2



    The Deputy 2.0 - 26DF2 - 2MP (1080P) Fixed Wide Angle Lens Turret Dome Camera

    In stock.
    Usually ships the same business day if ordered before 2PM EST.

    $150.00


    Resolution

    1080p HD

    1080P @ 30 FPS; 1920 × 1080

    Detect: 75 ft
    Recognize: 40 ft
    Identify: 20 ft


    Processing Power and Compression: Not All 1080P Cameras are Created Equal


    Indoor/Outdoor

    weatherproof

    IP67
    Full protection from dust, rain, snow, dew, frost, and sprinklers.

    You can even submerge it for a few minutes.


    Temp

    temperature rating

    Temperature rated from -31°F to 140 °F

    Humidity rated between 10 and 95%.


    Lens

    fixed lens

    Fixed: 2.8mm
    110° of coverage

    Digital Zoom Only

    Learn about the 4 types of Zoom


    Day/Night

    night footage

    Infrared night vision up to 100 FT

    Color video possible until 0.02 lux

    How to get the best footage at night


    Special

    special features

    Digital Wide Dynamic Range

    Seeing in shadows: Understanding WDR



  2. The Radius 12.0 - 26P12; top-down view



    The Radius 12.0 - 26P12 - 12MP 360° Fisheye Dome Camera

    In stock.
    Usually ships the same business day if ordered before 2PM EST.

    $899.00


    Resolution

    12MP

    Unconventional Aspect Ratio!

    6MP @ 25 FPS: 3008*3000

    12MP @ 15 FPS: 4000*3000


    Weather

    weatherproof

    IP66
    Full protection from dust, rain, snow, dew, frost, and sprinklers.

    You can wash it off with a hose.


    Temp

    temperature rating

    Temperature rated from -22°F ~ 140°F

    Humidity rated between 10 and 95%.


    Lens

    varifocal lens

    Fisheye: 1.8mm
    360° of coverage


    Day/Night

    night footage

    Infrared night vision up to 65 FT

    Color video possible until 0.06 lux

    How to get the best footage at night


    Special

    special features

    Micro-SD Card Slot

    Built-in microphone & speaker, two-way talk supported

    Up to five stream options

    1 Full Res Fisheye OR 1 Fisheye & 4 ePTZs OR 1 Fisheye and 1 Panorama

    IK10

    Digital WDR

    Seeing in shadows: Understanding WDR



  3. The 4MP Admiral Series (4MP is 2 x 1080P) - 12 Channel HD Customizable Security Camera System



    12 Camera 4MP Admiral Series

    Starting at: $2,199.00


    Cameras


    4MP @ 25 FPS: 2560 x 1440

    80.8° or 101° options
    IP67 Weatherproof
    Infrared night vision up to 100 FT
    -31°F to 140 °F temp rated
    True Wide Dynamic Range (120dB)



    4MP vs 4K.


    Software


    VCA: Motion Detection, Line Crossing, Face Detection, Intrusion Detection, People Counting, Vandalism Detection
    Video Content Analytics (VCA) Search
    VCA Event based Email Alerts
    Remote Footage Download
    1 Click Firmware Update

    Learn when you would use VCA


    Remote Viewing


    Smartphone Apps
    Tablet Apps
    Windows Apps
    Mac Viewing Apps
    Internet Explorer Viewing

    How Patent Wars have changed Browser Support


    Hardware


    Cat5e (RJ45) Ethernet to Network
    Standard 3-Prong Wall Plug
    SCWEasyConnect 2.0 ports on back for Plug and play 2018 SCW camera auto-configuration up to 750 ft away
    VGA Monitor Out
    4K HDMI Out for TVs/Monitors
    Footage Download via USB

    Learn about automatic backup footage options
