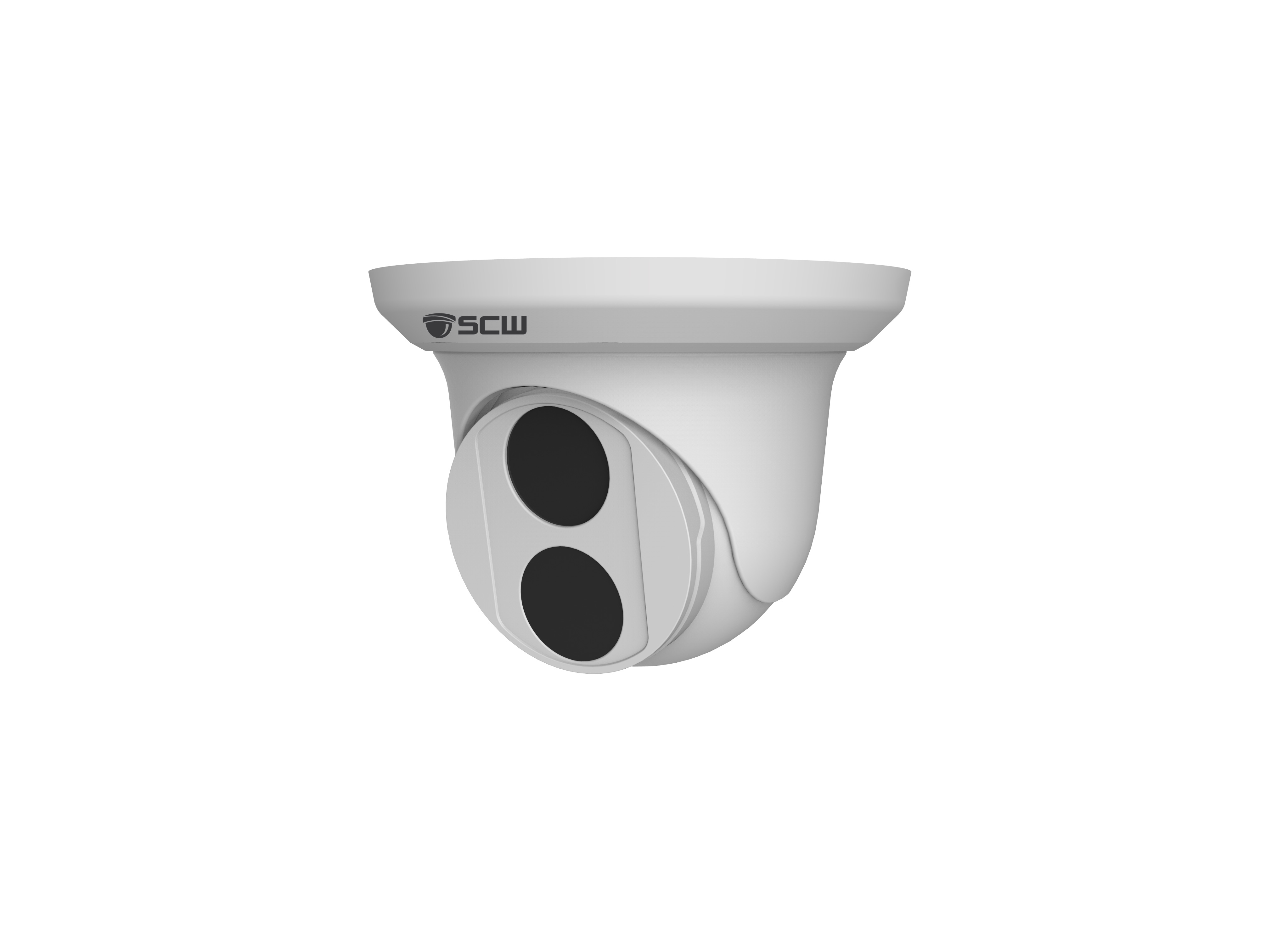

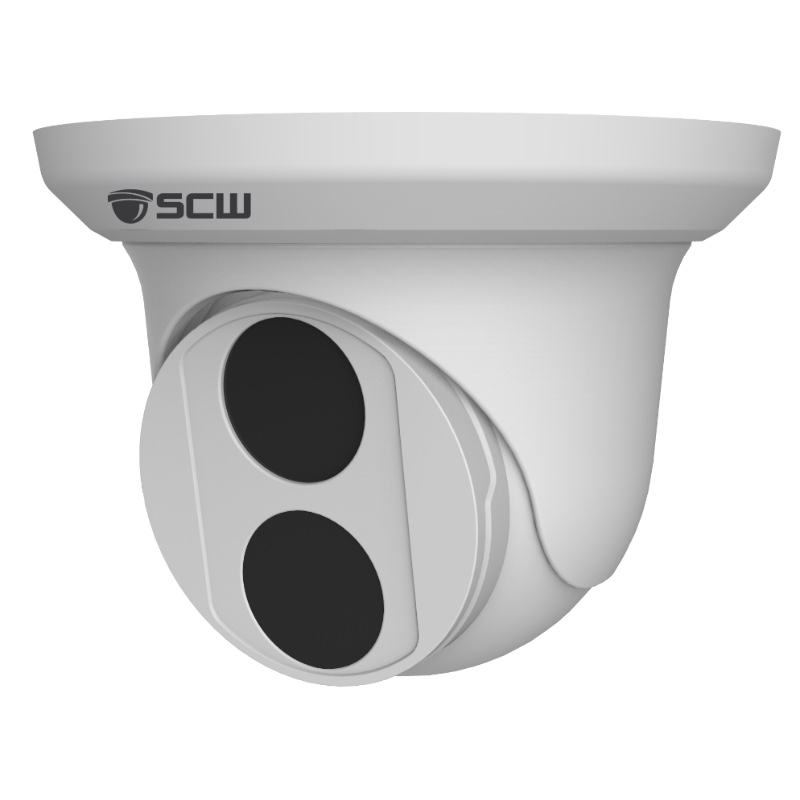

The Deputy 2.0 v1
2MP (1080P) Fixed Wide Angle Lens Turret Dome Camera
Contact your sales rep for a delivery timeline.
Resolution
1080P @ 30 FPS; 1920 × 1080
Detect: 75 ft
Recognize: 40 ft
Identify: 20 ft
Processing Power and Compression: Not All 1080P Cameras are Created Equal
Indoor/Outdoor
IP67
Full protection from dust, rain, snow, dew, frost, and sprinklers.
You can even submerge it for a few minutes.
Temp
Temperature rated from -31°F to 140 °F
Humidity rated between 10 and 95%.
Day/Night
Infrared night vision up to 100 FT
Color video possible until 0.02 lux
No Problem
Whether you plan to DIY install or want us to do it for you, we're as flexible as you need.
Get a Custom Quote for Equipment or Installation
The Deputy 2.0 has been replaced by the Deputy 2.0 v2 - available here

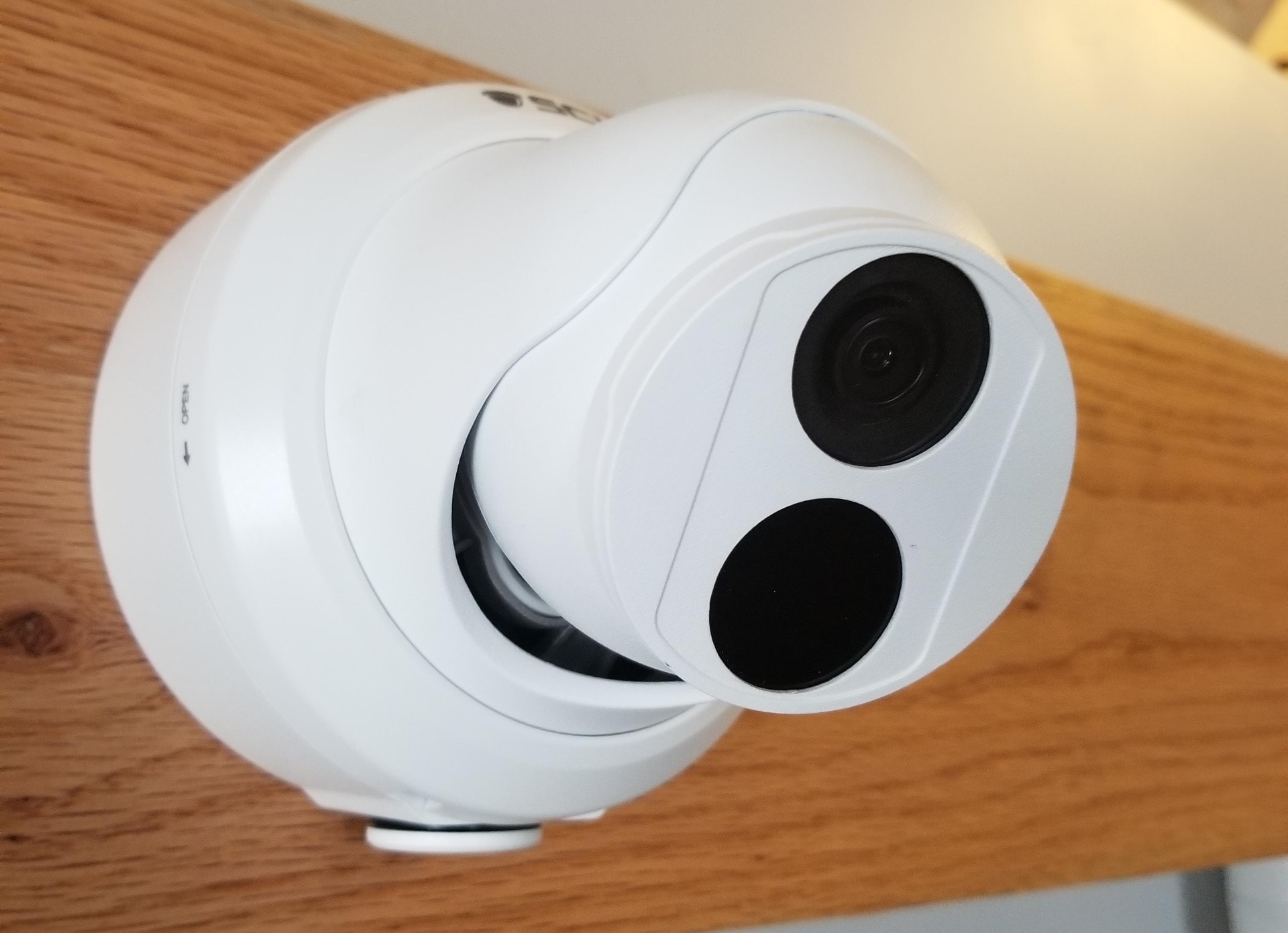

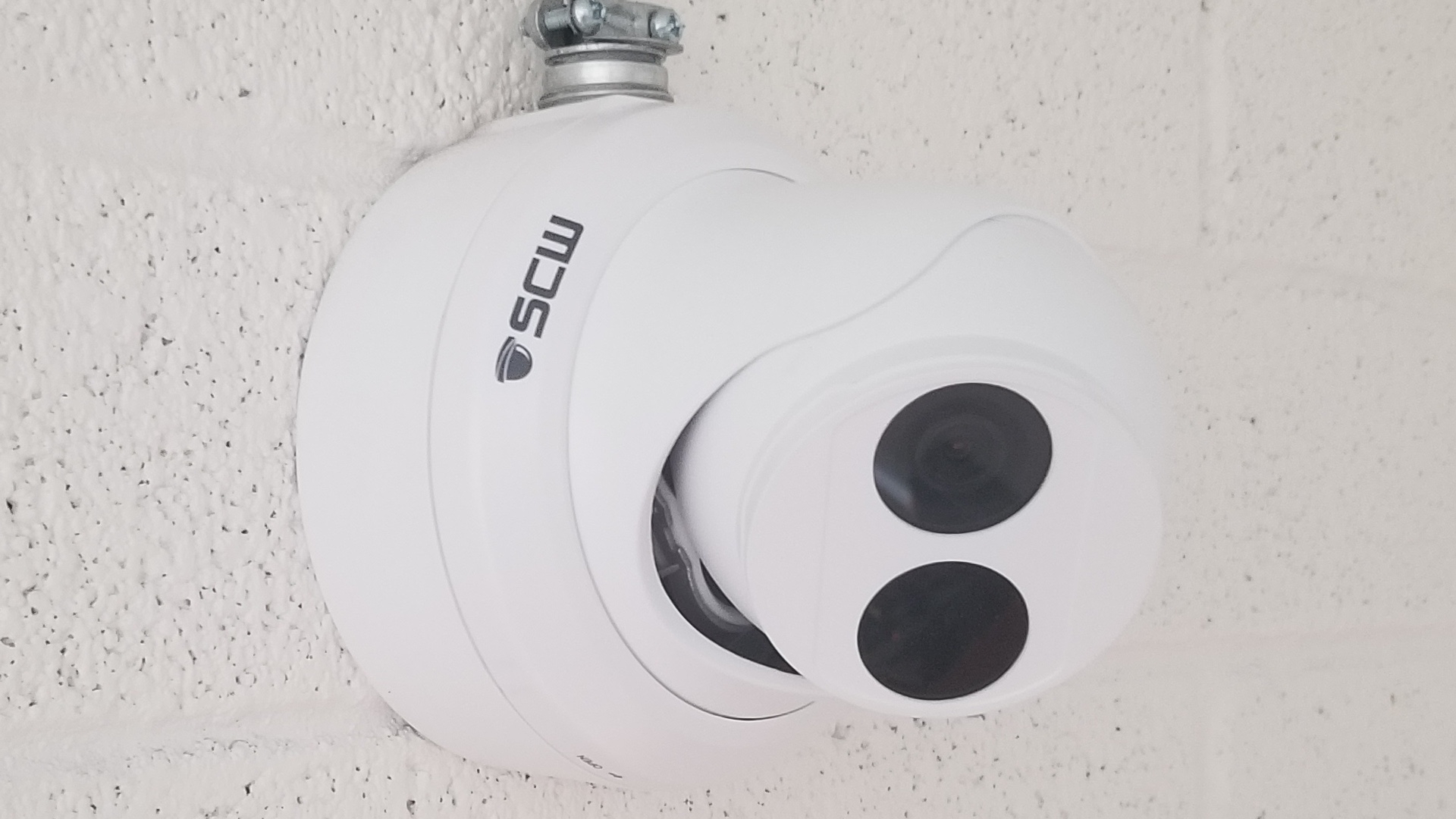

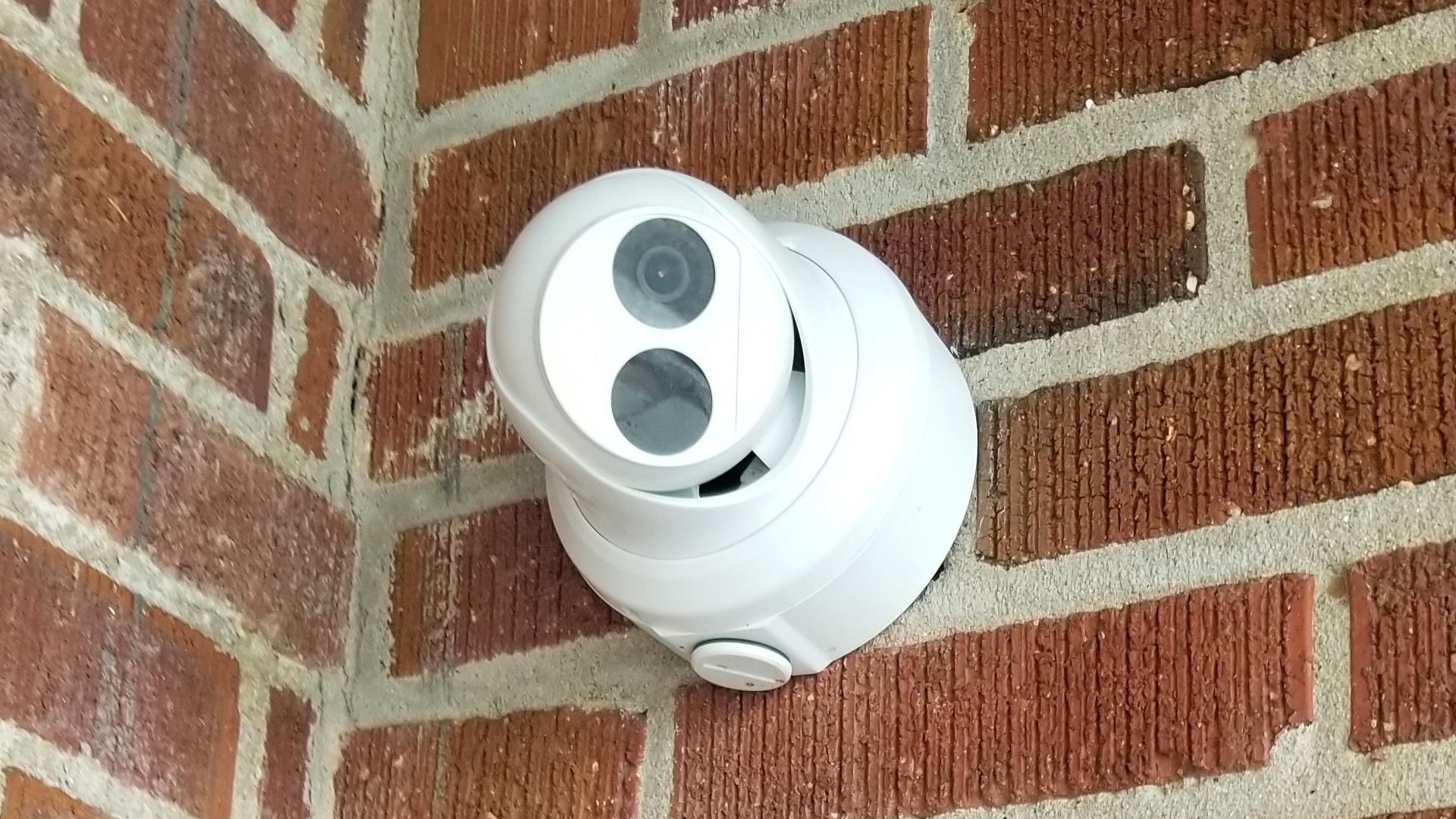

The Deputy is our second most popular ip cctv camera model. It is tied with the Warrior in terms of how easy it is to install and position, since neither camera requires you to remove any part of the camera to screw it into the wall/ceiling/soffit. The turret camera design makes it ideal for outdoor use as you don't have a tendency to trap moisture in the lens, as is common with dome cameras, where you have to remove the outer glass dome to mount them. The 110 or 118 degree lens is best used to cover an entire room at once (by installing it in a corner) or to cover a wide area of a smaller yard, as wider lenses always decrease how far away you can identify a person of license plate. Although you can use this camera inside or out, the most common uses of the Deputy models (the camera comes in 2MP, 4MP, or 4K variants) are to install the camera in the corner of a room or to cover front doors and porches outdoors. Two Deputies are often installed back to back to make a 220-236 degree view, such as in the middle of a wall. (This two camera solution has less of that dizzying "fisheye" look that is common with 180 degree cameras and is also usually cheaper.)
Sample Photos taken by the Deputy 2.0 v1. Click to enlarge the images. Press ESC key to close.
| 10 FT | 20 FT | 50 FT | 75 FT | 100 FT |
|
|
|
|
|
Detect someone up to 75 feet
"Detecting" a face means being able to tell that a human face is in the picture.
Recognize someone up to 40 feet
"Recognizing" a face refers to being able to say "I have seen that person before" - even if you don't know or can't place who it is.
Identify someone up to 20 feet
"Identification" refers to being able to make out identifiable marks with enough certainty to make a sketch or claim.
Resolution
1080P @ 30 FPS; 1920 × 1080
Detect: 75 ft
Recognize: 40 ft
Identify: 20 ft
Processing Power and Compression: Not All 1080P Cameras are Created Equal
Indoor/Outdoor
IP67
Full protection from dust, rain, snow, dew, frost, and sprinklers.
You can even submerge it for a few minutes.
Temp
Temperature rated from -31°F to 140 °F
Humidity rated between 10 and 95%.
Day/Night
Infrared night vision up to 100 FT
Color video possible until 0.02 lux
Plug & Play with Admiral & Imperial NVRs
This Deputy 2.0 will plug and play with our Admiral and Imperial line of NVRs.
Please note that our ip cctv camera models with models numbers in the 26xxx format record in the new, more efficient H.265 compression codex and are intended to work with our Imperial and Admiral NVRs.
Built Tough: Commercial Grade Line
This Deputy 2.0 is part of our Admiral commercial security camera system line. Feel free to read more about these features and what commercial grade means to us, but here's a quick synopsis:
IP67 weatherproof rated - Full protection against dust, rain, sprinklers, water jets and even immersion up to 1 meter for 30 minutes.
Extreme Temperature - Withstands extreme temperatures from the summers of Arizona to the winters in Minnesota. -31°F ~ 140 °F
Aluminum and Ceramic Molding - Feel confident in your invest with commercial grade housing that won’t crumble and decay like the plastic competition.
Anti Reflective Glass with Automotive grade LEDs - Commercial quality components that allow better light transmission and will last without dimming or fading over time.
Passes vibration and surge testing up to 6,0000 volts - SCW cameras can withstand vibration and surges up to 6,000 volts.
Easy 1 Click Firmware Update Process - Maintenance made easy.
750 Foot POE Extended Transmission: the old 300 foot limitations are a thing of the past.
Store 40% more data with H.265 video compression or switch back to H.264, if you need H.264 third-party integration support.
No Recording Delay - Even when recording on motion.
3 or 5 Year Warranty
The Deputy 2.0 comes with a 3 year warranty. This warranty can also be upgraded to a 5 years. We recommend doing so for commercial clients.
Motion Detection, Alerts, and VCA
This Deputy 2.0 is part of our Admiral motion detection cctv system line. Feel free to read more about these features by clicking on the link, but here's a quick synopsis:
Alerts and Notifications:
Get email alerts with snapshot images of motion detection alerts or VCA events
Set a schedule to get emails only on the hours of the day you want.
Get Push Notifications to the SCW Go Application for Android and iPhone.
Recording:
Create your own customizable record schedule, including recording based on the day of the week, hours of the day, or even choose not to record for periods of time. Set constant recording during business hours and only motion during closed hours.
Motion, VCA, or 24/7 Recording - Record based on motion detection, VCA (video content analysis), or set the system to record 24/7. You can even record based on alarm inputs!
No Recording Delay / Pre & Post Event Recording - If your system is set to record based on motion or VCA events, you can have a 60 second pre-event buffer to grab footage prior to the detection. You can also set the system to record up to 10 minutes after an incident is detected.
Customizable Motion Detection Recording through VCA events:
VCA features do vary by camera model. This Deputy 2.0 supports these VCA features:
Intrusion Detection - Monitor areas with precision, define zones, set time thresholds, and sensitivity.
Line Crossing - Create virtual lines to detect people or objects crossing doors, entrances, and more.
People Counting - Determine how many people are entering and exiting. Keep and review daily logs.
Vandal Detection - Get alerts based on tampering detection, defocusing, or any dramatic scene changes.
Corridor Mode
This camera has Corridor Mode.
Corridor mode allows you to flip the image on its side so that you can change the 16x9 ratio to 9x16. This is advantageous in the case of hallways, side yards, or corridors (hence the name) where the extra space vertical space is needed and the extra horizontal space would only show you more wall or fence area. To use corridor mode, install the camera with the lens pointed 90 degrees from center and then enable the corridor mode on via our software.
ONVIF Conformant
This device is ONVIF compliant.
ONVIF is an open industry standard encoding language for the interface of IP-based physical security products.
Bitrate - 1080P
At 1080P and 30 FPS, while recording at H.265, this camera should use 3 Mbps of the NVR's bitrate budget. (With H.264, it should use 7Mbps).
Related: IP Camera Bitrate Calculator
American-Based Technical Support after the sale. For FREE. Forever.
Real review from Fransisco, who had this to say:
The most important part of a purchase like this is the support for technical assistance when there is a question or when there is a problem, and they always exceed expectations!
All of our equipment comes with Free Technical Support that is US based (Our Warehouse and Staff are located in Asheville, NC). We're happy to help you via chat, email, screenshare / remote support sessions, and phones. Our number is 866-414-2553 and we're open from 9-7 M-F (EST).
UL Listed and FCC Certified
UL is a safety consulting and certification company headquartered in Northbrook, Illinois and provides safety-related certification, validation, testing, inspection, and auditing of SCW products.
The Federal Communications Commission has certified that the electromagnetic interference from the device is under limits approved by the FCC.
The Deputy 2.0 v1 - 26DF2 Specs
Specifications |
26DF2
|
|
Image Sensor
|
1/2.7” 2 Million Pixel, Progressive Scan CMOS
|
|
Processor Manufacturer
|
Hisilicon
|
|
Min. Illumination
|
Color video possible until 0.02 lux @F1.8, AGC ON
0 lux with IR on |
|
Shutter
|
Auto/Manual, 1/6 to 1/100,000 second
|
|
Lens
|
2.8mm@F1.8
109.9° of horizontal coverage; (61.8° vertical) |
|
Day & Night
|
IR-cut filter with auto switch (ICR)
|
|
Digital Noise Reduction
|
2D/3D DNR
|
|
Signal to Noise Ratio
|
>52dB
|
|
Wide Dynamic Range
|
Digital WDR
|
|
Video Compression
|
H.265, H.264, MJPEG
|
|
Camera Streams
|
Main Stream: up to 2MP (1920×1080): Max. 30 fps; Sub Stream: up to 2MP (1920×1080): Max. 30 fps; Mobile Data-Sensitive Stream: up to D1 (720×576): Max. 30 fps |
|
Bit Rate
|
32 Kbps ~ 8Mbps
|
|
Max. Image Resolution
|
1920x1080, 2 Megapixel
|
|
Frame Rate
|
1080P (1920*1080): Max. 30 fps; 720P (1280*720): Max. 30 fps; D1 (720*576): Max. 30 fps
|
|
Image Settings
|
Saturation, brightness, contrast, sharpness, headlight compensation, backlight compensation, region of interest, 9:16 corridor mode, evaluative metering.
|
|
BLC
|
Yes, zone configurable
|
Alarm Trigger |
Motion detection, tampering alarm, network disconnect, IP address conflict, storage exception |
Protocols |
IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP |
Interoperability |
ONVIF (Profile S, Profile G) |
Communication Interface |
1 RJ45 10M/100M Base-TX Ethernet |
Operating Conditions |
(-31°F ~ 140 °F) Humidity 10 - 95% (non-condensing) |
Power Supply |
12 V DC±25%, PoE (IEEE802.3 af) |
Power Consumption |
Max. 5.5W |
Weather Proof Rating |
IP67 |
Dimensions |

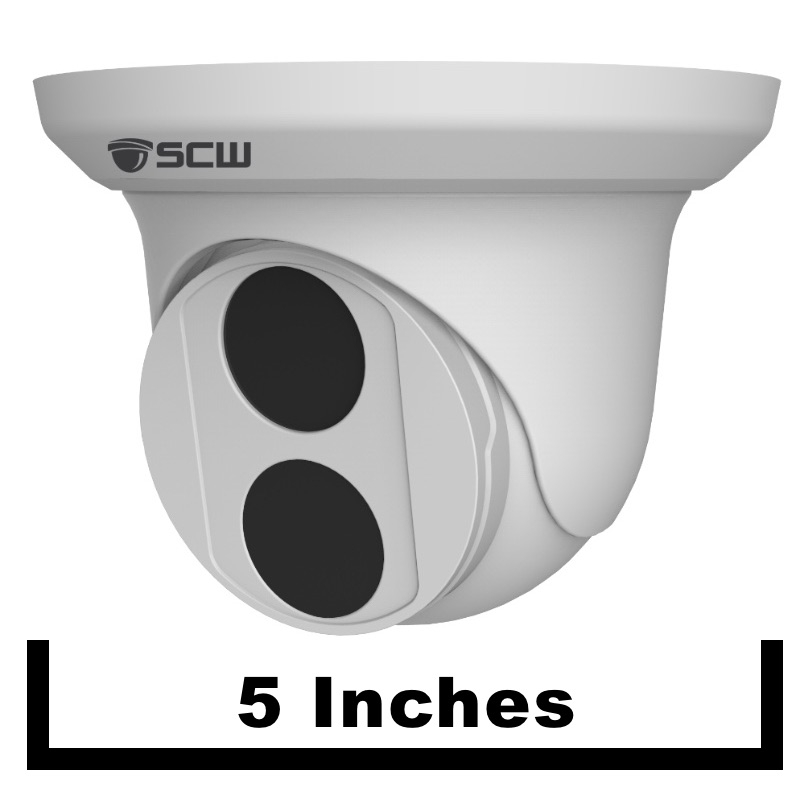

Ø5.0” x 3.7” |
IR Range |
Up to 100ft. |
Weight |
1 Lbs |
Most popular downloads related to The Deputy 2.0 v1 - 26DF2
Spec Sheet for the Deputy 2.0 v1
A one page PDF listing this product's most important specs.
A one page PDF listing this product's most important specs.
How to Bench Test Your IP Camera - a Guide
It is very, very important that you always bench test IP cameras before installing them. This will help you determine if you accidentally cut an ethernet cable during installation.
You should get one of these in your shipment when you order, but sometimes it is nice to have a digital version.
User Manual for SCW's Admiral line of IP Cameras
You should get one of these in your shipment when you order, but sometimes it is nice to have a digital version.
Replacement Deputy Drill Template
Each and every camera you order should have one of these in the box, but if you lost yours or just want to change where the camera is located, here's a digital version that you can print and use.
Please see our support portal for a full list of all technical bulletins, user manuals, and software.
Installation Guides related to The Deputy 2.0 v1 - 26DF2
Our products are really safe, but if you are going to drill into a wall - for any purpose - you need to stay away from your electrical lines and turn your power off.
Learn what bits your need for Brick, Stucco, Vinyl Siding, Sheetrock, Wood, etc.
Learn how to run cable better than the pros. From Raceways to Conduit to Terminating RJ45 to Extending Cable Distance.

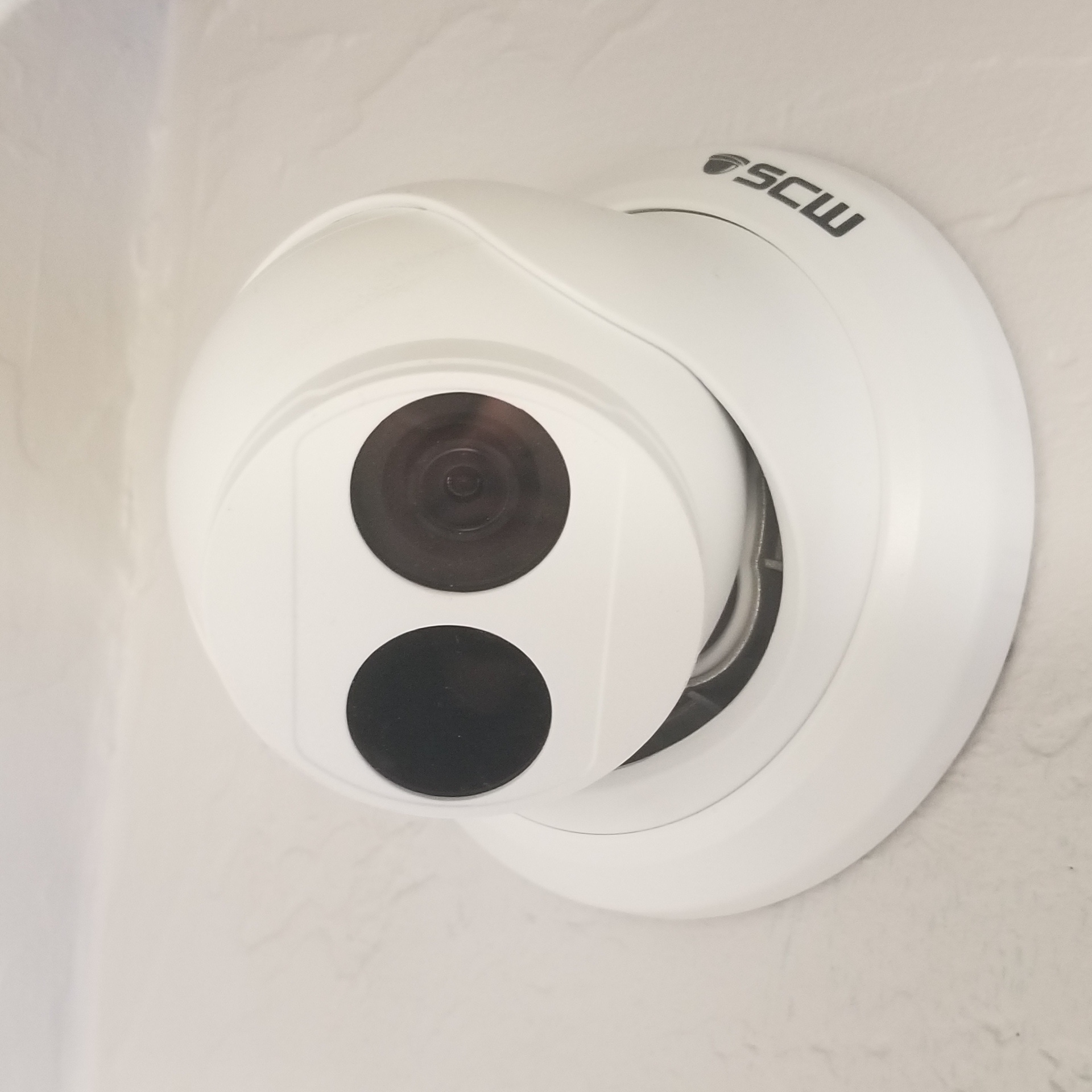

Mounting Dome Cameras on Walls
In this guide, we will be installing a dome camera on a wall.

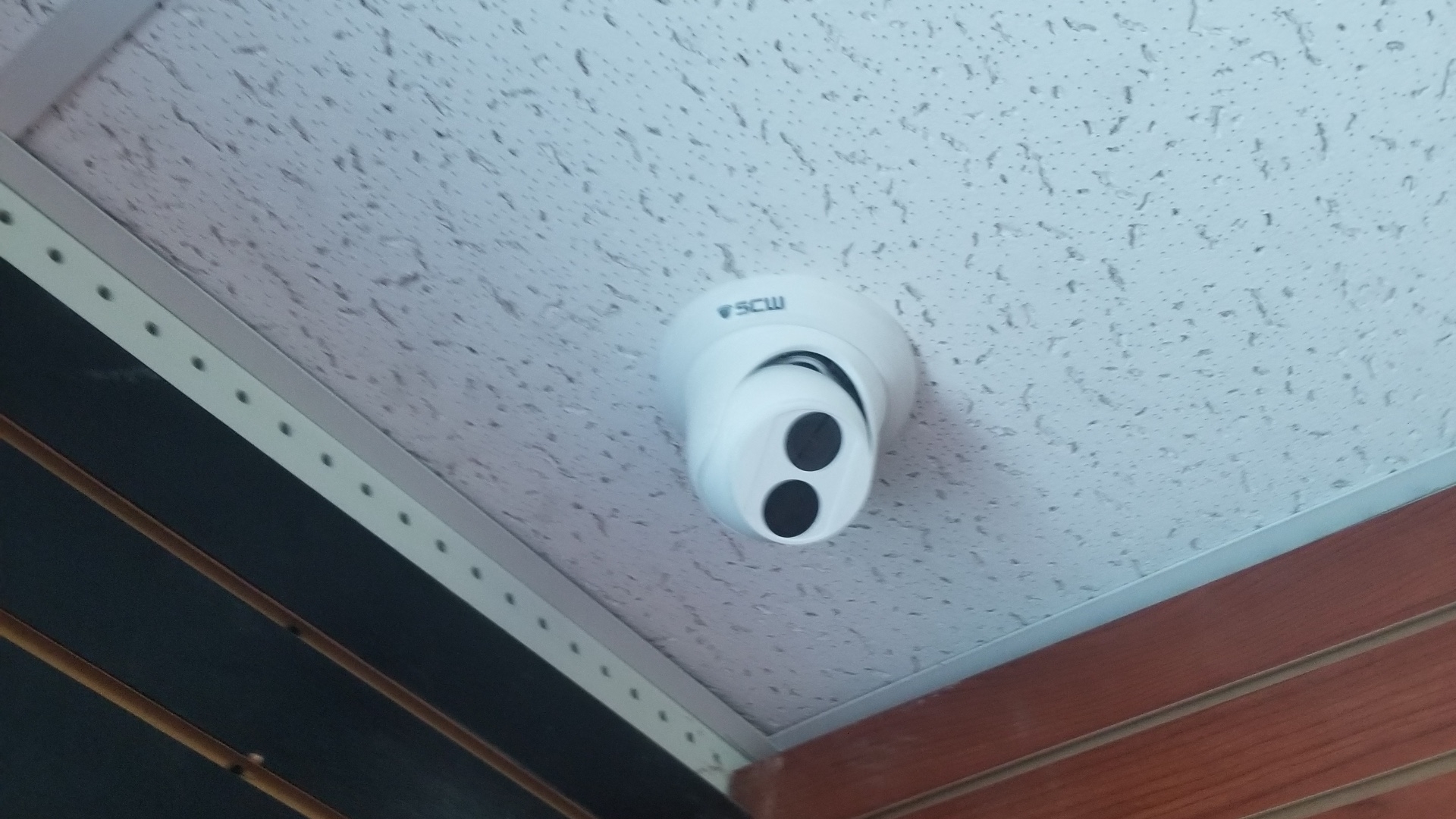

Mounting Dome Cameras on Ceilings
In this guide, we will be installing a dome camera on a ceiling.

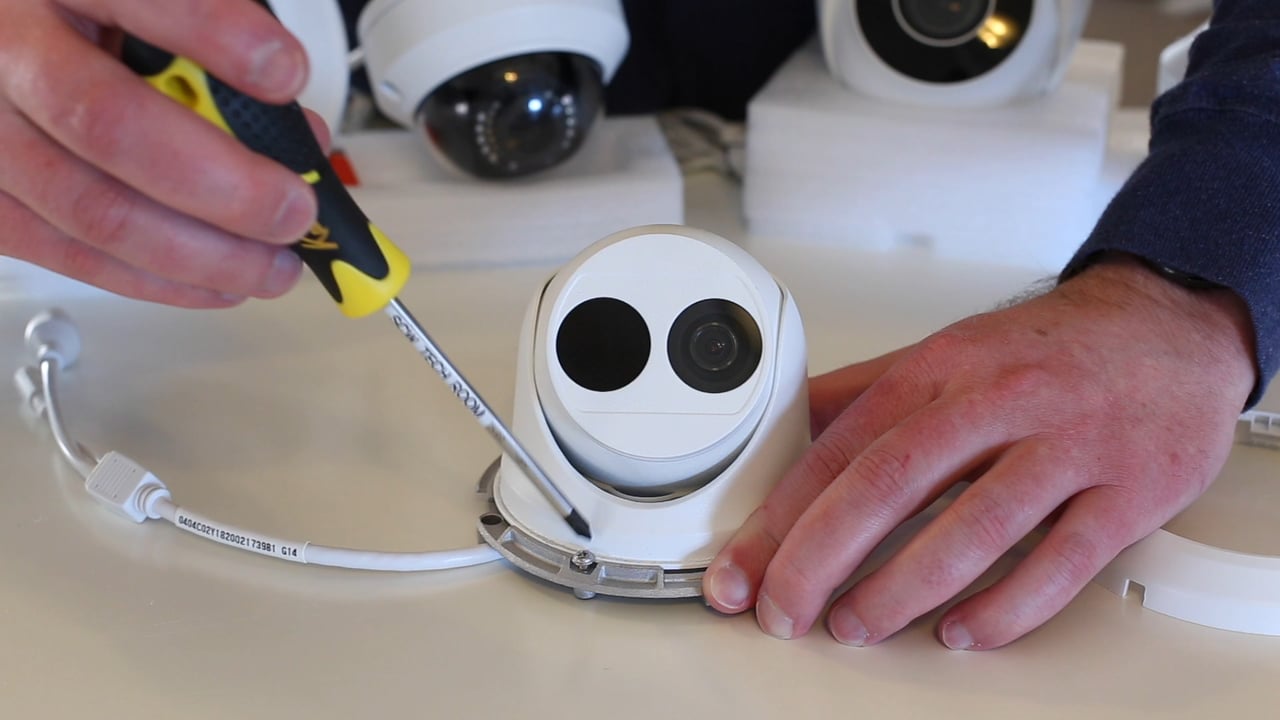

Positioning the Lens in our Dome Cameras
