$799.00

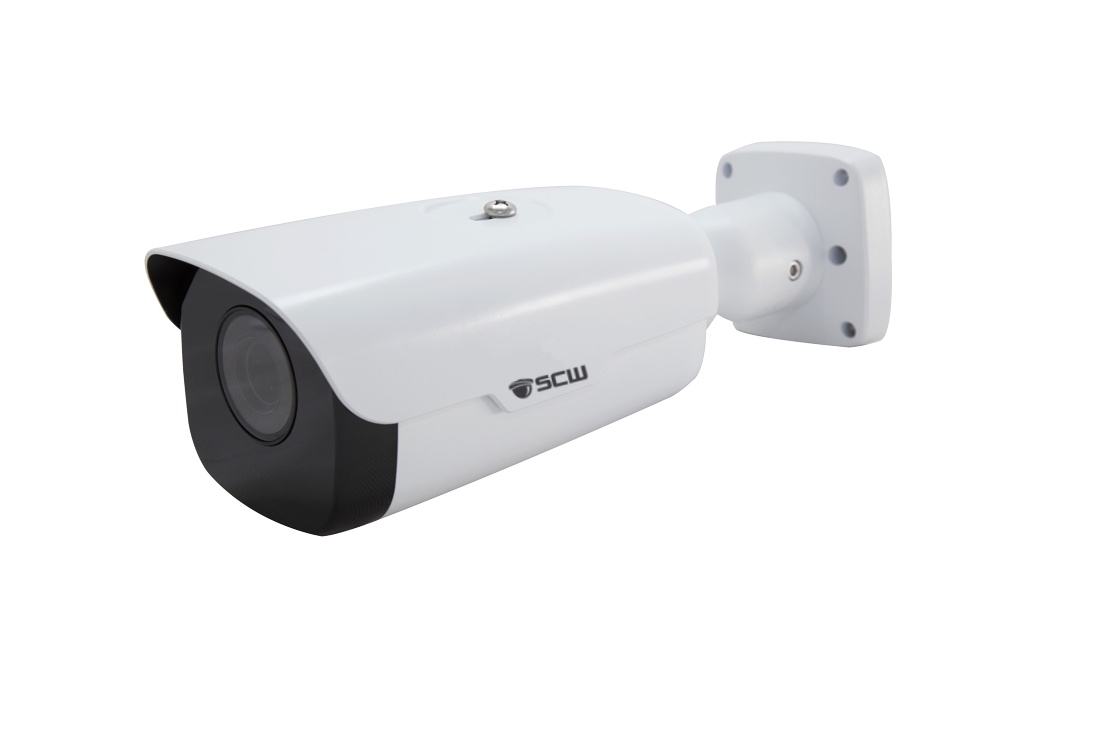

The Archer 2.0

2MP Long Range, Low Light Bullet Camera with Motorized Zoom and Focus

In stock

Usually ships the same business day if ordered before 2PM EST.

SKU
26BV2-L

Resolution

1080p HD

1080P @ 30 FPS; 1920 × 1080

Detect: up to 450 ft
Recognize: up to 350 ft
Identify: up to 300 ft


Processing Power and Compression: Not All 1080P Cameras are Created Equal


Weather

weatherproof

IP67
Full protection from dust, rain, snow, dew, frost, and sprinklers.

You can even submerge it for a few minutes.


Temp

temperature rating

Extreme Cold Temperature rated from -40°F to 140 °F

Humidity rated between 10 and 95%.


Lens

varifocal lens

Long Range Motorized Varifocal: 4.7 - 47mm
65° - 9° of coverage

Digital Zoom and Optical Zoom

Fixed vs Varifocal Lenses


Day/Night

night footage

Infrared night vision up to 300 FT

Larger image sensor for low light

Color video possible until 0.001 lux

How to get the best footage at night


Special

special features

P-Iris

Alarm Input and Output

Audio Input and Output
Audio Input/Output FAQ

Micro-SD Card Slot

True WDR (up to 120 dB)

Seeing in shadows: Understanding WDR

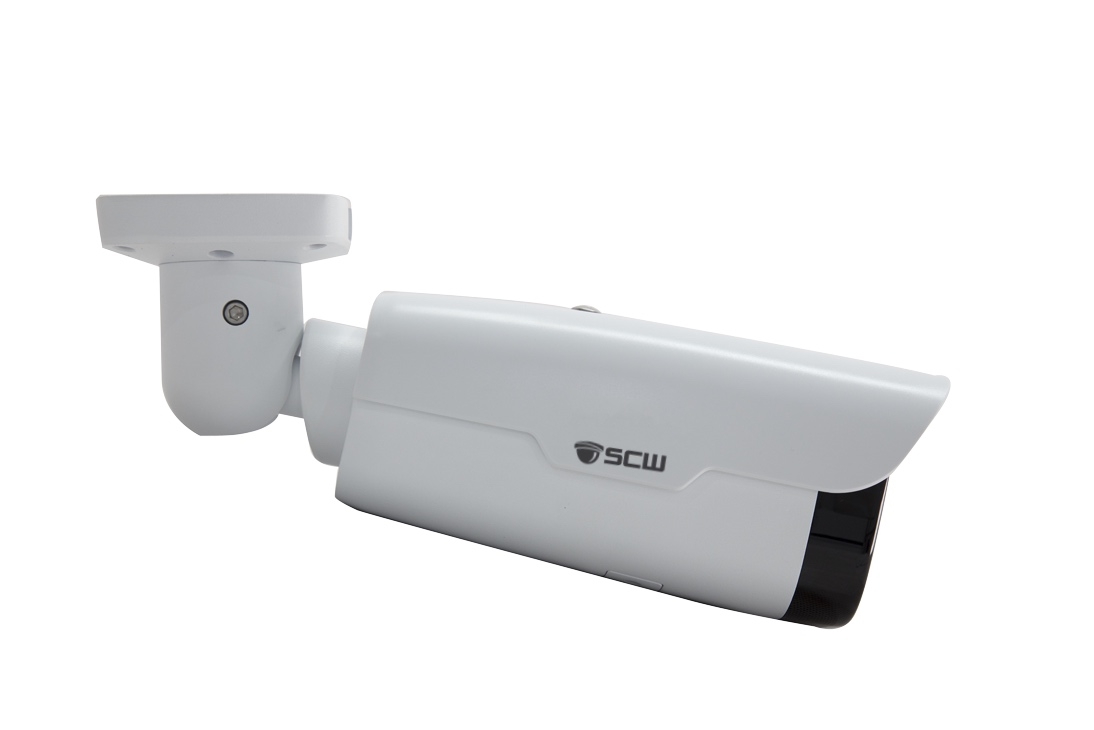

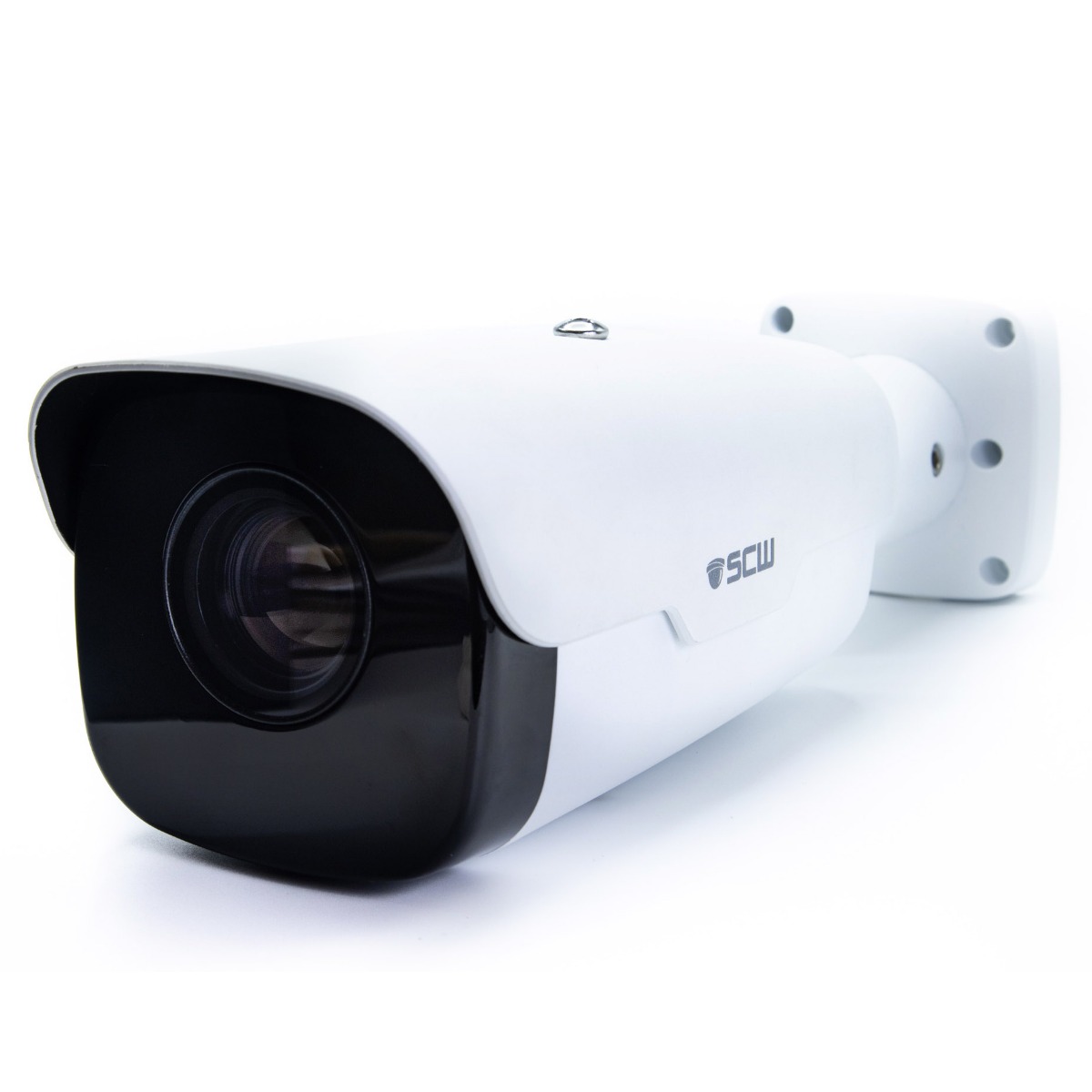

The Archer is our long range, low light bullet camera. It has an oversized image sensor to allow in more light and is able to take color photos down to 0.001 lux. It also has a 300 foot IR illuminator and a long range lens. Like our other varifocal bullet cameras, it has a motorized telephoto lens that allows you to optically zoom in to see a distant area more clearly. The Archer is a great choice for anyone who needs long distance video surveillance at a range greater than 100 feet and but less than 300 feet. Those who need video at greater than 250 feet should consider our Sharpshooter model.


Resolution

1080p HD

1080P @ 30 FPS; 1920 × 1080

Detect: up to 450 ft
Recognize: up to 350 ft
Identify: up to 300 ft


Processing Power and Compression: Not All 1080P Cameras are Created Equal


Weather

weatherproof

IP67
Full protection from dust, rain, snow, dew, frost, and sprinklers.

You can even submerge it for a few minutes.


Temp

temperature rating

Extreme Cold Temperature rated from -40°F to 140 °F

Humidity rated between 10 and 95%.


Lens

varifocal lens

Long Range Motorized Varifocal: 4.7 - 47mm
65° - 9° of coverage

Digital Zoom and Optical Zoom

Fixed vs Varifocal Lenses

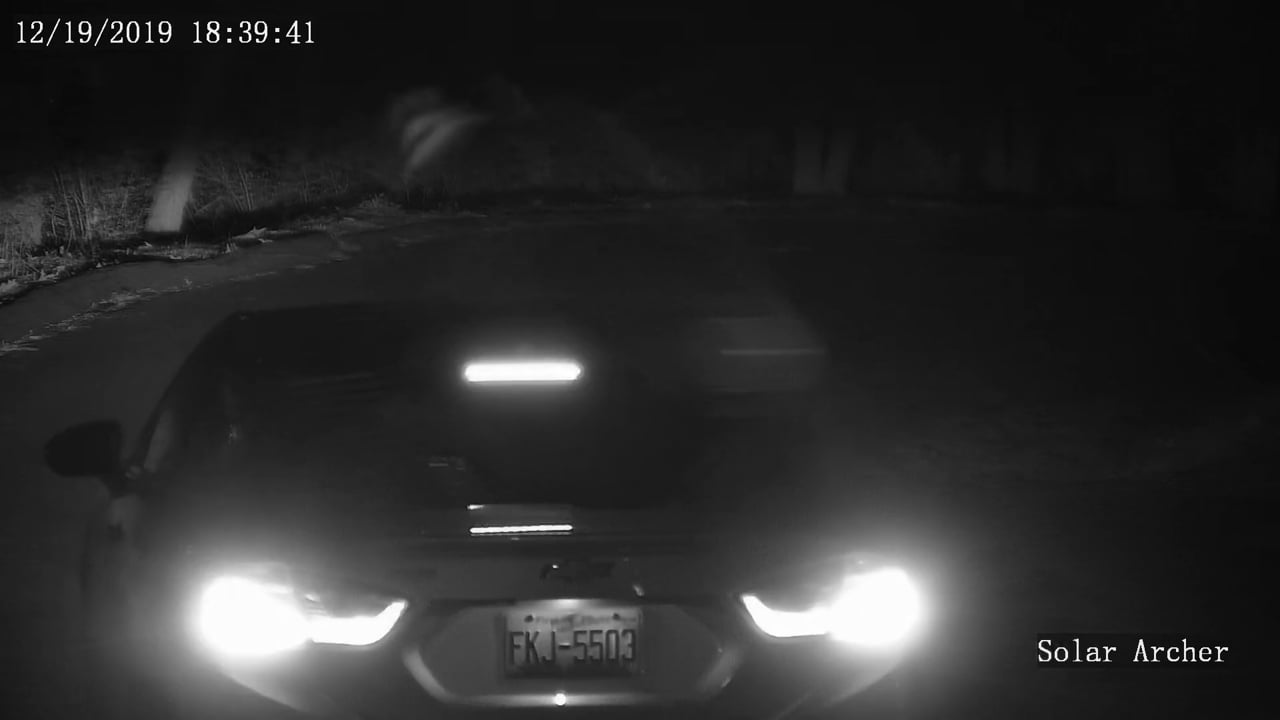

Day/Night

night footage

Infrared night vision up to 300 FT

Larger image sensor for low light

Color video possible until 0.001 lux

How to get the best footage at night


Special

special features

P-Iris

Alarm Input and Output

Audio Input and Output
Audio Input/Output FAQ

Micro-SD Card Slot

True WDR (up to 120 dB)

Seeing in shadows: Understanding WDR

Sample Photos taken by the Archer 2.0. Click to enlarge the images. Press ESC key to close.

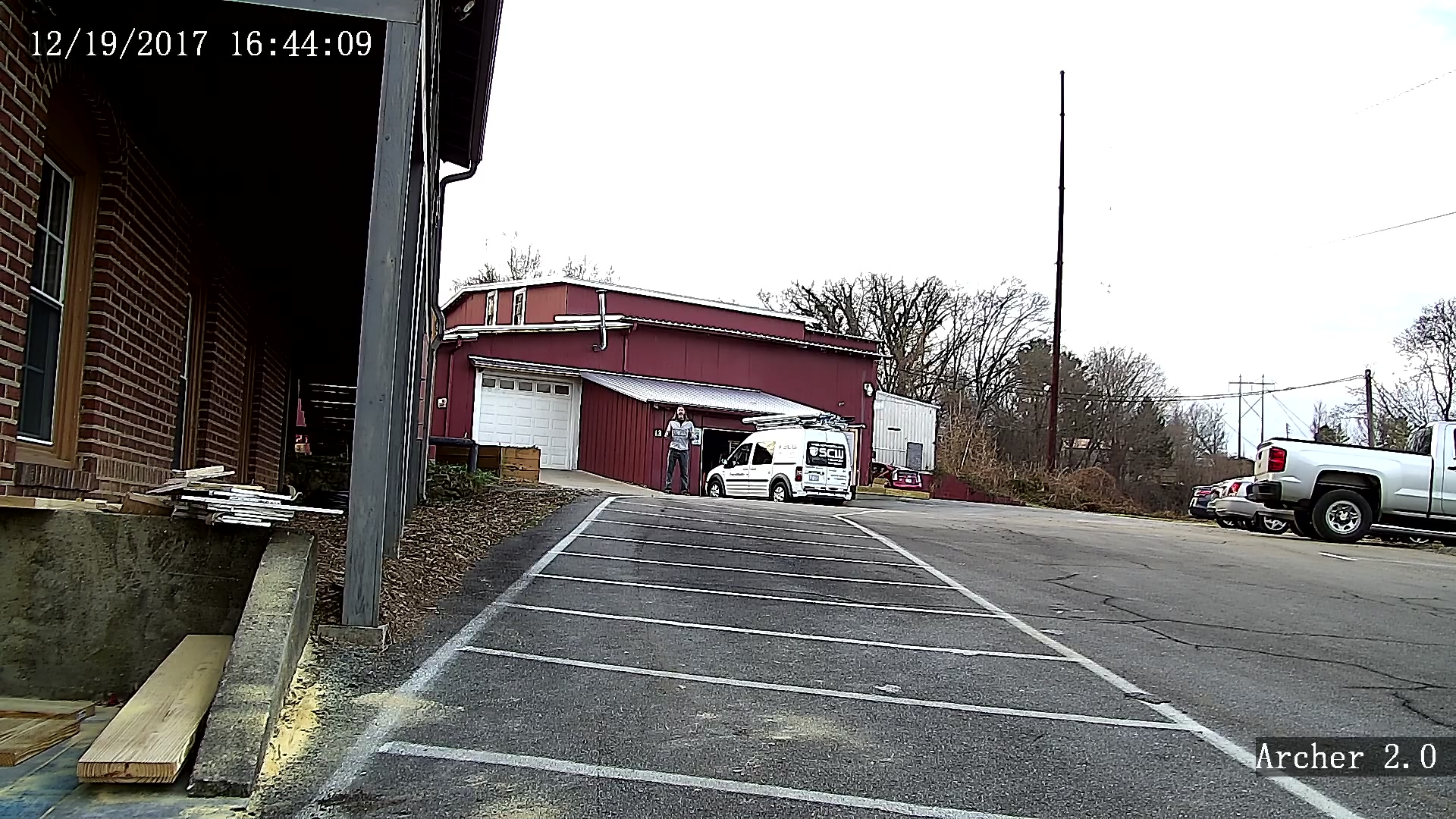

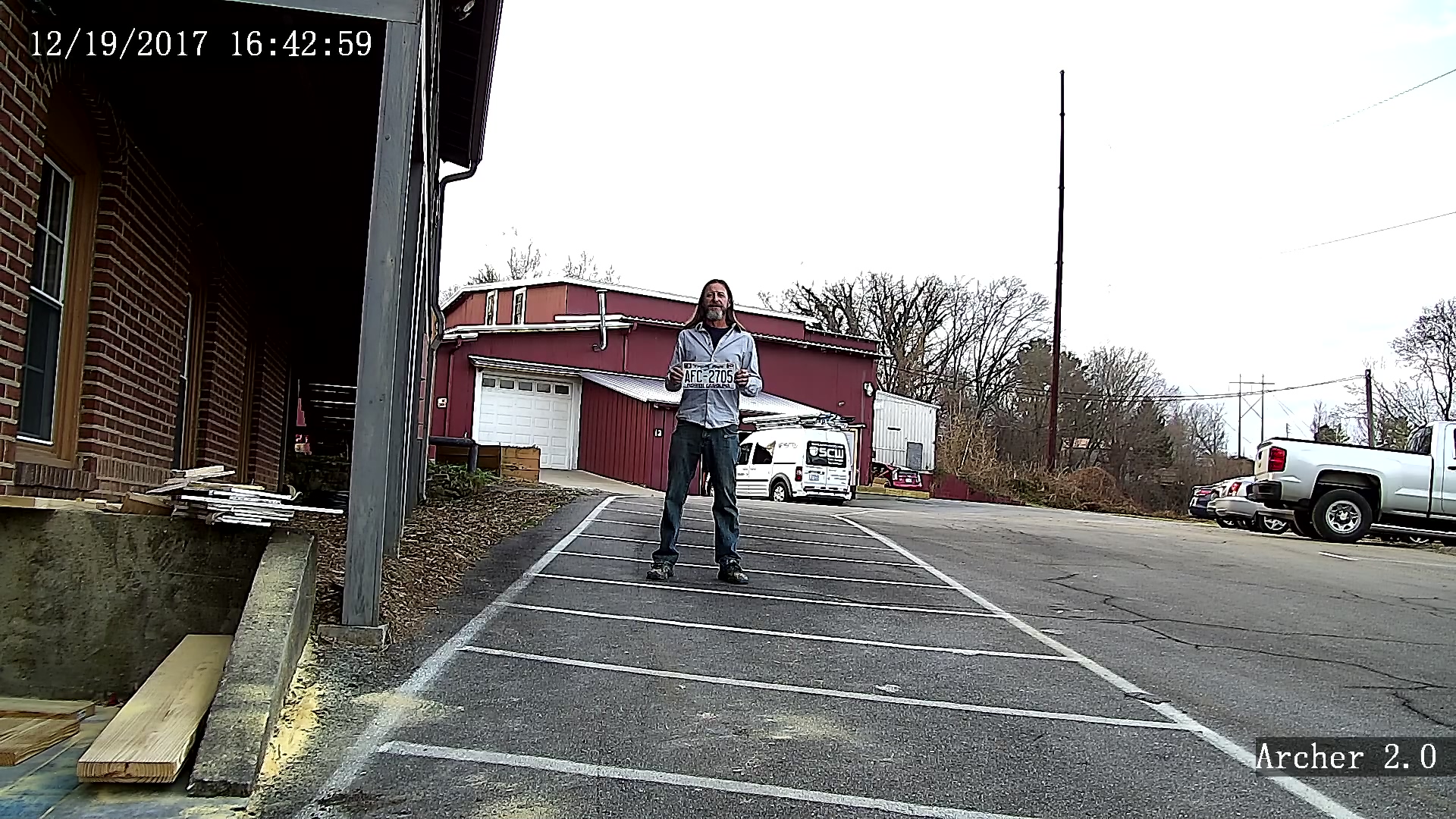

4.7mm at 1080P - the widest angle (65 degrees)
10 FT 20 FT 50 FT 75 FT 100 FT

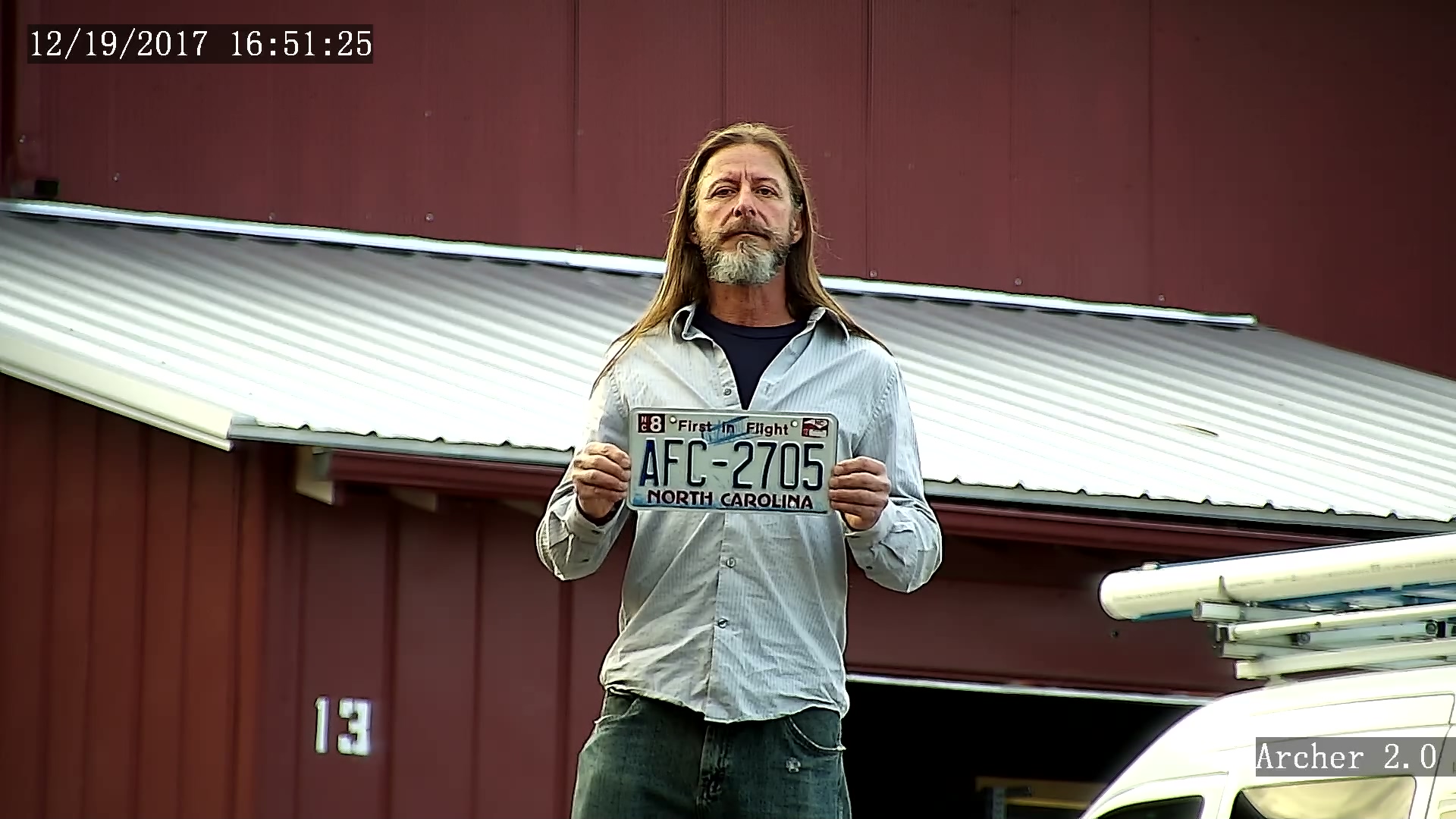

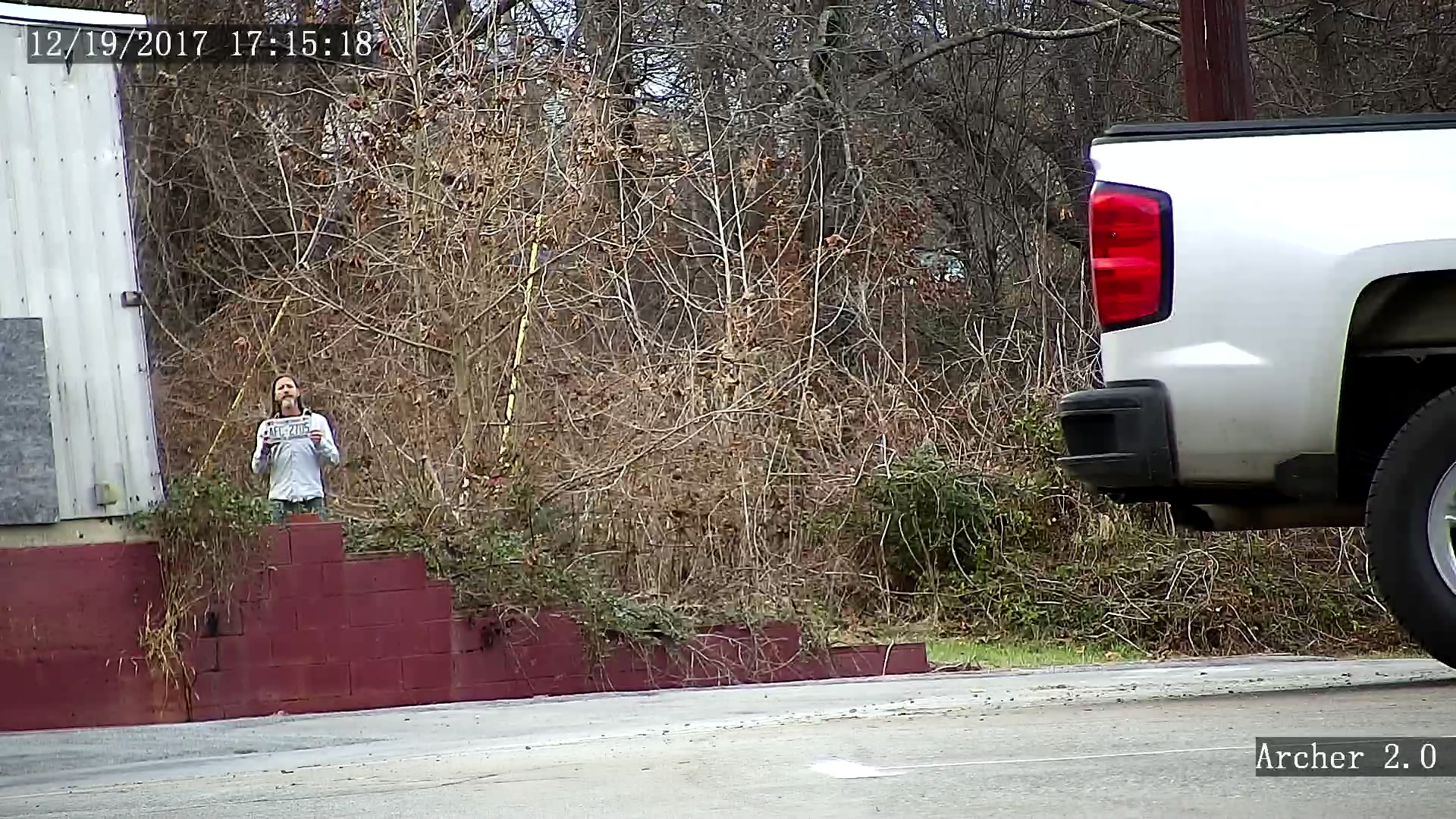

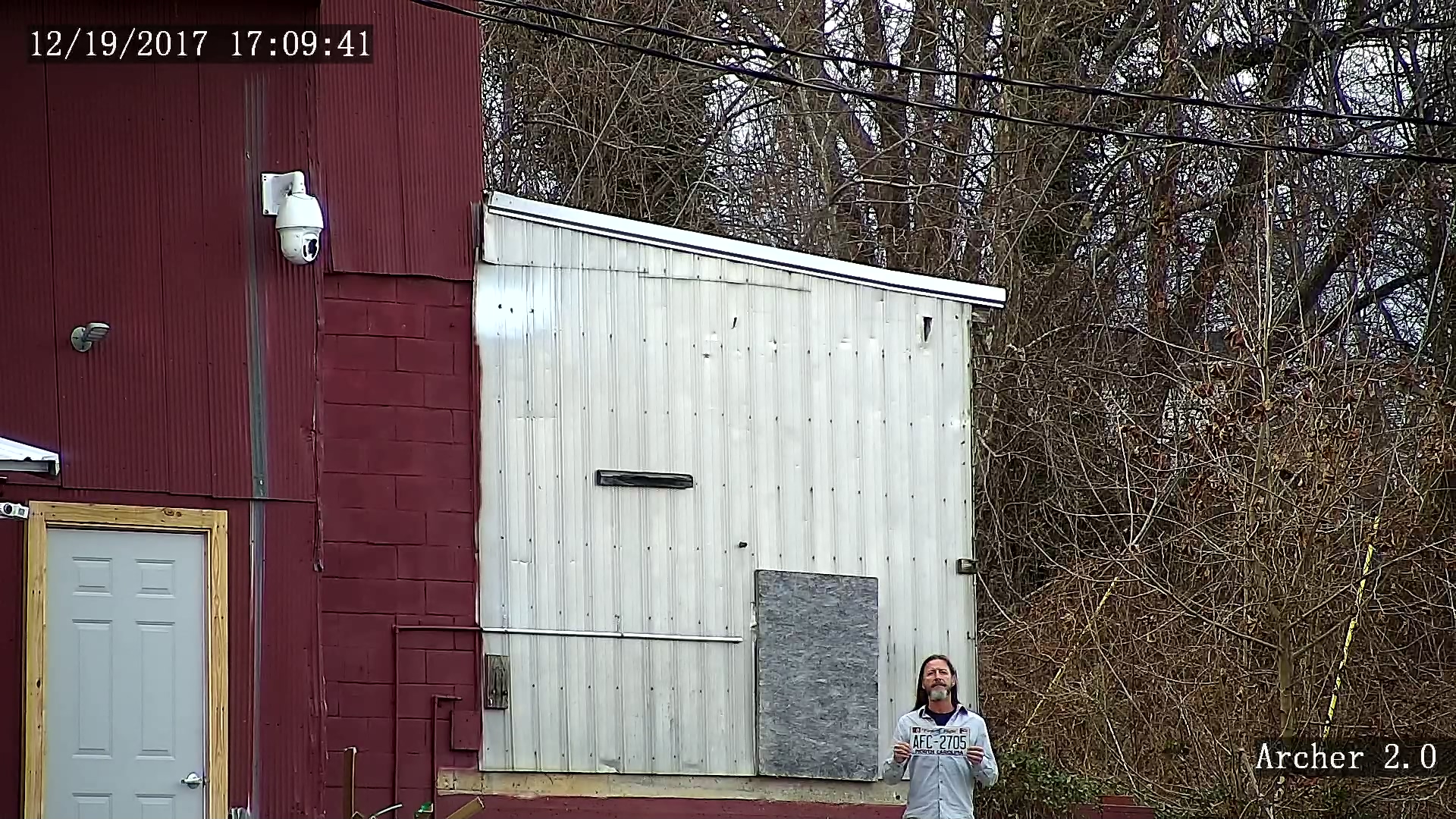

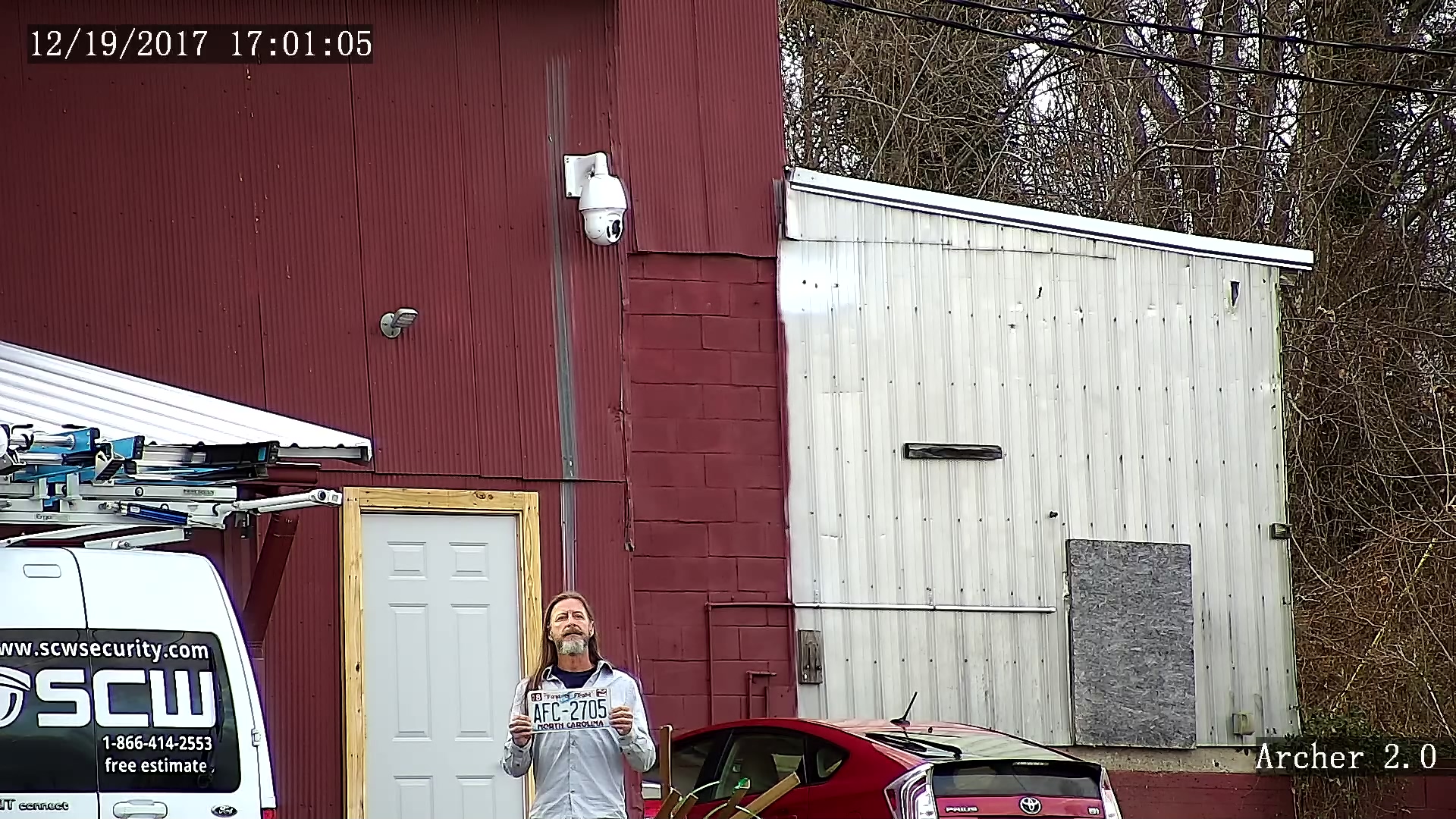

47mm at 1080P - fully zoomed in, smallest angle of view (9 degrees)
50 FT 100 FT 150 FT 200 FT 250 FT 300 FT 350 FT

Resolution is the most important thing about your surveillance cameras. With this Archer 2.0 set at maximum zoom, you should be able to:

detection

Detect someone up to 450 feet

"Detecting" a face means being able to tell that a human face is in the picture.

recognize

Recognize someone up to 350 feet

"Recognizing" a face refers to being able to say "I have seen that person before" - even if you don't know or can't place who it is.

identify

Identify someone up to 300 feet

"Identification" refers to being able to make out identifiable marks with enough certainty to make a sketch or claim.


What makes the Archer 2.0 Unique:

P-Iris

overexposure vs p iris

This camera has a P-Iris.

P-Iris is the next level up from a DC-iris lens. A DC-Iris exists to continuously adjust the flow of light through the lens, while a P-Iris exists to both adjust to lighting conditions and ensure that the camera is using the best possible aperture (f-stop) for what it is filming. This means fewer optical errors, and the best contrast, resolution, and depth of field the camera can offer.




Wide Dynamic Range (WDR)

This Archer 2.0 ip camera has Wide Dynamic Range.

Wide Dynamic Range splits each frame/image into many boxes and it scans for in inaccuracies and adds the right amount exposure to create a balanced and high resolution video shot. Very useful when recording in situations where there can be a large difference in light levels.

Seeing in shadows: Understanding WDR

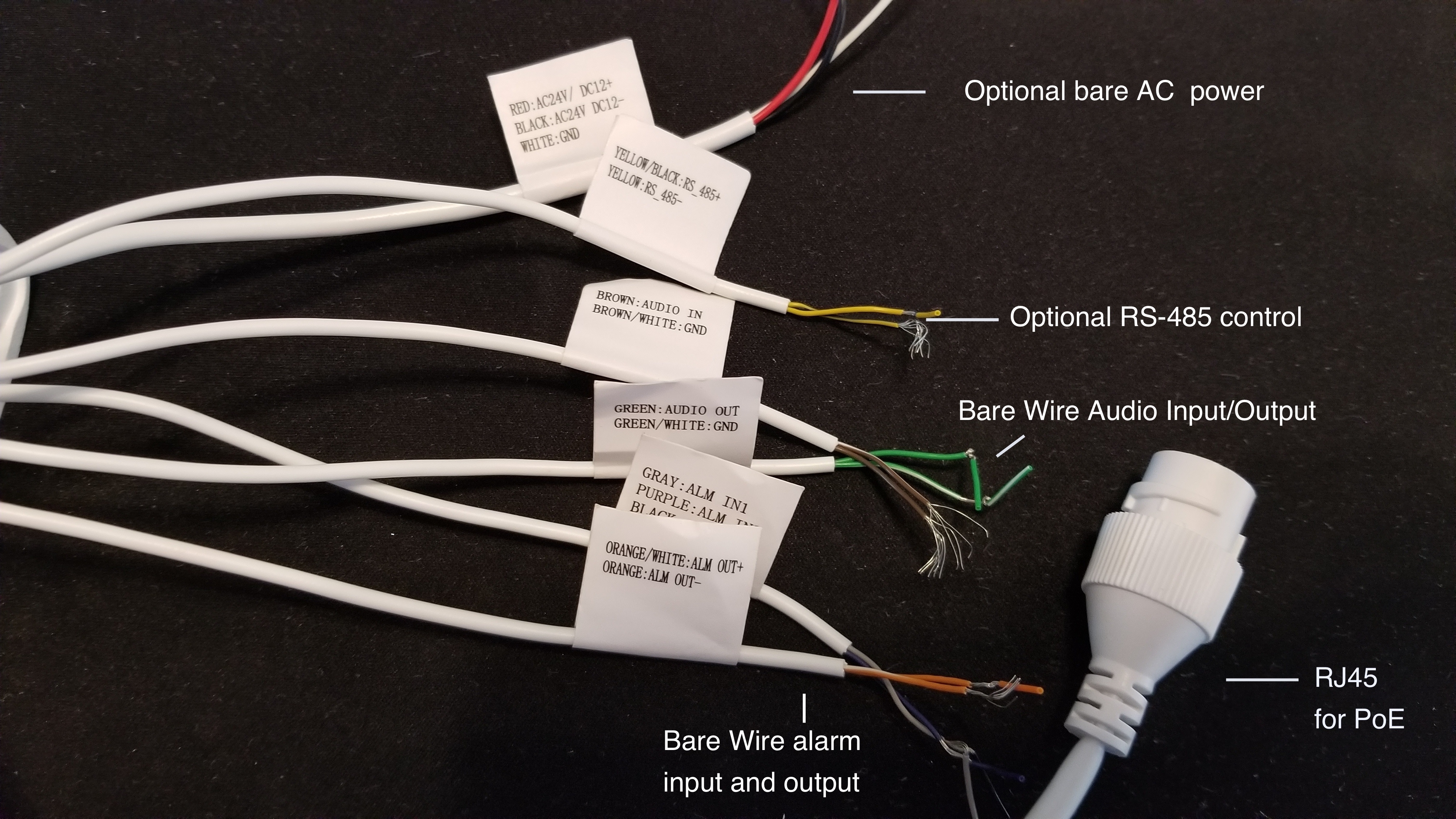

Audio In / Outs

audio in and out

This camera has both an input and output for a microphone and speaker.

To connect an external speaker and microphone, just twist the speaker wire / microphone wire together in the same way that you connect speaker wire for a stereo. There are four wires in total; two for each connection, a sound channel and a grounding wire. The wires are labeled.

Audio and Alarm Inputs FAQ and Sample Wiring Guide




Admiral Line Camera Features:


Cat5 Plug and Play POE with Admiral NVRs

Plug & Play with Admiral & Imperial NVRs

This Archer 2.0 will plug and play with our Admiral and Imperial line of NVRs.

Please note that our ip camera models with models numbers in the 26xxx format record in the new, more efficient H.265 compression codex and are intended to work with our Imperial and Admiral NVRs.

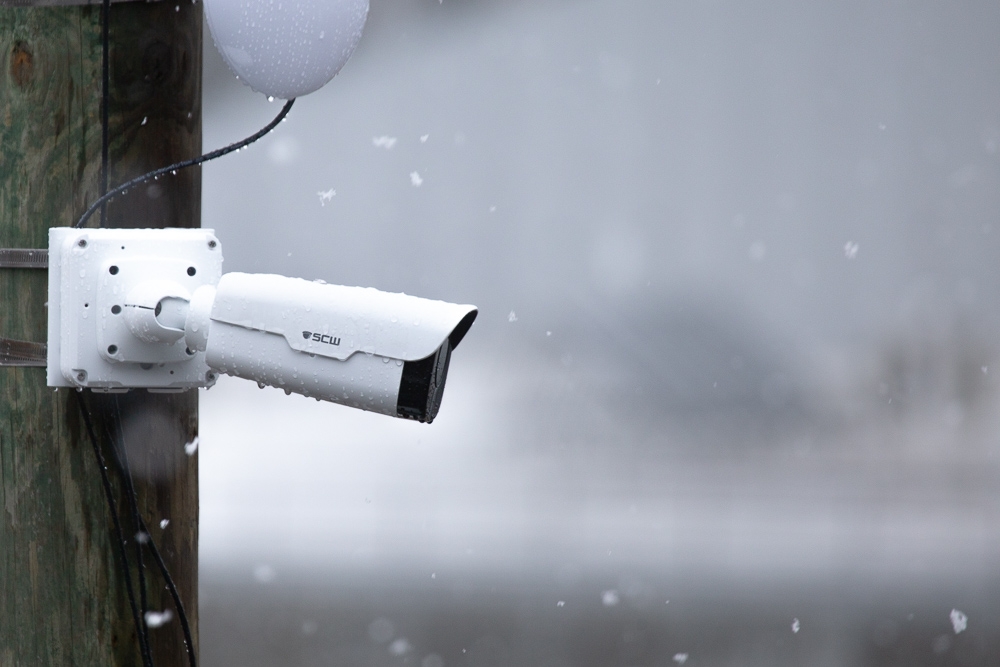

Built Tough: Commercial Grade Line

This Archer 2.0 is part of our Admiral commercial grade ip camera line. Feel free to read more about these features and what commercial grade means to us, but here's a quick synopsis:

IP67 weatherproof rated - Full protection against dust, rain, sprinklers, water jets and even immersion up to 1 meter for 30 minutes.

Extreme Temperature - Withstands extreme temperatures from the summers of Arizona to the winters in Minnesota. -31°F ~ 140 °F

Aluminum and Ceramic Molding - Feel confident in your invest with commercial grade housing that won’t crumble and decay like the plastic competition.

Anti Reflective Glass with Automotive grade LEDs - Commercial quality components that allow better light transmission and will last without dimming or fading over time.

Passes vibration and surge testing up to 6,0000 volts - SCW cameras can withstand vibration and surges up to 6,000 volts.

Easy 1 Click Firmware Update Process - Maintenance made easy.

750 Foot POE Extended Transmission: the old 300 foot limitations are a thing of the past.

Store 40% more data with H.265 video compression or switch back to H.264, if you need H.264 third-party integration support.

No Recording Delay - Even when recording on motion.



3 to 5 year warranty

3 or 5 Year Warranty

The Archer 2.0 comes with a 3 year warranty. This warranty can also be upgraded to a 5 years. We recommend doing so for commercial clients.



Motion Detection, Alerts, and VCA

This Archer 2.0 is part of our Admiral motion detection security camera system line. Feel free to read more about these features by clicking on the link, but here's a quick synopsis:

Alerts and Notifications:

Get email alerts with snapshot images of motion detection alerts or VCA events

Set a schedule to get emails only on the hours of the day you want.

Get Push Notifications to the SCW Go Application for Android and iPhone.

Recording:

Create your own customizable record schedule, including recording based on the day of the week, hours of the day, or even choose not to record for periods of time. Set constant recording during business hours and only motion during closed hours.

Motion, VCA, or 24/7 Recording - Record based on motion detection, VCA (video content analysis), or set the system to record 24/7. You can even record based on alarm inputs!

No Recording Delay / Pre & Post Event Recording - If your system is set to record based on motion or VCA events, you can have a 60 second pre-event buffer to grab footage prior to the detection. You can also set the system to record up to 10 minutes after an incident is detected.

Customizable Motion Detection Recording through VCA events:

VCA features do vary by camera model. This Archer 2.0 supports these VCA features:

Intrusion Detection - Monitor areas with precision, define zones, set time thresholds, and sensitivity.

Line Crossing - Create virtual lines to detect people or objects crossing doors, entrances, and more.

People Counting - Determine how many people are entering and exiting. Keep and review daily logs.

Audio Detection - Listens for Rises or falls in volume, and sudden loud noises.

Vandal Detection - Get alerts based on tampering detection, defocusing, or any dramatic scene changes.


Corridor Mode

Corridor Mode

This camera has Corridor Mode.

Corridor mode allows you to flip the image on its side so that you can change the 16x9 ratio to 9x16. This is advantageous in the case of hallways, side yards, or corridors (hence the name) where the extra space vertical space is needed and the extra horizontal space would only show you more wall or fence area. To use corridor mode, install the camera with the lens pointed 90 degrees from center and then enable the corridor mode on via our software.



ONVIF compliant

ONVIF Conformant

This device is an ONVIF compliant ip camera.

ONVIF is an open industry standard encoding language for the interface of IP-based physical security products.



bitrate 1080p 30 fps

Bitrate - 4MP

At 4MP and 25 FPS, while recording at H.265, this camera should use 3.5 Mbps of the NVR's bitrate budget. (With H.264, it should use 7Mbps).

Related: IP Camera Bitrate Calculator


American-Based Technical Support after the sale. For FREE. Forever.

Real review from Fransisco, who had this to say:

The most important part of a purchase like this is the support for technical assistance when there is a question or when there is a problem, and they always exceed expectations!


All of our equipment comes with Free Technical Support that is US based (Our Warehouse and Staff are located in Asheville, NC). We're happy to help you via chat, email, screenshare / remote support sessions, and phones. Our number is 866-414-2553 and we're open from 9-7 M-F (EST).


scw support included



UL Listed, FCC certified

UL Listed and FCC Certified

UL is a safety consulting and certification company headquartered in Northbrook, Illinois and provides safety-related certification, validation, testing, inspection, and auditing of SCW products.

The Federal Communications Commission has certified that the electromagnetic interference from the device is under limits approved by the FCC.


The Archer 2.0 26BV2-L Specs



Specifications

26BV2-L
Image Sensor
1/2.8” 2 Million Pixel, Progressive Scan CMOS
Processor Manufacturer
Hisilicon
VCA / Smart Features
Motion Detection, Intrusion Detection, Face Detection, Cross Line, People Counting, Video Tampering (One VCA feature on at a time)
Min. Illumination
Color video until 0.001 Lux @F1.6, AGC ON
0 lux with IR on
Shutter
Auto/Manual, 1/6 to 1/100,000 second
Lens
4.7~47mm,AF automatic focusing and motorized zoom lens
65° - 9° of horizontal coverage (36.5°-5° vertical)
Day & Night
IR-cut filter with auto switch (ICR)
Digital Noise Reduction
2D/3D DNR
Signal to Noise Ratio
>52dB
Wide Dynamic Range
True WDR @ 120dB
Digital Defog
Yes
Video Compression
H.265, H.264, MJPEG
Camera Streams
Main Stream: up to 1080P (1920*1080): Max. 30 fps

Sub Stream: up to 2MP (1920×1080): Max. 30 fps;
Mobile Data-Sensitive Stream: up to D1 (720×576): Max. 30 fps
Bit Rate
32 Kbps ~ 8Mbps
Max. Image Resolution
1920×1080: 2 Megapixel
Frame Rate
1080P (1920*1080): Max. 30 fps; 720P (1280*720): Max. 30 fps; D1 (720*576): Max. 30 fps
Image Settings
Saturation, brightness, contrast, sharpness, headlight compensation, backlight compensation, region of interest, 9:16 corridor mode, evaluative metering.
BLC
Yes, zone configurable
Alarm Trigger
Motion detection, tampering alarm, network disconnect, IP address conflict, storage exception
Protocols
IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP
Interoperability
ONVIF (Profile S, Profile G)
Communication Interface
1 RJ45 10M/100M Base-TX Ethernet
Operating Conditions
(-40°F ~ 140 °F) Humidity 10 - 95% (non-condensing)
Audio I/O
Bare Wire Audio Cable
Audio Input
impedance 35 kΩ; amplitude 2 V [p-p]
Audio Input
impedance 600 Ω; amplitude 2 V [p-p]
Alarm i/O
1 input; 1output
Power Supply
12 V DC±25%, PoE (IEEE802.3 af)
Power Consumption
Max. 13.7W
Weather Proof Rating
IP67

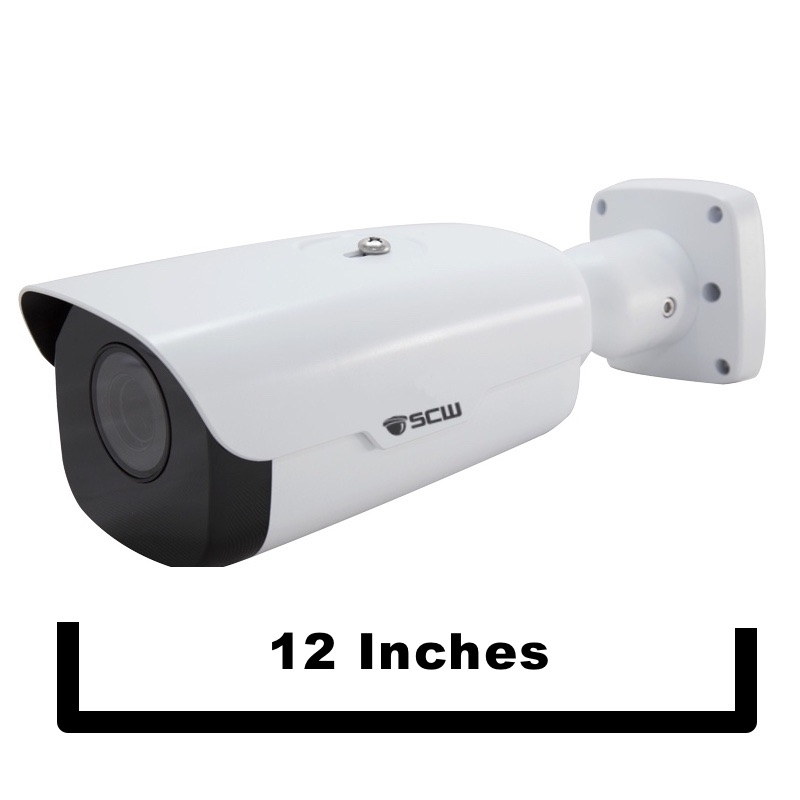

Dimensions
12.0” × 4.1” × 3.8”
IR Range
Up to 165ft.
Weight
3.6 Lbs
