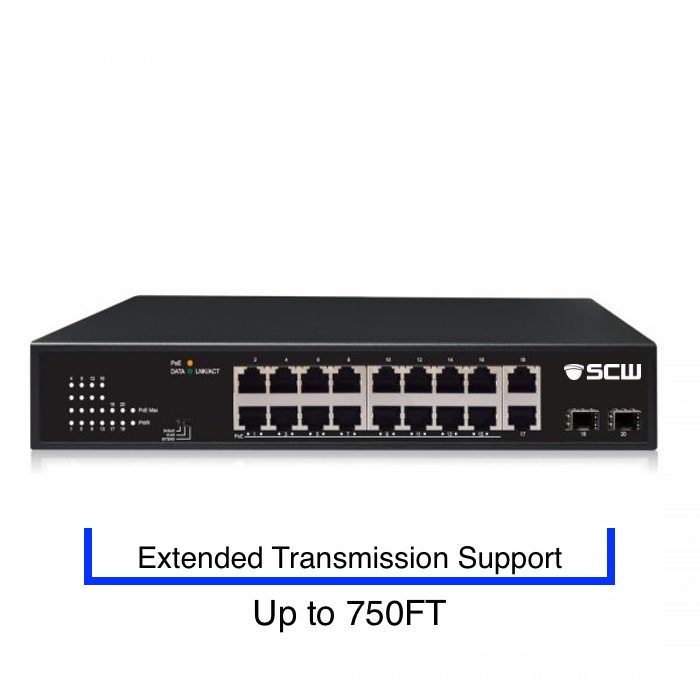

SCW 16 Port PoE Switch with Extended Transmission
Backordered. Expected Arrival in July
Backordered
Contact your sales rep for a delivery timeline.
SKU
SW16PEXT
Contact your sales rep for a delivery timeline.
Ports
No. of POE Camera Ports: 16
No. of Uplink Ports: 2 x SPF, 2 x Gigabit RJ45
Compliance
IEEE 802.3u 100BASE-TX
IEEE 802.3ab 1000BASE-T
IEEE 802.3z 1000BASE-X
ANSI/IEEE 802.3 NWay
IEEE 802.3x flow control
IEEE 802.3af PoE
IEEE 802.3at PoE
Power
Supports up to 30W for each PoE port
Total Output is 250W
AC Input Voltage: 100 ~ 240 VAC
Networking
10M/100M/1000M
max 750 ft cable distance for SCW Admiral or Imperial line cameras
max 300 ft cable distance for other cameras
No Problem
Whether you plan to DIY install or want us to do it for you, we're as flexibile as you need.
Get a Custom Quote for Equipment or Installation
16×10/100Mbps POE Ethernet ports
2×Gigabit combo ports (use either RJ45 or SFP, for each)
PoE complies with IEEE802.3af/at, up to 30W for single port
Up to 750 feet transmission distance with SCW Admiral or Imperial line cameras.
Easy to use, no need to configure
Note: Extended transmission only works directly to Admiral or Imperial line cameras. It does not work to other network devices or other switches.
High quality all metal housing
| Item | Description |
| Ports | 16×10/100Base-TX autosensing Ethernet ports(all support PoE) 2×Gigabit combo ports (RJ45 and SFP) |
| Port attribute | 10/100/1000Mbit/s transfer rate Half-duplex, full-duplex and auto-negotiation Auto MDI/MDIX |
| Standards | IEEE 802.3u 100BASE-TX IEEE 802.3ab 1000BASE-T IEEE 802.3z 1000BASE-X ANSI/IEEE 802.3 NWay IEEE 802.3x flow control IEEE 802.3af PoE IEEE 802.3at PoE |
| MAC | 4K |
| Packet forwarding rate | 6.55Mpps |
| Switching capacity | 8.8Gbps |
| EXTEND mode | Disabled: all ports can communicate with each other, and monitoring optimization is disabled. Enabled: Downlink ports can only communicate with uplink ports, monitoring optimization is enabled, and transmission distance can be extended to up to 250 meters. |
| Status LEDs | Link/Act (steady green): link is normal Link/Act (flashing green): data is being forwarded Link/Act (off): no link |
| PoE (steady orange): the port is powering a powered device properly PoE (off): the port is not connected to any powered device or is not supplying power | |
| Power (steady green): AC input is normal Power (off): AC input is abnormal | |
| PoE | 802.3at/af Max PoE capacity: 250 W |
| Consumption | ≤ 300 W |
| AC voltage | 100-240 V |
| Operating temperature | 0°C-40°C (32°F-104°F) |
| Operating humidity | 10%-85% |
| Storage temperature | -10°C-70°C (14°F-158°F) |
| Storage humidity | 10%-90% |
| Dimensions (W×D×H) | 440mm×280mm×44mm (17.3"×11"×1.7") |
