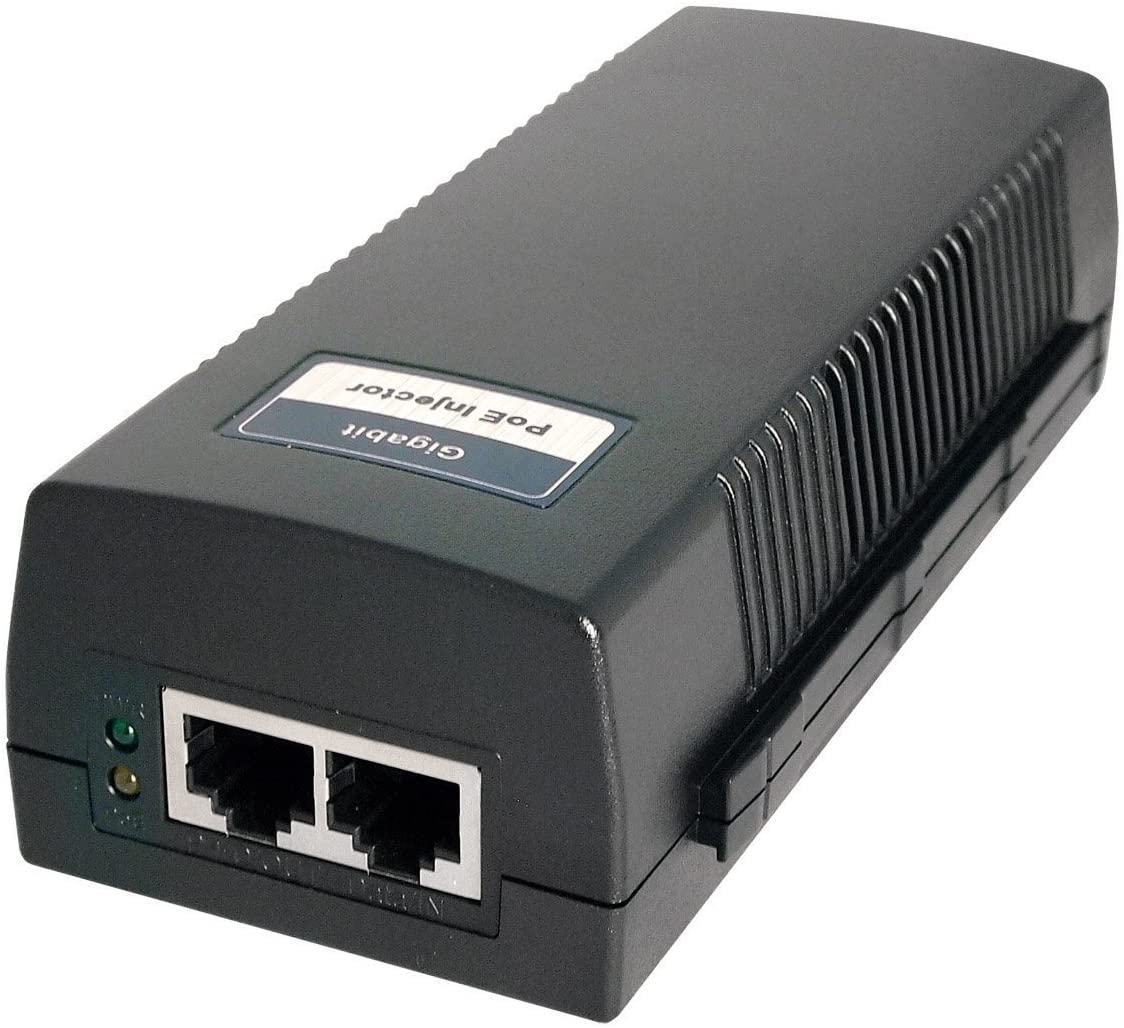

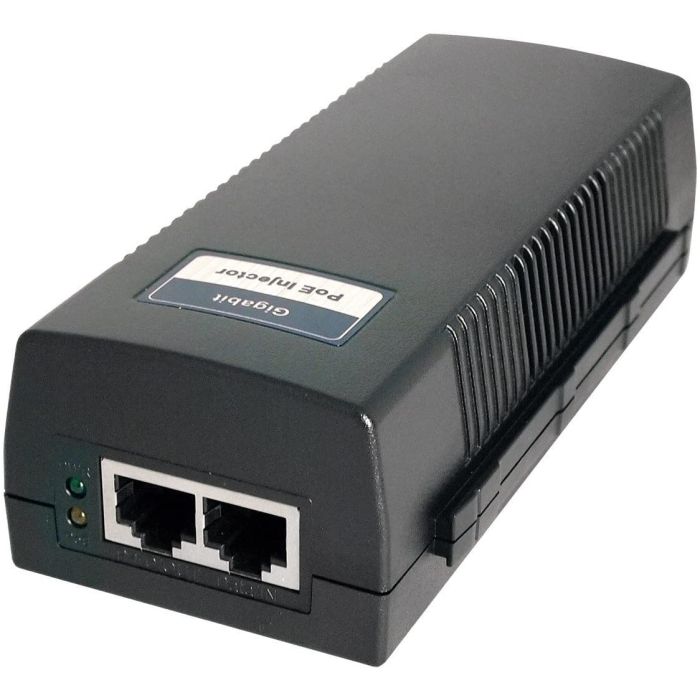

1 Port PoE+ Power Injector

In stock

Usually ships the same business day if ordered before 2PM EST.


SCW-POE-INJ is a 1 Ethernet Input (data only) port and 1 Output (data + power) port Power over Ethernet Injector that is designed for small or medium network environment to strengthen its network connection. This product can convert standard power into low-voltage DC that runs over existing LAN cable to power up IEEE 802.3at compliant network accessories. It also features PoE awareness to verify whether the network device receive power is IEEE 802.3at compliant, or only the data will be sent through LAN cable. By adding SCW-POE-INJ to existing networking, installing networking products such as Access Points and IP cameras can be easily managed and set up. Wireless device deployments are easily located with available power outlets and network administrators don’t need to use heavy AC power adapters anymore.

1 Port PoE+ Power Injector1 Port PoE+ Power Injector1 Port PoE+ Power Injector
Need Installation?

No Problem

Whether you plan to DIY install or want us to do it for you, we're as flexible as you need.

Get a Custom Quote for Equipment or Installation


IEEE 802.3af

IEEE 802.3at

IEEE 802.3 10BaseT

IEEE 802.3u 100BaseTX

IEEE 802.3ab 1000BaseT


Number of Ports:

1 x Input (data only) Port

1 x Output (data + power) Port

Led Indicators

Per Unit: Power

Power Input

85V~264VAC 47Hz-63Hz

PoE Power Output

48V/DC 1A at Full 15W Output Supported

Power Consumption

35 Watts (Max)


30 x 49 ×114 mm (H x W x D)

Weight 0.50 lbs
Operating Temperature 0 to 40℃
Storage Temperature -20 to 90℃
Humidity 10 to 90% RH (non-condensing)
Certifications FCC Class A, CE
