$850.00

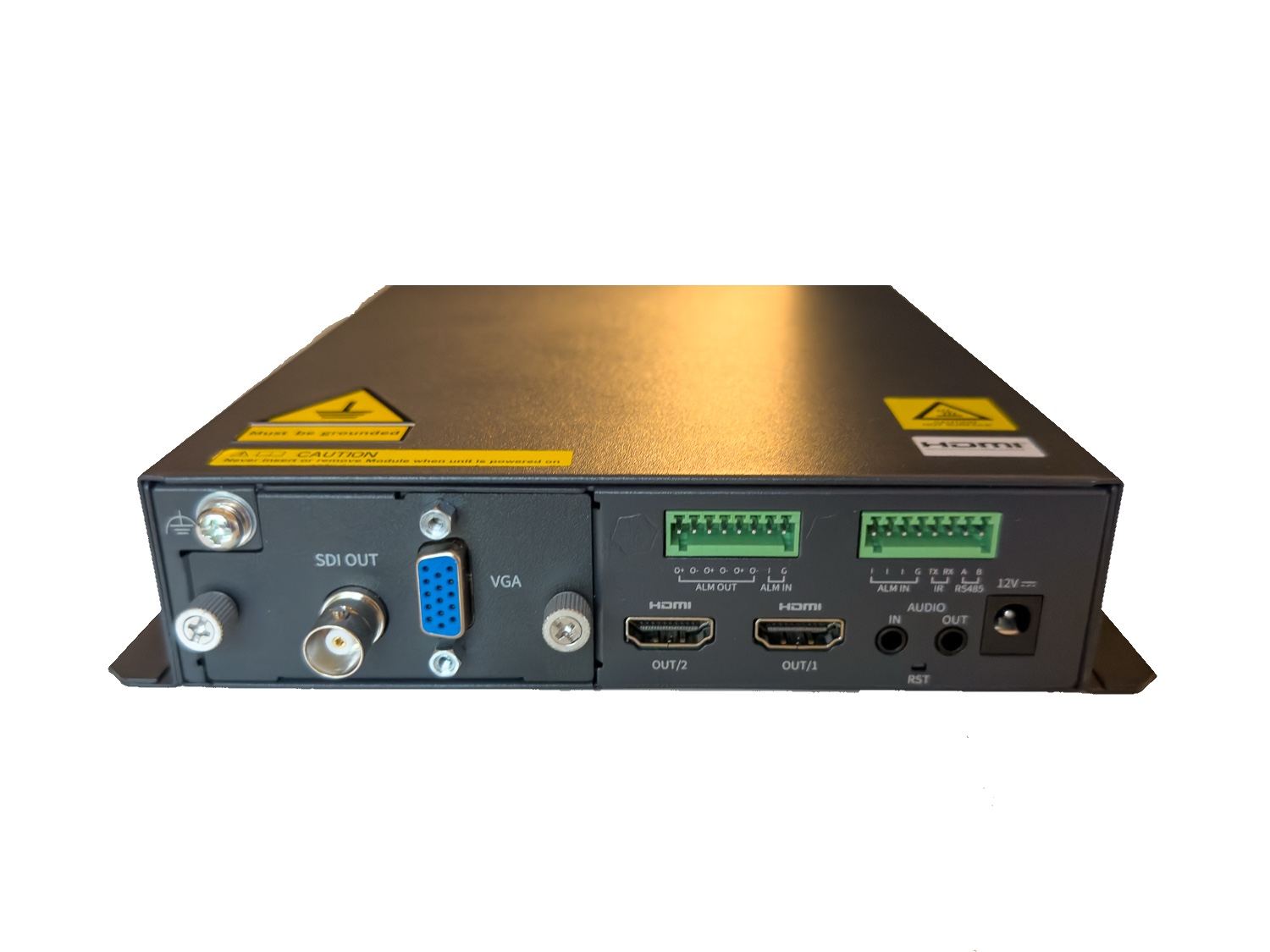

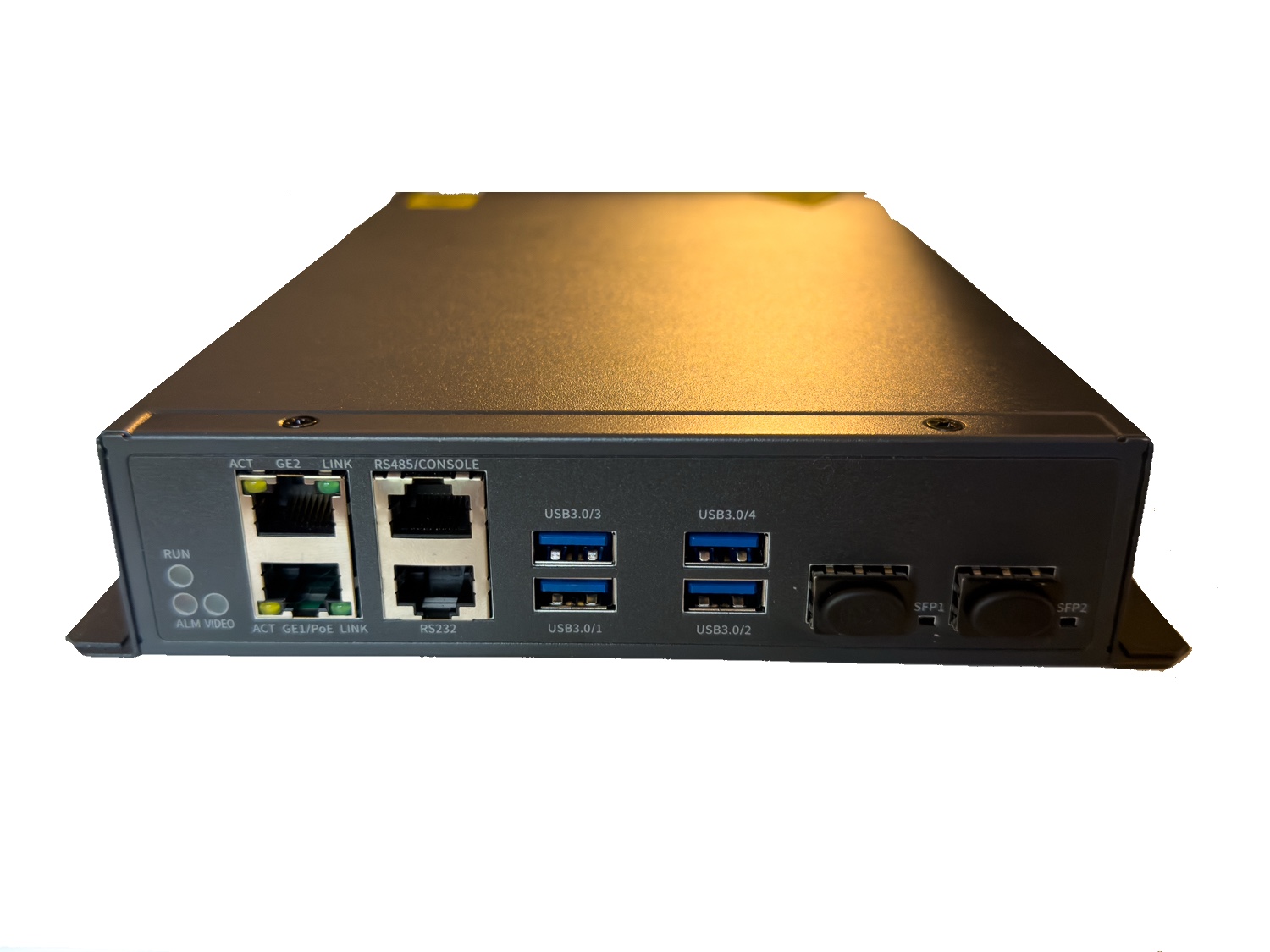

1 HDMI Network Decoder
In stock
Usually ships the same business day if ordered before 2PM EST.
SKU
26ND-1HDMI
1 HDMI Decoder
Images
Need Installation?
No Problem
Whether you plan to DIY install or want us to do it for you, we're as flexible as you need.
Get a Custom Quote for Equipment or Installation
This 1 HDMI decoder enables permanent viewing stations, such as guards, production monitoring, sales offices, and more. This decoder is a network device and needs a local area network connection to your NVR. For more info check the graphics in the description or reach out to us for system design.
HDMI
1 HDMI outputs @ 4K 60Hz
1 Additional HDMI and 1 VGA (All 3 outputs mirror)
Display Split
Up to 64 live feeds
Decoding Capability
Total
8x4K - 32x1080p - 64x720p - 64xD1
Hardware
NDAA Compliant
2 HDMI Output (Mirror)
Dual Gigabit Ethernet to Network
Standard 3-Prong Wall Plug

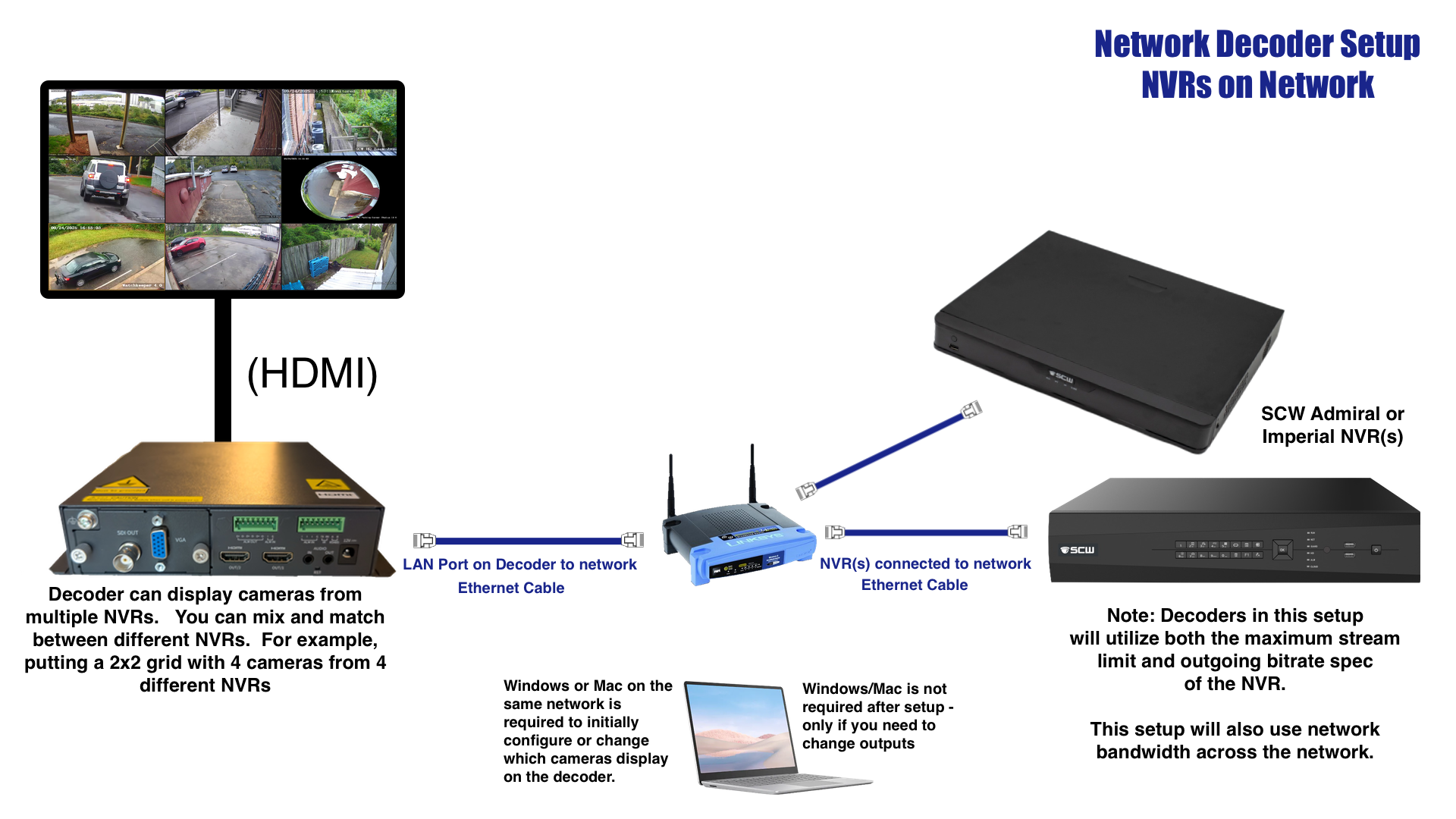

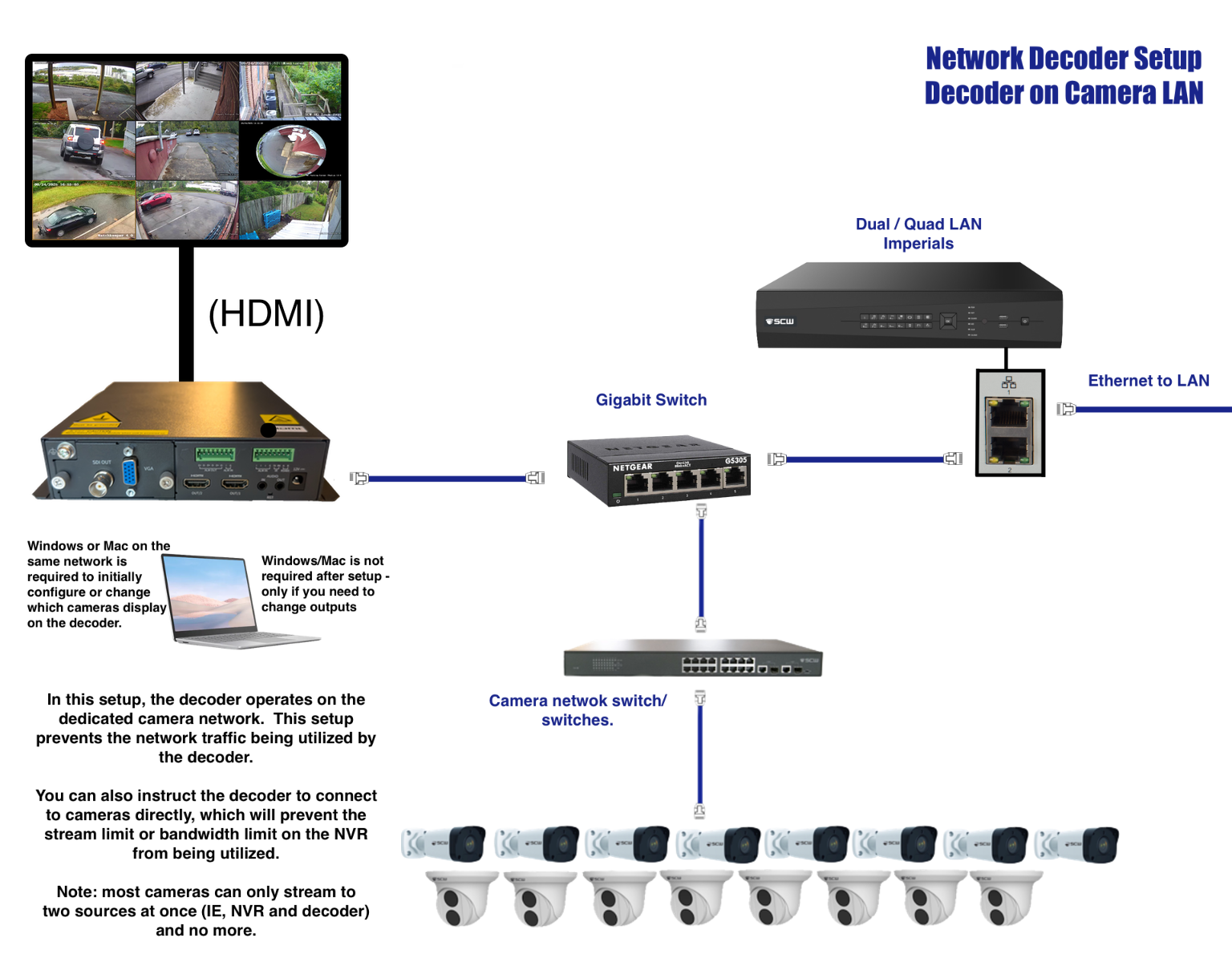

Note: This decoder does utilize the NVR's stream limit and outgoing bitrate limit. We suggest having the decoder connect directly to the IPC when possible. For more information check our diagrams.
Requires SCW Viewstation on a PC to setup
Network decoders require your decoder and the NVR(s) and/or cameras to be on the same network, reachable to each other.
