$400.00

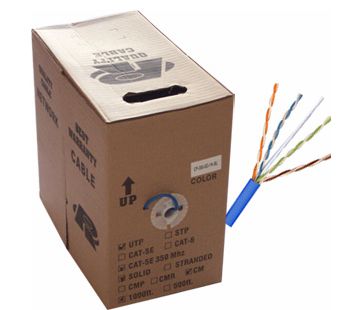

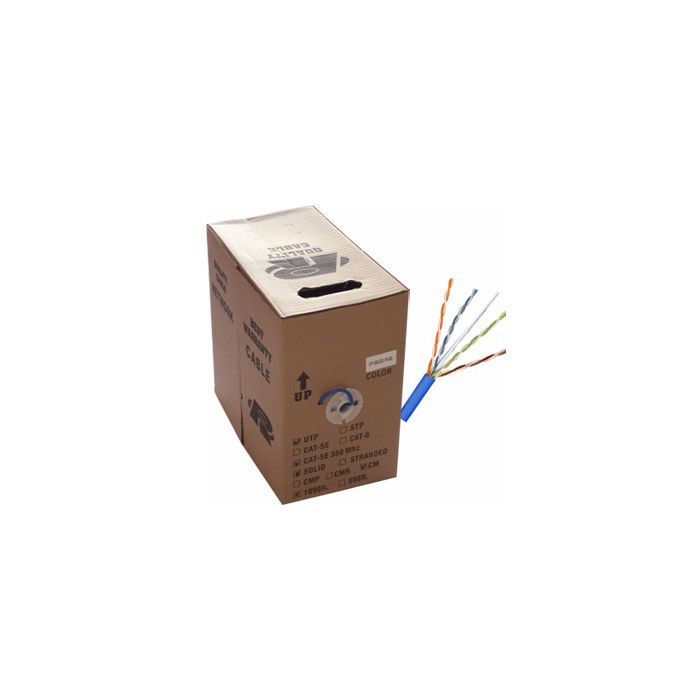

1000ft Network PLENUM rated CAT6, PVC, FULL COPPER (Commercial Grade) SCW-NCC6-1000PL

In stock

Usually ships the same business day if ordered before 2PM EST.

SKU
SCW-NCC6-1000PL

PLENUM rated 1000 foot roll of 23 AWG pull boxes of CAT 6 U/UTP

If you are going to run cables through an area which is used by your heating, air circulation, or air conditioner systems (such as above a drop ceiling in an office), you must use Plenum rated cables, which have a special insulation that has low smoke and low flame characteristics. When securing cable in Plenum required areas, make sure your straps, cable ties, and similar fittings also are plenum rated. NEC 830; NFPA 90A

Images
1000ft Network PLENUM rated CAT6, PVC, FULL COPPER (Commercial Grade) SCW-NCC6-1000PL1000ft Network PLENUM rated CAT6, PVC, FULL COPPER (Commercial Grade) SCW-NCC6-1000PL
Need Installation?

No Problem

Whether you plan to DIY install or want us to do it for you, we're as flexible as you need.

Get a Custom Quote for Equipment or Installation

PLENUM rated 1000 foot roll of 24 AWG pull boxes of CAT 6 U/UTP

If you are going to run cables through an area which is used by your heating, air circulation, or air conditioner systems (such as above a drop ceiling in an office), you must use Plenum rated cables, which have a special insulation that has low smoke and low flame characteristics. When securing cable in Plenum required areas, make sure your straps, cable ties, and similar fittings also are plenum rated. NEC 830; NFPA 90A

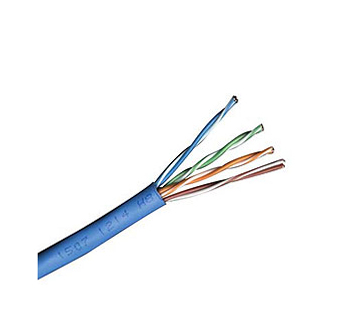

Two colored mated insulated conductors twisted together to form a pair and four pairs with a tape separator assembled to form a core. The core is jacketed with a low smoke flame retardant PVC.

Length: 1,000 ft.

Packaging: Pull Box

UL 910: CMP rating FT6; UL Subject 444

Characteristic Impedance: from 0.772 - 100 MHz 100 ± 15%; from 101 - 250 MHz 100 ± 22%

No. 23 AWG solid bare copper conductor insulated with FEP.

Fast Ethernet: 100BASE-TX, 100BASE-VG

ATM 155 Mbps

Operating Temp. Range -10°C to 75°C

Dimension: 13.50" x 13.50" x 8.5"

Weight: 29 lbs

Cable color subject to change without notice
