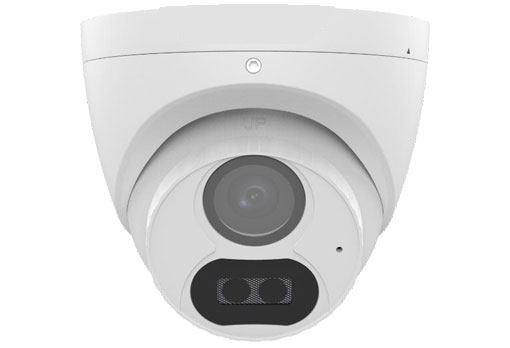

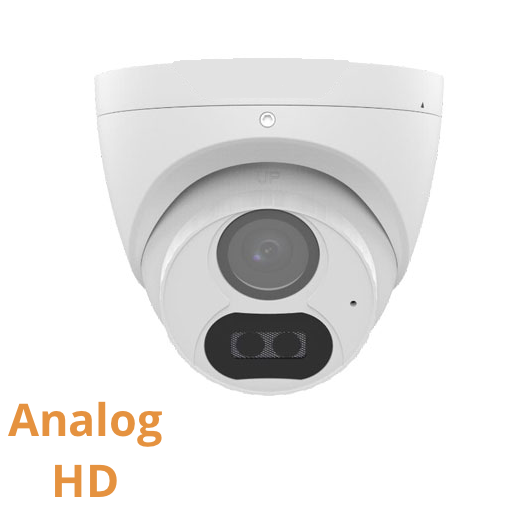

The Diplomat 5.0
5MP Fixed Analog HD Camera Turret Camera
* Please select all required options to add to cart
No Problem
Whether you plan to DIY install or want us to do it for you, we're as flexible as you need.
Get a Custom Quote for Equipment or Installation
Resolution
Supports TVI/AHD/CVI Output
5MP@20 FPS* (2592x1944)
*Check DVR Specs to see supported recording resolution
Indoor/Outdoor
IP67
Full protection from dust, rain, snow, dew, frost, and sprinklers.
You can even submerge it for a few minutes.
Temp
Temperature rated from -22°F to 140 °F
Humidity rated between 10 and 95%.
Day/Night
Infrared night vision up to 100 FT
Color video possible until 0.005 lux
Special
NDAA Compliant
Built in Microphone - Audio via Coax
TVI / AHD / CVI Compatible
3 Axis Turret
1 Year Warranty
What makes the Diplomat 5.0 Unique:
Multi-Format
This camera supports TVI, Analog HD (AHD), CVI, and CVBS format.
Integrated Microphone
This camera has an integrated Microphone. It can pick up a speaking voice about 15 feet from the camera in a clear and quiet environment. Note that external noises like machinery, wind, loud HVAC/vents impact audio quality and distance.
By default, the microphone is off when it ships, as different states (and sometimes cities, municipalities, etc) have different legal requirements that you must meet before recording audio. All states must comply with the Federal Wire Tap Act of 1968. Please make sure that you are within your rights regarding your local laws before turning the microphone on.
For more info, please read our primer on the Federal Wire Tap Act of 1968.
1 Year Warranty
This camera has a 1 year warranty and free US based support for life.
American-Based Technical Support after the sale. For FREE. Forever.
Real review from Larry, who had this to say:
The most important part of a purchase like this is the support for technical assistance when there is a question or when there is a problem, and they always exceed expectations!
All of our equipment comes with Free Technical Support that is US based (Our Warehouse and Staff are located in Asheville, NC). We're happy to help you via chat, email, screen share / remote support sessions, and phones. Our number is 866-414-2553 and we're open from 9-7 M-F (EST).
The Diplomat 5.0 - 26DF5-AHD Specs
Specifications |
26DF5-AHD
|
|
Image Sensor
|
1/2.7” 5 Million Pixel, Progressive Scan CMOS
|
|
Processor Manufacturer
|
NDAA Compliant
|
|
Min. Illumination
|
Color video possible until 0.005 lux @F1.6, AGC ON
0 lux with IR on |
|
Microphone
|
Omnidirectional Built In
|
|
Shutter
|
NTSC: 1/30s–1/50000s
|
|
Lens
|
[email protected]
109° of horizontal coverage; (60.9° vertical) |
|
Day & Night
|
IR-cut filter with auto switch (ICR)
|
|
Digital Noise Reduction
|
2D DNR
|
|
Wide Dynamic Range
|
Digital WDR
|
|
Max. Image Resolution
|
2592x1944, 5 Megapixel
|
|
Frame Rate
|
5MP (2592x1944) 20FPS - 4MP (2560x1440) 30FPS - 1080p (1920x1080) 30FPS
|
|
Image Settings
|
Global (default), BLC, HLC, DWDR
|
Supported Output |
TVI / AHD / CVI / CVBS |

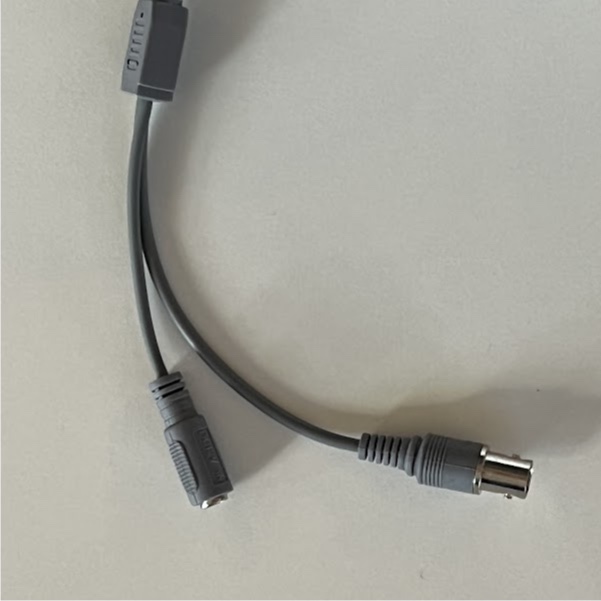

Video Interface |
1 BNC |
Operating Conditions |
(-22°F ~ 140 °F) Humidity 10 - 95% (non-condensing) |
Power |
12 V DC±25% (Adapter not included) 5.55mm barrel with reverse polarity protection |
Power Consumption |
Max. 3.4W |
Weather Proof Rating |
IP67 |
Surge Rating |
4KV |

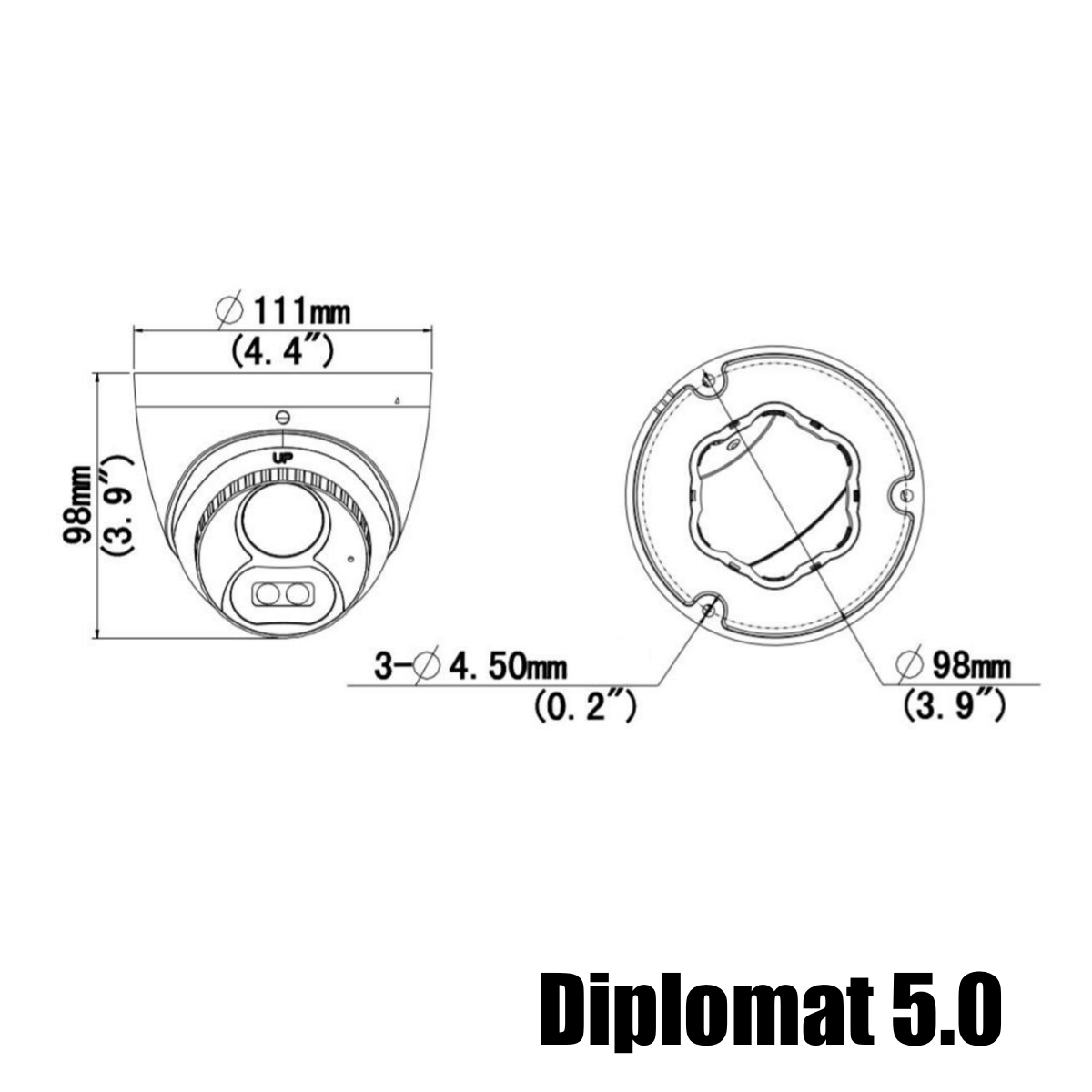

Dimensions |
Φ4.37” x 3.85” |
IR Range |
Up to 100ft. |
Weight |
.75Lbs |
Most popular downloads related to The Diplomat 5.0 - 26DF5-AHD
Spec Sheet for the Diplomat 5.0
A one page PDF listing this product's most important specs.
Please see our support portal for a full list of all technical bulletins, user manuals, and software.
