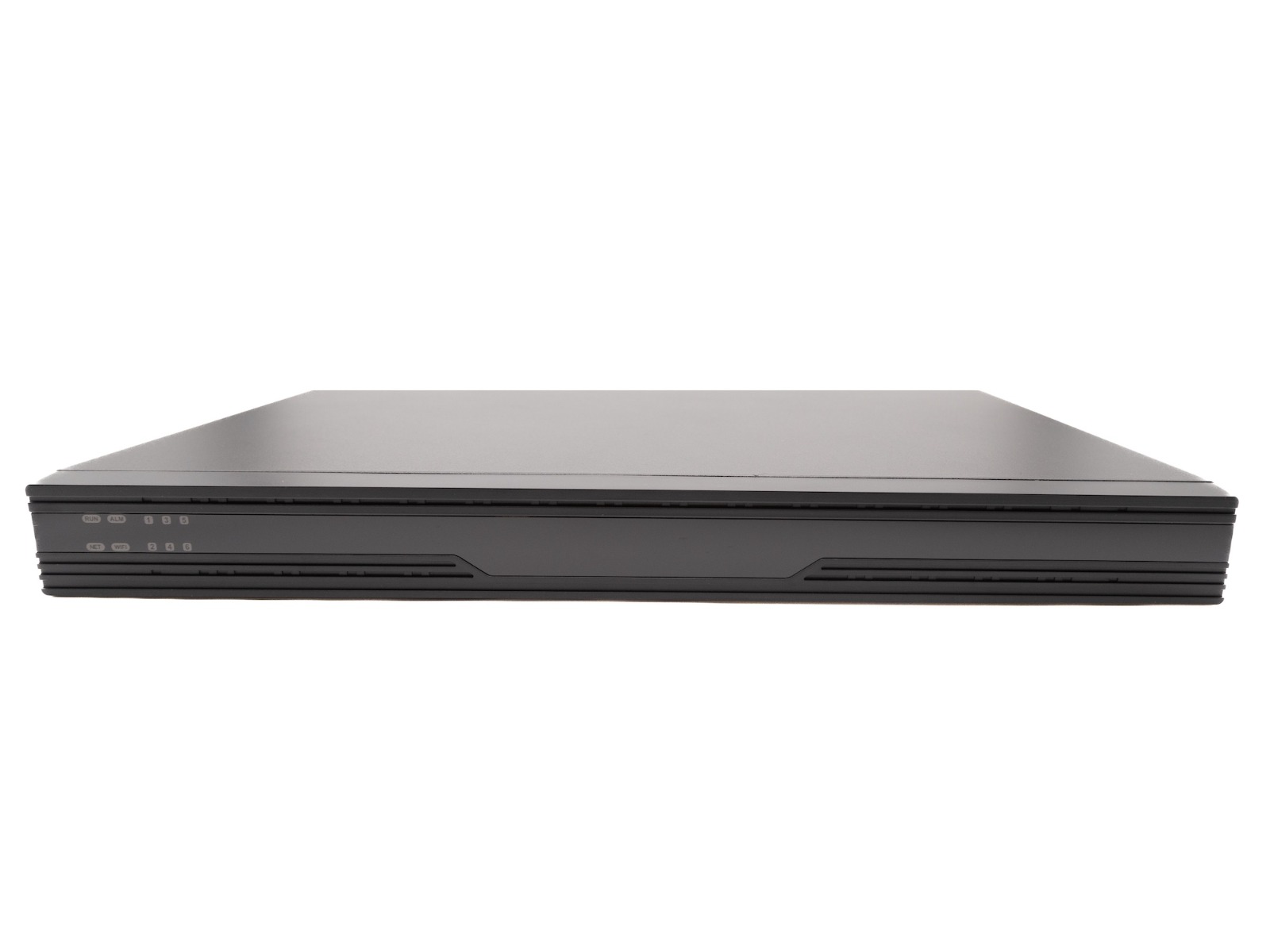

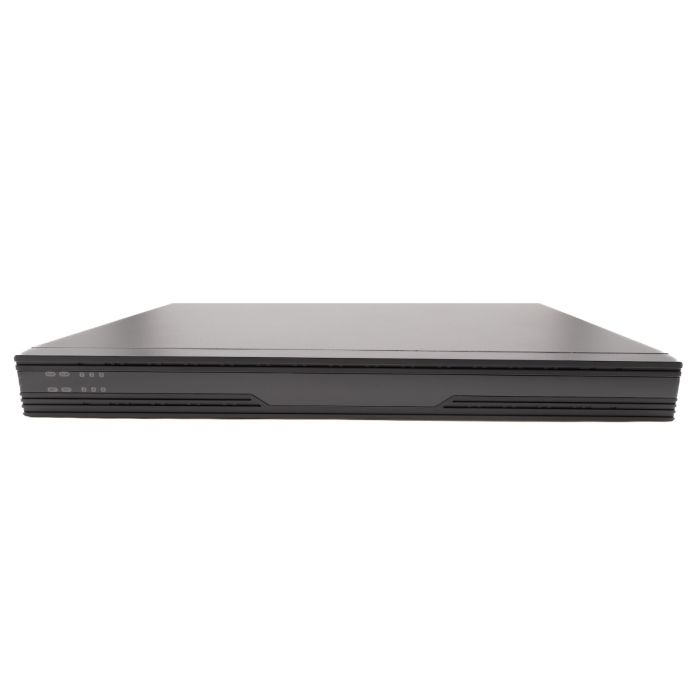

6 HDMI Network Decoder
Usually ships the same business day if ordered before 2PM EST.
No Problem
Whether you plan to DIY install or want us to do it for you, we're as flexible as you need.
Get a Custom Quote for Equipment or Installation
This 6 HDMI decoder enables video walls for permanent viewing stations, such as guards, production monitoring, sales offices, and more. This 6 HDMI version allows up to 6 HDMI connections, each up to 16 cameras per HDMI output. This decoder is a network device and needs a local area network connection to your NVR. For more info check the graphics in the description or reach out to us for system design.
HDMI
6 HDMI outputs @ 4K 60Hz
Display Split
1/2/3/4/6/7/9/16
Decoding Capability
Total
6x4K - 30x1080p - 54x720p - 96xD1

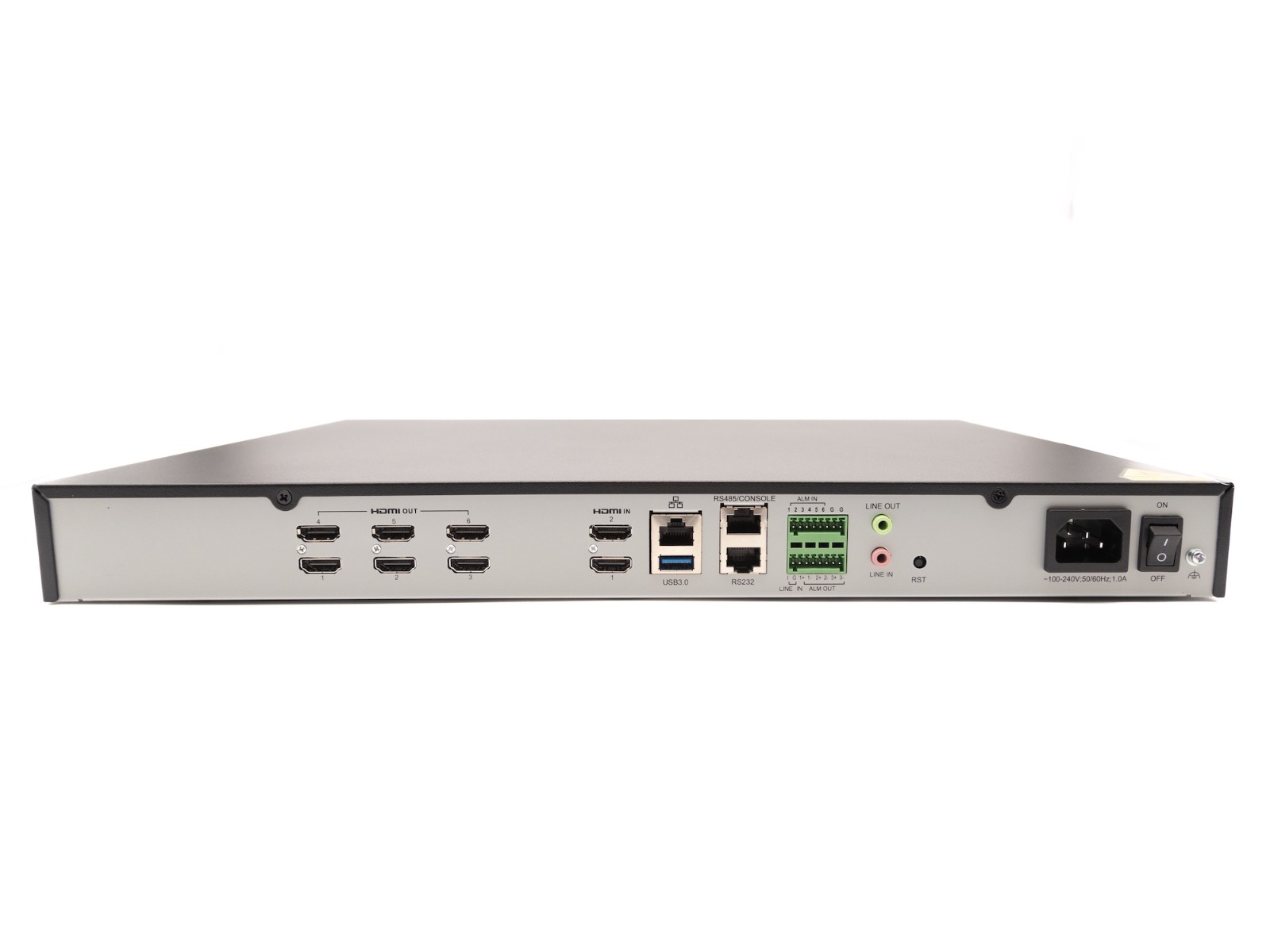

Hardware
NDAA Compliant CPU
6 HDMI Outputs
2 HDMI Input
Rack Mount Ears Included
Cat5e (RJ45) Ethernet to Network
Standard 3-Prong Wall Plug
Note: This decoder does utilize the NVR's stream limit and outgoing bitrate limit
Requires SCW Viewstation on a PC to setup

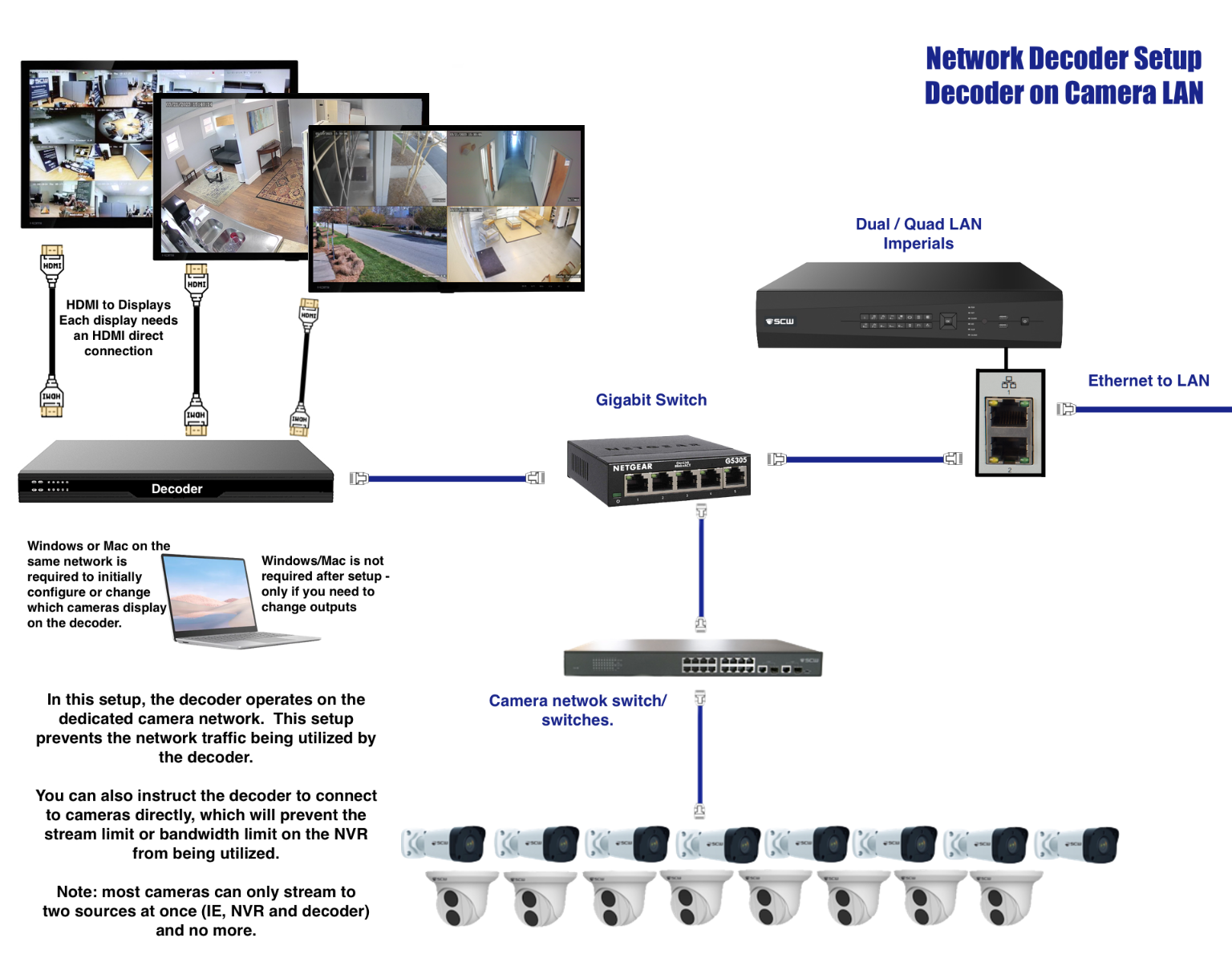

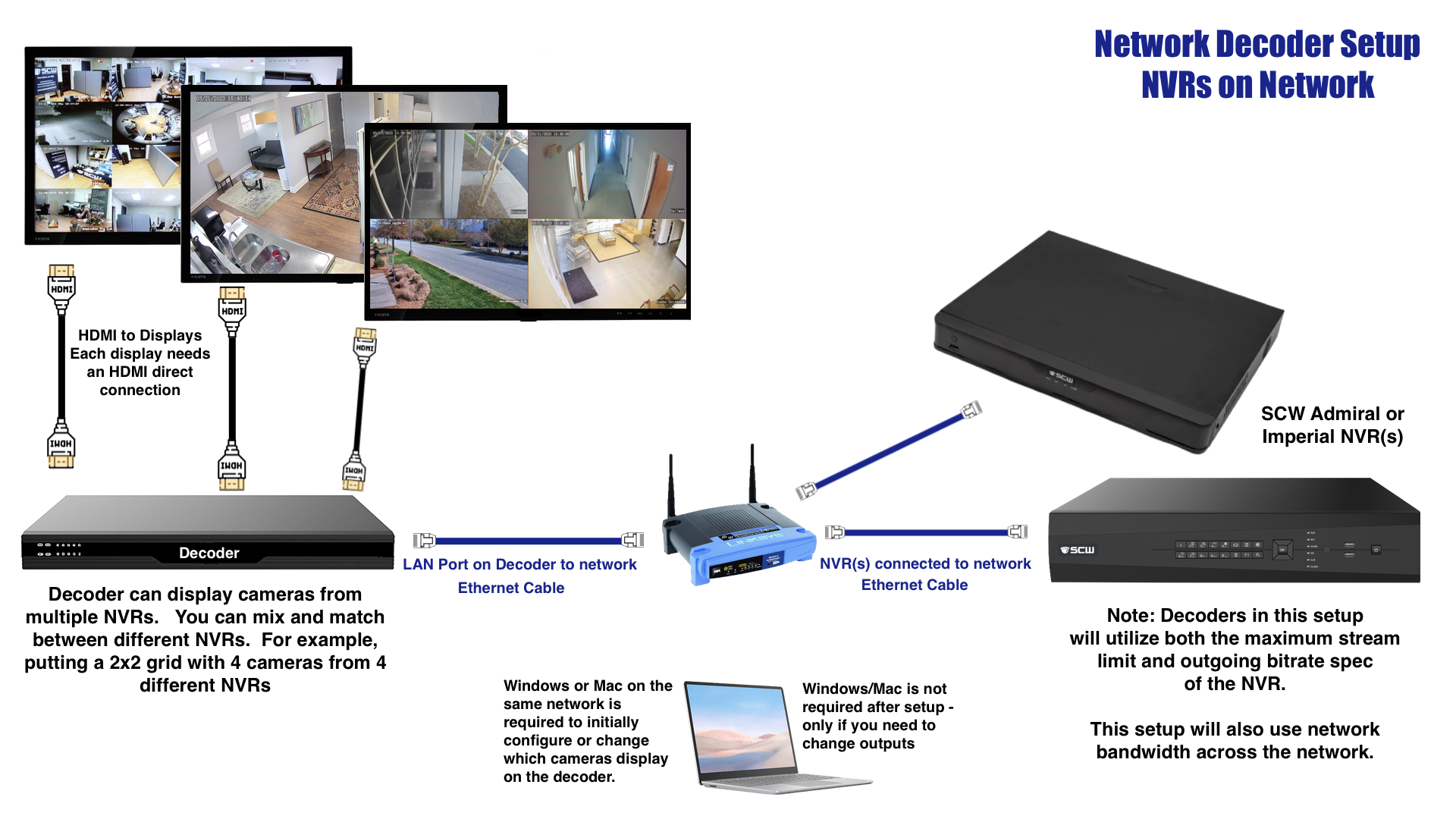

Network decoders require your decoder and the NVR(s) and/or cameras to be on the same network, reachable to each other.
