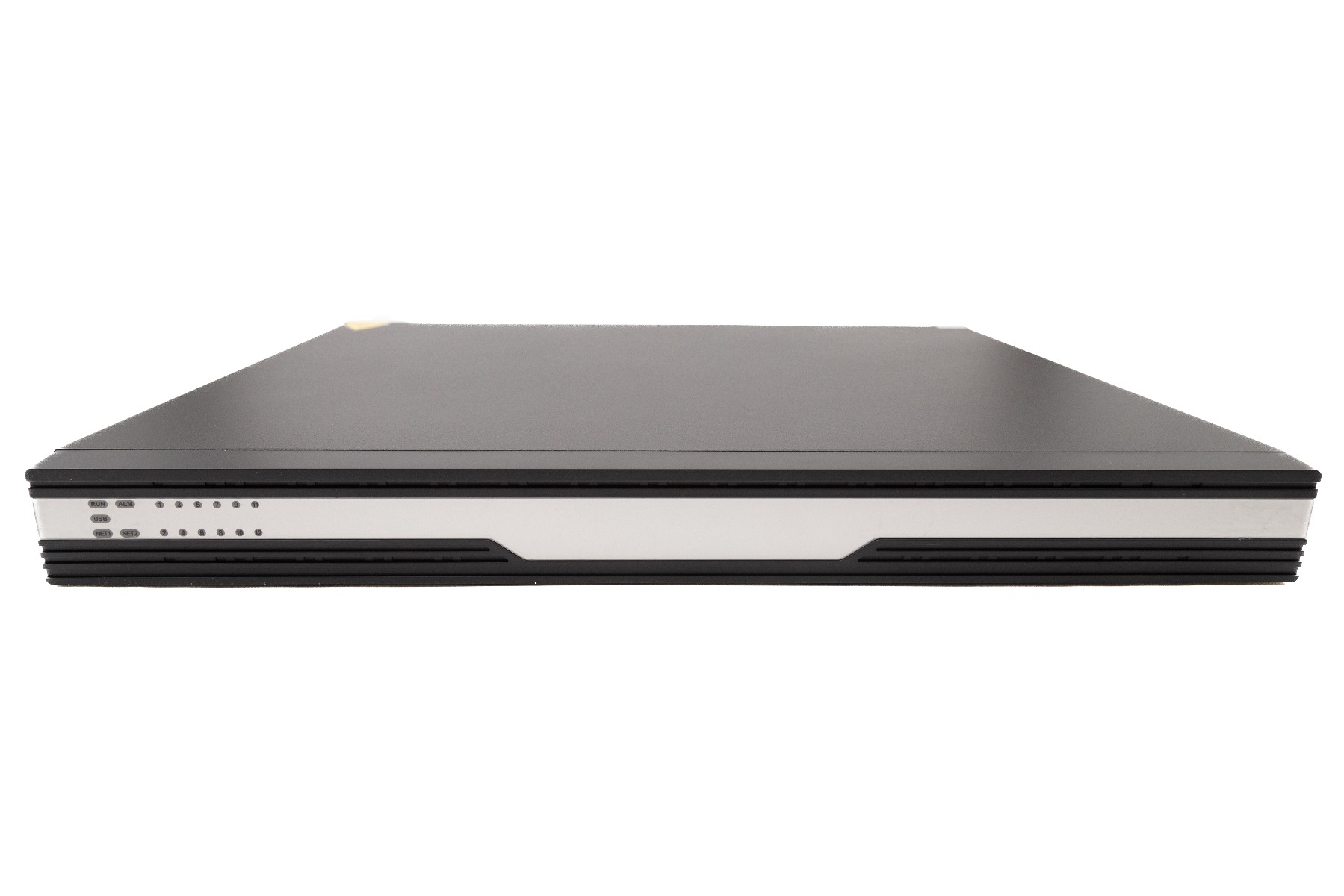

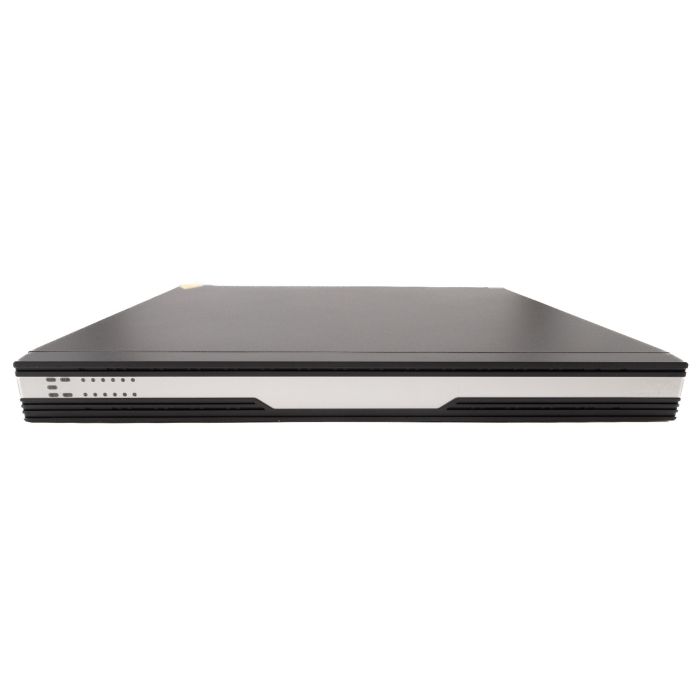

12 HDMI Network Decoder


Contact your sales rep for a delivery timeline.

12 HDMI Network Decoder12 HDMI Network Decoder12 HDMI Network Decoder12 HDMI Network Decoder
Need Installation?

No Problem

Whether you plan to DIY install or want us to do it for you, we're as flexible as you need.

Get a Custom Quote for Equipment or Installation

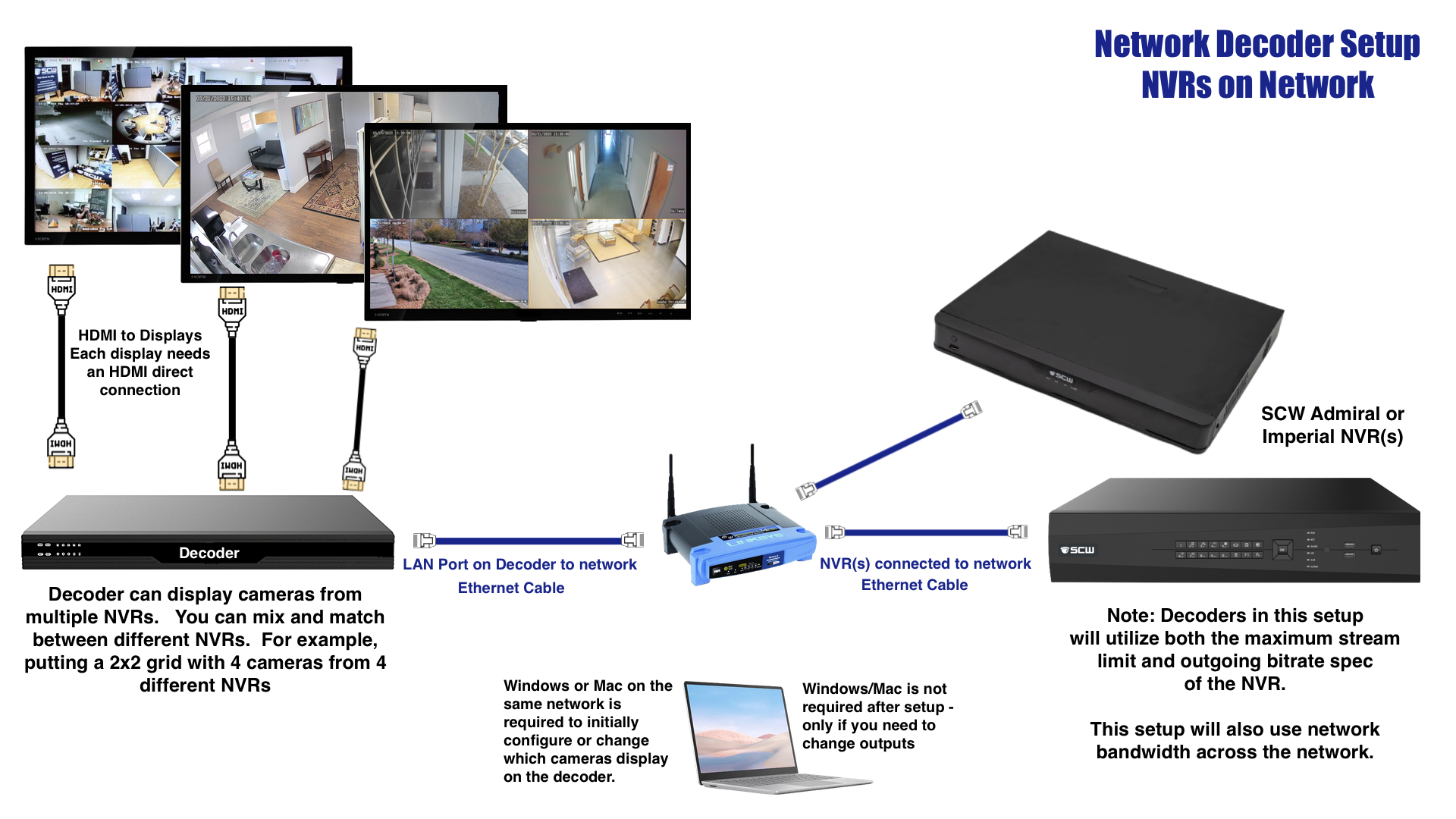

This 12 HDMI decoder enables video walls for permanent viewing stations, such as guards, production monitoring, sales offices, and more. This 12 HDMI version allows up to 12 HDMI connections, each up to 36 cameras per HDMI output. This decoder is a network device and needs a local area network connection to your NVR. For more info check the graphics in the description or reach out to us for system design.


12 HDMI outputs @ 4K or 1080p (8 4K, 4 1080p)

4 HDMI inputs @ 1080p

Display Split

Up to 36 per output

Decoding Capability

16x4K - 64x1080p - 144x720p - 256xD1


NDAA Compliant CPU

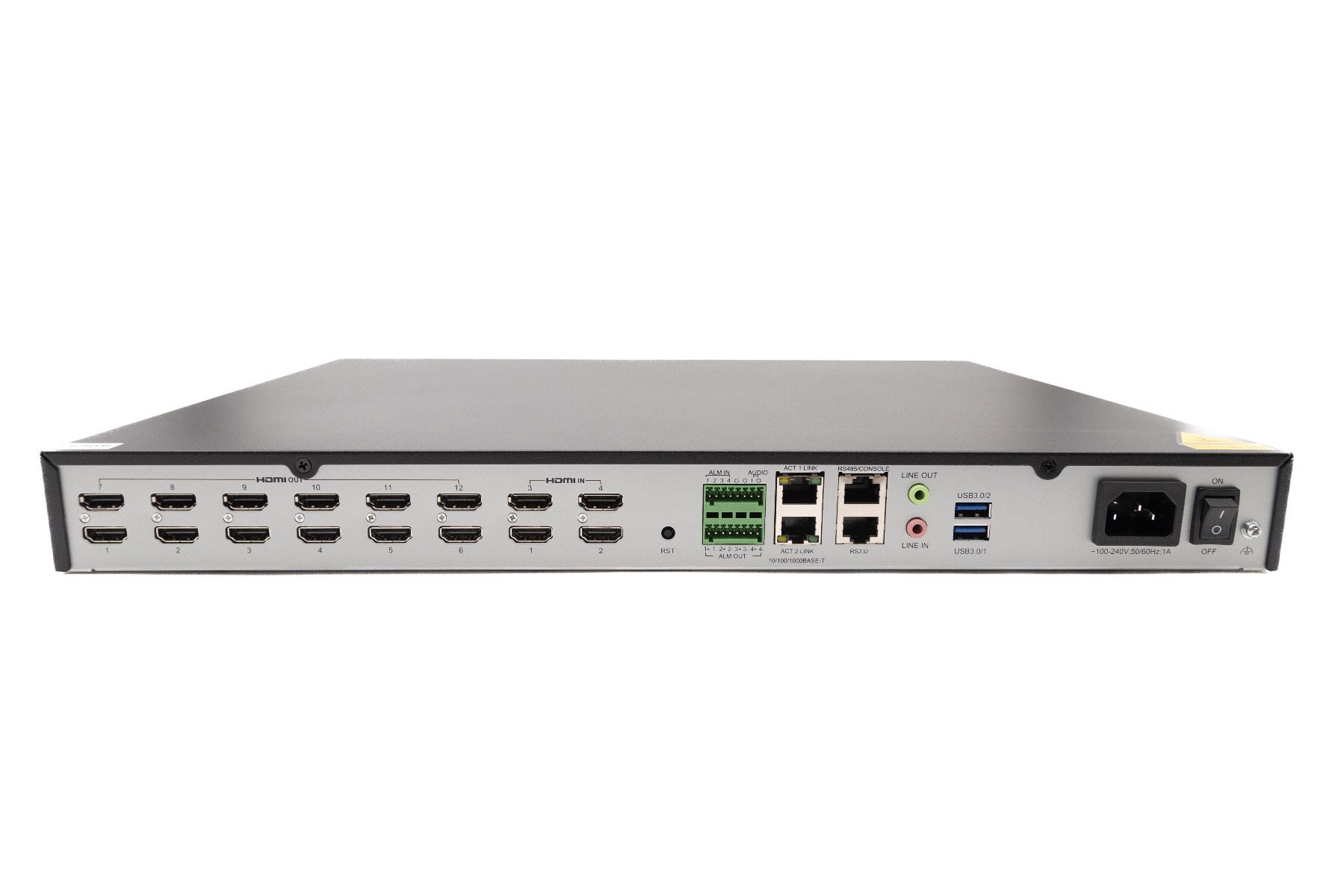

12 HDMI Outputs

4 HDMI Input
Rack Mount Ears Included
Cat5e (RJ45) Ethernet to Network
Standard 3-Prong Wall Plug

Note: This decoder does utilize the NVR's stream limit and outgoing bitrate limit

Requires SCW Viewstation on a PC to setup

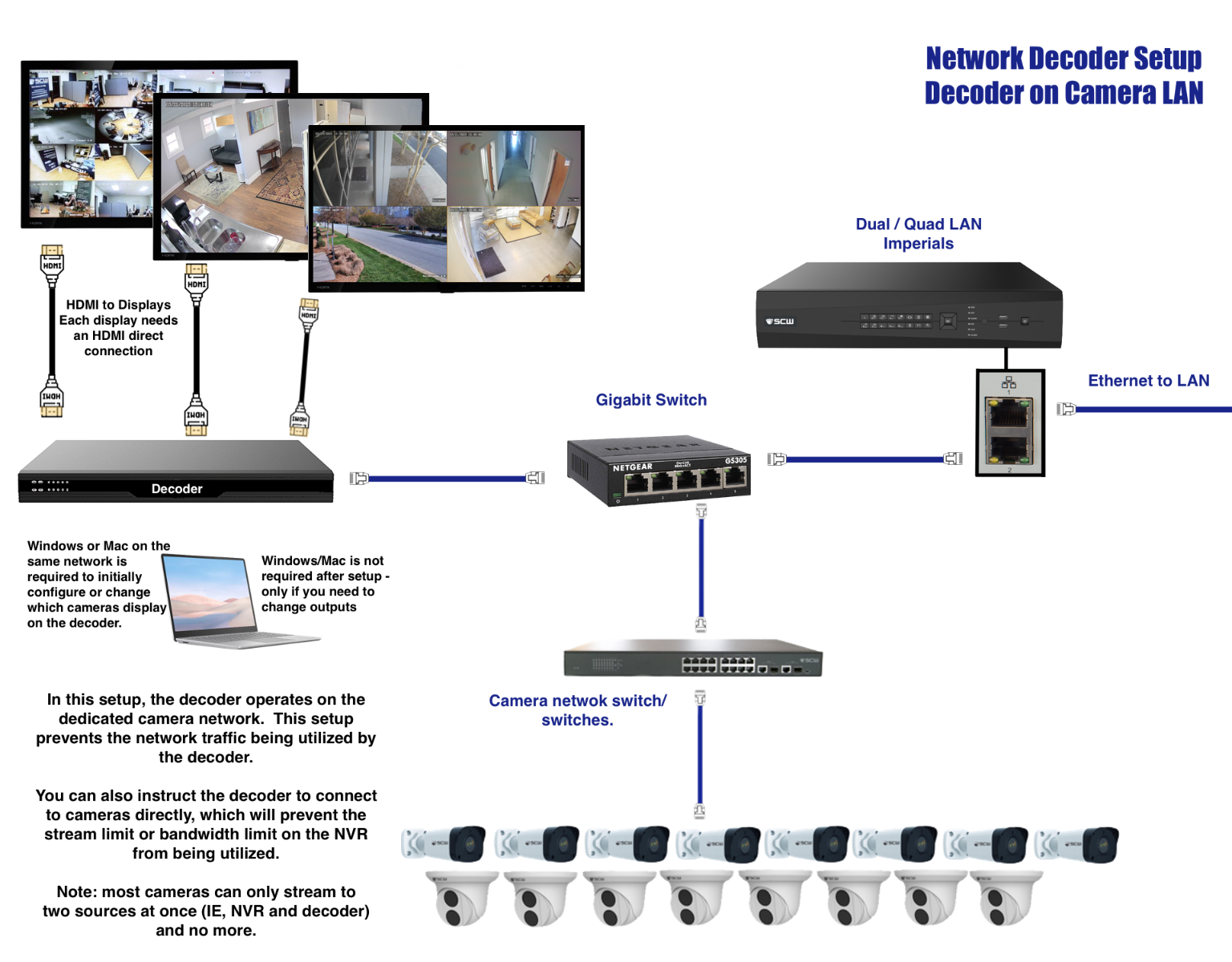

Network decoders require your decoder and the NVR(s) and/or cameras to be on the same network, reachable to each other.
