Window Open/Close Alarm Sensor for SCW Shield - 74WOS
In stock
Usually ships the same business day if ordered before 2PM EST.
SKU
74WOS2
Don't give a thief a 60 second head start to enter your home.
Unlike our competitors, we don't think door and window sensors are the same thing. We have specific window sensors, that alert the second the window is cracked.
Detects
Windows Opening and Closing
When would I use motion sensors, glass break sensors, vs. windows open sensors?
Actions
Alerts Immediately - No 60 second delay.
Siren, App Alerts, and Pro Monitoring when Armed (including Away, Stay, and Night modes)
Open/Close status visible on Shield app
Example Z-Wave Automation: turning your AC off when you open the window.
Battery
Averages 6 years
Images
Need Installation?
No Problem
Whether you plan to DIY install or want us to do it for you, we're as flexible as you need.
Get a Custom Quote for Equipment or Installation
Don't give a thief a 60-second head start to enter your home.
Unlike our competitors, we don't think door and window sensors are the same things. We have specific window sensors that alert the second the window is cracked.
Detects
Windows Opening and Closing
When would I use motion sensors, glass break sensors, vs. windows open sensors?
Actions
Alerts Immediately - No 60-second delay.
Siren, App Alerts, and Pro Monitoring when Armed (including Away, Stay, and Night modes)
Open/Close status visible on Shield app
Example Z-Wave Automation: turning your AC off when you open the window.
Battery
Averages 6 years

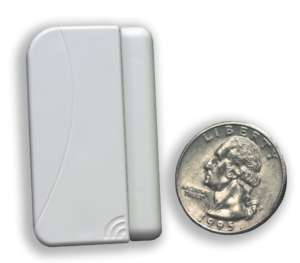

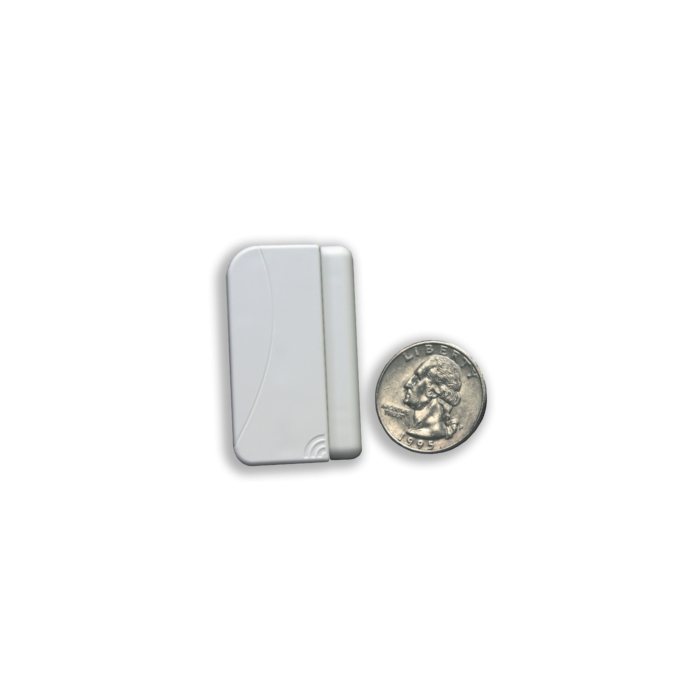

Half the size of most other window sensors!
Used on Doors or Windows (or anything that separates, really)
Maximum range: transmits power at the full FCC limits
Up to 1-inch magnet gap
Averages ~6-year battery life
Requires the SCW Shield Alarm Hub
Window and Door Sensors have identical hardware but have different arming delays.
Window Open / Close Alarm Sensor for SCW Shield
Physical Specifications |
|
|
Housing Body Dimensions
|
1.80 x 0.77 x 0.39 inches (4.6 x 2.0 x 1.0 cm)
|
|
Housing Base Dimensions
|
1.80 x 0.77 x 0.39 inches (4.6 x 2.0 x 1.0 cm)
|
|
Weight with Battery
|
.5 ounces (15 grams)
|
|
Mounting Fastener
|
3M VHB Tape (Included)
|
Environmental Specifications |
|
|
Operating Temperature
|
32 to 120 °F (0 to 49 °C)
|
|
Maximum Humidity
|
85% non-condensing relative humidity
|
Sensor Specifications |
|
|
Frequency
|
433.92MHz
|
|
Replacement Battery
|
One Panasonic CR1632
|
|
Nominal Battery Life
|
6 years
|
|
Battery Voltage
|
3.0 VDC (Nominal), 2.62 VDC (Low)
|
|
Current Draw
|
20 mA (Maximum), 0.5 uA (Quiescent)
|
Certifications |
|
|
Certifications
|
UL634, ULC634, ETL, FCC, IC, EN50131-2-6, EN 60950-1, EN 300 220, EN 301 489, CE Security Grade 1, CE Environmental Class 2, RCM
|
How to Pair with your SCW Shield Alarm System
You only have to do this when ordering a separate sensor to add to a system. We will normally pair all your sensors when making your initial purchase.
Enroll by placing the panel into wireless enrollment mode and then sending an enrollment signal from the sensor.
Options for sending an Enrollment Signal:
• Remove the battery tab, OR
• Remove the cover to trip tamper
How to Install

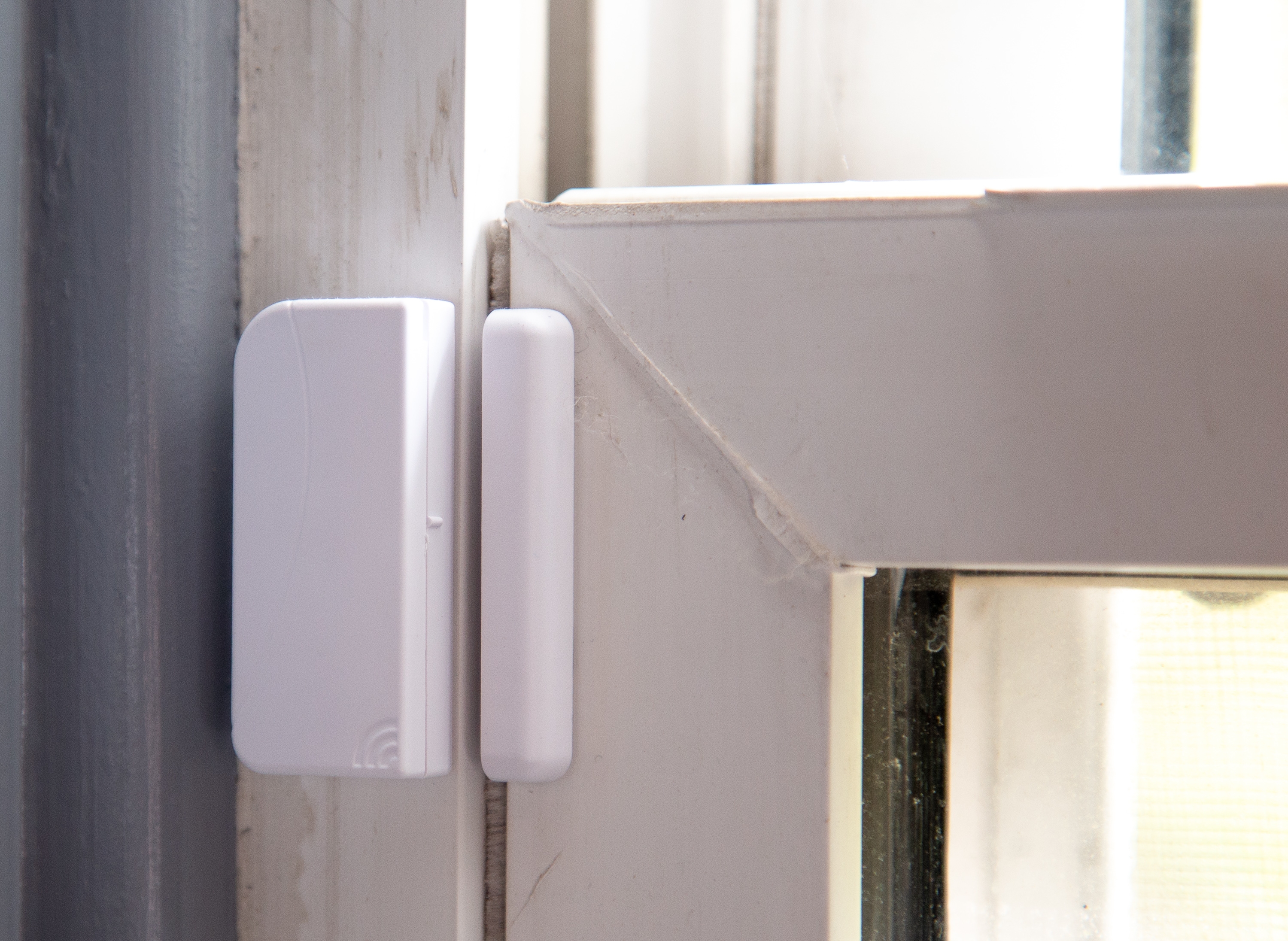

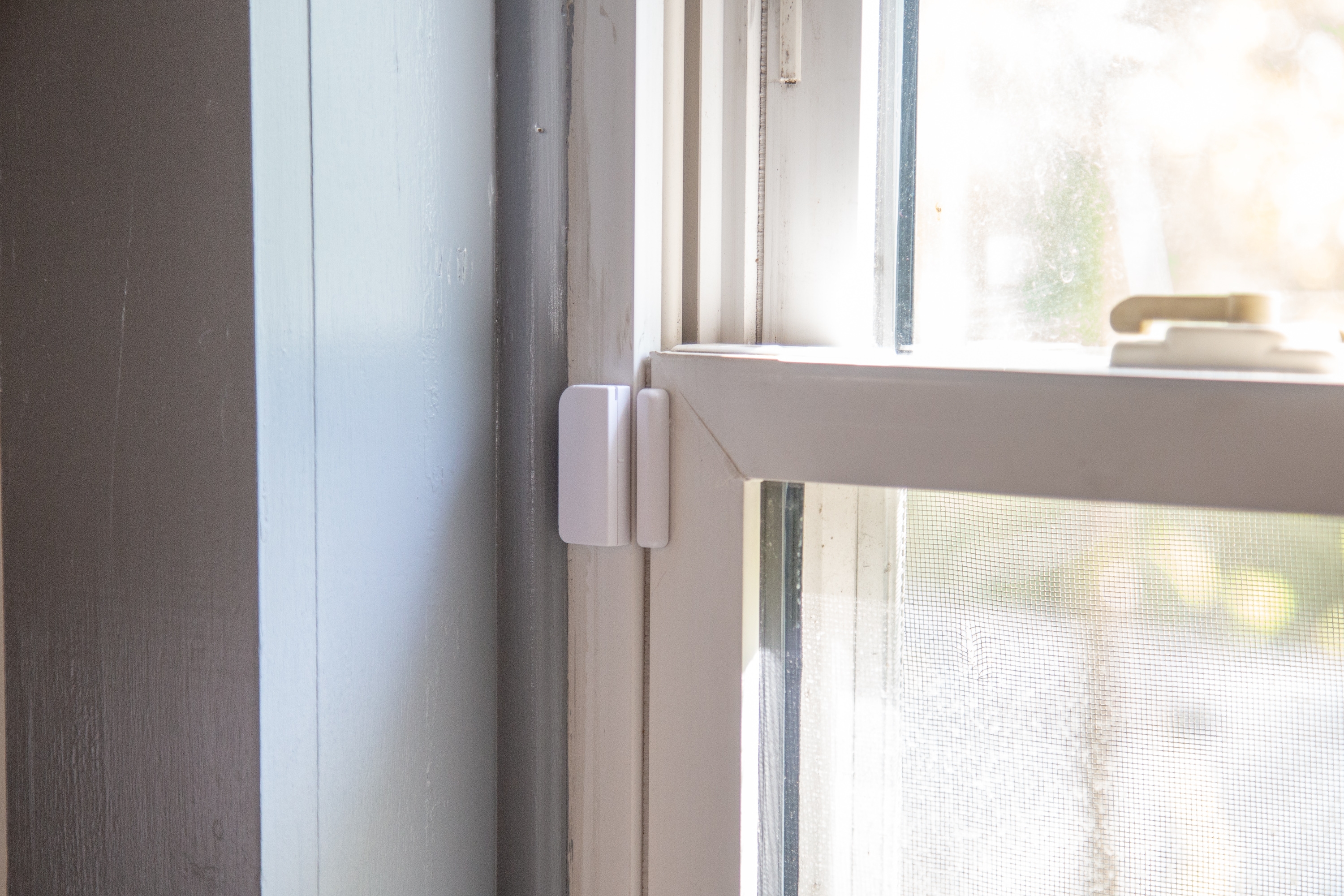

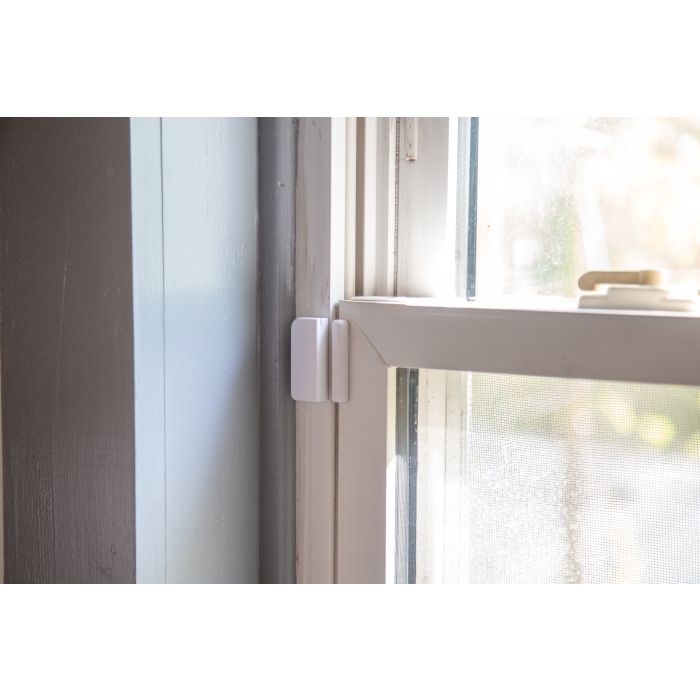

Install by mounting the sensor and magnet on a door or window using the mounting screw locations. Make sure to align the alignment marks on the sensor and magnet when mounting. CE installations must use a coversecuring screw.
Pro Tips
3M VHB Tape works great if the surface is properly prepared and firm pressure is applied for over 10 seconds.
Surface Preparation:
• Clean the surface
• Ensure the mounting surface temperature is above 50 °F
Wireless performance is optimized when mounted near the top of the door in a vertical orientation.
