The Apollo
In Motion Temperature/Fever Detection Thermal Camera System
No Problem
Whether you plan to DIY install or want us to do it for you, we're as flexible as you need.
Get a Custom Quote for Equipment or Installation
The Apollo has a ~3-5 week lead time - for more specific information please contact SCW.
Temperature Methods
Detects Temperatures in Motion
Can detect multiple people while walking, no need to stop.
Accuracy
≤+0.5°F Accuracy
Precise temperature measurements for reliable detections.
Weather Rating
Indoor Only
Alerts
Alerts via built in speaker and included NVR
Special
Blackbody for high accuracy included
Dual Spectrum Video
Automatic Temperature Calibration
Automatic high temperature image capture
Tripods included
Important Use Notice
SCW’s fever detection devices are designed only to detect fevers. They are not designed to identify why that person has a fever. They are not intended to diagnose or identify the Coronavirus or any other disease/ailment.
The Apollo is a thermal camera solution. All thermal camera solutions require certain installation and environmental parameters to achieve accurate temperature readings. Please check the "How to Install" tab for more information.
If you have any questions or concerns please contact the SCW team.

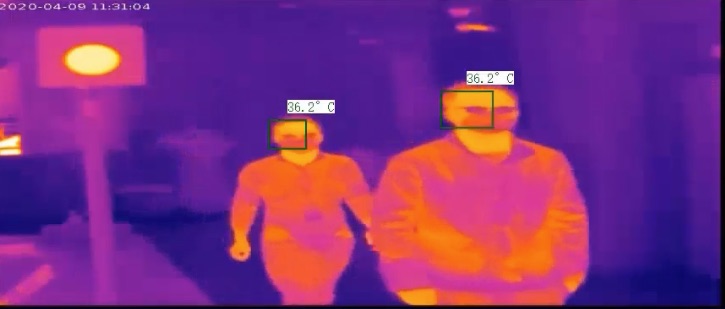

Detects people while they're moving
This fever detection system detects high temperatures while people are moving, no need to stop for read outs.
Ideal for locations with lots of foot traffic such as airports, train stations, arenas, large churches, and more.
High Accuracy
≤+0.5°F Accuracy
High accuracy for reliable detection.
Automatic Temperature Calibration
Thermal camera automatically calibrates.

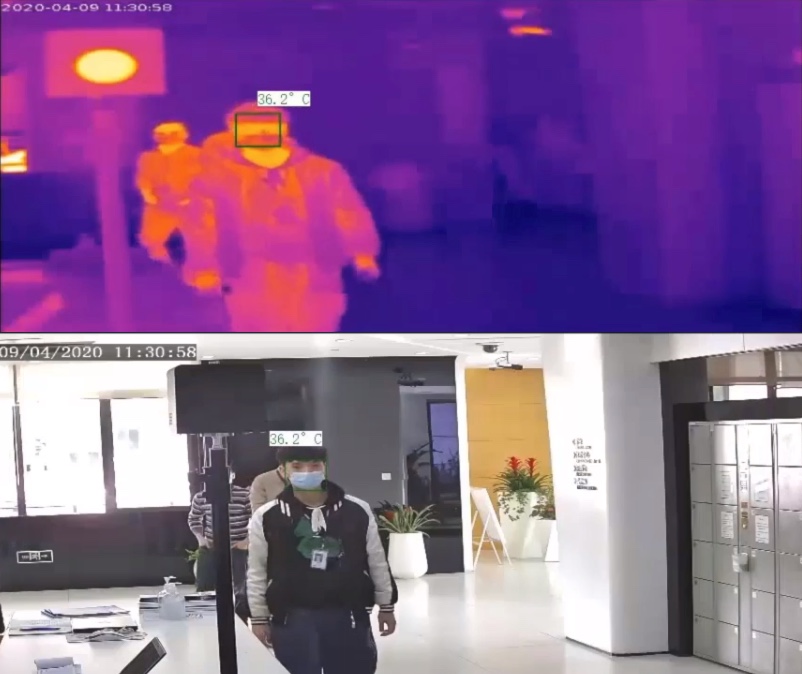

Dual Spectrum Video
The Apollo features dual spectrum video for both thermal and visible light.
Temperature read outs are on both video feeds.
Blackbody Included
Blackbodys help calibrate and keep the thermal camera accurate and precise
Thermal camera systems without a blackbody are likely to fluctuate temperatures.
American-Based Technical Support after the sale. For FREE. Forever.
Real review from Larry, who had this to say:
The most important part of a purchase like this is the support for technical assistance when there is a question or when there is a problem, and they always exceed expectations!
All of our equipment comes with Free Technical Support that is US based (Our Warehouse and Staff are located in Asheville, NC). We're happy to help you via chat, email, screen share / remote support sessions, and phones. Our number is 866-414-2553 and we're open from 9-7 M-F (EST).
The Apollo - FDTCS Specs
Specifications |
FDTCS
|
|
Thermal Sensor
|
Vanadium Oxide Uncooled Focal Plane Arrays
|
|
Pixel Size
|
17μm
|
|
Thermal Image Size
|
1920*720 @ 25FPS
|
|
NETD
|
≤50mk @ f1.0
|
|
Thermal Lens
|
9.7mm
|
|
Response waveband
|
8~14μm
|
|
Angle of View
|
39° Horizontal
|
|
Detection Distance
|
10 to 20 feet away
|
|
Visible Image Sensor
|
1/1.8” Progressive Scan CMOS
|
|
Visible Lens
|
6mm
|
|
Resolution
|
4MP 2688x1520 @ 60fps
|
|
Lux
|
Color 0.01 Lux (F1.6 AGC On) |
|
Visible WDR
|
True 120dB WDR
|
|
Local Storage
|
MicroSD Card up to 256GB
|
|
Interface
|
PoE Ethernet
|
|
Camera Audio
|
Built in Mic and Speaker
|
|
Camera Power
|
DC12V(±25%), PoE+(IEEE802.3at) at 11W
|
Alarn Input/Output |
2/2 |
Blackbody Accuracy |
±0.18°F(@factory calibration, environment temperature 73.4°F ±°7F)； ±0.36°F (@factory calibration, environment temperature 73.4F ±15°F) |
Blackbody Stability |
±0.3°F/30min |
Radiation Area |
72mm x 72mm |
Blackbody Power |
DC24V 90W |
Temperature Range |
60.8°F~89.6°F |
Target Temp Range |
89.6°F~107.6°F |
Temp Accuracy |
≤±0.5°F / 0.3°C |
Package Contents |
1 dual spectrum camera, 1 blackbody, 1 16p NVR, 2 tripods, power adapters |
Software |
NVR Included |
Alerts |
Sound and alerts on camera, temperature info on NVR |
Warranty |
3 years |
Spec Sheet for the Apollo
A PDF listing this product's most important specs.
Important Installation, Screening, and Calibration Guidelines - Apollo guidelines
Local/Monitor View Setup Guide Quick guide on setting up for temperature display on the local NVR output.
Web View Setup Guide - Quick guide on setting up for temperature display on the web interface of the NVR.
Need more info? Give one of our experts at call at 828-483-4237 or Email SCW
Important Installation info for the Apollo
The Apollo is a thermal camera solution. All thermal camera solutions require you to follow specific installation guidelines to maintain system accuracy, but not all marketing material makes this point very clearly.
Please check the following document for very important setup, screening, and calibration guidelines Apollo guide
Currently the Apollo supports temperature displays in live view via the local monitor and Internet Explorer with the plugin. HTML5 or Viewstation are currently not supported.
The system includes a Blackbody, a device that emits temperature for the thermal camera to calibrate to and maintain accuracy.
Having consistent environmental temperature is the most important aspect to maintain accurate temperature readings.
Check the following installation example.
Apollo requirements for height
Screening example
The Apollo camera and blackbody are tripod mounted (tripods included). The blackbody must be in the frame of the thermal camera and alerts come via dedicated Windows which should be monitored by person. High temperatures automatically capture a image to further identify the person with a fever.
Weight: 30.00 lbs
