$200.00

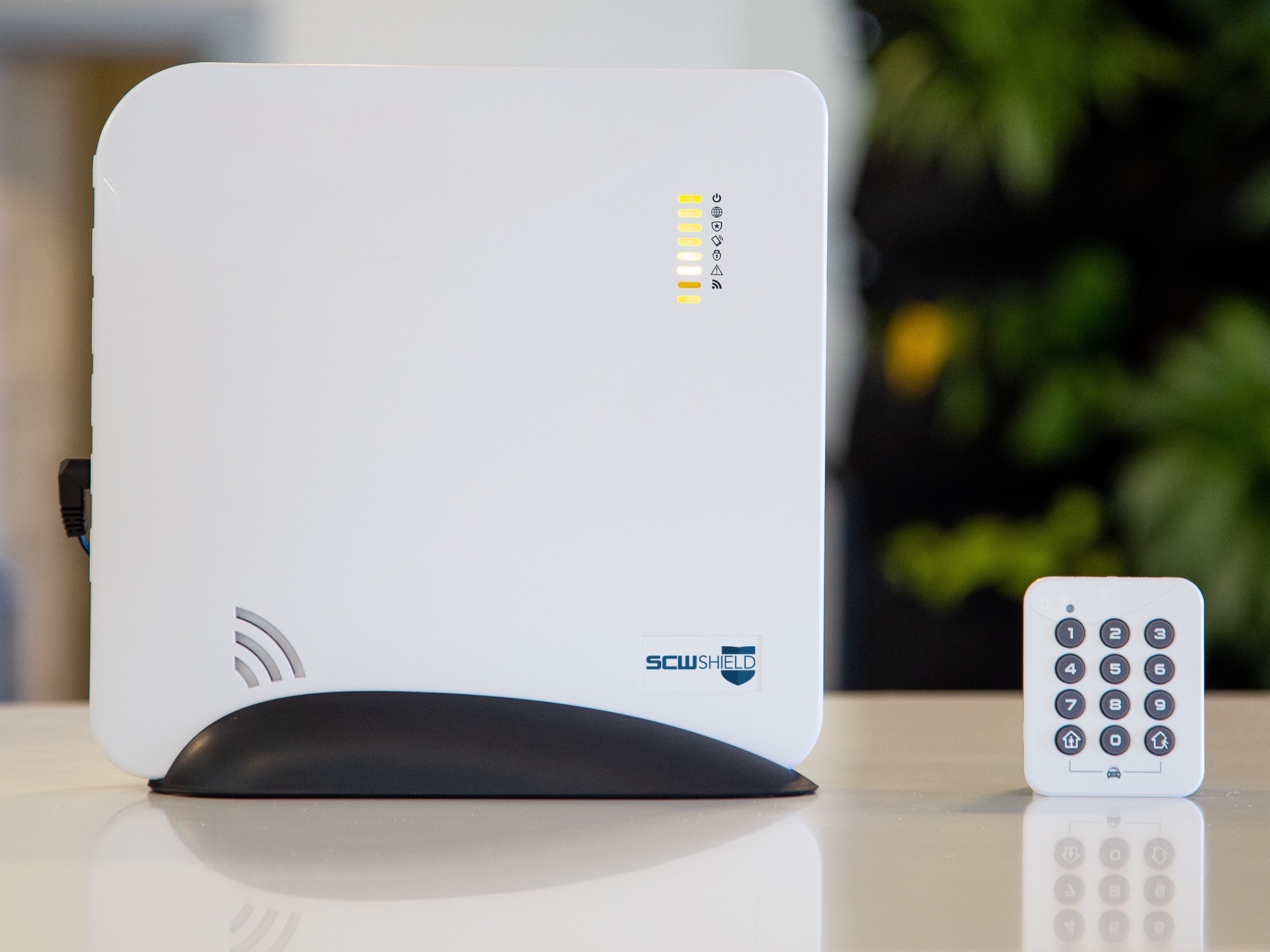

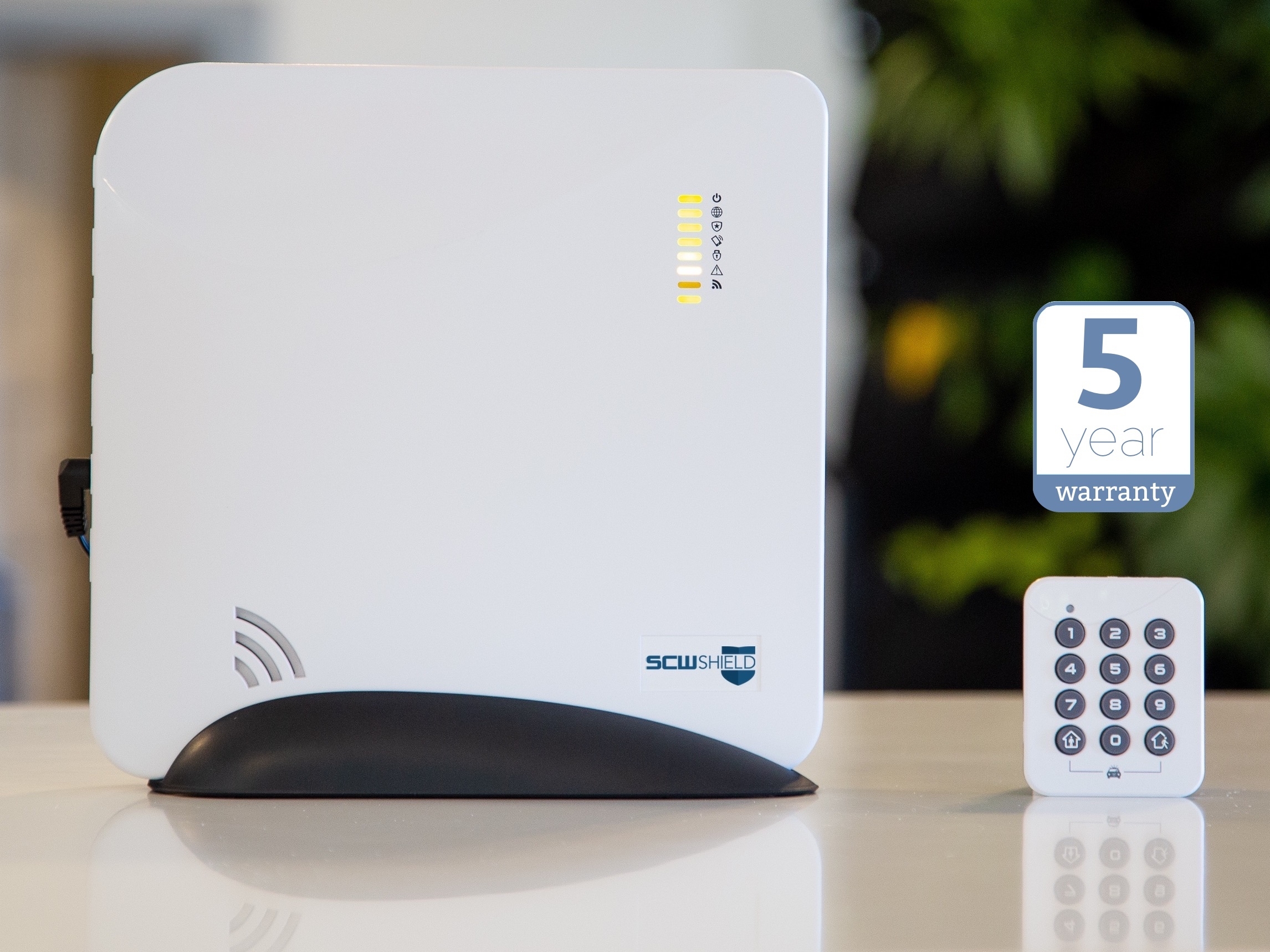

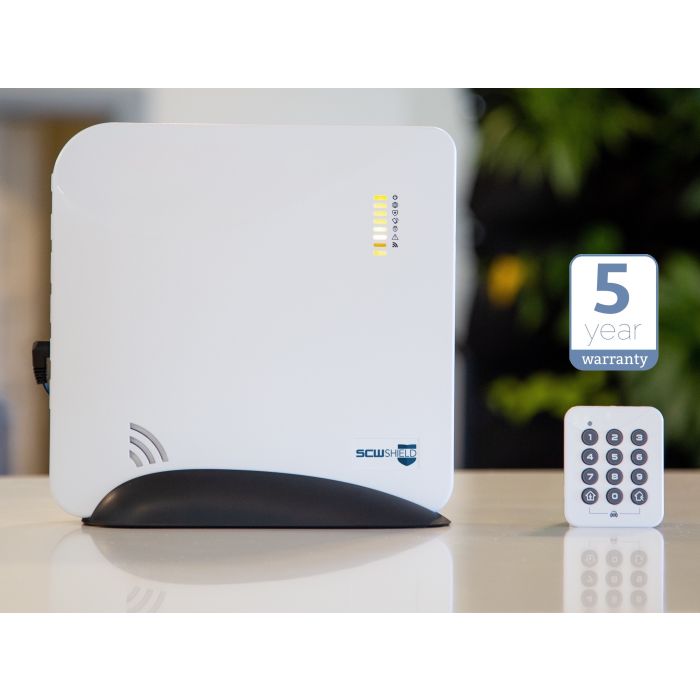

SCW Shield Alarm Hub- 74HUB

In stock

Usually ships the same business day if ordered before 2PM EST.

SKU
74HUB

Easy to Install
Hides in plain sight
Comes with battery backup
No phone line needed - uses the internet connection you already have
Arm/Disarm with SCW Shield App, Keypad, or Key Fob
Includes one Pin Pad
Works with SCW Intrusion Sensors
1500 foot sensor range

Images
SCW Shield Alarm Hub- 74HUBSCW Shield Alarm Hub- 74HUB
Videos
Need Installation?

No Problem

Whether you plan to DIY install or want us to do it for you, we're as flexible as you need.

Get a Custom Quote for Equipment or Installation


Features


Easy to Install

Hides in plain sight

Doesn't look like an alarm

Comes standard with battery backup.

Package Comes with one Pin Pad


Arm/Disarming Options


SCW Shield App

Keypad

Keyfob


Add-ons


Verizon Cellular Backup Card Available

Z-Wave Integration Card Available


Monitoring


3 Plans to Choose From

From 9.99 a month

What are my monitoring options?

SCW Shield Setup is Easy

Easy to Install

Plug it in to your router, plug it in to a wall socket, and download our app - and you're done.

How is it so easy?

We pair the sensors before we even ship the hub to you, so there's almost nothing you need to do.

After you get the items in, you have SCW's award winning amazing technical support at your service.

Hidden in Plain Sight

Catch 'em by surprise.

Thieves won't know what to disable, because the pin pad goes by the door, not the alarm.

One Pin Pad comes with each Hub.

SCW Shield Alarm System Pin Pad
SCW Shield Alarm System

Complete Controls

Arm or Disarm with our App, Pin Pad, or Keyfob

Use the app to see what doors are open, see the temperature, change your thermostat's settings, lock your door, turn off your electronics, or many other things.*

*Assuming you have those sensors or z-wave products.

No Power, No Internet, No Problem

Comes standard with battery backup.

Doesn't need a landline since it uses the internet connection you already have.

Cellular backup add-on available for Shield Basic. Verizon wireless cellular backup come standard on Shield Elite.

no power, no internet, no problem

American-Based Technical Support after the sale. For FREE. Forever.

Real review from Larry, who had this to say:

The most important part of a purchase like this is the support for technical assistance when there is a question or when there is a problem, and they always exceed expectations!


All of our equipment comes with Free Technical Support that is US based (Our Warehouse and Staff are located in Asheville, NC). We're happy to help you via chat, email, screen share / remote support sessions, and phones. Our number is 866-414-2553 and we're open from 9-7 M-F (EST).


scw support included


Items Included in the Box

The SCW Shield Alarm panel

Rechargeable backup battery

12-Volt power adapter

6-foot Ethernet cable

Table-top mounting base

A screw to secure the cover (required for UL installations)

A pin pad

Shield Hub can support:

8 Bluetooth Smart devices (including BLE connected phones)

8 Pin Pads

8 Wireless Sirens

50 Fobs (one for each user on the system)

The SCW Shield Alarm Hub Specs



Physical Specifications

Housing Body Dimensions
8.9 x 8.9 x 1.5 inches (22.6 x 22.6 x 3.8 cm)
Housing Base Dimensions
8.2 x 1.3 x 2.7 inches (20.8 x 3.3 x 6.7 cm)
Weight with Battery
26.8 ounces (760 grams)
Mounting Fastener
#6 or #8 screws (not provided)

Environmental Specifications

Operating Temperature
32 to 120 °F (0 to 49 °C)
Storage Temperature
-4 to 86 °F (-20 to 30 °C)
Maximum Humidity
85% non-condensing relative humidity

Panel Specifications

Frequency
433.92MHz for the sensors (encrypted), 2.4GHz
Power Supply, Input
100-240VAC, 50/60 Hz, 0.5Az
Power Supply, Output
12VDC, 1A
Battery
24 hours maximum (4 hours minimum for RE6130); 6VDC, 2.5Ah, NiMH
Battery Charging Draw
25mA (Trickle), 95mA (Fast)
Current Draw
150mA (Normal), 300mA (Alarm)
Current Draw (Battery Charging)
250mA (Normal), 400mA (Alarm)
Tamper Indications
Cover opening and Wall removal
Sensors
Up to 96 Wireless Security Zones
Interface Devices
up to 8 Bluetooth Smart devices (including BLE connected phones)
up to 8 Pin Pads
Up to 8 Wireless Sirens
Up to 50 Fobs (one for each user on the system)

Max Users
50

Certifications

Certifications
UL1023, UL985, UL1635, UL1610, ORD-C1023-1974, ULC S304 ULC-S545-M89, ETL, FCC, IC EN 60950-1, EN 300 220, EN 301 489, RCM EN50131-3, EN 60950-1, EN 300 220, EN 301 489, CE UL1023, UL1635, ORD-C1023-1974, ETL, FCC, IC


Installation Instructions:

1. Find a location for the panel, keeping in mind it needs AC power and a network connection.

Ideal Panel Location Guidelines

• Locate centrally on the main floor.

• Avoid mounting below ground level.

• Do not mount near ducts, appliances, or other large metal objects.

• Do not mount directly adjacent to other RF devices. We include a 6 ft cable, try to keep the hub 6 feet from your router or modem. Routers, modems, and other electronic devices emit RF noise. For best results, avoid mounting the panel directly beside other electronic devices.

2. Mount the panel by sliding it downward into the table-top base. Alternatively, the panel can be mounted to a wall using the mounting holes in the back cover. You will need to remove the backup battery to reveal the lower mounting hole.

3. Connect the panel to the Internet by wiring its Ethernet port to the home router

4. Power up the panel by inserting the power supply barrel into the power jack on the side. Route the power cable under the strain relief peg.

5. Install the cover-securing screw.

• Do not connect the panel to an AC power receptacle controlled by a switch.

• The power supply must be secured to an outlet if installed in the USA.

• The power supply must NOT be secured to an outlet if installed in Canada.

6. Mount all your sensors.

7. Finally, test the system using the SCW Shield App. System testing should be performed after installation is completed and whenever a problem occurs. Smoke and CO detectors should be tested after installed and weekly by pressing the test button on the detector. The panel will indicate it has properly received a test signal by sounding a temporal three sound for a Smoke detector or a temporal four sound for a CO detector. Critical functions and communication links of the system are automatically monitored and exercised to detect trouble conditions.

How to Pair Sensors

You only have to do this when ordering a separate sensor to add to a system. We will normally pair all your sensors when making your initial purchase.

Putting the SCW Shield Hub in Enrollment Mode

First, press the Enroll/WPS button on the side of the panel until it beeps once (roughly 3 seconds) and then sending an enrolment signal from the sensor or peripheral.

Enrollment Tips

Enrollment signals are typically triggered by removing the battery tab or tampering the device. See the specific device manual for more information.

Wireless enrollment mode will end 5 minutes after the last sensor is enrolled.

Enrolling a Keypad or other 2.4GHz peripheral will automatically end wireless enrollment mode

Tapping the Enroll/WPS button will end wireless enrollment mode.

Enrolling Sensors and Peripherals

Door / Window: Remove the battery tab, which can be done without removing the cover, OR Touch the magnet to the sensor 5 times within 5 seconds, OR Remove the cover to trip tamper

Flood-Freeze-Overheat-Sensor: Remove the battery tabs, OR Remove the wall clip from the sensor body

Glassbreak: Enroll by placing the panel into wireless enrollment mode and then pressing the enrollment button on the sensor

Tilt Sensor: Enroll by placing the panel into wireless enrollment mode and then removing the cover to send an enrollment signal from the sensor.

Pet-Proof Indoor Motion: Enroll by placing the panel into wireless enrollment mode, and then removing the cover to send an enrollment signal from the motion sensor.

Commercial Motion: Enroll by placing the panel into wireless enrollment mode, and then pulling the battery tab or tampering the device.

Outdoor Motion: Enroll by placing the panel into wireless enrollment mode, then remove the battery tab, OR remove the cover to trip tamper.

Panic-Button: Enroll the panic by placing the panel into wireless enrollment mode and pressing the red panic button.

Smoke Sensor: Enroll the smoke alarm by placing the panel into wireless enrollment mode and then holding down the smoke’s test button until the smoke alarm beeps.

CO Sensor: Enroll by first placing the panel into wireless enrollment mode. To send the enrollment signal, press and hold the test button for several seconds. The CO Alarm is not powered until the battery tabs are removed and it is installed on the mounting plate. If the test button is not working, check to ensure the CO Alarm is properly installed in the mounting plate. Use your hand or a cloth to muffle the sounder beeps when using the test button for enrollment. The test button must be held for a couple seconds after the CO Alarm beeps before it will send the enrollment signal.

Siren: Enroll by placing the panel into enrollment mode and then pressing the siren‘s enrollment button located inside the battery compartment. Once enrolled, arm and disarm the panel to verify the siren is within range and properly enrolled The panel only supports one siren at a time. Enrolling a second siren will remove a previously enrolled siren.

KeyFob: Enroll the Five Button Fob by placing the panel into wireless enrollment mode and pressing the away and stay arming buttons simultaneously.

PinPad: Enroll by placing the panel into wireless enrollment mode and then sending an enrollment signal from the PINPad. Press 1 and 3 buttons simultaneously.

SCW Shield Battery Statuses

The SCW Shield Alarm Hub Panel comes with a 24 hour rechargeable battery back up inside. The panel will come with the battery already connected because the panel will never power up by the battery alone.

The battery can have three different statuses. Those status can be:

OK

Low

Missing

Low – If a low battery message is present check event history for AC Failures to determine if the battery has been used recently. If a battery has been fully drained it will take up to 48 hours to completely charge the battery again. Low battery indication should clear before that time. If it has not restored within 48 hours, power cycle the panel. If still showing Low, contact support as a replacement may be required.

Missing – Missing indicates the battery is disconnected from the panel. Unplug the battery and ensure it snaps into the connector on the panel. Close the panel and ensure the trouble has cleared.

OK - battery is working correctly.
