$219.00

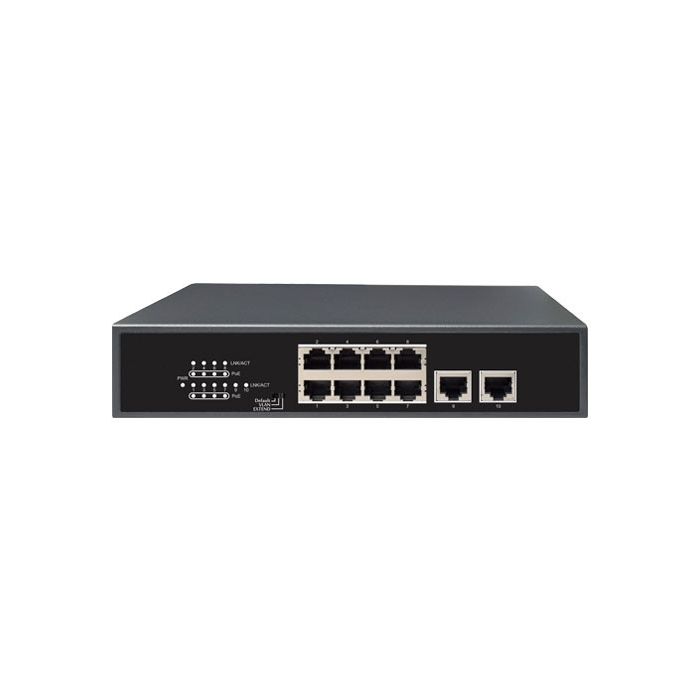

SCW 8 + 2 Port PoE Switch with Extended Transmission - SW10PEXT

In stock

Usually ships the same business day if ordered before 2PM EST.

SKU
SW10PEXT

Ports


No. of POE Camera Ports: 8

No. of Uplink Ports: 1 x SPF, 1 x Gigabit RJ45


Compliance


IEEE 802.3u 100BASE-TX

IEEE 802.3ab 1000BASE-T

IEEE 802.3z 1000BASE-X

ANSI/IEEE 802.3 NWay

IEEE 802.3x flow control

IEEE 802.3af PoE

IEEE 802.3at PoE


Power


Supports up to 30W for each PoE port

Total Output is 115W

AC Input Voltage: 100 ~ 240 VAC


Networking


10M/100M/1000M

max 750 ft cable distance for SCW Admiral or Imperial line cameras

max 300 ft cable distance for other cameras

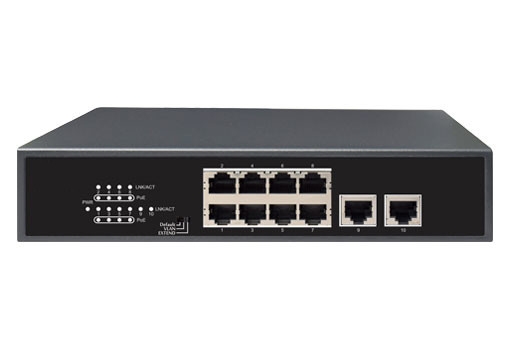

SCW 8 + 2 Port PoE Switch with Extended Transmission - SW10PEXT
SCW 8 Port PoE Switch + 2 Uplink Ports with Extended Transmission - SW10PEXT

8×10/100Mbps POE Ethernet ports

2×Gigabit combo ports (use either RJ45 or SFP, for each)

PoE complies with IEEE802.3af/at, up to 30W for single port

Up to 750 feet transmission distance with SCW Admiral or Imperial line cameras.

Note: Extended transmission only works directly to Admiral or Imperial line cameras. It does not work to other network devices or other switches.

Easy to use, no need to configure

High quality all metal housing

ItemDescription
Ports8×10/100Base-TX autosensing Ethernet ports(all support PoE)
2×Gigabit combo ports (RJ45 and SFP)
Port attribute10/100/1000Mbit/s transfer rate
Half-duplex, full-duplex and auto-negotiation
Auto MDI/MDIX
StandardsIEEE 802.3u 100BASE-TX
IEEE 802.3ab 1000BASE-T
IEEE 802.3z 1000BASE-X
ANSI/IEEE 802.3 NWay
IEEE 802.3x flow control
IEEE 802.3af PoE
IEEE 802.3at PoE
MAC4K
Packet forwarding rate2.68Mpps
Switching capacity3.6Gbps
EXTEND modeDisabled: all ports can communicate with each other, and monitoring optimization is disabled.
Enabled: Downlink ports can only communicate with uplink ports, monitoring optimization is enabled, and transmission distance can be extended to up to 250 meters.
Status LEDsLink/Act (steady green): link is normal
Link/Act (flashing green): data is being forwarded
Link/Act (off): no link
PoE (steady orange): the port is powering a powered device properly
PoE (off): the port is not connected to any powered device or is not supplying power
Power (steady green): AC input is normal
Power (off): AC input is abnormal
PoE802.3at/af
Max PoE capacity: 115 W
Consumption≤ 120 W
DC voltage54 V , 2.2A
Operating temperature0°C-40°C (32°F-104°F)
Operating humidity10%-85%
Storage temperature-10°C-70°C (14°F-158°F)
Storage humidity10%-90%
Dimensions (W×D×H)235mm×110mm×27mm (9.3"×4.3"×1.1")
