likes
$540.00
SCW 16 Port PoE Smart Switch with Extended Transmission
In stock
Usually ships the same business day if ordered before 2PM EST.
SKU
SW16-SMT
Images
Need Installation?
No Problem
Whether you plan to DIY install or want us to do it for you, we're as flexible as you need.
Get a Custom Quote for Equipment or Installation

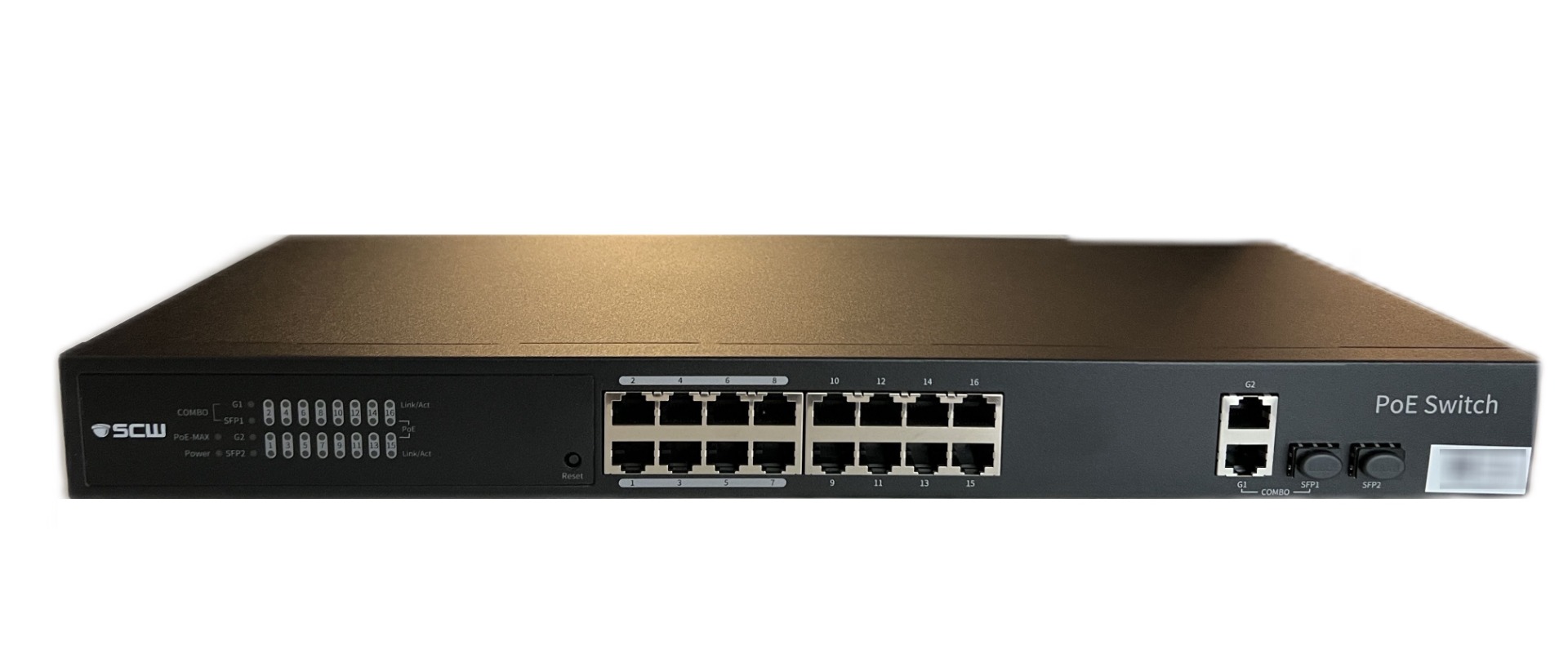

SCW 16 Port Gigabit PoE Smart Switch with Extended Transmission - SW16-SMT
16×10/100/1000Mbps PoE Ethernet ports
1×Gigabit ethernet / 1xGigabit Combo / 1 SFP
PoE complies with IEEE802.3af/at, up to 30W for single port with a 250W total power budget
Monitor network statistics, port status, PoE power status, and more remotely. SCW's new smart switches can be added to Star4Live for remote troubleshooting of networked cameras.
Up to 750 feet transmission distance with SCW Admiral or Imperial line cameras - must be set in the web interface.
Easy to use, no need to configure!
Rack Mountable - Ears Included
Note: Extended transmission only works directly to Admiral or Imperial line cameras. It does not work to other network devices or other switches.
High quality all metal housing
Includes 1 RU Rack Ears
SW16-SMT
Specifications |
SW16-SMT
|
|
Ports
|
16×1000Mbps PoE ports (RJ45)+1×1000Mbps Ethernet /+1xCombo Port + 1xSFP
|
|
Standards
|
IEEE802.3, IEEE802.3u, IEEE802.3z, IEEE802.3ab, IEEE802.3x, IEEE802.3af, IEEE802.3at,
IEEE802.3az
|
|
Switching Capacity
|
38Gbps
|
|
Forwarding Performance
|
28.272Mpps
|
|
Packet Buffer
|
4M bit
|
|
MAC
|
8K
|
|
Dimensions
|
17.32"×7.47"×1.73
|
|
Weight
|
4.75Lb
|
|
Power Supply
|
AC: 100-240V, 50/60Hz
|
|
PoE
|
802.3at/af
|
|
Capacity
|
Max capacity: 250W - Max capacity for single port: 30W
|
|
Cooling Fans
|
1
|
|
Temperature Range
|
0°C-40°C (32°F-104°F) |
|
Operating Humidity
|
5%～90% (non condensing)
|
Spec Sheet for SW16-SMT
A one page PDF listing this product's most important specs.
User Manual for the Smart Switch software
Covers the smart switch functions
