$119.00

Rack Mount Power Distribution Unit with 10+2 AC Outlets 1U

In stock

Usually ships the same business day if ordered before 2PM EST.

SKU
SCW-RMPDU1U

Rack Mount Power Distribution Unit with 10+2 AC Outlets 1U

Rack Mount Power Distribution Unit with 10+2 AC Outlets 1U

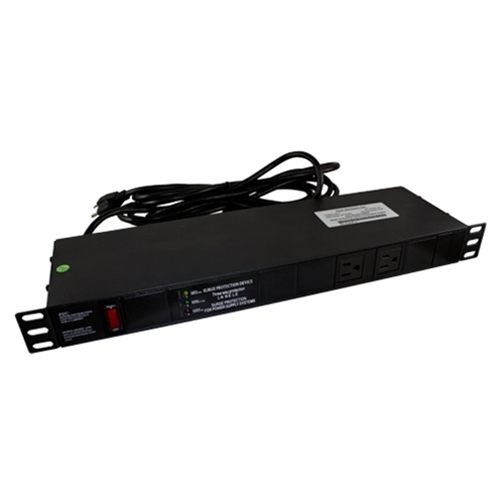

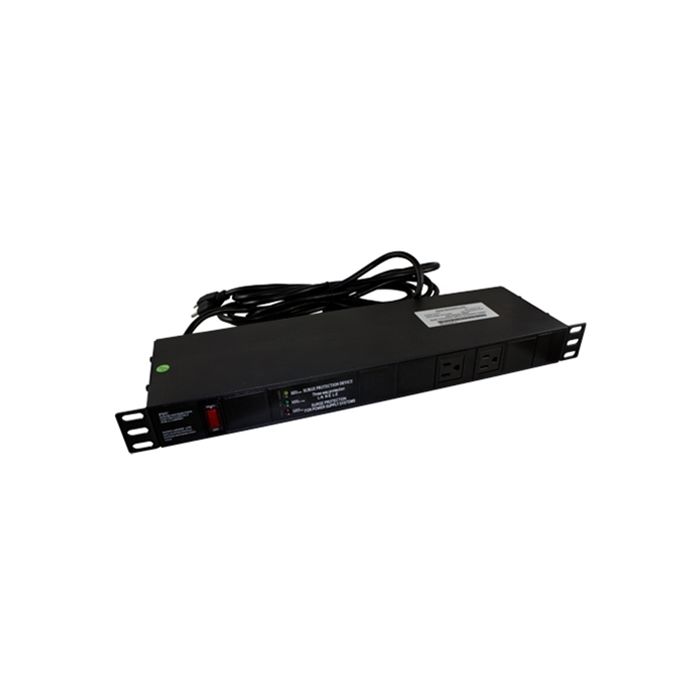

This Rack Mount Power Distribution Unit (PDU) is a solution to many power management problems seen in today's IT environments. Using only 1U, this PDU features a front panel with 2 AC outlets, a lighted On/Off switch, 3 status indicator lights and 10 additional AC outlets on the back panel and is a great addition to any rack or cabinet.

Input Voltage: 120V

Input Frequency: 60Hz

Maximum Input Current: 15A

Plug Type: NEMA 5-15P

Plug Style: Straight

Cord Length: 5 ft (1.5 m)

Cord Specs: 14 AWG 3-Wire Grounded SJT

Output Voltage: 120V

Output Frequency: 60Hz

Output Wattage: 1800W

Circuit Breaker / Overload Protection: 15A

Maximum Continuous Operating Voltage: 130V

Outlet Quantity: 2 Front / 10 Rear

Outlet Type: NEMA 5-15R

Surge Suppression: 700 Joules

Protection Mode: N-H, N-G, H-G

Response Time: <1 Nanosecond

Maximum Surge Current: 10KA

Maximum Surge Voltage: 470V

Clamping Voltage: 775V

EMI/RFI Filtration: 40~60dB@10MHz

PDU Style: Rack Mount 1U)

Pre-Installed Rack Mount Brackets: Removable

Housing Material: PVC and Metal Enclosure

Product Dimensions (HxWxD): 1.75” x 17.5” (without ears)

Product Weight: 3.5 lbs.

UL Certified Power Cord: Yes

RoHS: Yes

Operating Temperature Range: -40° to 70°

Operating Humidity: ≤95%
