Detects
The Sound of Glass Breaking
Range of 4-25 feet
When would I use motion sensors, glass break sensors, vs. windows open sensors?
Actions
Siren, App Alerts, and Pro Monitoring when Armed (including Away, Stay, and Night modes)
Example Z-Wave Automation: turn on all the lights to scare away intruders.
Battery
Averages 4-6 years
Detects the sound of breaking glass.
Effective when the sensor is between 4-25 feet away from the glass.
Delivers 4-6 year battery life

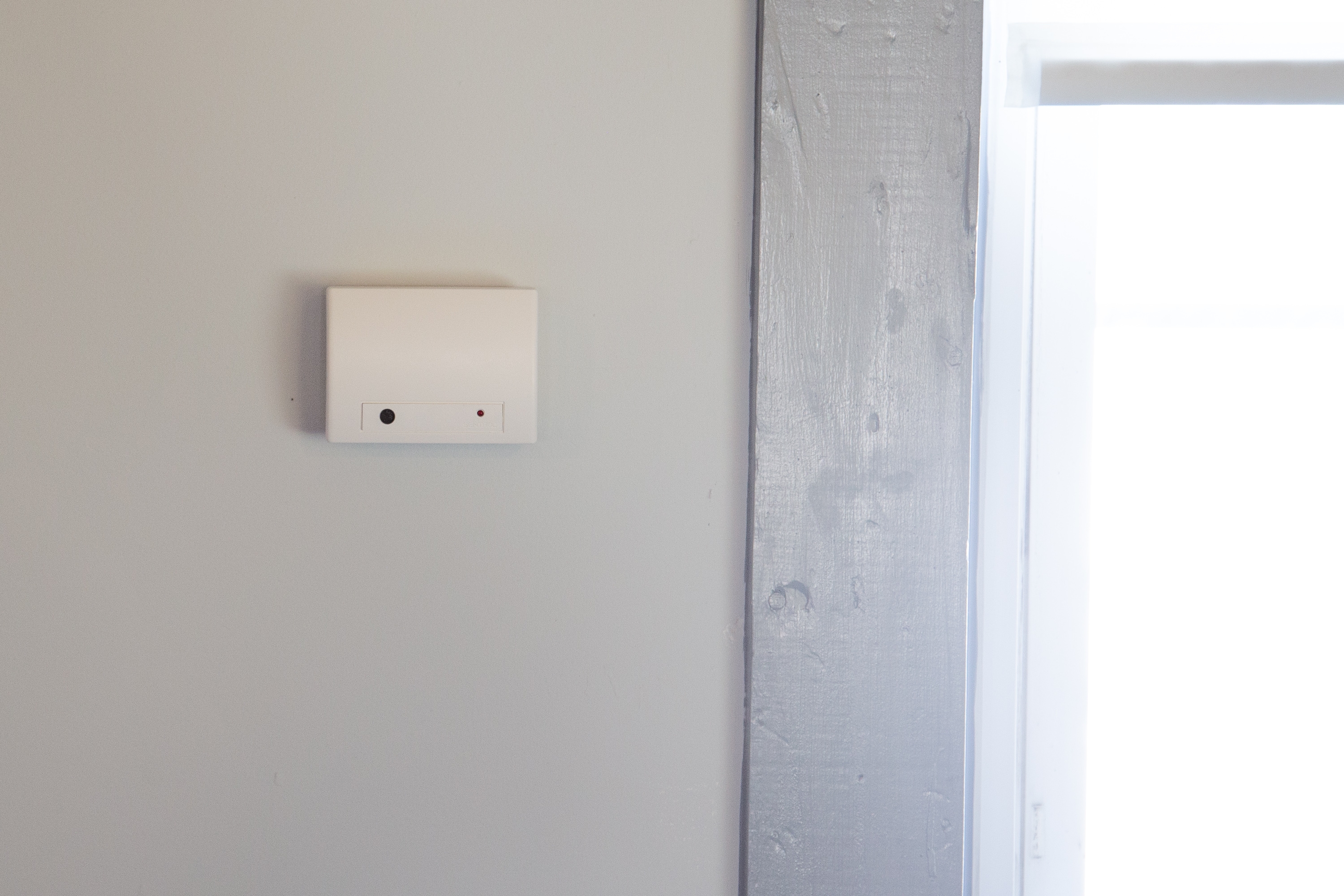

Mount the sensor at least 3 feet (~1 m), but no more than 25 feet (~7.5m), from a window using the mounting screw locations or VHB tape. Ensure that the sensor has visual line-of-sight to all of the windows being protected.
Glassbreak Sensor for SCW Shield Specs
Physical Specifications |
?
|
|
Housing Dimensions
|
4.25 x 3.13 x 1.70 inches
|
|
Weight with Battery
|
1.9 ounces (54 grams)
|
|
Mounting Fastener
|
#6 screws, anchors, VHB tape (all provided)
|
Environmental Specifications |
?
|
|
Operating Temperature
|
14°F to 120°F (-10°C to 49°C)
|
|
Maximum Humidity
|
85% non-condensing relative humidity
|
Sensor Specifications |
?
|
|
Frequency
|
433.92 MHz
|
|
Replacement Battery
|
CR123A 1550mAH
|
|
Nominal Battery Life
|
4-6 years
|
|
Battery Voltage
|
3.0 VDC (Nominal), 2.2 VDC (Low)
|
|
Current Draw
|
30 mA (Maximum), 17 uA (Quiescent)
|
|
Transmitted Indications
|
Low Battery, Supervision
|
Certifications |
?
|
|
Certifications
|
FCC, IC, RCM, EN 60950-1, EN 300 220, EN 301 489, CE
|
Weight: 0.47 lbs
