$29.99

Door Open / Close Alarm Sensor for SCW Shield - 74DOS

In stock

Usually ships the same business day if ordered before 2PM EST.

SKU
74DOS

Not an eyesore: Half the size of most other door sensors!


Actions


Allows you 60 seconds to enter your code into the pin pad before alert

Siren, App Alerts, and Pro Monitoring when Armed (including Away, Stay, and Night modes)

Open/Close status visible on Shield app

Example Z-Wave Automation: turning on your foyer lights when you enter the door.


Battery


Averages 6 years


5 year warranty
Door Open / Close Alarm Sensor for SCW Shield - 74DOSDoor Open / Close Alarm Sensor for SCW Shield - 74DOS

Not an eyesore: Half the size of most other door sensors!


Actions


Allows you 60 seconds to enter your code into the pin pad before alert

Siren, App Alerts, and Pro Monitoring when Armed (including Away, Stay, and Night modes)

Open/Close status visible on Shield app

Example Z-Wave Automation: turning on your foyer lights when you enter the door.


Battery


Averages 6 years


5 year warranty

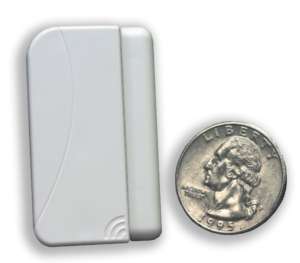

Half the size of most other door sensors!

Maximum range: transmits power at the full FCC limits

1-inch magnet gap

Averages 6 year battery life

Requires the SCW Shield Alarm Hub

Window and Door Sensors have identical hardware, but have different arming delays.

Window Open / Close Alarm Sensor for SCW Shield



Physical Specifications

Housing Body Dimensions
1.80 x 0.77 x 0.39 inches (4.6 x 2.0 x 1.0 cm)
Housing Base Dimensions
1.80 x 0.77 x 0.39 inches (4.6 x 2.0 x 1.0 cm)
Weight with Battery
.5 ounces (15 grams)
Mounting Fastener
3M VHB Tape (Included)

Environmental Specifications

Operating Temperature
32 to 120 °F (0 to 49 °C)
Maximum Humidity
85% non-condensing relative humidity

Sensor Specifications

Frequency
433.92MHz
Replacement Battery
One Panasonic CR1632
Nominal Battery Life
6 years
Battery Voltage
3.0 VDC (Nominal), 2.62 VDC (Low)
Current Draw
20 mA (Maximum), 0.5 uA (Quiescent)

Certifications

Certifications
UL634, ULC634, ETL, FCC, IC, EN50131-2-6, EN 60950-1, EN 300 220, EN 301 489, CE Security Grade 1, CE Environmental Class 2, RCM


How to Pair with your SCW Shield Alarm System

You only have to do this when ordering a separate sensor to add to a system. We will normally pair all your sensors when making your initial purchase.

Enroll by placing the panel into wireless enrollment mode and then sending an enrollment signal from the sensor.

Options for sending an Enrollment Signal:

• Remove the battery tab, OR

• Remove the cover to trip tamper

How to Install

Install by mounting the sensor and magnet on a door or window using the mounting screw locations. Make sure to align the alignment marks on the sensor and magnet when mounting. CE installations must use a coversecuring screw.

Pro Tips

3M VHB Tape works great if the surface is properly prepared and firm pressure is applied for over 10 seconds.

Surface Preparation:

• Clean the surface

• Ensure the mounting surface temperature is above 50 °F

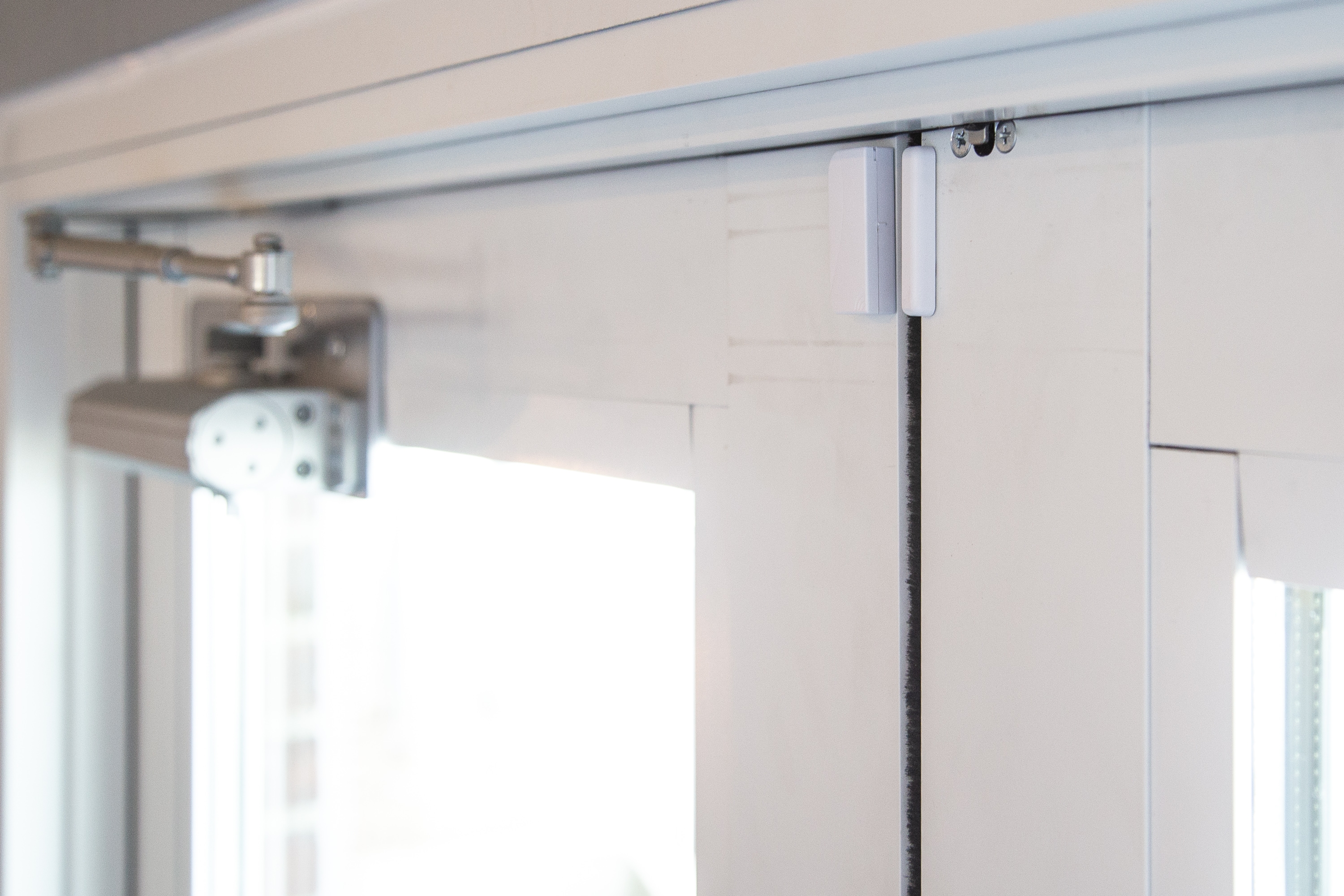

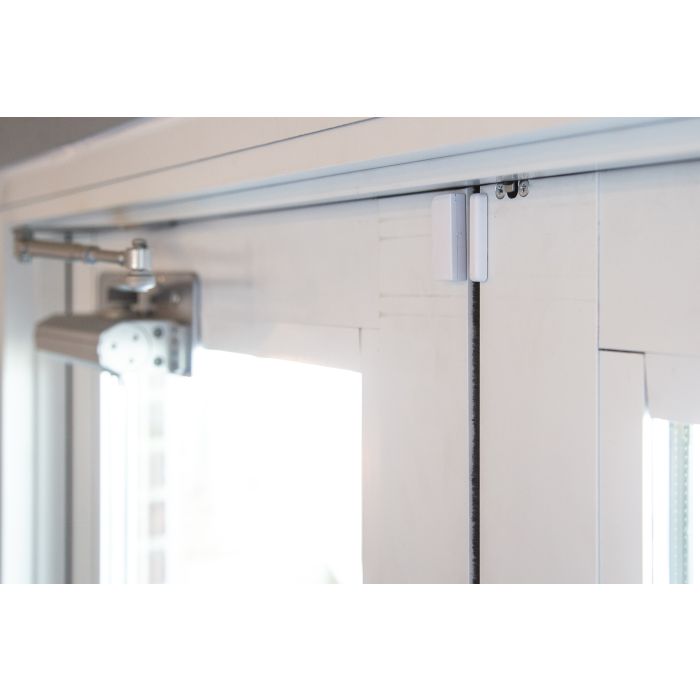

Wireless performance is optimized when mounted near the top of the door in a vertical orientation.
