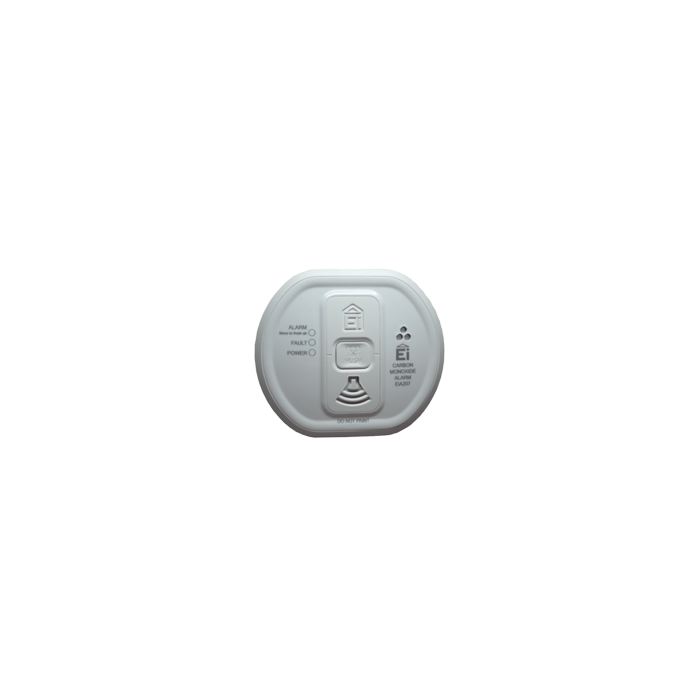

Carbon Monoxide Sensor for SCW Shield - 74CMS
Usually ships the same business day if ordered before 2PM EST.
Environmental Sensors require Smart Monitoring.
Alerts
Contacts the Central Monitoring Station Immediately and Sends Fire Rescue.
Does not send an alert or wait for your response, as Carbon Monoxide can make people non-responsive.
Battery
Averages 10 years
No Problem
Whether you plan to DIY install or want us to do it for you, we're as flexibile as you need.
Get a Custom Quote or a Installation Consultation
Environmental Sensors require Smart Monitoring.
Alerts
Contacts the Central Monitoring Station Immediately and Sends Fire Rescue.
Does not send an alert or wait for your response, as Carbon Monoxide can make people non-responsive.
Battery
Averages 10 years
Integrated Siren
Detects Carbon Monoxide levels from 70-400ppm
Meets UL2034 specifications
Siren sounds at 85dBA at 10 feet minimum
Battery typically lasts 10 years
4.7 x 4.1 x 1.5 inches
Carbon Monoxide Sensor for SCW Shield
Physical Specifications |
|
|
Housing Dimensions
|
4.7 x 4.1 x 1.5 inches ( 11.4 x 10.4 x 3.8 cm)
|
|
Weight with Battery
|
5.9 ounces (167g)
|
|
Mounting Hardware
|
#6 Screws and anchors (provided)
|
Environmental Specifications |
|
|
Operating Temperature
|
40°F to 100°F (4.4°C to 37.8°C), Long Term
|
|
Maximum Humidity
|
15% to 95% non-condensing relative humidity
|
Sensor Specifications |
|
|
Frequency
|
433.92 MHz
|
|
Replacement Battery
|
Two Alkaline AAA Batteries
|
|
Nominal Battery Life
|
10 years
|
|
Transmitted Indications
|
Cover Tamper, Low battery, Supervisions
|
|
Loudness
|
85 dBA at 10 feet (3m) minimum
|
|
CO Sensitivity
|
Meets UL 2023
|
|
Detection Speed
|
1 to 5 feet per second (0.3 to 1.5 meters per second)
|
Certifications |
|
|
Certifications
|
REx16 - FCC, IC, UL2034, CSA 6.19-01 REx16-CE EN60950-0, EN300 220, EN301 489,CE, RCM
|
