$120.00

Glassbreak Sensor for SCW Shield - 74GBS

In stock

Usually ships the same business day if ordered before 2PM EST.

SKU
74GBS

Detects


The Sound of Glass Breaking

Range of 4-25 feet

When would I use motion sensors, glass break sensors, vs. windows open sensors?


Actions


Siren, App Alerts, and Pro Monitoring when Armed (including Away, Stay, and Night modes)

Example Z-Wave Automation: turn on all the lights to scare away intruders.


Battery


Averages 4-6 years


5 year warranty
Images
Glassbreak Sensor for SCW Shield - 74GBSGlassbreak Sensor for SCW Shield - 74GBSGlassbreak Sensor for SCW Shield - 74GBS
Need Installation?

No Problem

Whether you plan to DIY install or want us to do it for you, we're as flexible as you need.

Get a Custom Quote for Equipment or Installation


Detects


The Sound of Glass Breaking

Range of 4-25 feet

When would I use motion sensors, glass break sensors, vs. windows open sensors?


Actions


Siren, App Alerts, and Pro Monitoring when Armed (including Away, Stay, and Night modes)

Example Z-Wave Automation: turn on all the lights to scare away intruders.


Battery


Averages 4-6 years


5 year warranty

Detects the sound of breaking glass.

Effective when the sensor is between 4-25 feet away from the glass.

Delivers 4-6 year battery life

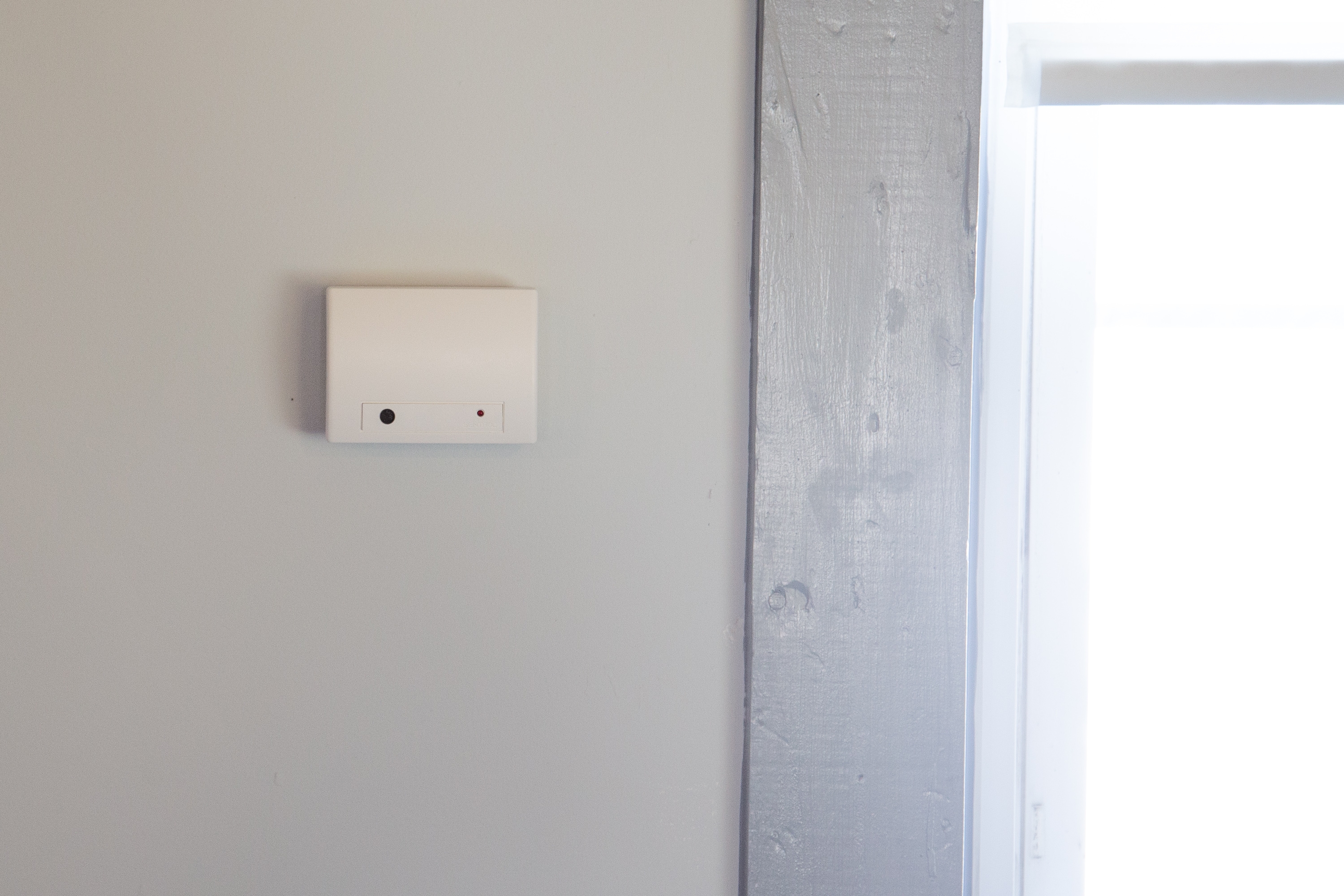

Mount the sensor at least 3 feet (~1 m), but no more than 25 feet (~7.5m), from a window using the mounting screw locations or VHB tape. Ensure that the sensor has visual line-of-sight to all of the windows being protected.

Glassbreak Sensor for SCW Shield Specs



Physical Specifications

?
Housing Dimensions
4.25 x 3.13 x 1.70 inches
Weight with Battery
1.9 ounces (54 grams)
Mounting Fastener
#6 screws, anchors, VHB tape (all provided)

Environmental Specifications

?
Operating Temperature
14°F to 120°F (-10°C to 49°C)
Maximum Humidity
85% non-condensing relative humidity

Sensor Specifications

?
Frequency
433.92 MHz
Replacement Battery
CR123A 1550mAH
Nominal Battery Life
4-6 years
Battery Voltage
3.0 VDC (Nominal), 2.2 VDC (Low)
Current Draw
30 mA (Maximum), 17 uA (Quiescent)
Transmitted Indications
Low Battery, Supervision

Certifications

?
Certifications
FCC, IC, RCM, EN 60950-1, EN 300 220, EN 301 489, CE
